ILLUSTRATED PARTS LIST

CUSTOMER MODEL NO. PDRT900

MFG ID NO. 96092001700

427907 Rev. 1 11.12.09 SR Printed in the U.S.A.

TILLER - - MODEL NUMBER PDRT900 (96092001700)

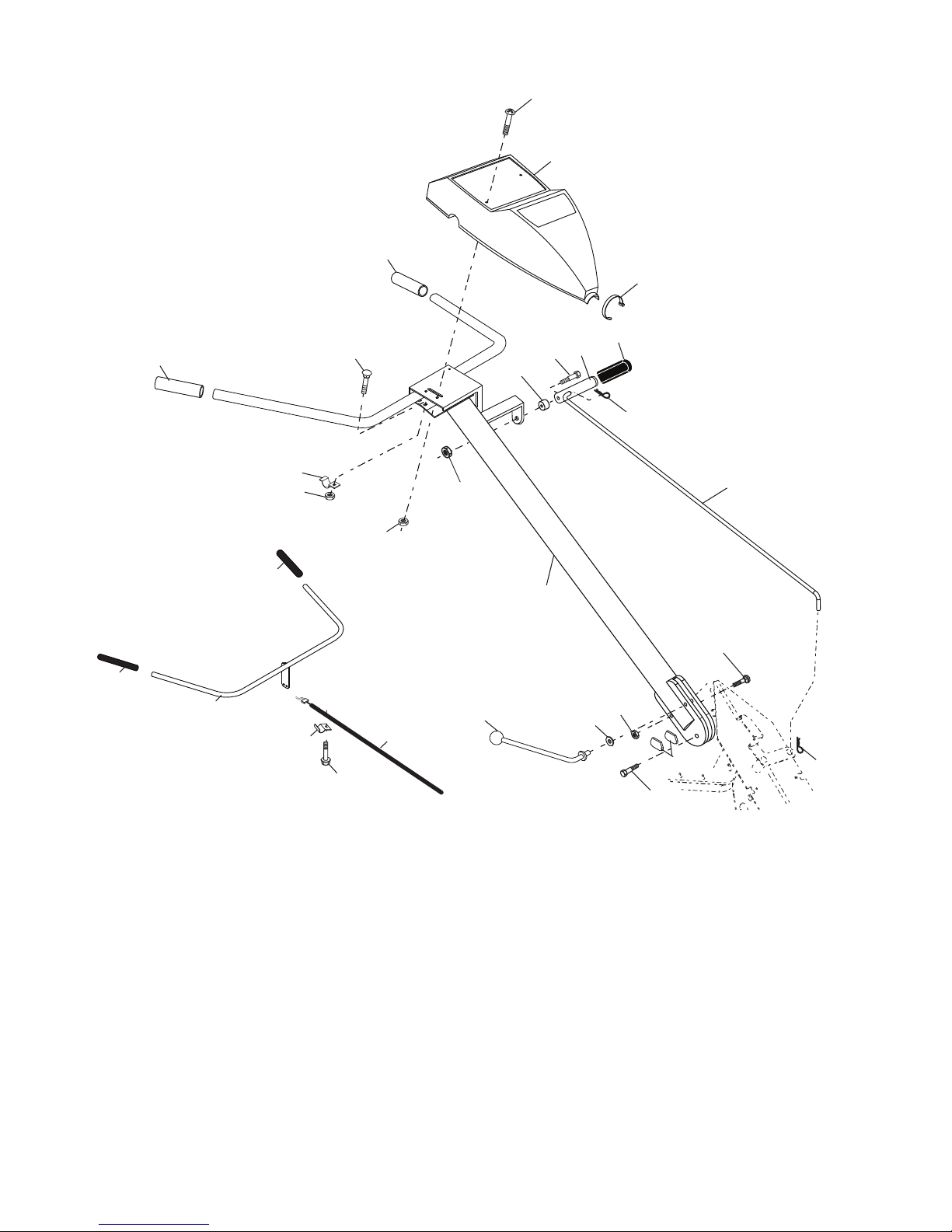

HANDLE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

23 86777 Screw, Hex Washer Hd. Slotted

#10-24 x 1/2

24 9484R Clip

26 159231 Cable, Clutch

27 73900400 Nut Hex Flange 1/4-20 unc

29 73731000 Nut, Keps #10-24 unc

30 104164X Tie, Cable

31 150696 Bolt, Pivot

33 72140404 Bolt, Carriage 1/4-20 unc x 1/2

37 102604X Grip, Bar, Control

41 102744X Clamp, Bar, Control

KEY PART

NO. NO. DESCRIPTION

2 427643 Grip, Handle

4 159228 Bar Assembly, Control

6 180687 Panel, Control

8 71191008 Screw, Phd. #10-24

10 8206H Grip, Handle

11 4497H Clip, Hairpin

12 81328 Bolt, Shoulder

13 187497 Handle, Shift

14 109313X Grommet, Rubber

15 109337X Rod, Shift

16 72110608 Bolt, Carriage 3/8-16 x 1 Gr. 5

17 109229X Lock, Handle

18 73680600 Nut, Crownlock 3/8-16 unc

19 19131611 Washer 13/32 x 1 x 11 Ga.

20 109228X Lever, Lock, Handle

21 180517X428 Handle NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

24 26

12 13

19 18

Handle_assy_33

KEY PART

NO. NO. DESCRIPTION

3 73220600 Nut, Hex 3/8-16

4 170127 Shield, Inner Belt Guard RT

5 164329 Screw, Shift Lever

6 162756 Lever, Shift

7 72110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5

8 161530 Plate, Shift Indicator

9 86777 Screw, Hex, Washer Head, Slotted

#10-24 x 1/2

10 9484R Clip

12 73510400 Nut, Keps Hex 1/4-20 unc

13 23230506 Screw, Set, Hex 5/16-18 x 3/8

14 156117 Spacer, Split 0.327 x 0.42 x 1.220

15 19111116 Washer 11/32 x 11/16 x 16 Ga.

16 145102 Sheave, Transmission

19 12000028 Retainer, Ring

21 110652X Spacer, Split 0.327 x 0.42 x 2.09

22 74770508 Bolt, Fin Hex 5/16-24 unf x 1/2

23 102190X Tire

150751 Rim

795R Tire Valve

24 126875X Rivet, Drilled

25 4497H Clip, Hairpin

TILLER - - MODEL NUMBER PDRT900 (96092001700)

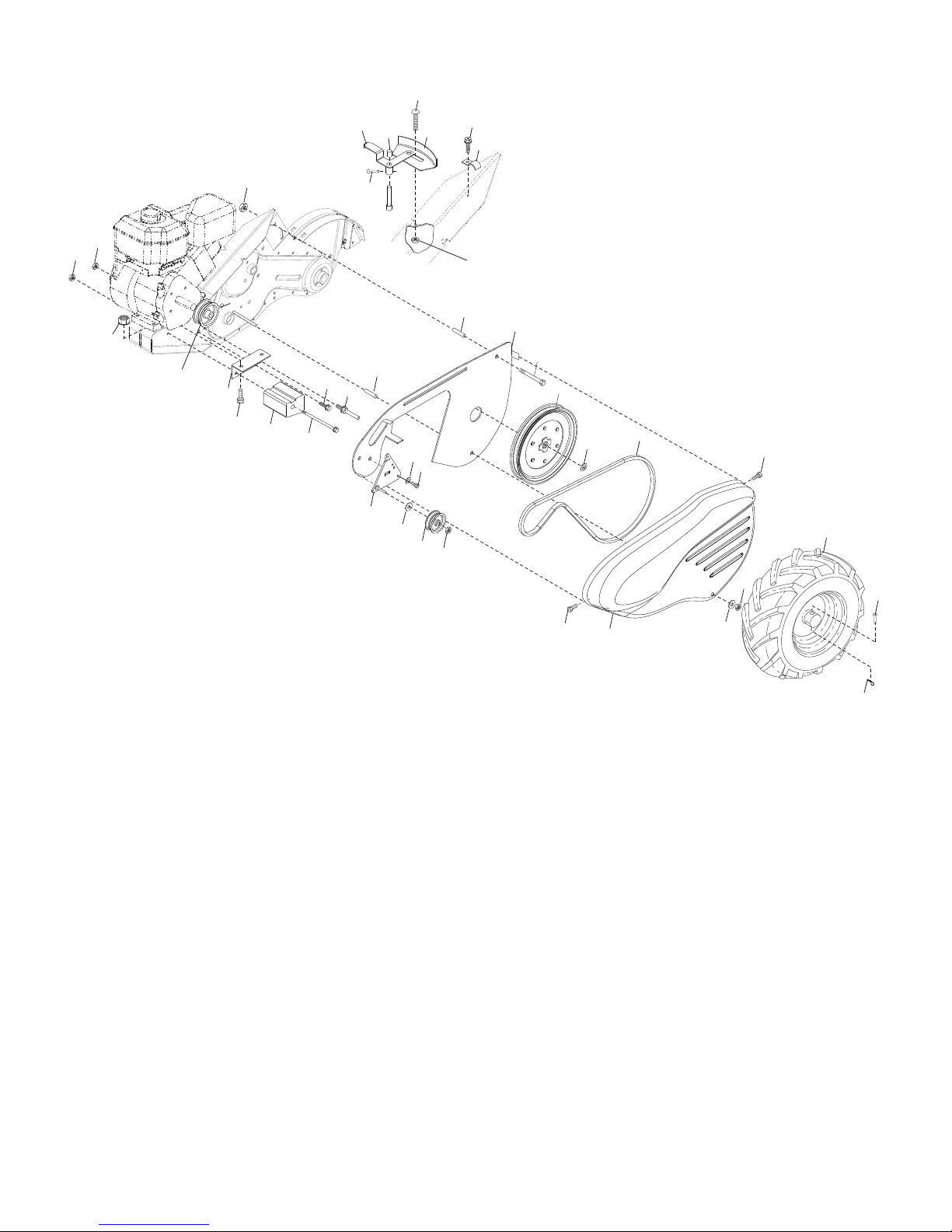

MAINFRAME, LEFT SIDE

KEY PART

NO. NO. DESCRIPTION

26 165501X428 Guard, Belt

27 132801 Belt, V

28 104679X Pulley, Idler

29 12000032 Ring, Klip

30 159229 Bracket, Idler

31 102384X Bolt, Hex 5/16-16 x 12

32 102141X Shaft, Idler Arm

33 74760616 Bolt, Hex 3/8-16 x 1

34 102383X Counterweight, L. H.

35 74760528 Bolt, Hex 5/16-18 x 1-3/4

36 102331X Bracket, Reinforcement, L. H.

37 130812 Sheave, Engine

38 74760544 Bolt, Fin Hex 5/16-18 unc x 2-3/4

39 140062 Cap, Plunger Blk

40 170488 Screw Hex Wsh Slt #10-24 x 1/2

44 73800500 Nut Lock Hex w/Ins 5/16-18 unc PL

65 73970500 Nut Lock Hex Flange

66 19131312 Washer 13/32 x 13/16 x 12 Ga.

68 73510600 Nut Keps Hex 3/8-16 unc







  



 

  



















































MAINFRAME?LEFT??R







NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

TILLER - - MODEL NUMBER PDRT900 (96092001700)

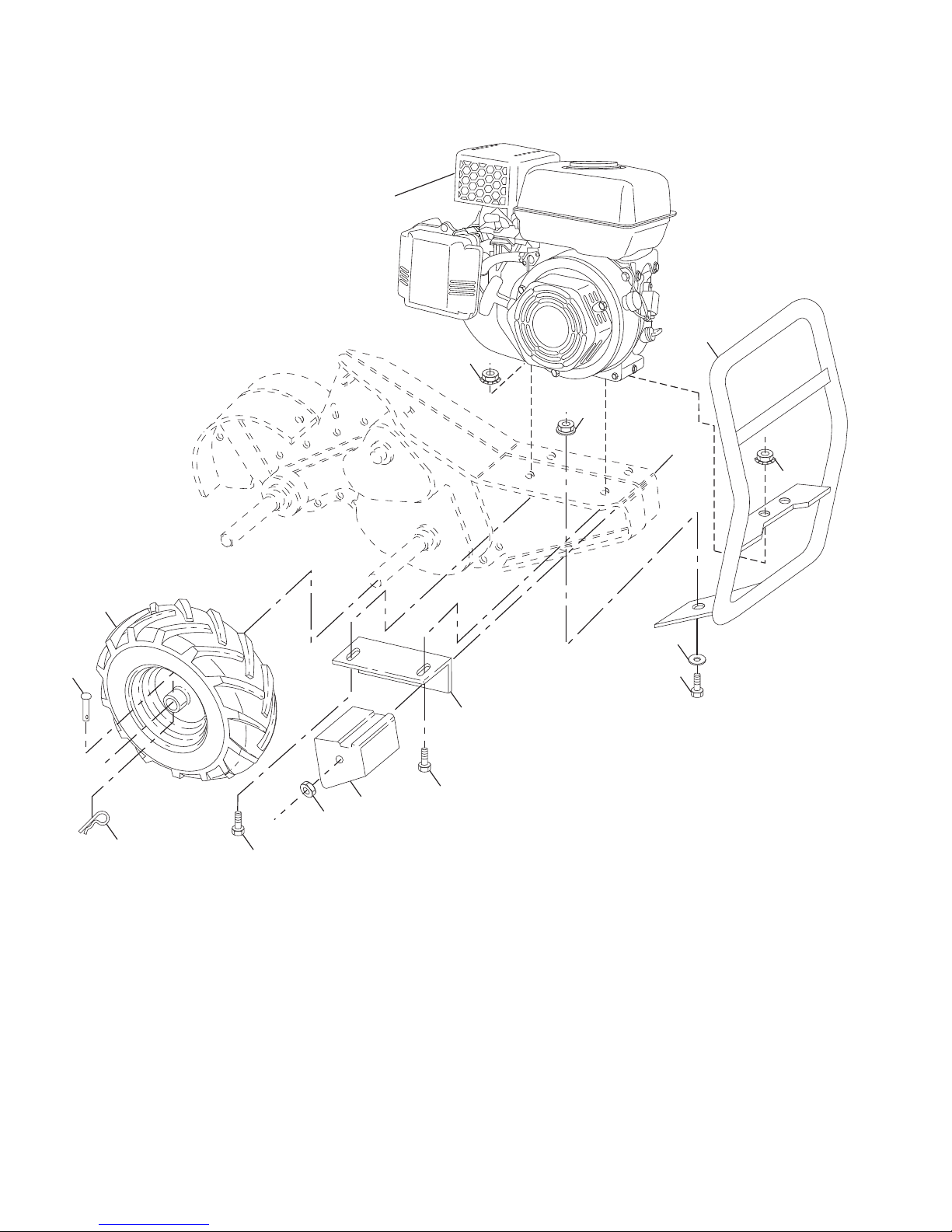

MAINFRAME, RIGHT SIDE

1 185190 Bumper

2 73970500 Locknut, Hex, Flange 5/16-18

3 19111116 Washer 11/32 x 11/16 x 16 Ga.

4 74760512 Bolt, Hex 5/16-18 x 3/4

5 102332X Bracket, Reinforcement

7 102173X Counter Weight, R.H.

10 74760524 Bolt, Hex 5/16-18 x 1-1/2

11 4497H Clip, Hairpin

12 126875X Rivet, Drilled

NOTE: All component dimensions given in U.S.inches.

1 inch = 25.4 mm

13 102190X Tire

150751 Rim

795R Tire Valve

15 - - - - - - - - Engine, LCT Model No. PLMH-

K14600124P-BPQE2 (Order parts

from engine manufacturer)

22 74760528 Bolt, Hex 5/16-18 x 1-3/4

44 73510600 Nut, Keps, Hex 3/8-16 unc





























MAINFRAME?RIGHT?,#4?

NOTE: All component dimensions given in U.S.inches.

1 inch = 25.4 mm

13 15

57 9

518

18 32 33

42 43

25 24

51 58

transmission_7

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

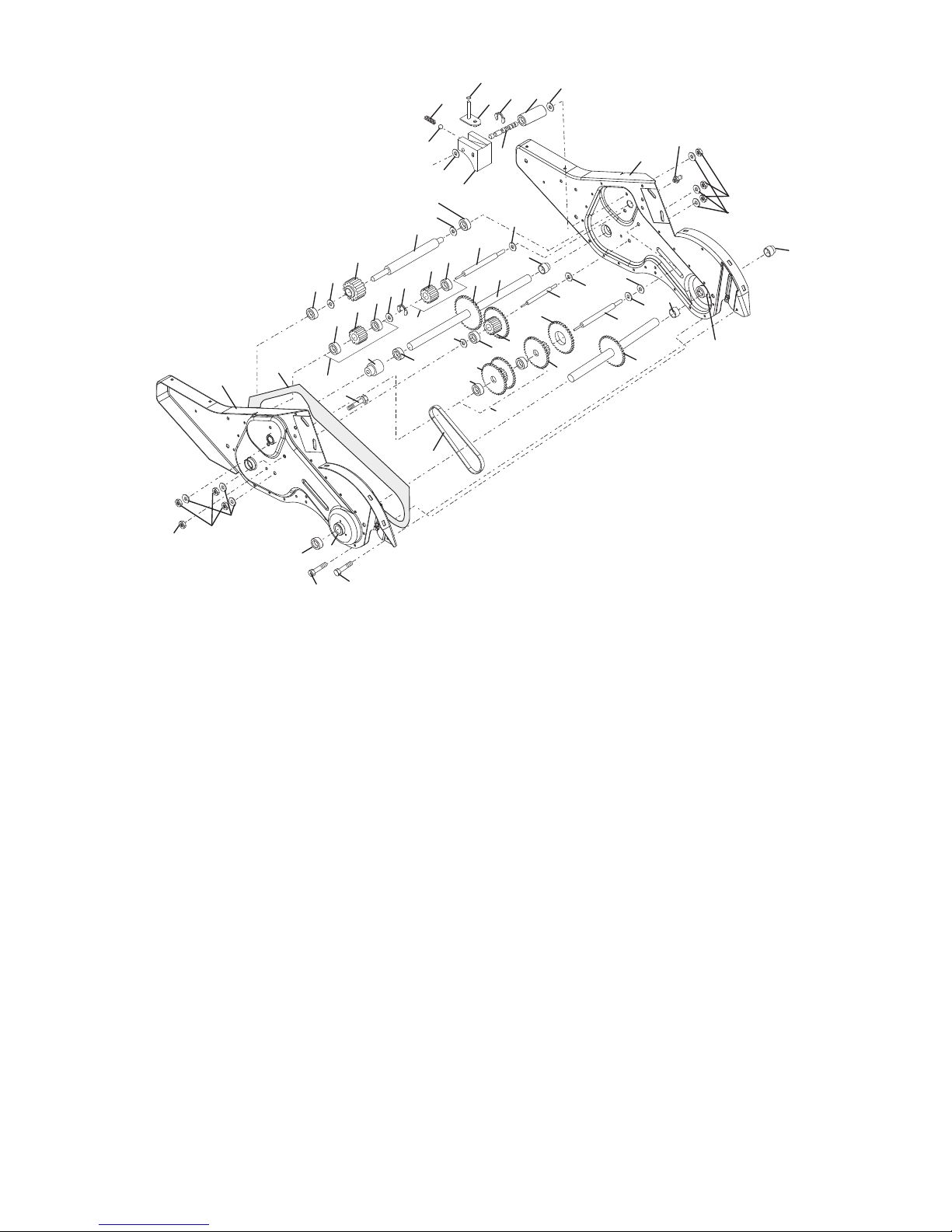

TILLER - - MODEL NUMBER PDRT900 (96092001700)

TRANSMISSION

1 188240 Transmission Assembly (Includes

Key Nos. 2-52)

2 188220 Gearcase, L.H. w/Bearing

(Includes Key No. 4)

3 161963 Gasket, Gearcase

4 5020J Bearing, Needle

5 1370H Washer, Thrust 5/8 x 1.10 x 1/32

6 161520 Pinion, Input

7 161518 Shaft, Input

8 4895H Bearing, Needle

9 154467 Washer, Seal

10 7392M Ball, Steel

11 100371K Spring, Shift, Fork

12 106160X O-Ring

13 142145 Arm, Shift

14 8353J Fork, Shift

15 12000039 Ring, Klip

16 161516 Shaft, Shift

18 4358J Washer

19 12000040 Ring, Klip

20 102114X Gear, Assembly, Reverse Idler

(Includes Key Nos. 21 and 22)

21 102115X Gear, Reverse Idler

22 6803J Bearing, Needle

23 161527 Shaft, Reverse Idler

24 STD551143 Washer, Lock 7/16

25 STD541143 Nut, Hex 7/16-20

27 143009 Bearing, Shaft, Ground Drive L.H.

28 106390X Spacer 0.765 x 1.125 x 1.23

29 102134X Chain #35-50 Pitch

30 150737 Ground Shaft Assembly

31 143008 Bearing, Shaft, Ground Drive R.H.

32 106388X Spacer 0.70 x 1.00 x 1.150

33 102121X Sprocket and Gear Assembly

34 102112X Shaft, Reduction (2nd)

35 102101X Screw, Whiz, Lock 5/16-18 x 3-1/2

36 161524 Sprocket Assembly w/Bearing

(Includes Key Nos. 37 and 38)

37 100413K Bearing, Needle

38 161525 Sprocket, Tine

39 161526 Gear, Cluster, Red 1st & 2nd

40 105346X Gear, Reverse

41 161523 Shaft, Reduction (1st)

42 4220R Washer, Thrust

43 106146X Spacer 1.01 x 1.75 x 0.760

44 155236 Seal Asm. OIl

48 188235 Gearcase, R.H. w/Bearing

(Includes Key No. 8)

49 132688 Shaft, Tine

50 106147X Chain, Roller #50-50 Pitch

51 17720408 Screw 1/4-20 x 1/2

52 73220500 Nut, Hex 5/16-18

53 165140 Bearing Kit, Tine Shaft

54 161528 Gear, DRT Idler w/Bearing

(Includes Key No. 55)

55 3400R Bearing, Needle

56 161529 Gear, DRT Idler

57 165889 Spacer, Split .52 x .64 x 1.04

58 179520 Screw 1/4-20 x .875

60 183226 Fitting Grease

- - 6066J Grease, Plastilube #1

tine_shield_23_in_r1

22 74930632 Bolt, Hex 3/8-16 x 2

23 4440J Hinge

24 72140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5

25 6712J Cap, Vinyl

26 109227X Pad, Idler

27 102695X428 Shield, Leveling

28 120588X Pin, Hinge

29 197761X428 Shield, Side

30 73970500 Locknut, Flange 5/16-18

31 163498 Stake Depth Drag

32 73220400 Nut Fin Hex 1/4-20 unc

33 10040400 Washer Lock Hvy Helical 1/4

38 73510500 Nut, Keps 5/16-18 unc

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 73900500 Nut, Lock Hex Flange 5/16-18

2 161415X428 Shield, Side, Outer L. H.

3 8393J Pin, Stake, Depth

4 12000035 Ring, Klip

5 180847 Bolt 5/16-18 x 3/4 ZNC

6 8394J Spring

7 8392J Bracket, Latch

8 109230X Spring, Depth Stake

9 188862X428 Shield, Tine

13 72110510 Bolt, Carriage 5/16-18 x 1-1/4

14 124343X Bracket, Shield Tine

15 161414X428 Shield, Side, Outer R.H.

16 73900400 Nut, Hex Flange 1/4-20 unc

18 72040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5

19 102701X Grip

20 73220600 Nut, Hex 3/8-16

21 102156X Stake, Depth NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

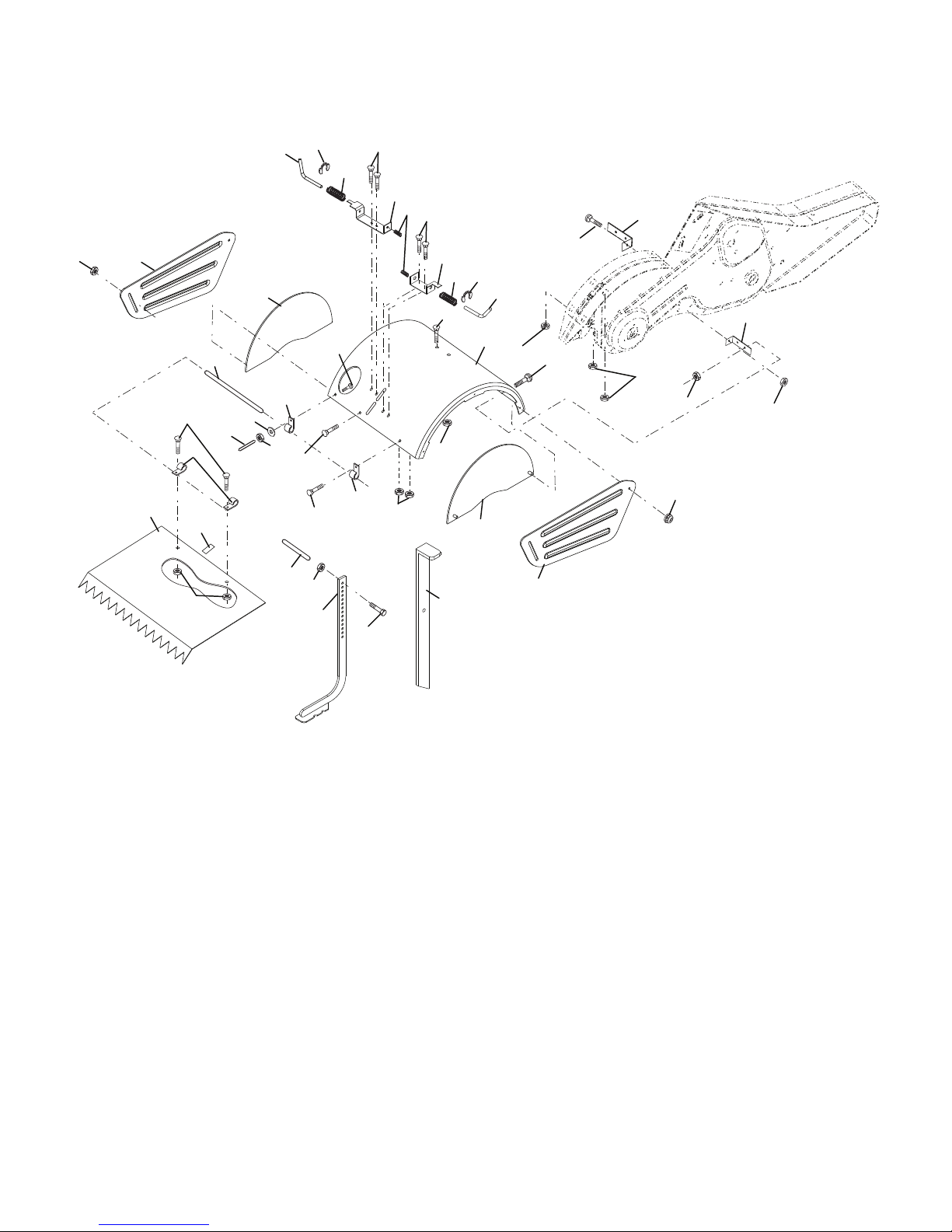

TILLER - - MODEL NUMBER PDRT900 (96092001700)

TINE SHIELD

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

TILLER - - MODEL NUMBER PDRT900 (96092001700)

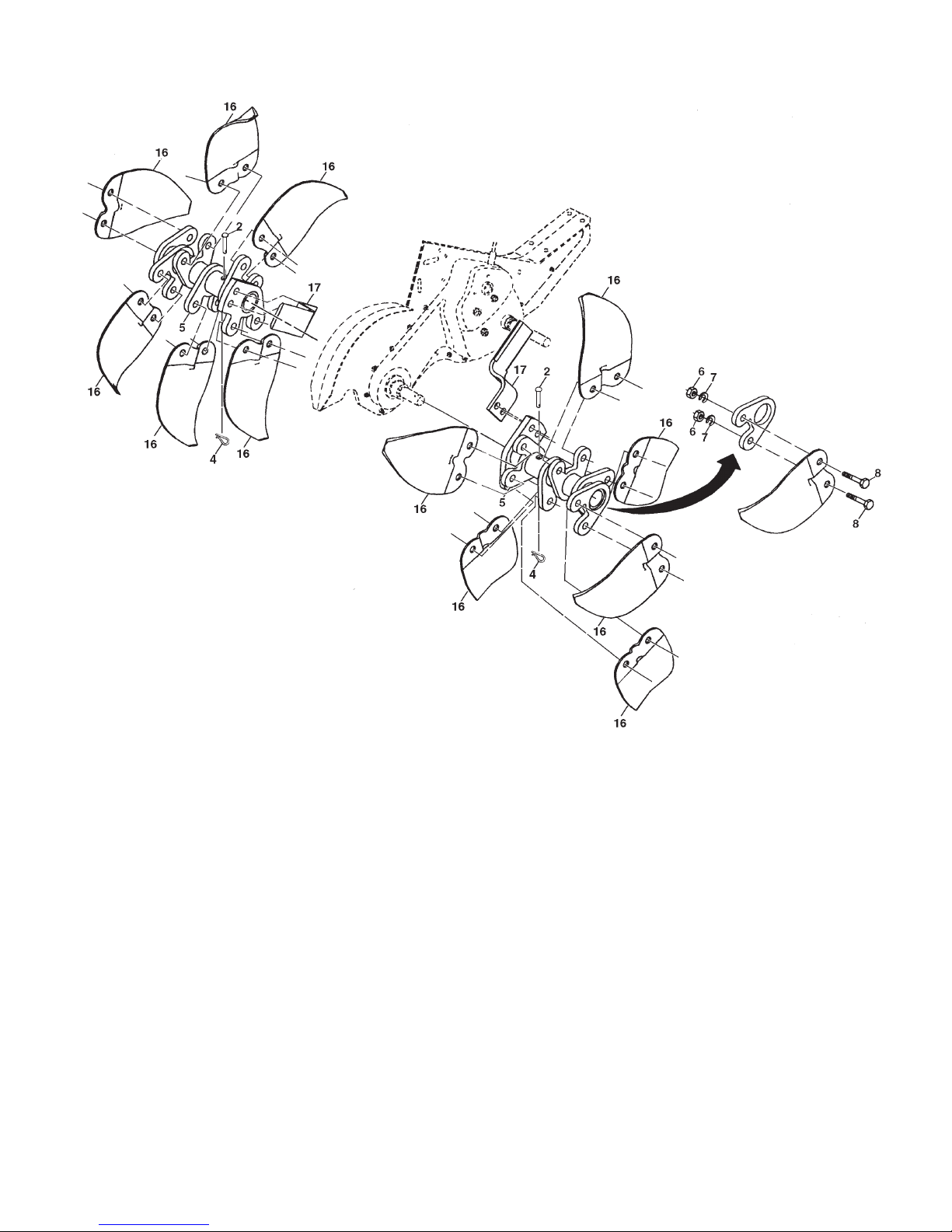

TINE ASSEMBLY

2 132673 Pin, Shear

4 3146R Clip, Hairpin

5 188845 Tine Assembly

6 73610600 Nut, Hex 3/8-24

7 10040600 Washer, Lock 3/8

8 74610616 Bolt, Hex 3/8-24 x 1

16 163499 Tine, Spade

17 163500 Tine, Cleaning

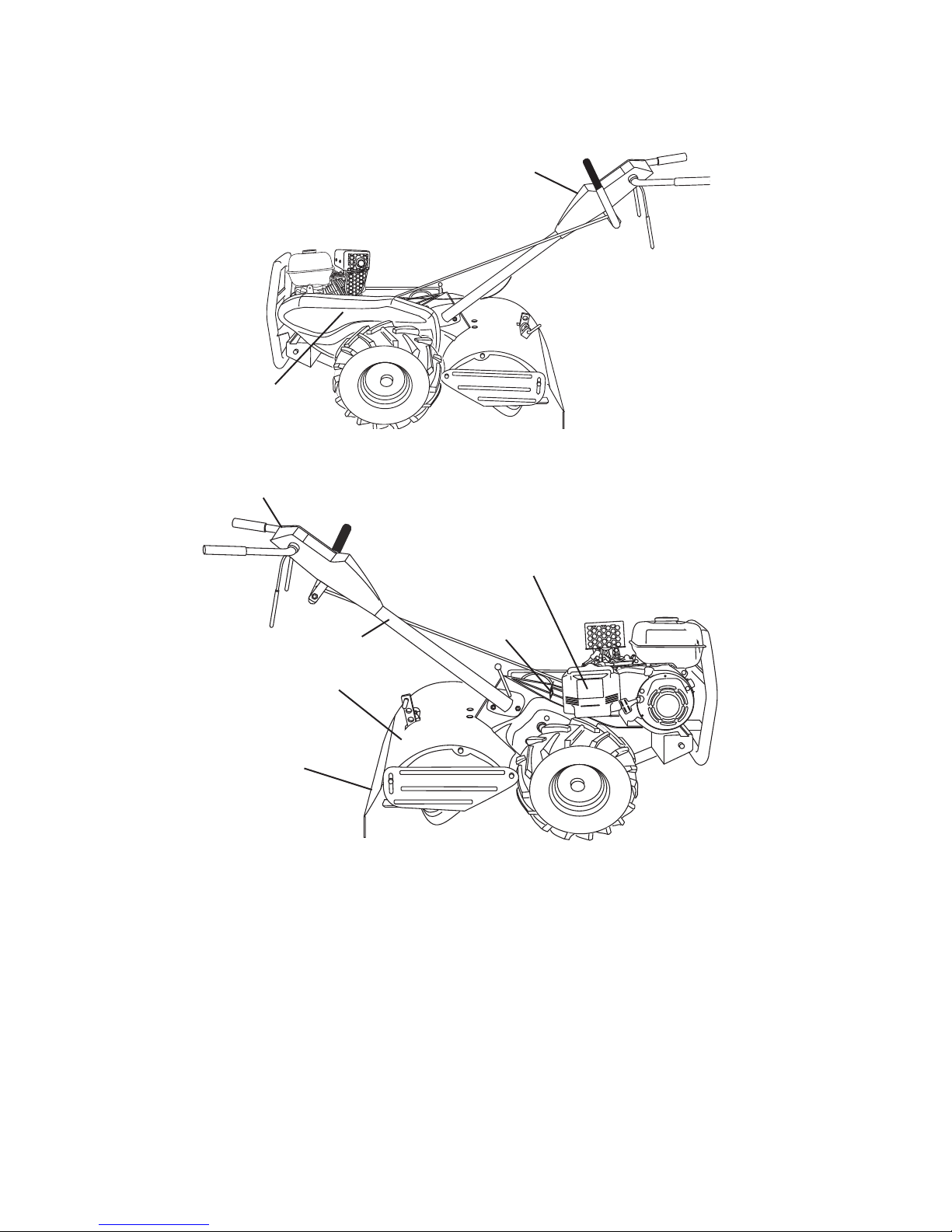

1 173196 Decal, Instruction, Tilling

2 424431 Decal, Decal, Blt Grd

3 422972 Decal, Warning

4 428439 Decal, Console Instruction

5 110614X Decal, Hand Placement

6 102180X Decal, Shift Indicator

9 120076X Decal, Warning, Rotating Tines

10 420332 Decal, Air Cleaner

- - 427906 Manual, Operator's, English/French

- - 427907 Manual, Repair Parts, English/French

KEY PART

NO. NO. DESCRIPTION

TILLER - - MODEL NUMBER PDRT900 (96092001700)

DECALS

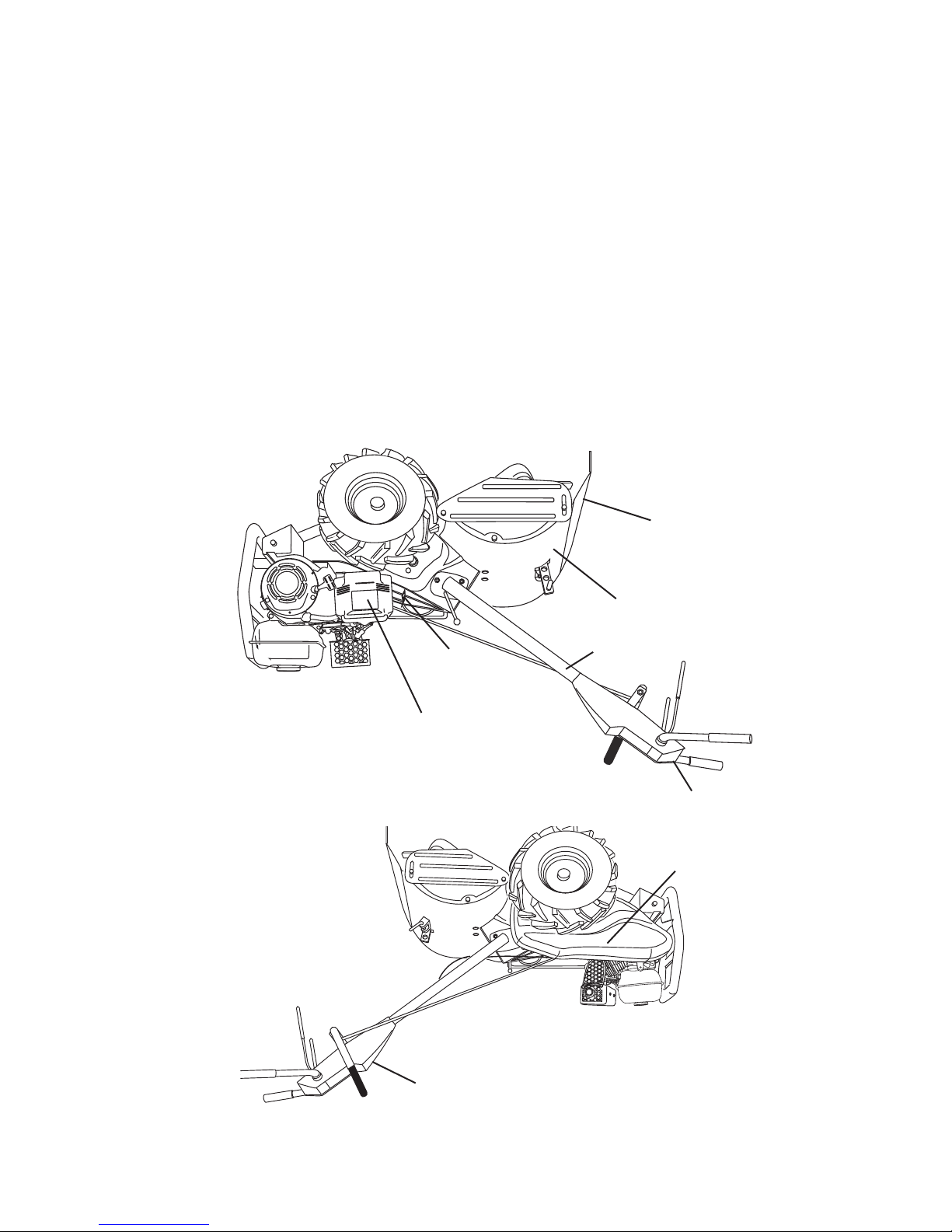

1 173196 Décalcomanie des instructions de labourage

2 424431 Décalcomanie de la marque de fabrique

3 422972 Décalcomanie de avertissement

4 428439 Décalcomanie de instructions de Panneau

5 110614X Décalcomanie de l’emplacement des mains

6 102180X Décalcomanie de l’indicateur du changement de vitesse

9 120076X Décalcomanie d’avertissement de la rotation de dent

10 420332 Décalcomanie d’ filtre à air

- - 427906 Manuel du Propriétaire, Français / Anglais

- - 427907 Manuel du Pièces, Français / Anglais

NO. NO

DE DE

RÉF. PIÈCE DESCRIPTION

MOTOBINEUSE - - MODÉLE NO. PDRT900 (96092001700)

DÉCALCOMANIES

REMARQUE: Toutes les dimensions de composant sont don-

nées en pouces É.-U. --1 pouce = 25,4 mm.

MOTOBINEUSE - - MODÉLE NO. PDRT900 (96092001700)

DENTS

NO. NO

DE DE

RÉF. PIÈCE DESCRIPTION

2 132673 Axe de chape

4 3146R Ressort de retenue

5 188845 Ensemble du moyeu et de la plaque

6 73610600 Écrou H 3/8-24

7 10040600 Rondelle 3/8

8 74610616 Boulon H 3/8-24 x 1

16 163499 Dent de bêche

17 163500 Dent de nettoyage
