LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as

manufactured is free from defects in materials and workmanship. For a period of

two (2) years from date of purchase by the original consumer purchaser, we will re-

pair or replace, at our option, without charge for parts or labor incurred in replacing

parts, any part which we ﬁnd to be defective due to materials or workmanship. This

Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine. Please refer to the applicable

manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or at-

tachment are the responsibility of the purchaser. Transportation charges for any

parts submitted for replacement under this warranty must be paid by the pur-

chaser unless such return is requested by the manufacturer.

3. The Warranty period for any products used for rental or commercial purposes is

limited to 45 days from the date of original purchase.

4. This Warranty applies only to products which have been properly assembled,

adjusted, operated, and maintained in accordance with the instructions furnished.

This Warranty does not apply to any product which has been subjected to altera-

tion, misuse, abuse, improper assembly or installation, delivery damage, or to

normal wear of the product.

5. Exclusions: Excluded from this Warranty are belts, rotating lines, rotating line

adapters, normal wear, normal adjustments, standard hardware and normal

maintenance.

6. In the event you have a claim under this Warranty, you must return the product to

an authorized service dealer.

Should you have any unanswered questions concerning this Warranty,

please contact: In Canada contact:

giving the model number, serial number and date of purchase of your product and

the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME

TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.

Some areas do not allow the limitation of consequential damages or limitations

of how long an implied Warranty may last, so the above limitations or exclusions

may not apply to you. This Warranty gives you speciﬁc legal rights, and you may

have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as deﬁned in the Mag-

nuson-Moss Act of 1975.

Poulan Pro

Customer Service Department

5855 Terry Fox Way

Mississauga, Ontario L5V 3E4

Poulan Pro

Customer Service Department

9335 Harris Corners Parkway

Charlotte, NC 28269 USA

431476 Rev. 2 04.19.10 BY Printed in U.S.A.

REPAIR PARTS MANUAL

MODEL NO. PPWT60022X

(MFG. ID. NO. 96172000700)

Wheeled Weedtrimmer

For Parts and Service or Technical Assistance, call 1-800-661-6662

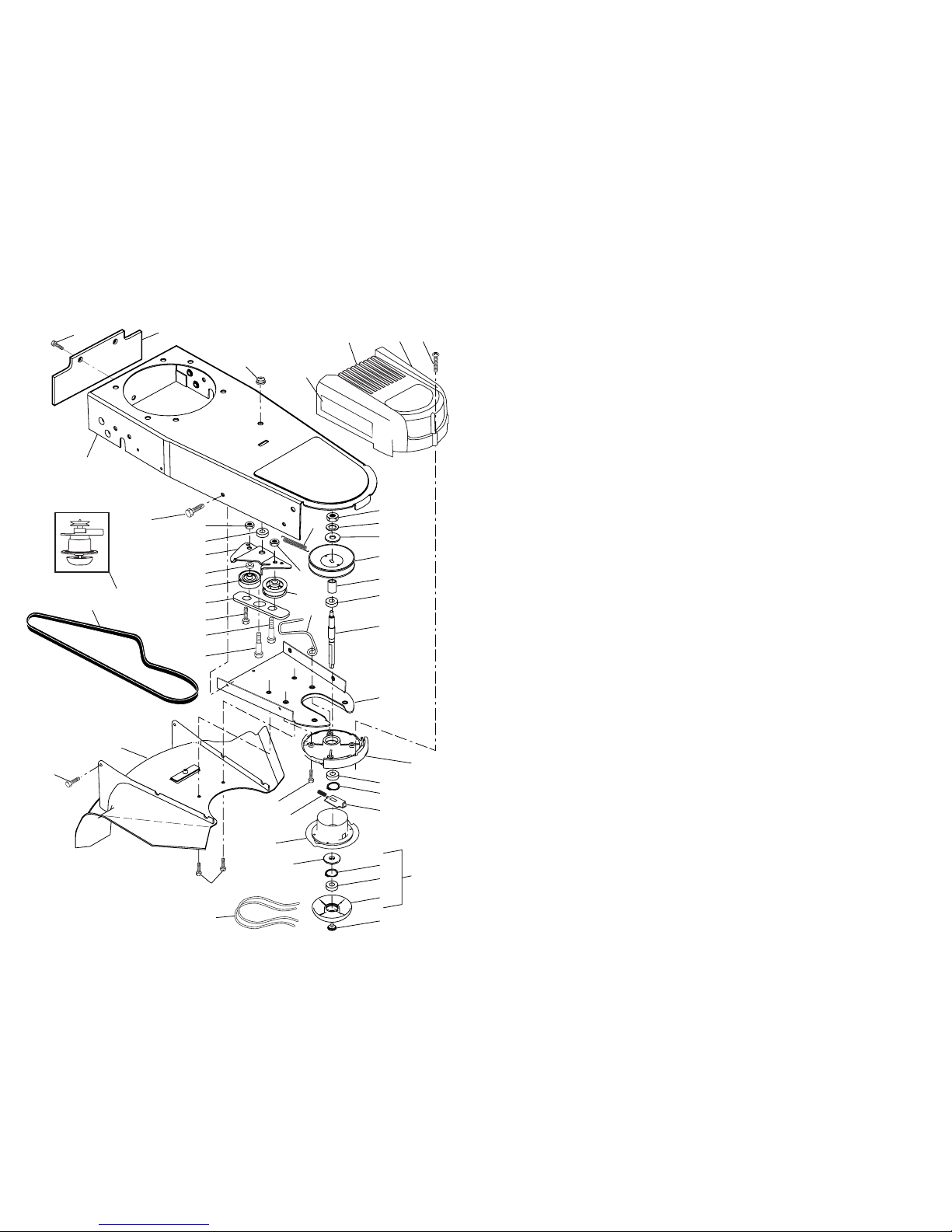

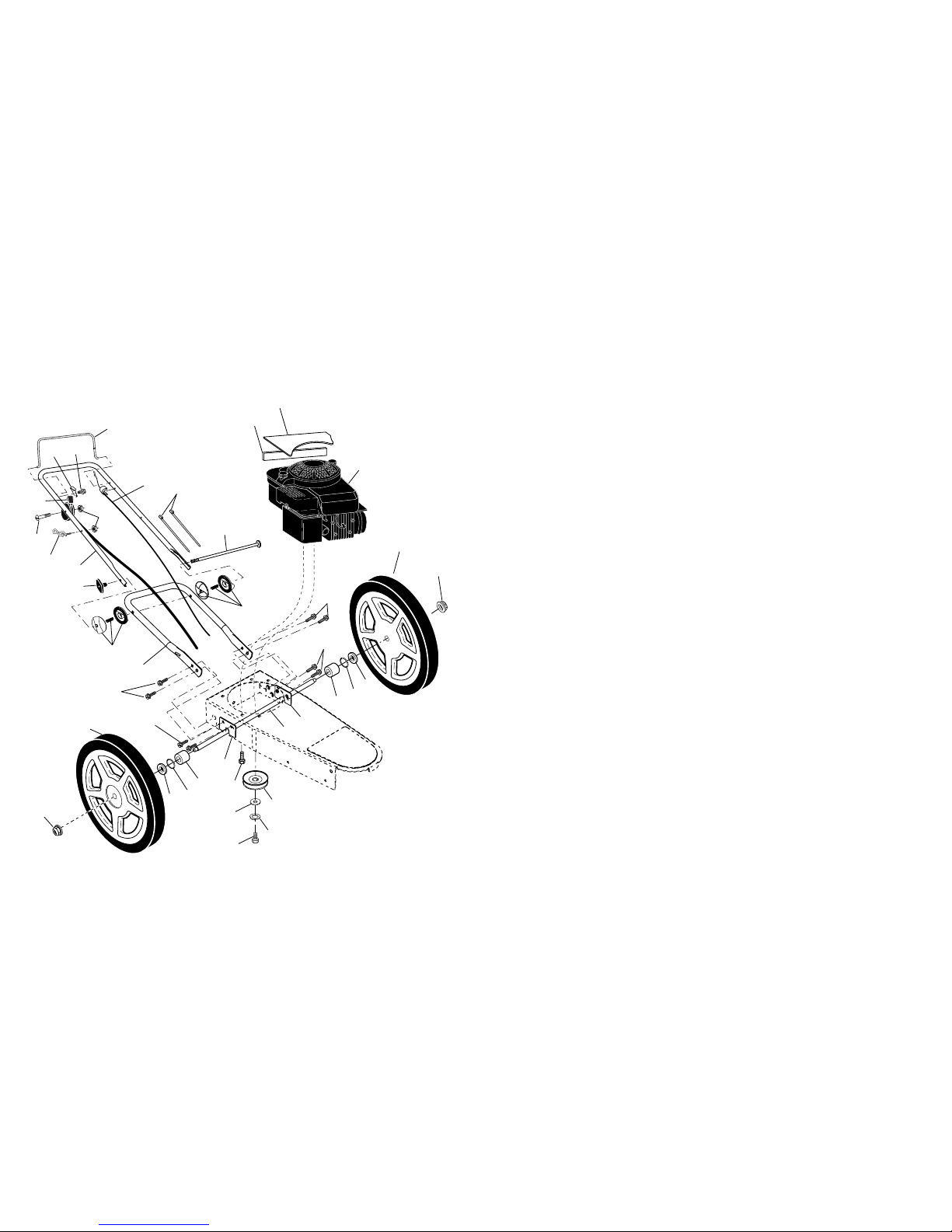

WHEELED WEEDTRIMMER - - MODEL NO. PPWT60022X

(MFG. ID. NO. 96172000700)

15 9

2231

36 37

25 4

SERVICE NOTES

WHEELED WEEDTRIMMER - - MODEL NO. PPWT60022X

(MFG. ID. NO. 96172000700)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your weed trimmer and void your warranty.

KEY PART

NO. NO. DESCRIPTION

1 - - - Engine, Briggs & Stratton, Model Number 122L02-

1381-F1 (For engine service and replacement parts,

call Briggs & Stratton at 1-800-233-3723)

2 150406 Bolt, Engine Mounting 3/8-16

3 179466 Pulley, Engine

4 197480 O-Ring

8 169821X479 Handle, Lower

9 428867 Screw, Hex Washer Head 5/16-18 x 3/4

10 169797X479 Handle, Upper

11 170980 Bolt, Handle

12 189713X428 Knob, Handle

15 179751 Handle Adjuster Assembly

16 194788 Guide, Rope

18 66426 Wire Tire

19 176983X421 Control Bar

20 417238 Throttle Control

21 158755 Screw

22 169787 Axle Shaft Assembly

23 428867 Screw, Hex Washer Head 5/16-18 x 3/4

24 169823 Washer, Axle

25 88348 Washer, Flat 1/2

26 195012X421 Wheel & Tire Assembly 12 x 1-3/4

27 409149 Locknut, Hex 3/8-16

28 181699 Drive Control Cable

29 406678 Decal, Warning

30 178365 Decal, Warning

31 172221X004 Bracket, Axle

33 132004 Nut, Hex

34 429930X004 Bracket, Upstop

35 750634 Screw #10-24 x 5/8

36 851084 Bolt, Hex Head

37 850263 Washer, Lock

38 851074 Washer, Flat, Hardened

- - 431476 Manual, Replacement Parts

- - 177817 Manual, Operator's, English

- - 180102 Manual, Operator's, French

WHEELED WEEDTRIMMER - - MODEL NO. PPWT60022X

(MFG. ID. NO. 96172000700)

52 51

30*

27*

40 45

WHEELED WEEDTRIMMER - - MODEL NO. PPWT60022X

(MFG. ID. NO. 96172000700)

KEY PART

NO. NO. DESCRIPTION

1 174031X421 Chassis Assembly

2 182133 Line, Trimmer .155 diameter x 18.75 long

3 173715 Screw, Self-Tapping 5/16-18 x 1

4 185476 V-Belt

5 172145X004 Bracket, Idler

6 166042 Pulley, Idler, V-Groove

7 173716 Bolt, Hex Head 3/8-16 x 1.25

8 73930600 Locknut, Hex 3/8-16

9 166043 Pulley, Idler, Flat

10 160829 Bolt, Shoulder

11 73930500 Locknut, Hex 5/16-18

12 173717 Spacer

13 174719 Bolt, Shoulder

14 409149 Locknut, Flange

15 173811 Spring, Return

16 180268 Deﬂector, Bottom

17 17060410 Screw 1/4-20 x 1/2

18 178848 Screw #10-24 x 3/4

19 199574 Belt Keeper

20 178390 Cover, Chassis, Top

21 149746 Screw #10-24 x 1-3/4

22 73610600 Nut, Hex 3/8-24 UNF

23 850263 Washer, Lock 3/8

24 19121214 Washer, Flat 3/8

25 180340 Pulley, Driven

26 172551 Spacer, Pulley

27 174549 Bearing

28 172520 Jackshaft

29 169766X479 Cover, Chassis, Bottom

30 174543 Spindle Housing Assembly (* Includes Upper Bearing, Key No. 27)

31 174581 Ring, Retaining, External, 17mm

32 173973 Spring, Locking Plate

33 172519 Locking Plate

34 180338 Carrier Plate Assembly

35 182217 Mow Ball Assembly (Includes Key Numbers 27, 37 and 38)

36 172516 Cover, Bearing

37 174580 Ring, Retaining, Internal, 40mm

38 172523 Mow Ball

39 180334 Bolt, Mow Ball

40 180333 Spindle Assembly, Complete (Includes Key No. 22-28 and 30-39)

41 174029 Spacer

43 174042 Decal, Instruction

45 174596X479 Belt Keeper, Bottom

46 17060408 Screw, Self-Tapping

47 174036 Decal, Instruction

51 189006 Deﬂector, Rear

52 178848 Screw

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your weed trimmer and void your warranty.
