POSIFLEX PP-7600 Manual de usuario

Package Contents

PP-7600 POS Printer………………(x1)

80mm-wide Thermal Paper………..(x1)

(For operational testing)

58mm Paper Spacer Plate………….(x1)

24V/60W Power Adapter………….(x1)

Power Cord………………………...(x1)

USB Cable…………………………(x1)

RS232 Cable (Optional)…………...(x1)

Soft Wiping Cloth…………………(x1)

User Manual……………………….(x1)

Product Features

3" thermal printer with auto cutter

Printing speed up to 200 mm/sec

High-resolution printing up to 576 dots/line (W 8 dots/mm x H 8

dots/mm)

80 mm or 58 mm paper width support

Drop-and-load action for easy paper roll replacement

Control over 2 cash drawers through 1 D.K port

Optional kitchen bell function

Interface: USB (True USB & Virtual COM selectable) + serial, optional

LAN or WLAN (WiFi) interface module

High compatibility with Android, Linux, and Windows operating system,

allowing users to simply print a receipt via computer, tablet, or

smartphone

Easy wireless printing not only bringing along the mobility but also

increasing the productivity

Printing anytime and anywhere

Near end sensor

Optional LD-2000 light bar modular

PP-7600

POS Printer

User Manual

19302900020 Ver. A0

http://www.posiflex.com

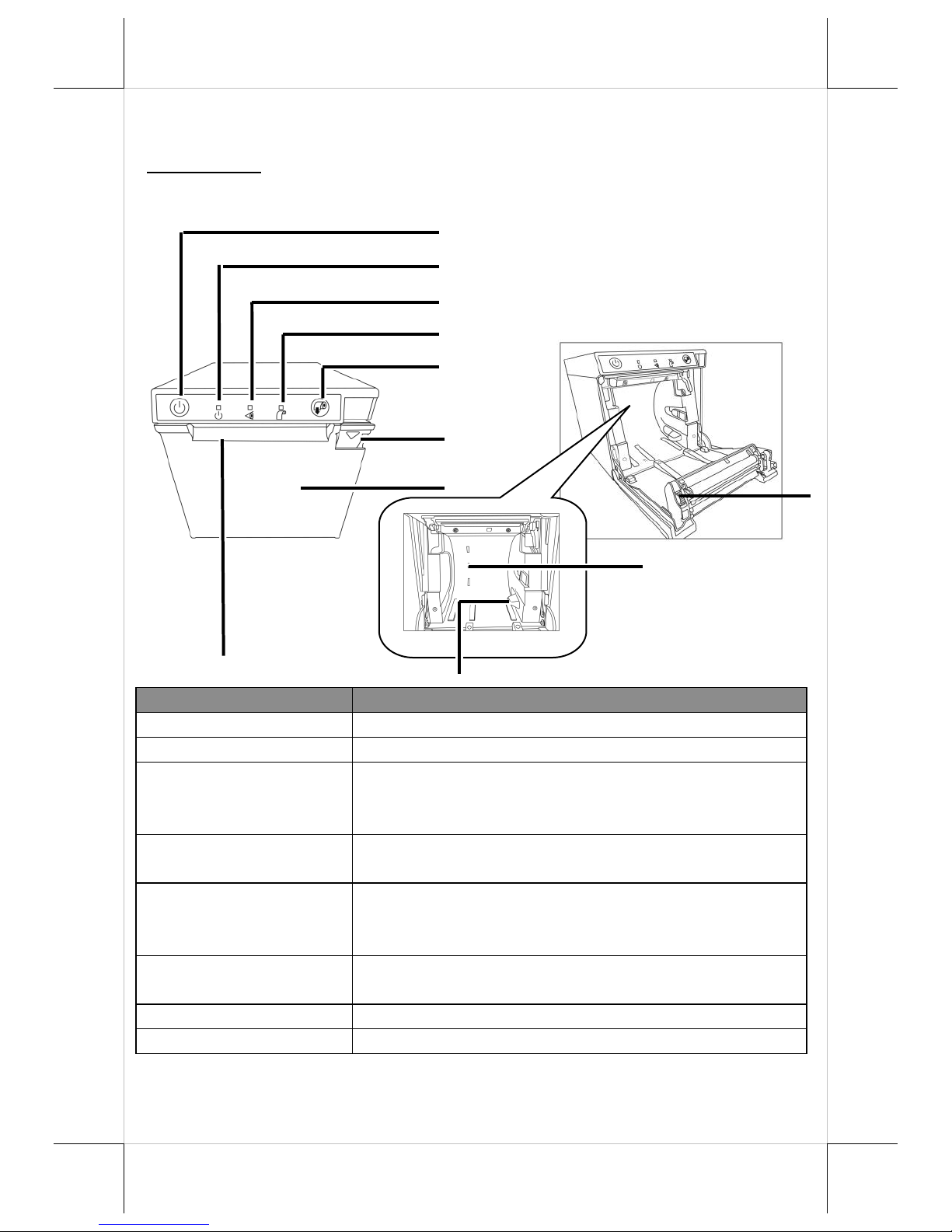

Views of the PP-7600

Front View

Part Names

Description

Power Button

This button turns the printer on or off.

Power LED Indicator

This indicator turns on when the printer is on.

Error LED Indicator

This indicator works when the printer has

something wrong. For more details, refer to the

Status LED Indicators section given below.

Paper-out LED Indicator

This indicator turns on when the paper-out issue

occurs.

Feed Button

Press this button once to feed the paper roll for one

line. Hold down this button to continue feeding the

roll paper

Paper Cover

Open this cover when installing or replacing the

paper roll.

Cover Open Lever

Push this lever to open the paper roll cover.

Paper Exit

An opening where the paper is outputted

Paper-out LED Indicator

Wedge Groove

Power Button

Power LED Indicator

Error LED Indicator

Feed Button

Cover Open Lever

Paper Roll Exit

Paper Cover

Paper Near End Sensor

Paper Roller

Part Names

Description

Wedge Groove

A settled routine that makes the paper spacer plate

hard to escape

Paper Near End Sensor

(Provided for adjusting the detection position to suit

the diameter of the paper core used, and for

adjusting the detection position of remaining

amount of paper)

Rear View

Part Names

Description

Power Jack

for LD-2000

Connects the DC cable of LD-2000

Printer Power

Connector

Connects the DC cable for the power adapter of PP-

7600

Printer Power Connector

Cable Cover

Power Jack for LD-2000

Bottom View

Part Names

Description

Networking Module

Slot

A slot for optional LAN or Wi-Fi networking

module

I/O Ports

USB connector (Type-B)

Serial port connector (RS232)

Cash drawer connector (RJ10)

Fixing Screw Hole

for LD-2000

Formed for fixing the optional LD-2000 light bar

Wedge Groove

for LD-2000

Formed for fixing the optional LD-2000 light bar

I/O Ports of the PP-7600

Serial (RS232) Port

D.K (RJ10) Port

USB Port (Type-B)

Networking Module Slot

Fixing Screw Hole

for LD-2000

Wedge Groove

for LD-2000

Rubber Foot

I/O Ports

Loading a Paper Roll

Before loading a paper roll, make sure you use a specified paper type. Follow

the steps below to load a paper roll.

1. Press down the cover open lever to

release the paper cover.

2. The paper cover ejects. Then, open the

paper cover manually.

3. Drop the 80mm-wide thermal paper

inside the paper compartment of the

printer, as shown in the right figure.

4. Drag the paper roll to the portion where

the paper roller is installed.

Paper Roller

If you want to use a paper roll of 58mm

width, install the spacer plate in the

compartment of the printer, as shown in

the right figure, and then load the paper

roll of 58mm width into the partition at

the right side of the plate.

Next, set the paper width by using the PP-7600 software switch utility.

The software switch utility can be downloaded from the Posiflex’ global

website:

http://www.posiflex.com/en-global/Download/download. To get more

detailed information on the paper width jumper setting, contact directly

the Posiflex’ technical service team.

5. To avoid the paper cover not being

locked completely, push the central

portion of the paper cover to close.

Push

Connecting Power Adapter and I/O Cables

Follow the steps listed below to open the rear cover and connect cables.

1. Hold the concave portion of the cable cover

with thumb, as shown in the circled portion

of the figure.

2. Pull the cover in the direction indicated by

the arrow in the right figure.

3. Remove the cable cover.

4. Connect power adapter to the printer power

connector of the PP-7600.

Remove

5. Connect I/O cable(s) to the I/O port(s) of the

PP-7600.

6. Make the cable cover wedge to the printer.

Determine that the cable cover is well

wedged to the printer.

7. Cover the I/O ports of the printer.

8. Determine that the cable cover is completely

closed.

Connect

to I/O ports

Firmly Closed

Installing the LD-2000 Light Bar (Optional)

Follow the steps below to install the LD-2000 light bar on the PP-7600 printer.

Power off the printer when installing the LD-2000 light bar.

1. Determine that the micro USB connector of

the cable for LD-2000 to PP-7600 is

securely connected to the micro USB port on

the LD-2000 control board.

2. Plug the L-formed header of the LD-2000 power cable into the LD-2000

power jack of the PP-7600 printer.

3. Make the four joints formed on the LD-2000 wedge to the four wedge

grooves formed on the PP-7600.

4. Determine that the LD-2000 securely

connects to the PP-7600.

5. Fix the LD-2000 to the bottom side of PP-

7600 with a screw.

6. The installation of LD-2000 light bar is

completed.

After installing the LD-2000 light bar, you can set up the LD-2000 by using

the Posiflex LD2000 Tool. For more detailed information, refer to the Posiflex

LD2000 Tool. To download the LD2000 Tool and its manual, go to the

Posiflex’ global website: http://www.posiflex.com/en-

global/Download/download.

LD-2000

Light Bar
