POS-X ION THERMAL Manual de usuario

All specications are subject to change without notice

Receipt Printer User’s Manual

MODEL : ION THERMAL

1. Parts Identications 4

2. Setting up the printer 5

2.1 Unpacking 5

2.2 Connecting the cables 6

2.3 Loading the roll paper 9

3. Control panel and other functions 12

3.1 Control panel 12

3.2 Error Indicating 12

4. Self Test 13

5. ASCII Print 14

6. Select Baudrate Mode 14

7. Hexadecimal Dump 15

8. Printer cleaning 16

9. Specications 17

9.1. General Specications 17

9.2. Auto Cutter Specications 19

9.3. Interface 19

9.4. Electrical Characteristics 19

9.5. Environmental Requirements 20

9.6. Reliability 20

9.7. Certication 20

10. Command List 21

Table of Contents

1. Parts Identifications

TOP COVER

POWER SWITCH

CONTROL LABEL

Open this cover to

load or replace paper.

Used to turn on/off

power to the printer

Features LED indicators

to indicate printer status

and switches to operate

the printer.

INTERFACE CONNECTOR(SERIAL) INTERFACE CONNECTOR(USB)

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your

dealer for assistance.

The Printer User's Manual Roll Paper

Interface Cable(optional) Adaptor(Optional)

2. Setting Up the Printer

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer.

They all connect to the connector panel on the back of the printer, which is shown below :

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

For connection to a

host computer.

For connection to a

host computer. For connection of

the AC adapter.

Never unplug the

AC adapter while

the printer is on.

Connects to peripheral units

such as cash drawers, etc.

Do not connect this to

a telephone.

INTERFACE CONNECTOR(USB)

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

INTERFACE CONNECTOR(SERIAL)

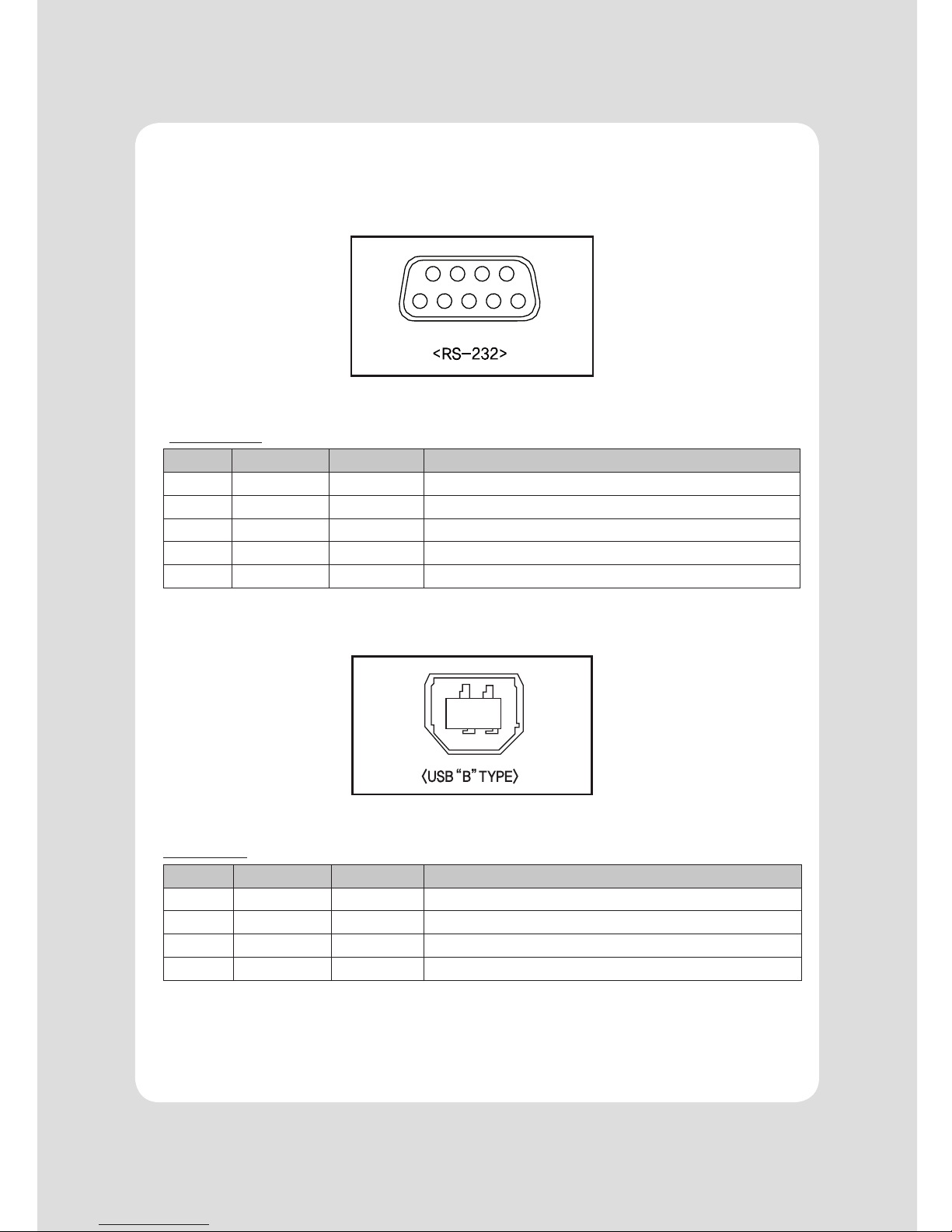

2-2-1.Interface Connector

Serial Interface

PIN SIGNAL I/O DESCRIPTION

2 TxD Output Printer transmit data line RS-232C level

3 RxD Input Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1, 7 GND - System Ground

USB Interface

PIN SIGNAL I/O DESCRIPTION

1 +5V - +5V

2 DATA- - Printer transmit data line

3 DATA+ - Printer transmit data line

4 GND - System Ground

1 2

4 3

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.

The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND -

2 Drawer kick-out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick-out drive signal 2 Output

6 Signal GND -

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the

paper glued to the core because the printer cannot detect the paper end correctly.

(Turn off power switch)

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pushing down the cover open button.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.
