Portfolio LWS1204E Manual de usuario

MODEL #LWS1204E

ITEM #0338654

Français p. 9

Español p. 17

POST LANTERN

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -

5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Portfolio ® is a registered trademark

XXXXXX Lowes.com/portfolio

PART DESCRIPTION QUANTITY

B Center Stem

Fixture Hood Assembly 1

C Fixture Body 1

PACKAGE CONTENTS

Lowes.com/portfolio

HARDWARE CONTENTS (shown actual size)

Washer

Qty. 1 Finial

Qty. 1

DDCC

SAFETY INFORMATION

AA BB

Wire

Connector

Qty. 3

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with

package contents list and hardware contents list. If any part is missing or damaged, do not

attempt to assemble the product.

Estimated Assembly Time: 20 - 30 minutes

Tools Required for Assembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers,

Wire cutters, Electrical tape, Safety goggles and Ladder.

Helpful Tools (not included): Wire strippers

Please read and understand this entire manual before attempting to assemble, operate or install

the product.

WARNING

• RISK OF ELECTRIC SHOCK - Before beginning installation, turn off electricity at the circuit

breaker box or the main fuse box.

• RISK OF FIRE - Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.

• If in doubt about electrical installation, consult a licensed electrician.

• Turn off electricity to fixture before replacing the bulb(s).

Mounting Screw

Qty. 3

Lowes.com/portfolio

ASSEMBLY INSTRUCTIONS

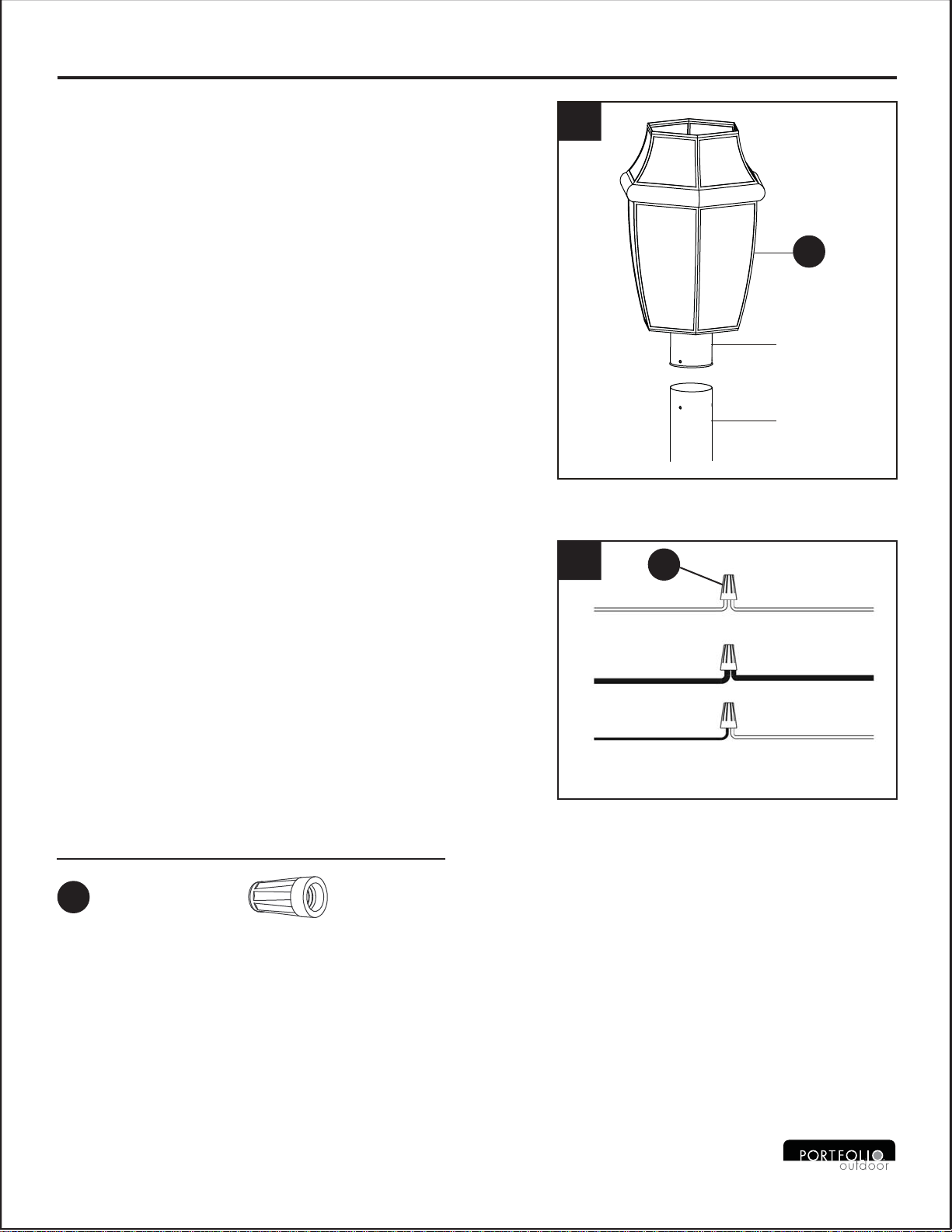

1. Carefully fit the post fitter on the fixture body (C)

over the end of the post (not supplied), making

sure the post fitter is fully seated. Mark the drill

point for the 3 mounting screws using 3 mounting

holes as reference. After marking hole locations,

remove fixture from post and drill 1/16 in. pilot

holes for screws (AA).

2. Attach ground fixture wire to the ground wire

from the post (usually GREEN or BARE). Connect

the neutral WHITE or RIBBED side fixture wire to

the neutral usually WHITE wire from the post.

Connect the hot BLACK or SMOOTH side fixture

wire to the hot usually BLACK wire from the

post. Fasten wires together with a wire

connector (BB) and tightly wrap wire connector

(BB) with electrical tape (not included).

White Wire

From Post

Black Wire

From Post

Bare, or Green

Ground Wire Bare, or Green

Fixture Ground Wire

From Post

White or

Ribbed Side

From Fixture

Black or

Smooth Side

Hardware Used

BB x 3

Wire

Connector

Post

Post Fitter

Lowes.com/portfolio

Hardware Used

AA x 3

Mounting

Screw

4. Thread the beaded end of the center stem (B)

into the mounting hole on the top center of the

junction box in the fixture body (C). Hand tighten

until snug.

ASSEMBLY INSTRUCTIONS

3. Coat the top 1 in. of the post with clear silicone

caulk (not supplied) and position the post fitter

on the fixture body (C) onto the post. Be sure to

seat it completely, aligning the holes in the fitter

with the 1/16 in. pilot holes drilled into the post.

Secure the fixture to post with 3 mounting screws (AA).

Post

Mounting

Hole

Mounting

Hole

Post Fitter

Lowes.com/portfolio

Hardware Used

x 1

Washer

DD Finial

5Bulb

5. Install (2) 60-watt max. candelabra-base incandescent

bulbs or use (2) 13-watt max. spring self-ballasted

candelabra-base CFLs (none included).

ASSEMBLY INSTRUCTIONS

Place the fixture hood assembly (A) over the top

end of the center stem (B), attach to the top edge

of the fixture body (C). Pass the washer (CC) over

the center stem (B) and secure with the finial (DD).

Hand tighten until snug.

Lowes.com/portfolio

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives

to clean fixture as they may damage the finish.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Bulbs will not light. 1. Bulb is burned out.

2. Power is off.

3. Faulty wire connection.

4. Faulty switch.

1. Replace light bulb.

2. Make sure power supply is on.

3. Check wiring.

4. Test or replace the switch.

Fuse blows or the

circuit breaker trips

when light is turned

on.

1. Crossed wires or power wire is

grounding out. 1. Check wire connection.

WARRANTY

The manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for

one (1) year from the date of purchase. If within this period the product is found to be defective in

material or workmanship, the product must be returned, with a copy of the original sales receipt as

proof of purchase in the original carton, to the place of purchase. The manufacturer will, at its option,

repair, replace or refund the original purchase price to the consumer. This warranty does not cover

fixtures becoming defective due to misuse, accidental damage, improper handling and/or installation

and specifically excludes liability for direct, incidental or consequential damages. As some states do

no allow exclusions or limitations on an implied warranty, the above exclusions and limitations may

not apply to you. This warranty gives you specific legal rights. You may have other rights that vary

from state to state.

Lowes.com/portfolio

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,

Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.

PART DESCRIPTION PART #

DD Finial

EE Candle Cover

M2227CCK

M2221FIK DD

Printed in China

2015-01-12 Lowes.com/portfolio

Portfolio ® is a registered

trademark of LF, LLC.All

Rights Reserved.

MODÈLE N°

LWS1204E

ARTICLE N

0338654

LAMPADAIRE

Portfolio® est une marque déposée de

Des questions, des problèmes, des pièces manquantes? Avant de retourner l'article à

votre détaillant, appelez notre service à la clientèle au 1 800 643-0067, entre 8 h et 18 h

(HNE), du lundi au jeudi, ou entre 8 h et 17 h (HNE), le vendredi.

JOINDRE LE REÇU ICI

Numéro de série Date d’achat

Lowes.com/portfolio

B Tige centrale

Ensemble de boîtier

de luminaire 1

C Corps du luminaire 1

CONTENU DE L'EMBALLAGE

PIÈCE DESCRIPTION QUANTITÉ

Lowes.com/portfolio
