Polygroup C31 Manual de usuario

Fig. B - Tree and Light Assembly

Tree top

Section 2

Section 1

Fig. A - Tree Stand AssemblyFig. A - Tree Stand Assembly

Unfold the legs and lay the

stand in a flat area.Then slide

the locking disc downward and

snap into place.

3. Each tree section is numbered with a tag. Please identify all sections before assembling.

4. Assemble the tree from the bottom to the top. Start with the bottom section and remove protective cap before inserting into the

assembled stand. Make sure the pole is firmly inserted and secured into the stand.

5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.

6. Allow branches to fall into place or gently pull up and out. When adjusting branches, be sure that all wires are free of branch hinges.

7. Connect the plug(s) securely to the extension cord(s) as per the color labels indicated in (See Fig. B) and insert the green label

adapter into the wall outlet. Your entire tree should now be lit. If some bulbs do not light or flicker, search for any loose plugs and/or

broken, loose or missing bulbs. Replace bulbs promptly in order to maintain the performance and life expectancy of your pre-lit tree.

8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from the pole and fan out one to the

right, one to the left and one at the center of the main stem. (See Fig. C)

Top view Side view

Fig. C

DO NOT RETURN TO STORE. PLEASE VISIT US AT:

www.polygroupstore.com OR 1-888-919-0070

NEED HELP?

Before you start to assemble your tree, choose an appropriate location near a wall outlet.

2. Assemble the tree stand on a level surface. (See Fig. A)

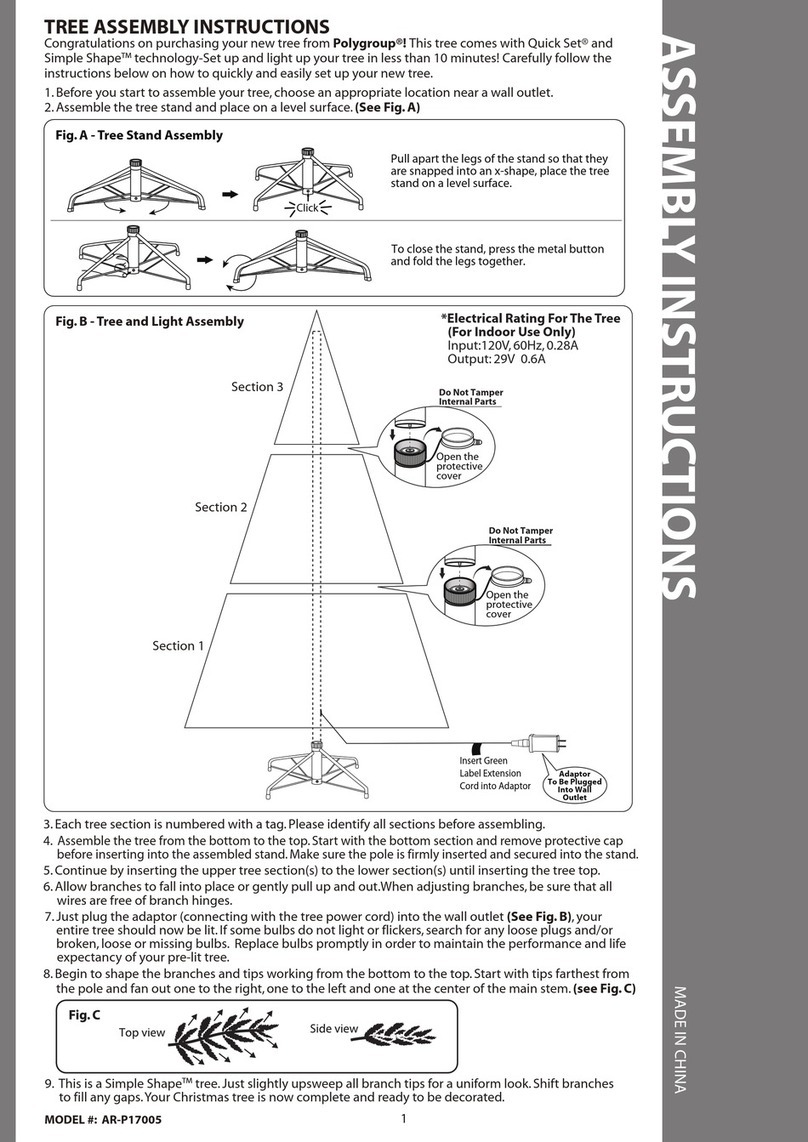

TREE ASSEMBLY INSTRUCTIONS

Congratulations on purchasing your new tree from Polygroup®!

Carefully follow the instructions below on how to quickly and easily set up your new tree.

Foot Pedal

on/off switch

Adapter

To Be Plugged

Into Wall

Outlet

Insert Green

Label Extension

Cord into Adapter

*Electrical Rating For The Tree

(For Indoor Use Only)

Input: 120V, 60Hz 0.25A

Output: 28V DC 0.45A

Insert Yellow Label

Plugs Into Yellow

Labeled Extension Cord

Insert Red Label

Plugs Into Red

Labeled Extension Cord

TREE# : C31

MODEL # : TG76P3606L00

SKU # : 124304247

STORAGE INSTRUCTIONS

Each tree includes hinge pins/washers, and for pre-lit trees spare bulbs are also included.

If extra parts are needed, please contact our customer service center.

SPARE PARTS

For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact us at 1-888-919-0070

or visit our website at www.polygroupstore.com. One of our customer service representatives will be happy to assist you.

TREE ID# IS LOCATED ON END PANEL OF BOX.TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.

CUSTOMER SERVICE FOR CHRISTMAS TREES

Tree ID#:

Tree UPC#:

Store Purchased:

Specify Problem:

Customer Name:

Address:(No P.O. Boxes)

City & State:

Zip Code:

Day Phone:

Date Purchased:

9. After shaping the entire tree following the previous step, slightly upsweep all branch tips for a uniform look. Shift branches to fill

any gaps. Your Christmas tree is now complete and ready to be decorated.

For Pre-lit Trees, If The Tree Does Not Illuminate

1. Please check to make sure that all plugs are properly connected and adapter is plugged into the wall outlet. (If the tree comes

with a foot pedal, try stepping on the on/off button).

2. Check for loose connection between light string plugs and extension cords.

3. Please check for loose, broken or missing light bulbs and replace as needed.

Loose Hinge Pin

1. Extra hinge pins are included for repairing the hinges.

Place the branch into the slot of the bracket.

2. Insert a new hinge pin through the hole and secure

using the retainer washer. (See Fig. D)

TROUBLESHOOTING TIPS

Fig. D

1. Remove all ornaments and decorations. First unplug adapter from the wall outlet and then disconnect light extension cord

between each section of the tree.

2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to remove from section

below and fold all branches toward the pole.

3. In case of difficulty separating the tree pole (trunk), apply a small amount of lubricant at the joint and rotate the upper pole in

both directions. Lift up the upper pole again.

4. Continue by gently lifting straight up each section(s) from the section below and fold all branches toward the pole until the

bottom section is removed from the tree stand.

5. Carefully place all tree sections into shipping box and tape it shut.

6. When not in use, please store your tree in a cool, dry place away from sunlight. Exposing your tree to excessive heat or humidity

may damage your tree.

CAUTION:

To reduce the risk of fire and electric shock:

a) Use only the power supply that was provided with this product.Using a different adapter will damage the lights and may cause

fire, or electrical shock hazards.

b) Do not install on trees having needles, leaves or branch covering of metal or materials which look like metal.

c) Do not mount or support strings in a manner that can cut or damage wire insulation.

d) Do not use near candles, heaters, or other similar sources of heat.

e) Do not use candles on tree. Use only included light string (if present).
