Polycom SoundStation IP 6000 Manual de usuario

Intermedia Hosted PBX

Polycom SoundStation IP 6000 -7000

SoundStation IP 6000 SoundStation IP 7000

Quick Start Guide

Welcome to your Hosted PBX service.

What’s in the box?

Polycom SoundStation IP 6000 SoundStation IP 7000

A. Phone

B. Network Cable

C. Quick Start Guide

D. Power Injector Cable (optional)

E. AC Adapter (optional)

F. Expansion Microphones

(optional)

Optional Accessories:

SoundStation® IP 6000 Quick Start Guide

Thank you for choosing the Polycom

SoundStation® IP 6000, a conference

telephone that provides high quality

audio conferencing over an IP network.

These items are included in your

SoundStation IP 6000 package. If you

are missing any items, contact your

SoundStation IP 6000 reseller.

Parts List

Optional Accessories

External Microphones

Quick Start Guide Network Cable

SoundStation IP 6000

Power Injector Cable

Power Adapter

(Not shown: Country-Speciﬁc Power Cable)

Quick Start Guide

SoundStation® IP 6000

SoundStation® IP 7000 Quick Start Guide

Thank you for choosing the Polycom®

SoundStation IP 7000, a conference

telephone that provides high quality

audio conferencing over an IP network.

These items are included in your

SoundStation IP 7000 package. If you

are missing any items, contact your

SoundStation IP 7000 reseller.

Parts List

Optional Accessories

External Microphones

Quick Start Guide Network Cable

SoundStation IP 7000

Power Injector Cable

Power Adapter

(Not shown: Country-Specific Power Cable)

Quick Start Guide

IP 7000

SoundStation

E. F.

Quick

Start

Guide

SoundStation® IP 5000

Not shown:

AC Power Cord

(regional variation)

Quick Start Guide

Optional Accessories

Package Contents

Polycom, Inc. Corporate Headquarters

6001 America Center Drive

San Jose, CA 95164

USA

with Polycom’s products are trademarks and/or service marks of Polycom, Inc. and are registered and/or

common law marks in the United States and various other countries. All other trademarks are property of their

respective owners. No portion hereof may be reproduced or transmitted in any form or by any means, for any

purpose other than the recipient’s personal use, without the express written permission of Polycom.

Expansion microphones

Documentation

IP 6000 IP 7000











#

$%&

 "

 " #!



 "

$% &' " !







 ! "

##

$%

!

#"$

&



#'







 











'(($$(

Guided Setup

Connect Cables

Please follow the diagram to install your phone.

Once plugged in, the phone will automatically

download its conguration and start to work.

To install the SoundStation IP 6000 / 7000, plug one end of the network cable into

the network port on the bottom of the SoundStation IP 6000 / 7000 console, and

plug the other end of the network cable into your data port with PoE.

Network

Cable







 ! "

##

$%

!

#"$

&



#'







 











'(($$(

External Microphones

Connect external microphones (optional accessories), as shown below.

Once the phone has been plugged in it will become operational.

Connect Optional

Accessories Network

Cable

Not Shown: Country-Specic

Power Cable











#

$%&

 " #!

 "

$% &' " !

Voicemail Box Setup

RECORDING YOUR PERSONAL VOICEMAIL GREETING

1. Press the “Messages” button , and press the “Connect” soft key.

2. Enter the default PIN of 0000.

3. Select option 8 for User Options.

4. Select option 1 to record the Unavailable greeting.

5. Follow the voice prompts to record and check your greeting.

CHANGING THE PIN FROM THE PHONE

1. Press the “Messages” button .

2. Enter the default PIN of 0000.

3. Select option 8 for User Options.

4. Select option 3 to change the PIN.

5. Enter the new PIN when prompted.

Your new PIN:

• Must be between 6 and 10 digits and must not start with “0”.

• Must not contain sequential or repeating digits, such as “123”

or “111”.

LOGGING INTO YOUR VOICEMAIL BOX VIA THE WEB

1. Go to www.intermedia.net/login/voice.

2. Enter your Phone Number and PIN/Password.

3. Click LOGIN.

Features

Navigation Buttons

Exit

Button

Select

Button

Soft

Keys

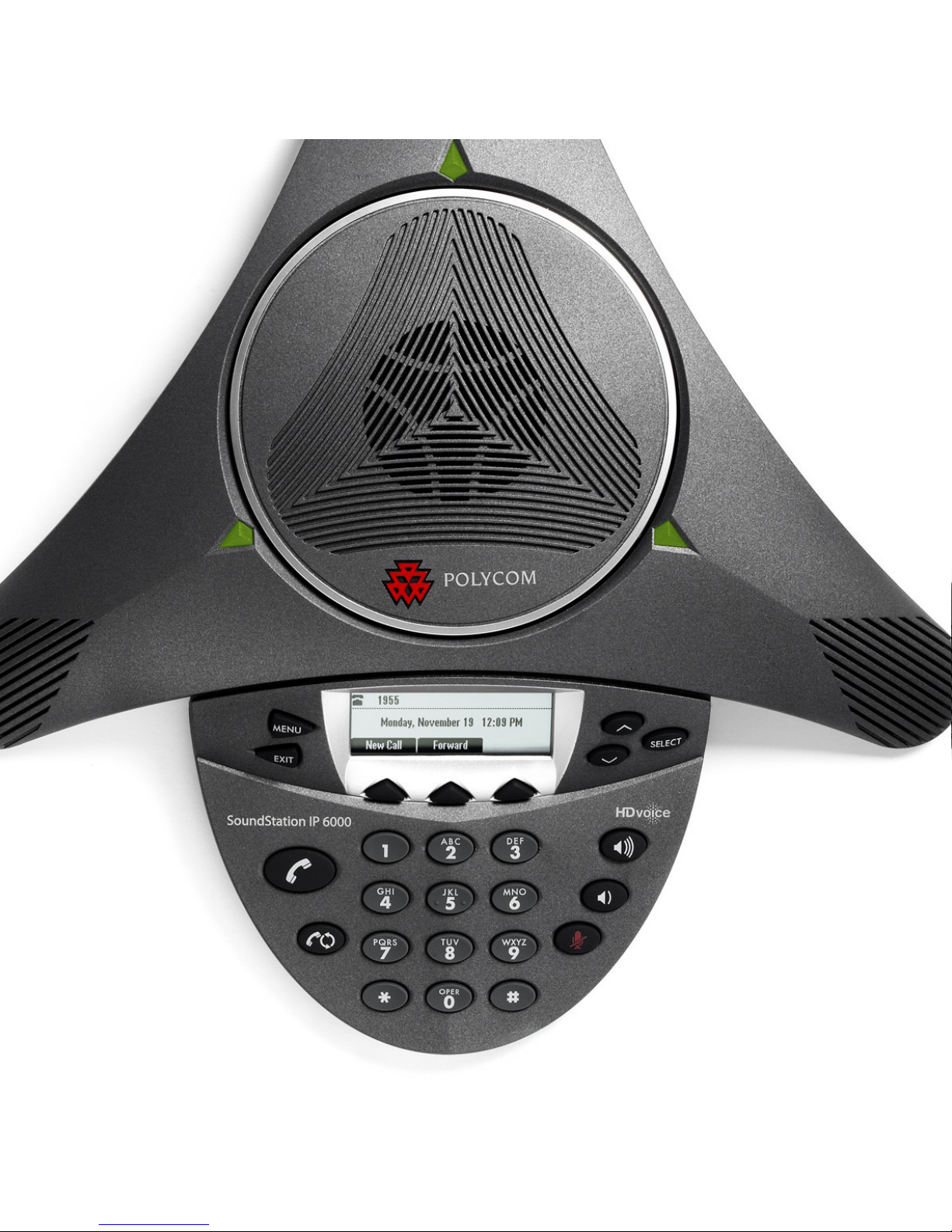

Polycom SoundStation IP 6000



("

 

  

#&#'"

" !)



& '!

*

+,

"-

-..!!.

($

($

)($ *+,-

.($

($





/0($





($

1($

2.



($



2.



2.

.$

.0($



Volume Up/

Down Buttons

Microphone

Mute

Button

Menu Button

Redial Button

Dialing Keys

Call Button



("

 

  

#&#'"

" !)



& '!

*

+,

"-

-..!!.

($

($

)($ *+,-

.($

($





/0($





($

1($

2.



($



2.



2.

.$

.0($



LED Indicator

Microphone

Keypad

Speaker

Graphic LCD

Display

Features

Soft Keys

Call

Button

End Call Button

Microphone Mute

Button

Volume

Up/Down

Buttons

Dialing Keypad

Redial Button

Conference

Button

Menu Button

Polycom SoundStation IP 7000



("

 

  

#&#'"

" !)



& '!

*

+,

"-

&($

($

($ )*+,

-($

($





./

($





&

($

0($



1-



($



1-

1--$

-/($



-..!!.

Navigation

Pad and Select

Button
