Polycom Polycom Butterfly Manual de usuario
Polycom®
KIRK®
Butterfly
(When subscribed to a SIP enabled KIRK
Wireless Server)
Quick Guide
For more information about the
handset, refer to user guide available for
download at
www.polycom.com
Display
On Hook
Off Hook
Microphone
Left Softkey
Missed Call
List/Volume
Control
Keypad Lock
Call List/
Volume
Control
Right Softkey
Navigation
Keys
Phone Book
Silent Mode
Speakerphone
On/Off
14212000_HD_001.book Page 1 Monday, February 13, 2012 2:28 PM
2
Note: Charge your handset 4 hours prior
to first use for best performance.
Installing/Replacing Batteries
1 To install the batteries, remove the
battery cover by using the small
opening on top of the handset. Use a
paper clip or a wide screwdriver.
2 When the gap at the top opens, lift off
the battery cover.
3 Insert/replace the batteries. (+) and (-)
symbols inside the battery
compartment indicate the correct
placement of the batteries.
4 Press the back cover in locked
position (when you hear a click the
back cover is in position).
Note: Use only Ni-MH rechargeable
batteries.
Turning Handset On/Off
• To turn on the handset, press .
• To turn off the handset, press until
the question Turn off? appears in the
display. Confirm with Yes.
Note: The handset will automatically turn
on if connected to a charger.
Note: It is not possible to turn off the
handset if it is connected to a charger.
Adjusting Speaker Volume
While on a call press (-) or (+) on the navi-
gation key for volume control.
Locking/Unlocking Keypad
Press Menu followed by to lock/
unlock keypad.
14212000_HD_001.book Page 2 Monday, February 13, 2012 2:28 PM
3
Silent Mode On/Off
Press Menu followed by #to turn the
handset silent mode on/off. In silent
mode the ringer will be muted and the
vibrator activated.
Note: When activating silent mode, the
vibrator will spin shortly.
Answering Calls
To answer a call, press .
Ending Calls
To end calls, press .
Incoming Call Mute
Press Silence to mute the incoming ringer
signal.
Speakerphone On/Off
• While on a call, press on the
navigation key to enable speakerphone.
• To disable speakerphone, press .
• While idle, press to hook off and to
enable speakerphone.
Microphone Mute On/Off
• While on a call, pres Mic Mute to turn
microphone mute on.
• Press Mic on to turn microphone back
on.
Call Transfer*(Blind)
1 While on a call, press .
2 Dial the extension or external number.
14212000_HD_001.book Page 3 Monday, February 13, 2012 2:28 PM
4
3 Press Transfer to send the call
through and to hang up.
Call Transfer*(Attended)
1 While on a call, press .
2 Dial the extension or external number.
3 Press .
4 When the other caller answers, press
Transfer to send the call through
and to hang up.
Call Hold*
To place an active call on hold, press Hold.
To retrieve the call, press Resume.
Call Waiting*
• While on a call, press Accept to answer
a second incoming call. The first call
will automatically be put on hold.
• To reject a second incoming call, press
Reject.
• To disconnect the active call and return
to the waiting call, press .
• To end both calls, press twice.
Note: To swap between two calls, press
.
Call Reject
To reject a call, press Reject.
14212000_HD_001.book Page 4 Monday, February 13, 2012 2:28 PM
5
Call Forward Unconditional
(CFU)*
• To enable CFU press *21* followed by
a number, then press #.
• Press to enable CFU. Confirmation
in display and a tone indicates that the
feature has been activated.
• Press to hang up.
• To disable CFU, press #21#, then press
.
• Press to hang up.
Note: *21* code can be changed in the
KIRK Wireless Server to fit your standard.
Making Calls
Off Hook Dialling (Dial Directly)
1 Press to get dial tone.
2 Dial the extension or external number.
On Hook Dialling (Pre-Dial)
1 Dial the extension or external number.
2 Press to dial the number.
Speed Dial Calls
Press and hold a key (0-9) for three sec-
onds, until the call is initiated.
Assigning Speed Dials
1 Press Menu to enter main menu
2 Scroll to Phone Book and press
Select.
3 Scroll to Find Name and press Select.
14212000_HD_001.book Page 5 Monday, February 13, 2012 2:28 PM
6
4 Locate the desired name, and press
Details.
5 Scroll to the desired number and press
Select.
6 Scroll to Add to speed dial and press
Select.
7 Scroll to the desired position (0-9) and
press Add name.
Call List Calls
1 Press (-) on the left side of navigation
key to enter Call list.
2 Scroll to desired name or number and
press .
Phone Book Calls
1 Press Menu to enter main menu.
2 Scroll to Phone Book and press
Select.
3 Scroll to Find name and press Select.
4 Find the desired name and press
to dial the number.
Adding Contacts to Phone Book
(max 50)
1 Press Menu to enter main menu.
2 Scroll to Phone Book and press
Select.
3 Scroll to Add name/number and press
Select.
4 Type the name of the contact using
the keys 2-9.
14212000_HD_001.book Page 6 Monday, February 13, 2012 2:28 PM
7
5 Scroll to number and enter the
number of the contact (max. 24
digits).
6 Press Save to store name and number.
Corporate Directory Calls
1 Press Menu to enter the main menu.
2 Scroll to External Services and then
press Select.
3 Press the left (-) or right (+) side of the
navigation key to scroll to find the
name or spell the name out using the
keys (2-9).
4 When the desired name is displayed,
press to dial the number.
Adjusting Ringing Volume
1 Press Menu to enter main menu.
2 Scroll to Settings and press Select.
3 Scroll to Ringing volume and press
Select.
4 Press left (-) or right (+) side of
navigation key to adjust the volume.
5 Press Set to save the settings and then
Back.
Changing Ringing Tone
1 Press Menu to enter main menu.
2 Scroll to Settings and press Select.
3 Scroll to Ringing tone and press
Select.
4 Scroll to desired ringer tone and press
Change to listen to chosen ringer
tone.
14212000_HD_001.book Page 7 Monday, February 13, 2012 2:28 PM
8
5 Press Back.
Turning Vibrator On/Off
1 Press Menu to enter main menu.
2 Scroll to Settings and press Select.
3 Scroll to Vibrator and press Select.
4 Scroll to On or Off and press Change.
5 Press Back.
Predefined Shortcuts
There are some predefined shortcuts in
the handset for quick and easy navigation
to frequently used menus.
Call List
Press (-) on the left side of the navigation
key.
Missed Calls
Press (+) on the right side of the naviga-
tion key.
Phone Book Search
Press on the bottom of the navigation
key.
Exit Menu
While navigating menus, press to
exit the menu and return to the main
screen.
Save Contact
Dial the number and press Save.
14212000_HD_001.book Page 8 Monday, February 13, 2012 2:28 PM
9
Personal Shortcuts
Personal shortcuts consist of functions,
you have chosen to add from a list of
shortcuts. The list is assigned to the right
softkey.
To add a shortcut:
1 Press Shortcut.
2 Scroll to Edit shortcut and press
Select.
3 Press Select to add the function to
the list of personal shortcuts.
To use a shortcut:
1 Press Shortcut.
2 Scroll to the desired shortcut and
press Select.
Handset Options Status
To display the status of the handset
options (battery, ringer volume, firm-
ware, etc.)
1 Press Menu to enter main menu.
2 Scroll to Status and press Select.
3 Press the top or bottom of the
navigation key to highlight the
appropriate menu item, and then
press Select to enter the menu of the
selected item.
4 Press Back.
*The feature is system dependent.
14212000_HD_001.book Page 9 Monday, February 13, 2012 2:28 PM
10
Handset Icons
For more icons, refer to the user guide
available for download at
www.polycom.com
External incoming call
Internal incoming call
Missed call
Battery charging
Keypad locked
Microphone muted
Silent mode
14212000_HD_001.book Page 10 Monday, February 13, 2012 2:28 PM
Tabla de contenidos
Otros manuales de Auricular de Polycom
Polycom
Polycom VVX-250 Series Guía del usuario
Polycom
Polycom VVX-150 Series Guía del usuario
Polycom
Polycom Diagnostic Handset 1610 Manual de usuario
Polycom
Polycom SoundPoint IP 320 Manual de usuario
Polycom
Polycom KIRK Manual de instalación y operación
Polycom
Polycom SpectraLink 1725-36092-001 Manual de usuario
Polycom
Polycom STRATA CIX 8002 Manual de usuario
Polycom
Polycom KIRK 5020 Manual de usuario
Polycom
Polycom KIRK 7020 Manual de usuario
Polycom
Polycom VVX 300 Manual de usuario
Polycom
Polycom KIRK 6020 Manual de usuario
Polycom
Polycom VVX D60 Manual de usuario
Polycom
Polycom SpectraLink 8450 Manual de usuario
Polycom
Polycom VVX D60 Manual de usuario
Polycom
Polycom KIRK 4020 Manual de usuario
Polycom
Polycom VVX410 Manual de usuario
Polycom
Polycom SpectraLink 8440 Manual de usuario
Polycom
Polycom PENNNET 650 Manual de usuario
Polycom
Polycom SoundPoint IP 32 Series Manual de usuario
Polycom

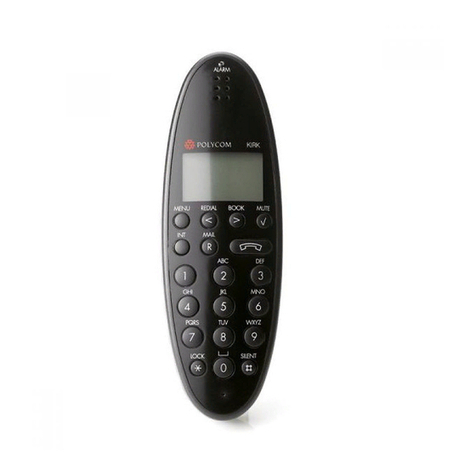

Polycom KIRK 4020 Guía
