Polk Audio Magnifi One Manual de usuario
Date
Drawing #
File Name
Scale
Drawn By
Color
Emboss Ht.
Deboss Depth
Finish
Process
Notes
Artwork
6.12.15
HBP3322
P_MagnifiOne_QSG_HBP3322.pdf
Full Size
SJE
Prints: Full Color
n/a
n/a
n/a
4/4 Offset lithography
Titleblock does not print
PRINTED: 4 COLOR
SIZE: 125MM W X 125MM
STOCK: SMOOTH/80T UNCOATED
(STOCK 98 OPACITY,10.6 CALIPER,
150 SMOOTHNESS)
SIMILAR TO:
HTTP://WWW.NEENAHPAPER.COM/
FINEPAPER/ENVIRONMENTPA
PERS/
DUCTDETAIL?COLOR=
TORTILLA&FINISH=SMOOTH
Saddle Stiched
Digital file
Revision Date Description
TITLE BLOCK
DOES NOT
PRINT
Setup Guide
Dialogue-Enhancing Sound Bar System™
What’s in the Box
1
2
3
4
5
7
8
6
1. Sound Bar
2. Subwoofer
3. 6' analog stereo cable (3.5mm)
4. 6’ optical cable
5. Subwoofer power cable
6. Two RCA adapter (3.5mm)
7. Sound Bar power cable/power
supply
8. Remote control (battery included)
Important Note
If anything is missing or damaged, or if your MagniFi One Sound Bar fails
to operate, please notify your dealer immediately. We recommend keeping
your original carton and packing materials in case you need to ship the unit
in the future.
For more information visit our website at www.polkaudio.com
3

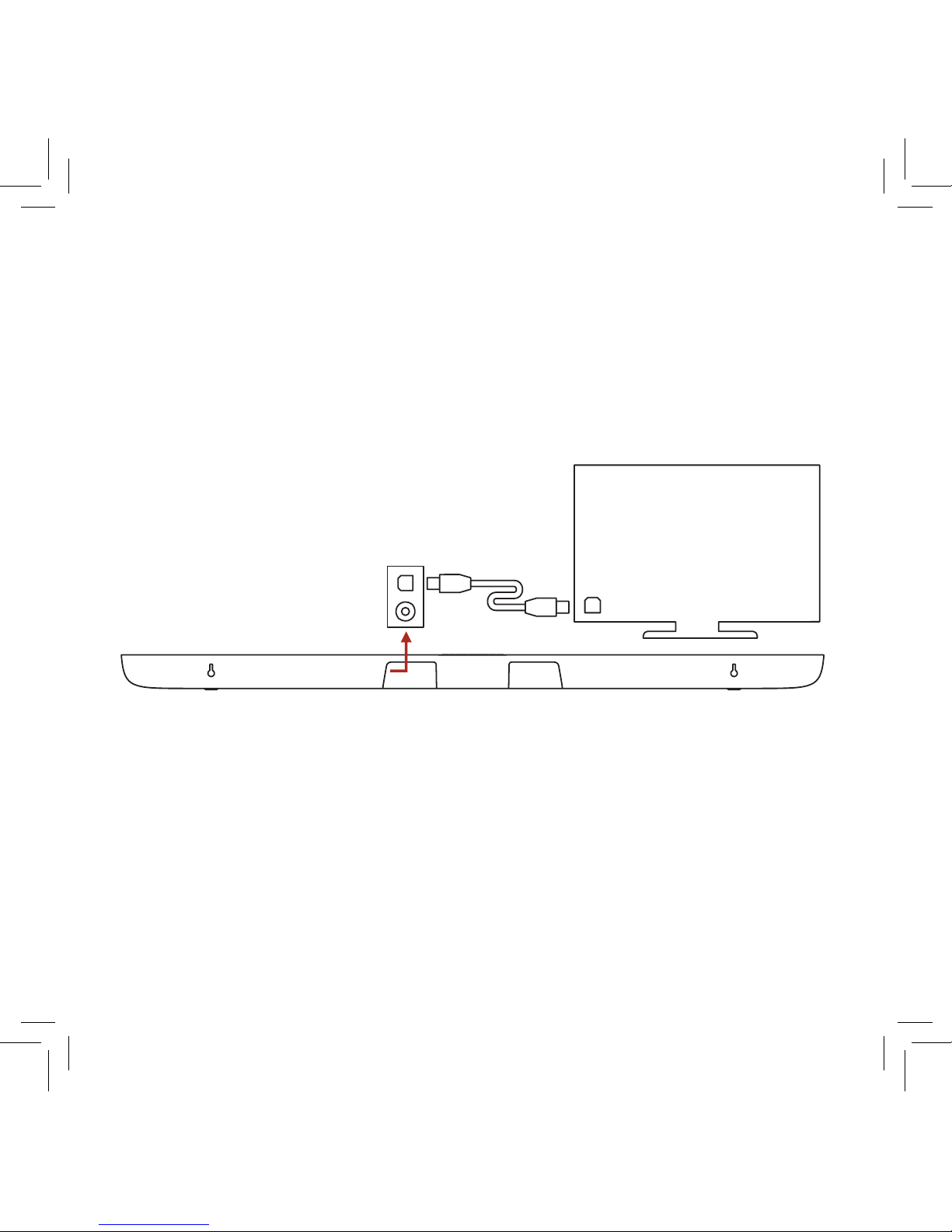

Connecting Your MagniFi One Sound Bar to Your TV
We recommend connecting the optical audio output of your TV to the optical
input on the back of the bar. This will provide the highest quality audio whether
you’re watching TV or watching your favorite DVD. If your TV does not have
an optical output, you can use the optical output from your DVD player or your
cable/satellite box to connect to the optical input on the bar. Then simply use
the other bar input for your other audio sources.
OPT IN
TV OPT OUT
SUPPLIED OPTICAL CABLE
4
How to Connect Your Subwoofer
Your subwoofer receives a wireless audio signal from the bar. All you need to
do is plug in the power cord and make sure the main power switch is ON.
1. Turn off subwoofer by unplugging power cord from amplifier plate.
2. Press the SYNC button on the back of the bar and hold for
three (3) seconds.
3. The LED on the back of the bar will start flashing at a faster rate, indicating
that the bar and the subwoofer are ready to be connected.
4. Turn on the subwoofer by plugging in power cord into receptable on
amplifier plate.
Syncing Bar and Wireless Subwoofer
The MagniFi One Sound Bar and wireless
subwoofer are preset at the factory to
work together. Should your wireless
subwoofer stop receiving an audio signal,
follow these instructions to re-establish the
connection:*
* Note: If your bar is mounted to the wall, it will need to be removed for this procedure
For more information visit our website at www.polkaudio.com
5
Remote Control
1. Power / Night / Mute
2. Sources: Optical / AUX In / Bluetooth
3. Master Volume
4. VoiceAdjust Volume
5. Bass Volume
6. Music Controls: Skip track / Play
7. DSP Modes: Movie / Sport / Music
MagniFi One Sound Bar Button Controls
Power On: Standby mode. Bass: Increase/Decrease
Source: Access learning mode to
select with the remote. Mute
Volume: Increase/Decrease Bluetooth: Pairs and connects with
a Bluetooth device
Voice Adjust: Increase/Decrease
Night Effect: Reduces the bass
impact while
improving voice
intelligibility for
low-volume listening
6
LED User Interface
(visit www.polkaudio.com for a more expansive LED section in the manual)
Four LEDs behind the Sound Bar grille communicate which source has been
selected (including Movie, Sports and Music modes), power state, master,
VoiceAdjust and bass volumes, mute status, Dolby Digital detection, Night, and
learning mode.
VoiceAdjust Technology
Your MagniFi One Sound Bar has exclusive Polk technology which allows
you to control the clarity of the dialog through the bar or the remote control.
By controlling the volume of the VoiceAdjust technology, you can fine tune all
dialogue to be more intelligible.
Bluetooth® Wireless Technology
(visit www.polkaudio.com for a more expansive Bluetooth section in the manual)
To start using the Bluetooth source you must first pair your device with the
bar. Pairing enables your Bluetooth device to connect with your Sound Bar
wirelessly. You only have to pair your Sound Bar with your Bluetooth device one
time for this exchange of information to take place. After that you simply select
“Polk MagniFi One” from your device list to make the connection to your Sound
Bar. The Sound Bar can hold 8 Bluetooth devices in its memory. If more than 7
devices pair after yours, your device could be dropped from the memory list.
For more information visit our website at www.polkaudio.com
7
IR Remote Learning
For your Sound Bar to respond to your remote control, you MUST FIRST
program the bar to respond to your television’s original IR (Infra-Red) remote.
An RF (Radio Frequency) remote will not work. Other remotes (cable, satellite)
will work only after you have programmed the bar to respond to the TV’s IR
remote.
Note: The first and third LEDs, followed by the second and fourth LEDs will flash in pairs three times
to indicate a failed learn. The bar will exit learn mode after several unsuccessful attempts to
learn an IR command. Carefully repeat steps 1-3 below.
Code Erasing Procedure: If you have programmed your Sound Bar to
respond to a remote control and you no longer want it to do so, erase the
codes by pressing the SOURCE key for about 10 seconds while the unit is in
standby mode. The first LED will flash green and then white. This sequence will
repeat three times, and when it’s complete you’ll know that previously learned
codes have been successfully erased.
Enter Learn mode by
pressing and holding
the source button for
3 seconds.
Press the volume
up button.
Corresponding function should be
pressed repeatedly, and 4 LED’s will flash
immediately after each press. LED’s will
flash white 3 times within 1 second then
hold solid for 2 seconds for success.
3
2
1
8
Remote Battery Replacement
1Insert and press a pin into the hole,
then press and push the battery
cover outward to open.
2Install a new CR2032 battery
following the correct orientation
(follow the (+) (–) signs on the remote control)
3
Slide back the battery cover
Technical Assistance
Thank you for your Polk purchase. If you have a question or comment,
please feel free to call or email us. In North America, call Polk Customer
Service at 800-377-POLK(7655) (M-F, 9:00 AM-5:30 PM EST) or via email at
Contact Us Directly
Polk Audio
1 Viper Way, Vista, CA 92081
800-638-7276
www.polkaudio.com
The complete owner’s manual can be found online at www.polkaudio.com
1
2
3
For more information visit our website at www.polkaudio.com
9
Contenu de la boîte
1
2
3
4
5
7
8
6
1. Barre de son
2. Caisson de graves
3. Câble analogique stéréo
analogique 1,82 m (fiche 3,5mm)
4. Câble optique 1,82 m
5. Cordon d’alimentation du caisson
de graves
6. Deux adaptateur RCA (3,5 mm)
7. Cordons d’alimentation de la barre
et bloc d’alimentation
8. Télécommande (pile incluse)
Note importante:
S’il manque des pièces, si vous découvrez des avaries ou si votre barre
MagniFi One ne fonctionne pas, contactez immédiatement votre détaillant.
Conservez la boîte et l’emballage, ils assureront la protection du produit en cas
de transit éventuel.
fr
Pour plus d’information, visitez notre site web : www.polkaudio.com
