Polaroid FLM-2011 Manual de usuario
FLM-2011
Operating Manual
20” LCD Television
20050314

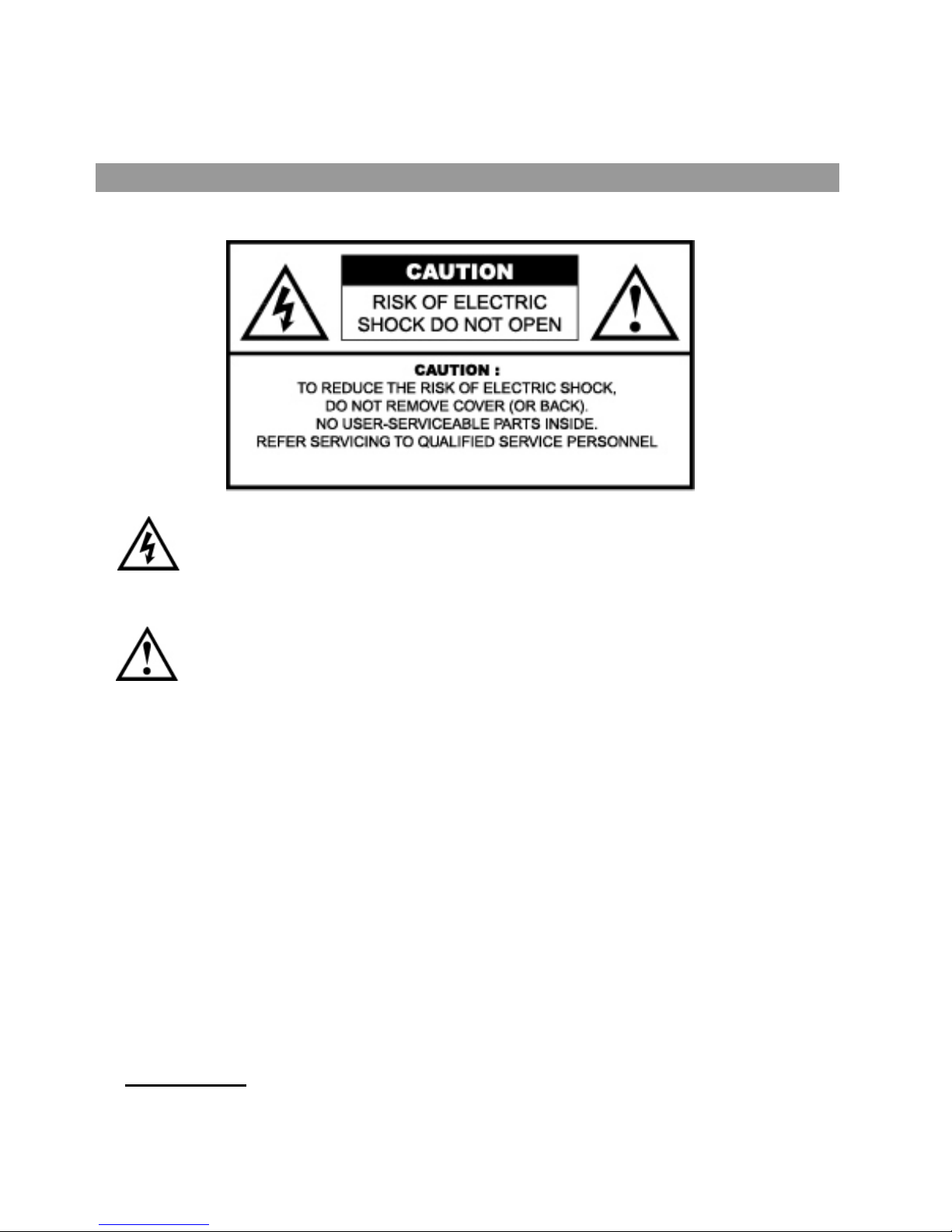

The lightning flash with the arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “DANGEROUS
VOLTAGE” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The Exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing instructions in
the literature accompanying the product).
This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications If this equipment does cause or receive interference, which can be determined by
turning equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
?? Reorient or relocate the TV antenna
?? Increase the separation between TV and other equipment.
?? Connect TV into separate outlet from equipment.
? ?Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment
Federal Communication Commission
Information (FCC)
Important Safety Information
Congratulations on your purchase of this LCD TV.
We recommend that you thoroughly read this manual before use to fully enjoy the
many functions and excellent features of this set.
Retain this manual in an easily accessible location for future reference.
* Screen displays and illustrations in this manual may differ from the actual ones for
better visibility.
Contents
Important safety cautions .................................................................... 1
Identification of controls .......................................................................3
Remote Control..................................................................................... 5
Installation..............................................................................................7
Basic Operations ................................................................................14
Main OSD introduction ..................................................................... 15
Channel setting....................................................................................16
Selecting Channel ...............................................................................18
Picture adjustment...............................................................................19
Sound setting .......................................................................................20
System setting .....................................................................................22
OSD Setting ..........................................................................................27
Timer setting.........................................................................................28
Operations in VGA/YPbPr mode.........................................................29
Troubleshooting ..................................................................................31
Care and Maintenance.........................................................................32
Specifications.......................................................................................33
Contents
Important Safety Cautions
When any unusual situation occurs, turn off the power supply at once and remove
the plug from the wall outlet. Contact a qualified service department in your local
area.
Do not expose this to rain or spattering liquids. Do not use this product near water -
for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, and the like. Do not use immediately after
moving from a low temperature to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other hazards.
Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves
and other heat generating products (including amplifiers).
Requirement of environment temperature:
o o o o
0 C~50 C for storage; 5 C~40 C for working
The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer's instructions are followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Do not place the product on an unstable trolley, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a trolley,
stand, tripod, and bracket or table recommended by the manufacturer or sold with
the product.
1
When relocating the product placed on a trolley, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surfaces can cause the
product to fall from the trolley.
The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product. Power-
supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at
doors, plugs, receptacles, and the point where they exit from the product.
If the power cord or the plug is damaged contact a qualified service department for
service.
High Voltage exists in this TV set. Do not remove the cover.
In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will prevent damage to the equipment
due to lightning and power-line surges.
The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
Don't try to push anything into the cabinet or place any vessel with water on the TV
set.
Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
2
Important Safety Cautions
Identification of controls
Control buttons
Note:
SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the
corresponding buttons on the remote control.
This operation manual provides a description based on operating functions with the remote control.
3
12345
6
7
1. : Power on/standby
2.SOURCE: To select input signal
3.MENU: To access menu
4.VOL+/-:press to raise/lower the volume or adjust the selected item.
5.CH+/-:press to select a higher/lower numbered channel or cycle through the menus.
6.Power Indicator
7.Remote sensor
Antenna input
S-VIDEO input
Earphone jack
Audio/video 1 input
Audio/video 2 input
Audio/video output
VGA input
YPbPr/YCbCr input
PC audio input
Power input
Back
Identification of controls (continued)
4
Display the current state
Muting sound
Previous channel
Auto correct picture
Channel up/down selector.
In menu operations, used
to select item.
Switch the picture mode
Power on/standby
Select the input signal source
Direct channel selector
Sound preset mode selector
Select OSD menu position
Adjust the bass
Setting sleep timer
Exit the menu
Clock setting
Select zoom mode
Select the mono, stereo or SAP
Volume up/down selector.
In the menu operation, adjust the
selected item
Access the menu
Adjust the treble
Flip the cover open in
the direction shown by
the arrow.
Remote Control
5
Please install the batteries before using the remote control.
Effective range of the remote control
Notes:
1.When the remote control will not be used for a
long period of time or when the batteries are
worn out, remove the batteries.
2.Do not drop or dampen the remote control.
3.Do not disassemble the remote control.
4.There should be no obstacle between the TV
and the transmitter.
5.Use the remote control within the effective
range as shown in the figure on the left.
6.If the remote control does not work, please
check whether the batteries are exhausted or
if they have been installed properly.
7.When direct sunlight, and incandescent
lighting, fluorescent lamp or any other strong
light shines on the remote sensor of the TV,
the remote operation can be come erratic.
8.Do not mix different types of batteries in the
remote.
6
Batteries for the Remote Control
If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.
<(Slide the cover while
pressing down.)
<(Place the batteries with their
terminals corresponding to the (+)
and (-) indications in the battery
compartment.)
Open the battery cover.
1Insert two size-AAA batteries.
2
Replace the cover and slide
in reverse until the lock
snaps.
3
30
30
5m
Preparing the Remote Control
Installation
Install the unit in a room where direct light will not fall upon the screen.
Total darkness or a reflection on the picture screen may cause
eyestrain. Soft and indirect lighting is recommended for comfortable
viewing.

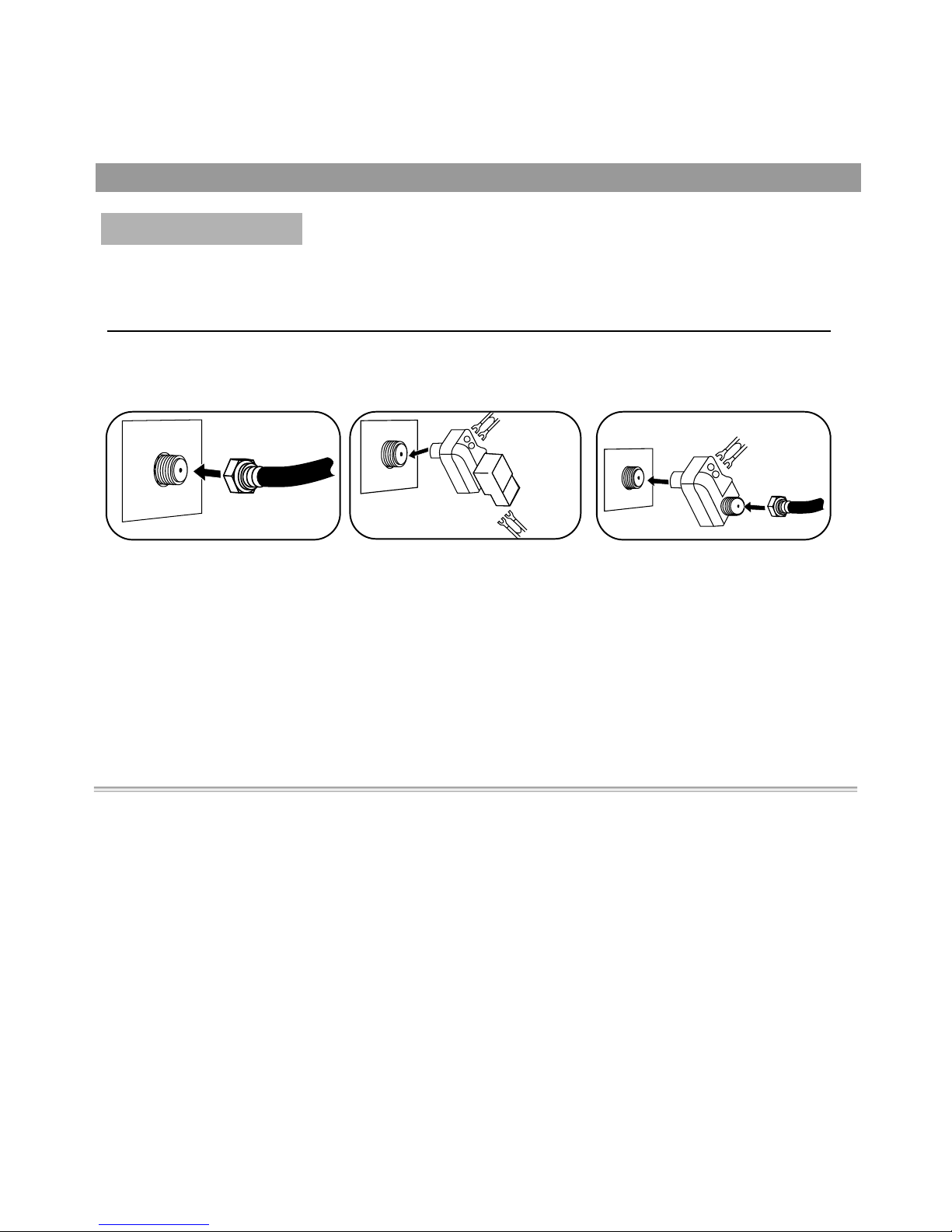

Antenna connections
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see
the next page.
Combination VHF/UHF
Antenna (Single 75 Ohm cable
or 300 Ohm twin-lead wire)
Connect the 75 Ohm cable from
combination VHF/UHF antenna
to the antenna jack.
OR
If your combination antenna has
a 300 Ohm twin-lead wire, use a
300-75 Ohm matching
transformer (NOT SUPPLIED).
Connect the UHF twin-lead wire
to a combiner (NOT SUPPLIED).
Connect the VHF twin-lead to a
300-75 Ohm matching
transformer (NOT SUPPLIED).
Attach the transformer to the
combiner. Attach the combiner to
the antenna jack.
Connect the 75 Ohm cable from
the VHF antenna and the UHF
antenna twin-lead wire to a
combiner (NOT SUPPLIED).
Attach the combiner to the
antenna jack.
NOTE: If your VHF antenna has
a twin-lead wire use a 300-75
Ohm matching transformer, then
connect the transformer to the
combiner.
Combination VHF/UHF
Antenna (Separate VHF and
UHF 300 Ohm twin-leads)
VHF 300
Ohm VHF 75 Ohm
Combiner
Combiner
UHF 300 Ohm UHF 300 Ohm
7
VHF/UHF
75 OHM
Ohm
Este manual sirve para los siguientes modelos
1
Otros manuales de Televisor LCD de Polaroid
Polaroid
Polaroid KF SERIES Manual de usuario
Polaroid
Polaroid FLM-2632 - 26" LCD TV Manual de usuario
Polaroid
Polaroid 4241-TLXB Manual de usuario
Polaroid
Polaroid TLM-22601B Manual de usuario
Polaroid
Polaroid FLU-1514SA Manual de usuario
Polaroid
Polaroid FULL HD LCD TV Manual de usuario
Polaroid
Polaroid TFT-LCD TV Manual de usuario
Polaroid
Polaroid FLM-3230TM Manual de usuario
Polaroid
Polaroid FLM-2625 Manual de usuario
Polaroid
Polaroid FLU-1911SA Manual de usuario
Polaroid
Polaroid FLM-323B - 32" LCD TV Manual de usuario
Polaroid
Polaroid FLM-0711LA Manual de usuario
Polaroid
Polaroid TLA-01911C Manual de usuario
Polaroid
Polaroid PL6521UHDG Manual de usuario
Polaroid
Polaroid 20070918 Manual de usuario
Polaroid
Polaroid FLM-3201 - 32" LCD TV Manual de usuario
Polaroid
Polaroid 40GSR3000FM Manual de usuario
Polaroid
Polaroid FLM-3201 - 32" LCD TV Manual de usuario
Polaroid
Polaroid HD-Ready Widescreen LCD TV Manual de usuario
Polaroid
Polaroid 32GSD3000 Manual de usuario
