Polaroid FCM-0710 Manual de usuario

7” Under-the-Cabinet LCD TV

FCM-0710

20060209

Important Safety Instructions

POWER SUPPLY:

Connect the supplied adapter to the side of the Under-the-Cabinet LCD TV in the slot

marked “Power In”. Plug the two-prong end of the power cord to an AC100-240V

outlet. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit will

not be used for a long time, disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections

have been made.

CAUTION: These servicing instructions are for use by qualified service personnel

only. To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

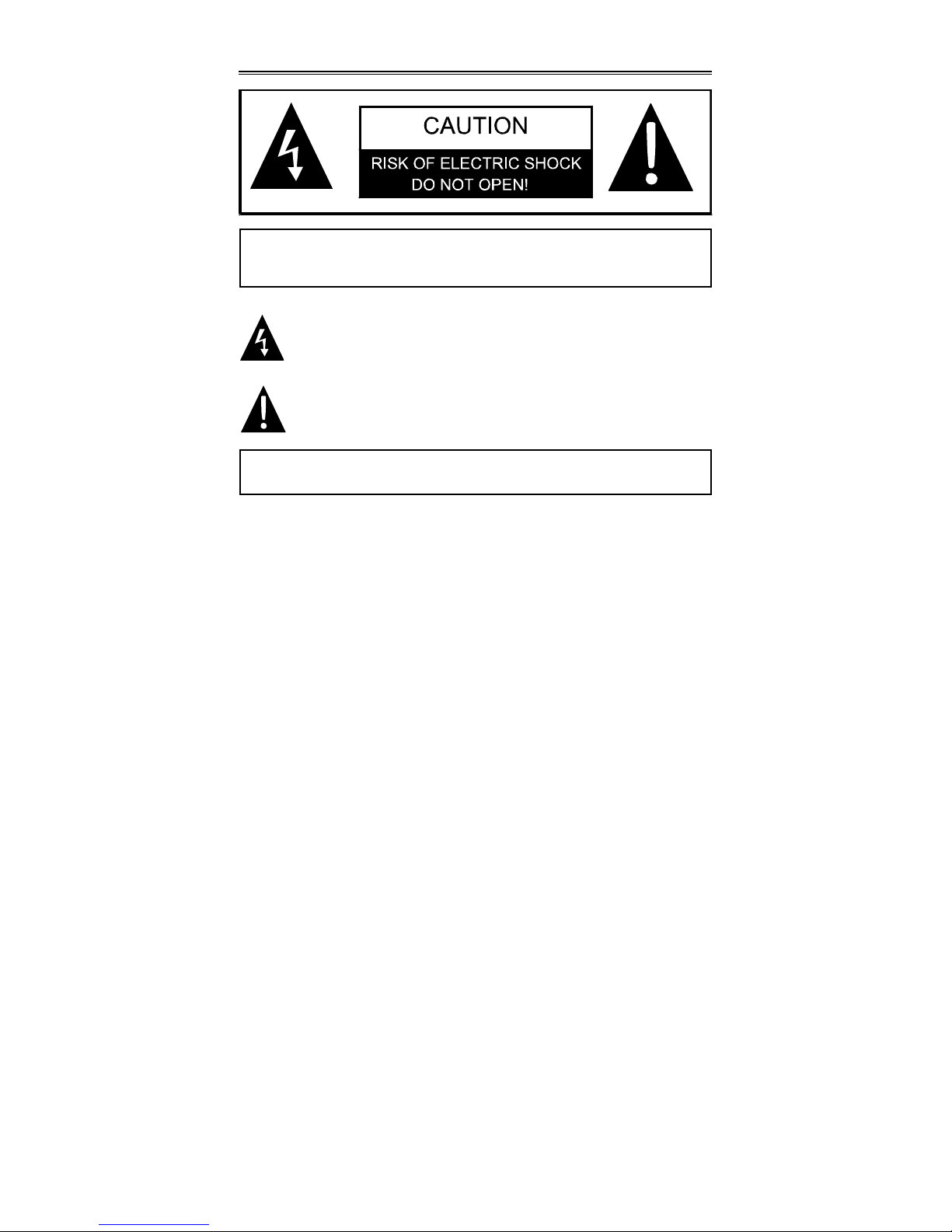

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Maintain well ventilated conditions around

the product, do not put product on bed, sofa or anything that blocks ventilation.

Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third

prong is provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

Note: Do not touch the color TFT LCD screen by hand directly.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

FCCNotice

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Table of Contents

Important Safety Instructions---------------------------------------------------------------------

FCC Notice---------------------------------------------------------------------------------------------

Table of Contents ------------------------------------------------------------------------------------

Characteristic Features ----------------------------------------------------------------------------

Front Panel ---------------------------------------------------------------------------------------------

Rear Panel and Display Panel----------------------------------------------------------------------

Remote Control ---------------------------------------------------------------------------------------

Preparation -------------------------------------------------------------------------------------------

Using the Remote Control-------------------------------------------------------------------------

System Connections --------------------------------------------------------------------------------

Connecting To External AV Signal Source ----------------------------------------------------

Connecting To TV Signal Input Source----------------------------------------------------------

Connecting To the Antenna ----------------------------------------------------------------------------------

Connecting To the Power Adapter ------------------------------------------------------------------------

Radio Function-----------------------------------------------------------------------------------------

TV Function ---------------------------------------------------------------------------------------------

Picture parameter setup---------------------------------------------------------------------------------------

TV Setup----------------------------------------------------------------------------------------------------------

Timer Setup-------------------------------------------------------------------------------------------------------

AV Function --------------------------------------------------------------------------------------------

Installing the Unit in Kitchen----------------------------------------------------------------------

Troubleshooting --------------------------------------------------------------------------------------

Specifications -----------------------------------------------------------------------------------------

Characteristic Features

This product incorporates LCD

display, TV receiver and radio

function in one system. It is designed

for convenient use in the kitchen.

Please refer to page 21 for the

installation instructions.

Multiple Mode

•TV

•Radio

•External Audio & Video Input

mode

High Quality Property

Video Screen

Supports normal screen (4:3) and wide

screen (16:9) aspect ratios.

AV Input

External Audio, Video input can be

connected to most external AV sources.

LCD (Liquid Crystal Display) screen

Color video screen designed with LCD

technology clearly shows video data.

Amplifier Function

Built-in 2x5w stereo amplifier with left

and right speakers.

Switching Power Adapter

Automatically adapts to the voltage

required.

TV Functions

•Receive TV signal clearly.

•Search for TV channels automatically.

•Automatically memorize the

channels.

Radio Functions

•Receive AM/FM signal clearly.

•Search for radio stations

automatically.

•Store radio stations easily.

•Search for radio stations in high or

low frequency range.

- 7 -

FrontPanel

Front Panel Drawing

1. POWER Button

Press to enter or exit the STANDBY

mode.

2. TV Button

Press to enter TV receiving mode.

3. FM Button

Press to shift to FM signal input mode.

4. AM Button

Press to shift toAM signal input mode.

5. AV Button

Press to shift to external AV input mode.

6. 16:9/4:3 Button

Press to switch the aspect ratio of the

screen between 16:9 and 4:3.

7. button

Under radio mode, press once to fine

tune frequency backward. Press for

about 1.5 seconds to search radio

stations backward automatically.

8. Button

Under radio mode, press once to fine

tune frequency forward. Press for about

1.5 seconds to search radio stations

forward automatically.

9. Remote Sensor

Receives remote control signal for

operation.

- 8 -

FrontPanel

10. TIME Button

Press to set the time when the time is

displayed on the display panel. Use the

buttons to select the editing

position of hour or minute, use the 

buttons to adjust the value of the hour

or minute upward and downward.

Under FM/AM radio status, press it

once to display the time. Press it twice

to set the time.

11. MUTE Button

Press to turn the speaker output on or

off. The corresponding information will

be displayed on the display panel.

12. SET Button

Press to enter or exit from the timer

setup menu. Press to memorize the

station under AM/FM status.

13. Display Panel

Displays the time, status, radio

frequency and radio station number.

When adjusting volume, the VOL and

volume level will be displayed on the

display panel for several seconds.

14. ▼/CH–

Press to select items in the setup menu.

Press to select channels or radio

stations backward under TV or radio

mode.

Press to adjust the value downward

when setting the time on the display

panel.

15. ▲/CH+

Press to select items in the setup menu.

Press to select channels or radio stations

forward under TV or radio mode.

Press to adjust the value upward when

setting the time on the display panel.

16. ◄/VOL–

Press to select items in the setup menu.

Or press to decrease the volume. Or

press to decrease the value in the

picture setup menu.

17. ►/VOL+

Press to select items in the setup menu.

Press to increase the volume.

Press to increase the value in the

picture setup menu.

18. ENT Button

Press to confirm the time or selections

in setup menu.

19. TV/LCD SETUP Button

Press once to enter the LCD setup

menu. Then press button again to

enter the TV setup menu in TV mode.

20. LCD Screen

Presents a high resolution picture.

- 9 -

RearPanelanddisplaypanel

Rear Panel Drawing

1. ANT INPUT jack

Connected to external antenna to

receive the TV program in TV mode.

2. FM 75Ωcoaxial antenna jack

3. AM antenna jack

4. Left/Right AUDIO input jack

Connection for audio input.

5. VIDEO input jack

Connection for video input.

6. Direct current 12V input jack

Display Panel Drawing

1. FM radio status indicator

2. AM radio status indicator

AM time indicator

3. PM time indicator

4. Hour or character indicators

5. Minute or character indicators

6. Character indicators

7. FM frequency unit of MHz

indicator

8. AM frequency unit of KHz

indicator

- 10 -

RemoteControl

Preparation

Refer to the drawing and remove the

empty battery receptacle.

Insert the battery into the receptacle.

Make sure the polarity matches the

marks inside the component.

Insert the receptacle into the remote

control.

Using Of Remote Control

Point the remote control towards the

main unit when operating. The remote

control works best at a distance less

than 7m and at an angle of up to 60°to

the front of the unit. No obstacles may

stand in the way between remote

control and infrared sensor.

The battery normally lasts for about six

months. This depends on how often

and for what operations the remote

control is used.

If the remote control unit fails to work

even when it is operated near the unit,

replace the battery.

If the remote control is not used for a

long period of time, please remove the

battery from the compartment, to

prevent damage by leakage.

Tabla de contenidos

Otros manuales de Televisor LCD de Polaroid

Polaroid

Polaroid 37" Manual de usuario

Polaroid

Polaroid HD-Ready Widescreen LCD TV Manual de usuario

Polaroid

Polaroid TLX-02311B - 23" LCD TV Manual de usuario

Polaroid

Polaroid 3211-TLXB - 32" LCD TV Manual de usuario

Polaroid

Polaroid TLU-44243B Manual de usuario

Polaroid

Polaroid FLM-323B - 32" LCD TV Manual de usuario

Polaroid

Polaroid TLU-03711C Manual de usuario

Polaroid

Polaroid 32GSD3000 Manual de usuario

Polaroid

Polaroid 46" Manual de usuario

Polaroid

Polaroid FLA-3232B Manual de usuario

Polaroid

Polaroid HD-Ready Widescreen LCD TV Manual de usuario

Polaroid

Polaroid FLM-3201 - 32" LCD TV Manual de usuario

Polaroid

Polaroid PL6521UHDG Manual de usuario

Polaroid

Polaroid FLM-2625 Manual de usuario

Polaroid

Polaroid TLM-23201B Manual de usuario

Polaroid

Polaroid TLA-04641C - 46" LCD TV Manual de usuario

Polaroid

Polaroid FLM-2632 - 26" LCD TV Manual de usuario

Polaroid

Polaroid FLA-1911B Manual de usuario

Polaroid

Polaroid FLU-1911SA Manual de usuario

Polaroid

Polaroid I0315 Manual de usuario

Polaroid

Polaroid TFT-LCD TV Manual de usuario

Polaroid

Polaroid V23D series Manual de usuario

Polaroid

Polaroid HD-Ready Widescreen LCD TV Manual de usuario

Polaroid

Polaroid FCM-0700A Manual de usuario

Manuales populares de Televisor LCD de otras marcas

LG 32LC4R* Manual de usuario

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manual de usuario

Salora

Salora 22LED1600 Manual de usuario

Samsung

Samsung LA32E420 Guía

Dell

Dell W1900 19 Instrucciones de uso

Samsung

Samsung LN40C670M1F Manual de usuario

Samsung

Samsung Series 4+ Manual de usuario

Samsung

Samsung 5 Series Manual de usuario

Grundig

Grundig 40 VLE 8230 BP Manual de usuario

Philips

Philips 43PFL4901/F7 Manual de usuario

Sony

Sony Bravia XBR-43X830C Manual de usuario

LG 32LS350 Manual de usuario

VIORE

VIORE LED32VF60 Manual de usuario

Toshiba

Toshiba Regza 42HL167 Manual de usuario

JVC

JVC LT-32A220 Manual de usuario

Philips

Philips 20TA1000/93 Manual de usuario

Philips

Philips 32PFL3158T/12 Manual de usuario

Sony

Sony Bravia KDL-V32XBR2 Manual de usuario
