Polaroid S503W Manual de usuario

400-8401-030 www.polaroidcarcam.com

Contents

About this guide........................................................................... 5

Battery warning............................................................................ 5

Installation Notes......................................................................... 5

1 Introduction.......................................................................... 6

1.1 Function............................................................................ 6

1.2 Package contents............................................................ 6

1.3 Product overview............................................................. 7

2Instructions for Use of Car Charger.....................................8

3 Getting started..................................................................... 8

3.1 Inserting the memory card............................................. 8

3.2 Installing in Vehicles........................................................9

3.3 Powering the Device On / Off........................................ 9

3.3.1 Auto Power On/Off.............................................. 9

3.3.2 Manual Power On/Off......................................... 9

4 Traffic vide.......................................................................... 10

4.1 Main Interface...........................................................10

4.2 Function keys for video recording................... 10-12

4.3 Function for taking picture......................................12

4.4 Reversing function...................................................13

5 GPS Navigation..................................................................13

6 Other Applications............................................................14

7 Music.................................................................................... 14

8 Setting..................................................................................14

9 Default GPS navigation settings...................................15

10 USB connection.................................................................15

11 Specifications .................................................................. 16

About this Guide

The content in this document is for information purpose and is subject to change

without prior notice. We made every effort to ensure that this User Guide is accurate

and complete.

However, no liability is assumed for any errors and omissions that may have occurred.

The manufacturer reserves the right to change the technical specifications without

prior notice.

Battery warning

Always charge using the provided system. Improper handling of the

battery may result in explosion.

Never dismantle or pierce the battery or allow the battery to

short-circuit.

Keep the battery out of reach of children.

Batteries may explode if exposed to naked fire. Never dispose of

batteries in a fire.

Disposed of used batteries observing local regulations.

Never replace the battery on your own; have the dealer do it for

you.

Notes on Installation

1. Make sure that the lens is within the wiping range of the windscreen

wiper to ensure a clear view even when it rains.

2. Do not touch the lens with your fingers. Finger grease may be left on

the lens and will result in unclear videos or snapshots. Clean the lens

on a regular basis.

3. Do not install the device on a tinted window. Doing so may damage

the tint film.

4. Make sure that the installation position is not hindered by the tinted

window.

5. To use the products of the attached power charger only, please do

not use other brand power charger, in order to avoid equipment burn or

cause the battery explosion.

1. Introduction

Thank you for purchasing this advanced Car Recorder. This device is

specifically designed for real time video and audio recording when driving.

1.1 Features

Full HD recording videos (1920x1080@30fps 或1280x720@60fps)

5’ Touch screen

Wide angle lens

WiFi/Bluetooth Function/FM/GPS Navigation

Support SDHC Level 6 and above. Support up to 32GB

1.2 Package Contents

The package contains the following items. In case there is any missing

or damaged item, contact your dealer immediately.

Products and Parts List

1. Polaroid Full HD Driving Recorder

2. Rear camera

3. Car Power Adaptor

4. USB Cable

5. Quick Start Guide

6. Warranty Card

1.3 Product overview

Name

Lens

USB Port

LED Light

AVIN Port

Reset Button

SD Card Slot 1 (Recorder Dedicated)

Return Button

SD Card Slot 2 (Map Navigation Dedicated)

Power Button

2. Instructions for Use of Car Charger

●The current for car charger should not be less than 2.5A.

●If the recorder is powered off due to weak power, an icon of a battery

being recharged will appear after the recorder is connected to the

charger.You are advised to press and hold on the power button after a

few minutes of recharging.

●Camera specifications: Front camera: support of 1080P/720P;

Rear camera: support of VGA.

Main Interface

3 Getting Started

3.1 Inserting the Memory Card

Insert memory card with the gold section facing upward and the screen of

the device facing upward too, as illustrated. Push the memory card in until a

click sound is heard, indicating the card is in position.

To remove the memory card

Push to eject the memory card out of the slot.

Note:

1. Do not remove or insert the memory card when the device is turned on. This

may damage the memory card.

2. Please use a Class 6 or higher rating Micro SD card, max. up to 32GB.

3. Please format the micro SD cards before the initial use.

4. When removing the memory card, be careful that the card may spring out and

get lost. The memory slot has this spring-out feature for easy removal of the

card.

3.2 Installing in Vehicles

Plug the other end of the car adapter to the cigarette lighter socket of

your vehicle. Once the vehicle engine is started, the device automatically

turns on.

3.3 Powering the Device On / Off

3.3.1

Auto Power On/Off

Once the vehicle engine is started, the device automatically turns on. If the

Automatic Record function is enabled, the recording will automatically

start right after the device turns on.。

3.3.2 ManualPowerOn/Off

press the power button to turn it on. Press the power button for 3 seconds

to shut down.

4. Video Recording During Driving

Note: The option Automatic Video Recording is selected by default for the

first use of the recorder. After being powered on, the recorder (with an SD

card) starts recording automatically, and returns to the main interface

automatically five seconds later (Background video recording is underway.)

4.1Click Video Recording During Driving on the main interface or recording

a video。

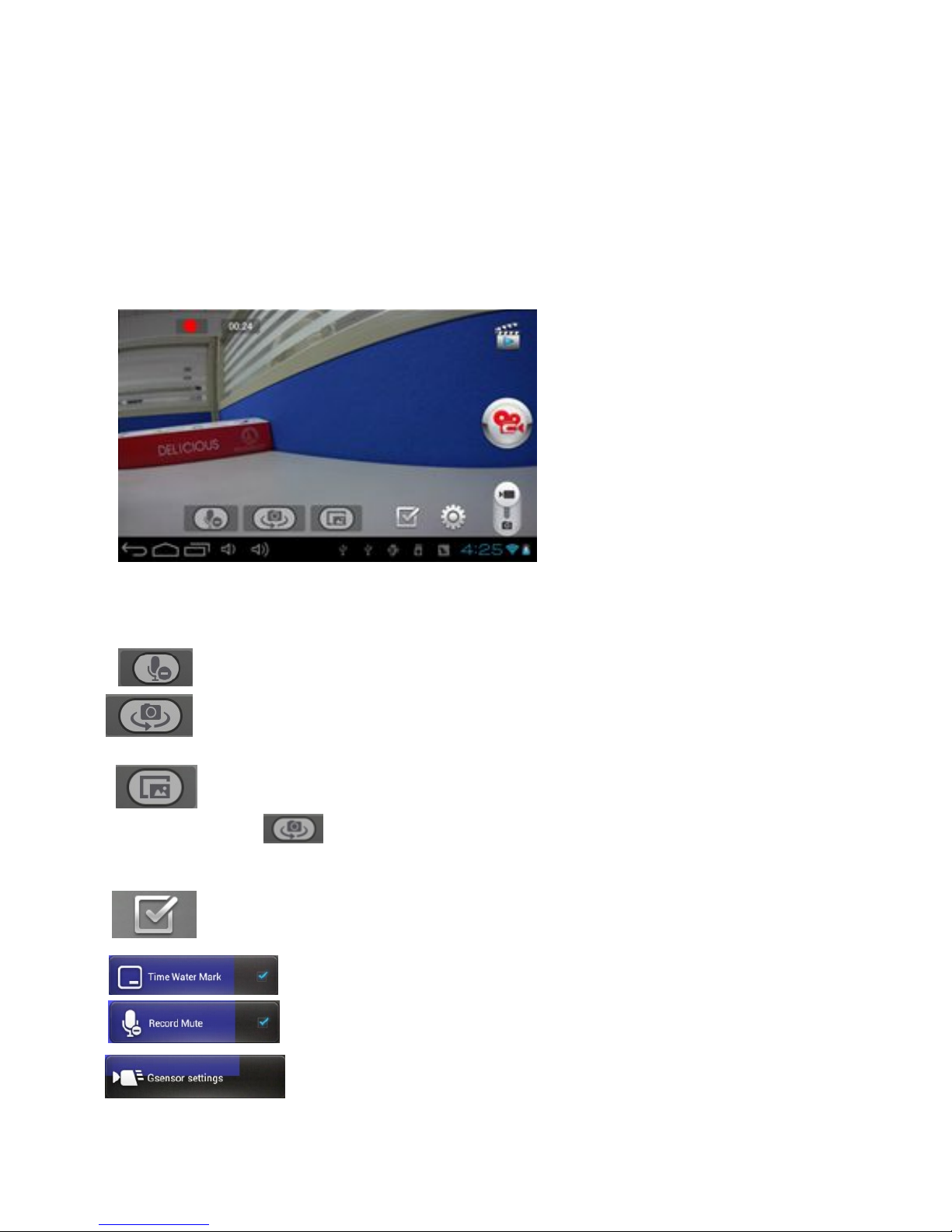

4.2 Function keys for video recording ：

ON/OFF of mute function for video recording

Switchover of front/rear camera

ON/OFF of Picture-In-Picture function (Activate this function,

the front and rear cameras will be viewed in small windows;

click , then you can switch over the pictures between

front and rear cameras,as shown in the Figure below.

Menu of function options

ON/OFF of watermark

ON /OFF of mute function for video recording

Setting of Gsensor sensitivity

Gsensor ：It is equipped with high sensitivity Gsensor detector, so the

current file can be automatically locked in case of danger and cyclic

covering of the file is impossible. As shown below：

switchover of front/rear camera

ON/OFF motion detection

ON/OFF automatic video-recording function

ON/OFF of Picture-In-Picture function

Formatting of SD card （Only format the special TF

card for vehicle traveling data recorder.）

Setup menu of video recording

Setting of white balance

Setting of exposure rate

Setting of color mode

Setting of recording time
