Model • Modèle • Modell • Modello • Modelo • Malli:

UA001/UA002/UA003/UA004

Refrigerators/

Freezers

Instruction manual

UK Refrigerators/Freezers

Instruction manual

2DE Kühlschrank/Gefrierschrank

Bedienungsanleitung

NL Koelkast/Vrieskast

Handleiding

10 IT Frigorifero/Congelatore

Manuale di istruzioni

FR Armoire positive/négative

Mode d'emploi

18 ES Frigorífico/Congelador

Manual de instrucciones

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 1UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 1 2021/11/15 10:192021/11/15 10:19

Safety Instructions

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out

installation and any repairs if required.

• Consult Local and National Standards to comply with the

following:

- Health and Safety at Work Legislation

- BS EN Codes of Practice

- Fire Precautions

- IEE Wiring Regulations

- Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.

• DO NOT allow oil or fat to come into contact with the plastic

components or door seal. Clean immediately if contact occurs.

• DO NOT store products on top of the appliance.

• Bottles that contain a high percentage of alcohol must be

sealed and placed vertically in the refrigerator.

• Always carry, store and handle the appliance in a vertical

position and move by holding the base of the appliance.

• Always switch off and disconnect the power supply to the

appliance when not in use.

• Keep all packaging away from children. Dispose of the

packaging in accordance to the regulations of local authorities.

• If the power cord is damaged, it must be replaced by a POLAR

agent or a recommended qualified technician in order to avoid

a hazard.

• Children should be supervised to ensure that they do not play

with the appliance.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 2UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 2 2021/11/15 10:192021/11/15 10:19

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning the use of the

appliance by a person responsible for their safety.

• POLAR recommends that this appliance should be periodically

tested (at least annually) by a Competent Person. Testing

should include, but not be limited to: Visual Inspection,

Polarity Test, Earth Continuity, Insulation Continuity and

Functional Testing.

• POLAR recommend that this product is connected to a circuit

protected by an appropriate RCD (Residual Current Device).

Warning: Risk of Fire / flammable materials

• Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of

obstruction. Unit should not be boxed in without

adequate ventilation.

• Warning: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are the

type recommended by the manufacturer.

Product Description

UA001 - Polar single door Refrigerator

UA002 - Polar single door Freezer

UA003 - Polar double door Refrigerator

UA004 - Polar double door Freezer

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 3UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 3 2021/11/15 10:192021/11/15 10:19

Introduction

Please take a few moments to carefully read

through this manual. Correct maintenance and

operation of this machine will provide the best

possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Refrigerator / Freezer

• Keys

• Shelves

• Shelf support bars

• Top hinge and Bottom hinge (for UA001/UA002

only)

• Instruction Manual

POLAR prides itself on quality and service, ensuring

that at the time of packaging the contents are

supplied fully functional and free of damage.

Should you find any damage as a result of transit,

please contact your POLAR dealer immediately.

Installation

Note: If the appliance has

been stored or moved in a

non-vertical position, stand

it in an upright position for

approximately 12 hours before

operation. If in doubt allow to

stand.

1. Remove the appliance from the packaging and

remove the protective film from all surfaces.

2. To optimize performance and longevity, ensure

a minimum clearance of 2.5cm is maintained

between the unit and walls and other objects,

with a minimum 5cm clearance on the top.

NEVER LOCATE NEXT TO A HEAT SOURCE.

Note: Before using the appliance

for the first time, clean the

shelves and interior with soapy

water.

3. Set the brakes on the castors to keep the

appliance in position.

Fitting the shelf support bars

• Place the support bar on the ladder at the

desired height. For installation, the closed end

shall be located at rear and open end at front.

1. Push the support bar backwards to let its rear

end hang on the rear ladder (Step 1).

2. Lift the front end slightly then buckle it onto

the front ladder (Step 2).

Support bar

Ladder

• Repeat for the remaining support bars.

• Slide the GN pans/shelves into place.

Reversing the door (for UA001/

UA002 only)

The door handle is on the left side by default.

If necessary to reverse the door, follow below

operations:

Caution: All the operations

under this section should be

carried out only by trained

personnel or professional

technicians.

1. Turn the fixing locks as arrowed to release the

control panel.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 4UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 4 2021/11/15 10:192021/11/15 10:19

2. Lift the controller panel upward for about

15mm, then take it out.

3. Remove all inner and exterior screws to release

the top decoration plate.

4. Remove the bottom decoration plate.

5. Remove the right top hinge and bottom hinge

to release the door. Then remove the door

carefully.

6. Mount the left top hinge and bottom hinge with

screws. Keep the top hinge a little loose so that

the door can be inserted later easily.

7. Reverse the door and insert it into the holes

of both hinges. Then fix the door in place with

screws.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 5UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 5 2021/11/15 10:192021/11/15 10:19

8. There are covers on the top and bottom

decoration plates, remove the left cover and

install on the right side.

9. Install back the top decoration plate, bottom

decoration plate, and controller panel with

screws. Then turn the fixing locks ahead to fix

the control panel in place.

Operation

Control Panel for refrigerators

(UA001/UA003)

Control Panel for Freezers

(UA002/UA004)

Turn On

1. Close the door/doors of the appliance.

2. Connect the appliance to the mains power

supply.

3. To switch system on or off, press and hold

for 3 seconds.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 6UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 6 2021/11/15 10:192021/11/15 10:19

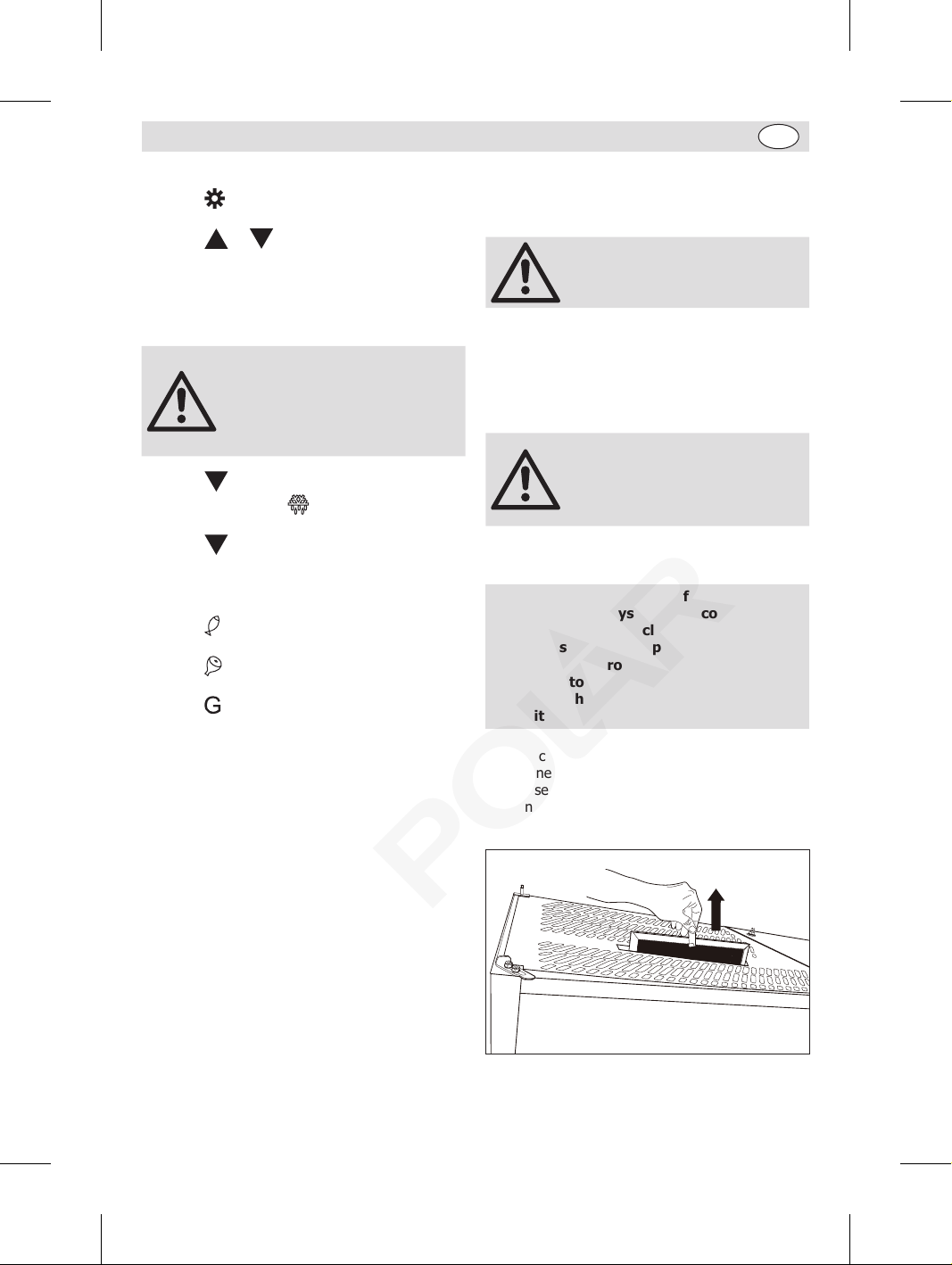

Adjusting the Temperature

1. Press for 3 seconds. The set temperature

on the display will flash.

2. Press or to change the set

temperature.

3. Wait 6 seconds for the set temperature to be

stored.

Manual Defrost

Automatic defrost:

The appliance features an

automatic defrost. However,

should the appliance require an

additional defrost period, carry

out below operations:

1. Press for 3 seconds to enter defrosting

mode. The symbol will appear on the

display.

2. Press for 3 seconds again to exit.

Short cut operations for

refrigerators only:

1. Press once to enter fish mode and display

the set temperature (Range: -1°C ~ 1°C).

2. Press once to enter meat mode and display

the set temperature (Range: -2°C ~ 2°C).

3. Press once to return to general mode and

display the set temperature (Range: 1°C ~

4°C).

Cleaning, Care &

Maintenance

Switch off and disconnect

from the power supply before

cleaning.

• Clean the interior of the appliance as often as

possible.

• Do not use abrasive cleaning agents. These

can leave harmful residues.

• Clean the door seals with warm soapy water.

• Always wipe dry after cleaning.

Note: Condensation will form in

refrigeration on hot humid days,

please ensure condensation is

allowed to drain properly or is

wiped dry.

Cleaning the condenser

• The condenser is part of the

refrigeration system. The condenser

requires monthly cleaning.

• Always disconnect power supply before

carrying out routine maintenance.

• Failure to clean the condenser will

reduce the performance and life of your

unit and may invalidate your warranty.

1. The condenser is located above the refrigerator

cabinet at the top.

2. These models have a removable filter which

can be taken out directly. Clean with a vacuum

cleaner.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 7UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 7 2021/11/15 10:192021/11/15 10:19

Troubleshooting

If the machine malfunctions due to causes other than those listed or the proposed corrective actions do

not solve the problem please call a Polar agent or qualified technician.

Fault Probable Cause Solution

The unit is not working The unit is not switched on Check the unit is plugged in correctly and

switched on

Plug or lead is damaged Call POLAR agent or qualified Technician

Fuse in the plug has blown Replace the fuse

Power supply Check power supply

The appliance is not

cooling Coolant Leak Call POLAR agent or qualified technician

Fan Motor Failed Call POLAR agent or qualified technician

Airflow to the condenser

obstructed Increase the gap between appliance and

obstacles/heat source

Condenser is clogged Cleaning the condenser

Loud noises Appliance is not level Adjust position to make it level

Appliance is too close to a wall or

other object Move to a more suitable location

Odour from the unit Unit is not cleaned for long time Clean the unit thoroughly

Odour food not properly packed Seal and pack odour food properly

Error code/

indication Probable Cause Solution

“ER1” and

alarm The evaporator inlet probe is

faulty Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“ER2” and

alarm The evaporator return gas

probe is faulty Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“ER3” and

alarm The defrost probe (evaporator

temperature probe) is faulty. Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“ER4” and

alarm Door not closed properly or

door switch is faulty Press any button to cease alarm. Close the door/doors

properly or check the door switch

“ER5” and

alarm Condenser probe is faulty Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“SO” and

alarm Cabinet temperature probe is

open-circuited Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“SC” and

alarm Cabinet temperature probe is

short-circuited Press any button to cease alarm. Call POLAR agent or

qualified Technician to replace the faulty probe

“HI” and alarm Condenser temperature

exceeding 60°C Power off and re-start machine to cease alarm. Press

power button for 1 second to check the condenser

temperature on the screen. Clean the condenser filter

immediately, or Call POLAR agent or qualified technician

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 8UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 8 2021/11/15 10:192021/11/15 10:19

Technical Specifications

Model Voltage Power

(W) Temp. Range Refrigerant Dimensions

H x W x D mm Weight

(kg)

UA001 220-240V~ 50Hz 430 -2°C ~ +4°C R290 1980 x 737 x 815 122.10

UA002 220-240V~ 50Hz 650 -18°C ~ -22°C R290 1980 x 737 x 815 127.90

UA003 220-240V~ 50Hz 460 -2°C ~ +4°C R290 1980 x 1400 x 815 187.60

UA004 220-240V~ 50Hz 800 -18°C ~ -22°C R290 1980 x 1400 x 815 194.00

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency

disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or

recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are

not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to

dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must

not be disposed of as household waste. To help prevent possible harm to human

health and/or the environment, the product must be disposed of in an approved and

environmentally safe recycling process. For further information on how to dispose of

this product correctly, contact the product supplier, or the local authority responsible for

waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with

regulatory standards and specifications set by international, independent,

and federal authorities.

POLAR products have been approved to carry the following symbol:

mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to

change specifications without notice.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 9UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 9 2021/11/15 10:192021/11/15 10:19

Veiligheidstips

• Plaatsen op een vlakke en stabiele ondergrond.

• De installatie en eventuele reparaties zijn door een

servicetechnicus/vaktechnicus uit te voeren. Verwijder geen

componenten of servicepanelen van dit product.

• Raadpleeg en volg de plaatselijke en nationale regelgeving op

m.b.t. tot het volgende:

- Wetgeving van gezondheid en veiligheid op de werkplaats

- Werkregels

- Brandpreventie

- IEE bekabelingsnormen

- Bouwverordeningen

• Dit product NIET reinigen met spuit-/drukreinigers.

• Dit apparaat NIET buitenshuis gebruiken.

• Gebruik het product NIET voor het opbergen van medische

producten.

• Laat NIET toe dat olie of vet in contact komt met plastic

componenten of deurafdichtingen. Onmiddellijk reinigen indien

dit wel gebeurt.

• GÉÉN producten bovenop het apparaat neerzetten.

• Flessen met en hoog alcoholpercentage moet goed worden

gesloten en verticaal in de koelkast worden bewaard.

• Dit product altijd in een verticale positie vervoeren, opbergen

en gebruiken. Het product verplaatsen door de basis van het

apparaat vast te houden.

• Alvorens dit apparaat te reinigen dient men altijd de

stroomvoorziening uit te schakelen.

• Laat verpakkingsmateriaal niet binnen handbereik van kinderen.

Verpakkingsmateriaal in overeenstemming met de regelgeving

van de plaatselijke overheden als afval laten verwerken.

• Indien de stroomkabel beschadigd raakt, dient men deze door

een POLAR technicus of aanbevolen vaktechnicus te laten

vervangen om gevaarlijke situaties te voorkomen.

UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 10UA001-UA002-UA003-UA004_ML_A5_v2_20211111.indb 10 2021/11/15 10:192021/11/15 10:19

Otros manuales para UA001

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Polar Electro

Polar Electro

Polar Electro GH215-A Manual de usuario

Polar Electro

Polar Electro G596-A Manual de usuario

Polar Electro

Polar Electro GL180 Manual de usuario

Polar Electro

Polar Electro D4325000 Manual de usuario

Polar Electro

Polar Electro FD169 Manual de usuario

Polar Electro

Polar Electro CE322-A Manual de usuario

Polar Electro

Polar Electro G Series Manual de usuario

Polar Electro

Polar Electro GD881 Manual de usuario

Polar Electro

Polar Electro DM075 Manual de usuario

Polar Electro

Polar Electro Deli CG841-A Manual de usuario

Polar Electro

Polar Electro G592 Manual de usuario

Polar Electro

Polar Electro CD080-A Manual de usuario

Polar Electro

Polar Electro GJ447 Manual de usuario

Polar Electro

Polar Electro FA854-A Manual de usuario

Polar Electro

Polar Electro CD080-A Manual de usuario

Polar Electro

Polar Electro G609 Manual de usuario

Polar Electro

Polar Electro CD610 Manual de usuario

Polar Electro

Polar Electro UA017 Manual de usuario

Polar Electro

Polar Electro CS102 Manual de usuario

Polar Electro

Polar Electro CD610 Manual de usuario

Polar Electro

Polar Electro FA440-A Manual de usuario

Polar Electro

Polar Electro CD610 Manual de usuario

Polar Electro

Polar Electro DA546 Manual de usuario

Polar Electro

Polar Electro CG841 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
