Please note your phone is battery embedded design with removable
back cover and battery. Unauthorized personnel are strictly
prohibited from disassembling the phone.
If your phone isn’t working normally, try to restart it by pressing
and holding the Power key for at least 7 seconds until the startup
screen appears.
If your phone develops a serious error and can’t be restored by
restarting it, you may need to restore factory settings by pressing
and holding the Power key and Volume up key until the startup
screen appears. Then select "reboot system now" and press the
Power key to confirm.
Note: Please take care when performing such operations because
they will erase personalized settings and data saved in your phone,
such as SMS, Contacts, Music, etc.
Make sure you are using a Power adapter DC 5V 2A output. We
recommend use of Pointmobile power adaptor.
PM80

PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker
is in use.
Table of contents
1Your mobile���������������������������������������������������������������������1
2 Text input ����������������������������������������������������������������������13
3 Phone call ����������������������������������������������������������������������14
4 Contacts ������������������������������������������������������������������������16
5 Messaging�����������������������������������������������������������������������16
6 Email ������������������������������������������������������������������������������18
7 Getting connected��������������������������������������������������������19
8 Find my location using GPS satellites ������������������������21
9 Data backup ������������������������������������������������������������������22
10 Factory data reset ��������������������������������������������������������23
11 Applications & Internal storage ����������������������������������24
12 Making the most of your phone����������������������������������25
13 MSR ��������������������������������������������������������������������������������26
14 2D Barcode scanner �����������������������������������������������������27
15 SAM Card����������������������������������������������������������������������27
Safety and use�������������������������������������������������������������������������28
General information ��������������������������������������������������������������36
Warranty���������������������������������������������������������������������������������37
Troubleshooting����������������������������������������������������������������������38
www.sar-tick.com
This product meets applicable national SAR limits
of 2.0 W/kg. The specific maximum SAR values
can be found on page 30 of this user guide.
When carrying the product or using it while worn
on your body, either use an approved accessory
such as a holster or otherwise maintain a
distance of 1.0 cm from the body to ensure
compliance with RF exposure requirements.
Note that the product may be transmitting even
if you are not making a phone call.

1
1
Your mobile������������������

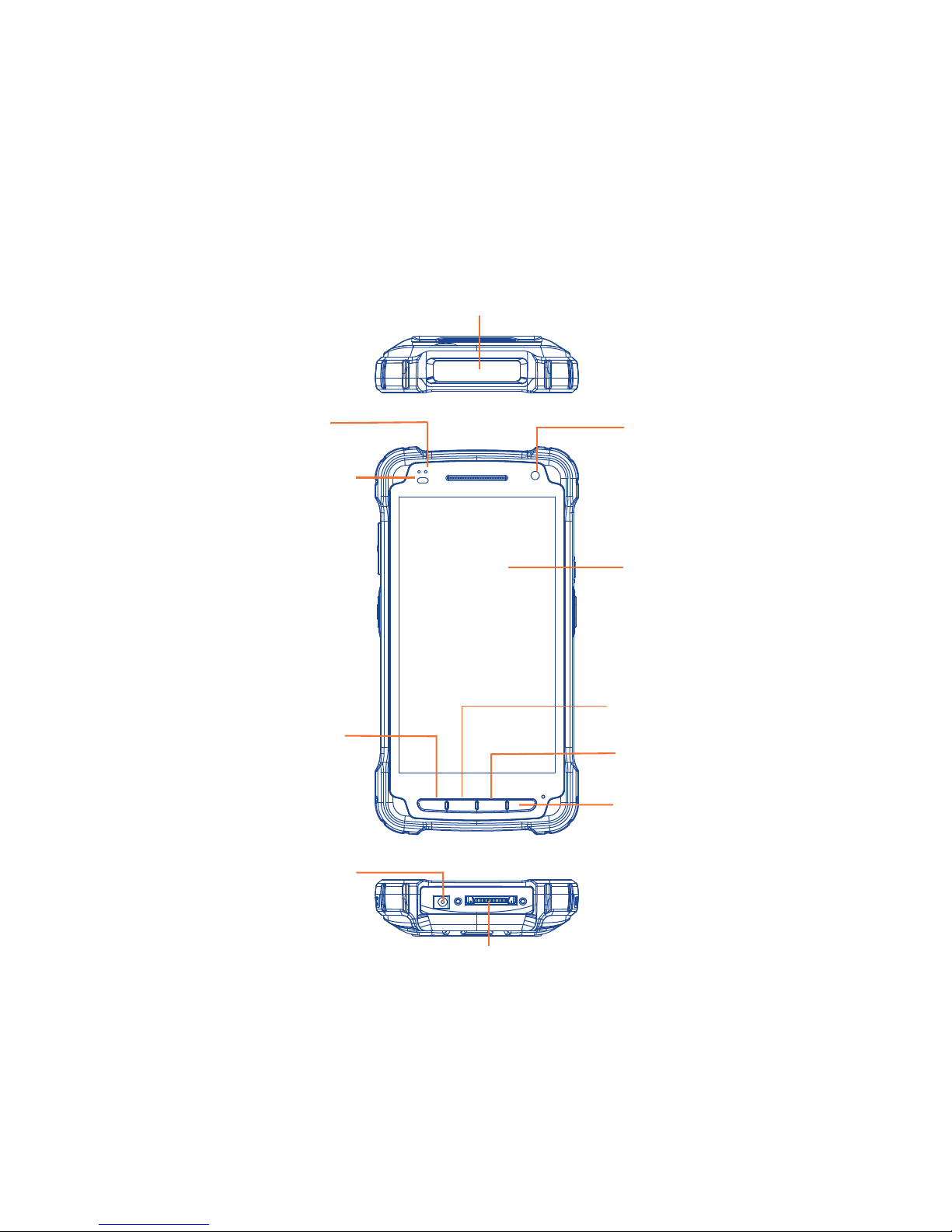

1�1 Keys and connectors
USB Connector
Front camera
Scanner
LED indicator
Home key
Touch screen
Back key
Function key
Recent Apps
key
Iilluminance &
proximity sensor
indicator
DC connector
indicator

2
Camera Camera Flash/Flashlight
Power key
Volume
key
Recent Apps key
• Touch to view recent used applications.
Home key
• From any application or screen, touch to return to the
Home screen.
• Touch and hold to open the recent APP list.
Back key
• Touch to go back to the previous screen, or to close
a dialog box, options menu, the notification panel, etc.
Function key
• Touch to slect the function you want to set as the
shotcut of program buttons.
3.5mm Audio
headset
Scan key
Scan key

3
Power key
• Press: Lock the screen/Light up the screen.
• Press and hold: Show the pop-up menu to select from
Power off/Reboot/Airplane mode/Hot Swap.
• Press the Power key and Volume down key for more
than 12s to reset.
• Press the Power key and Volume down key to
capture a screenshot.
Volume Keys
• In call mode, adjusts the earpiece or headset volume.
• In Music/Video/Streaming mode, adjusts the media
volume.
• In general mode, adjusts the ringtone volume.
• Mutes the ringtone of an incoming call.
• In camera preview mode, press Volume up or down
key to enter burst shoot.
Scanner Keys
• In Scan Wedge mode, press the Scanner keys on both
sides of the device at the same time to scan the barcode.

4
1�2 Getting started
1�2�1 Set-up
Removing or installing the back cover
1. Slide the battery cover locker to left(1) and pull up the cover by
pulling each side of cover bottom(2).
2. Insert from top(1) to bottom(2) of battery.
3. Pull up black ribbon to lift out the battery.
4. Put in the upper part of battery cover first(1) and put in the
bottom part as second(2). Push by using both hand in order of
number(3),(4),(5). Push on more(6) in order to make sure the battery
cover is surely attached.

5
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off
your device before inserting or removing the SIM card.
To install, place the SIM card with the chip facing downwards into
the housing and slide it into its slot. Make sure that it is correctly
inserted.To remove the card, press and slide it out.
Your device only supports SIM cards. Do not attempt to
insert other SIM types like mini and nano cards; otherwise
this may cause damage to your device.
Installing or removing the microSD card
Insert the microSD card with the golden contacts facing downwards
into the slot. To remove the microSD card, gently press and slide
it out.
To avoid data loss and SD card damage, before removing
the SD card, please ensure that the SD card is unmounted
(Settings\Storage\Unmount SD card).
Charging the battery
PM80 has two batteries.

6
Standard/ Extend
Battery
3.7V, 3,000mAh/4,000mAh
Backup battery 75mAh at 3.7V
Charging rate time < 4 hours/ 6hrs (from Low-Battery
Shutdown level)
Connect the battery charger to your device and wall socket
respectively, the LED indicator will light red while charging.
If the device is suddenly out of power when using, please replace
the other battery, then remove the back cover and press the reset
button. The device is just in sleep mode when out of power, the
screen will be waken up after you pressed the reset button to
activate the Backup battery function.
To reduce power consumption and energy waste, when the
battery is fully charged, disconnect your charger; switch off
WLAN, GPS, Bluetooth or background-running
applications when not in use; reduce the backlight time, etc.
1�2�2 Power on your device
Hold down the Power key until the device powers on. It will take a
few seconds before the screen lights up.
Set up your device for the first time
The first time you power on the device, you should set the following
options: Input method, GoogleTM account, Location, etc.
Even if no SIM card is installed, your device will still power on and you
will be able to connect to a WLAN network, sign into your GoogleTM
account and use some of the phone's features.
Reset button

7
1�2�3 Power off your device
Hold down the Power key from the Home screen until the device
options appear, select Power off.
1�3 Home screen
You can move all of items (applications, shortcuts, folders and
widgets) you use most frequently to your Home screen for quick
access.Touch the Home key to switch to the Home screen.
Touch to enter application list.
Status bar
• Status/Notification indicators
• Touch and drag down to open
the notification panel.
Touch an icon to open an application,
folder, etc.
Favorite tray applications
• Touch to enter the application.
• Touch and hold to move or
change applications.
Search bar
• Touch to enter text search screen.
• Touch to enter voice search screen.
1�3�1 Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
Touch and hold the item to enter the available options.
Drag
Place your finger on the screen to drag an object to another location.

8
Slide/Swipe
Slide the screen up and down to scroll through the applications,
images, web pages, etc.
The device also supports one finger zoom (Messaging, Browser, Email,
Camera and Gallery) by double tapping the screen then sliding with
one finger to zoom in/out).
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them
apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to
landscape by turning the device sideways to have a better view.
1�3�2 Status bar
From the status bar, you can view both device status (to the right
side) and notification information (to the left side).
