Congratulations on your purchase of the new PocketWizard

Plus®II Transceiver, a high performance Digital Wireless Radio Slave and

Remote Triggering System. The Plus II features advanced auto-sensing intelligence

to automatically send or receive PocketWizard radio signals based simply on

how it is connected. PocketWizards are the most technologically advanced

microprocessor-controlled radio triggers for flash and cameras. Using carefully

engineered filtering and digital signaling technology, PocketWizards reject

ambient radio noise and have a wide dynamic range enabling high performance,

consistency, and reliability for all types of remote photography.

This Plus II Transceiver is frequency compatible with all CE PocketWizard systems.

PocketWizard Plus II Key Features

Auto-Sensing Transceiver – Automatically transmits or receives based on

connections. No Tx/Rx switches. No sorting out Transmitters and Receivers.

Simply make connections and start working sooner with near-zero configuration time.

Auto-Relay – Easily trigger a remote camera in sync with a distant remote flash.

Put a camera where you can’t be and have remote lighting at the same time.

Expand your coverage and increase your creativity.

Fast FPS – Trigger cameras or flash units up to 12 frames per second.

4 Sixteen-Bit Digitally Coded Channels – Create multiple setups or work

exclusively at events with other photographers without interference.

500 Meter Range – Long PocketWizard range equals increased performance and

reliability even when working at average photographic distances. Our enhanced

range provides best-in-class remote performance for all types of photography.

Fast Sync Speeds – Compatible with most cameras’ fastest X-Sync speeds including:

— 1/250 Focal Plane Shutters

— 1/500 Leaf Shutters

Locking Hot Shoe Mount – Secure mounting. Several other mounting methods included.

This CE frequency Plus II is compatible with all CE frequency PocketWizard products. It is not frequency

compatible with US or Japan PocketWizard products. Verify frequency compatibility before purchasing.

Some products are not manufactured on every frequency. Always operate within local radio regulations.

Lanyard Loop

Flash

Camera / Flash

Red Status LED

(For Dim Light

Applications)

On/Off

Switch

Locking Hot

Shoe Mount

Battery

Door

4- 20

Mount

Battery Door Latch

Flexible Antenna

Status LED

TRANSMIT MODE

Local/Both/Remote

Test

Button

Channel

Selection

AA Batteries

(IEC:LR6)

Lanyard

VELCRO®

Adhesive Hook

and Loop Fasteners

PoCkeTWizard Plus ii ParT referenCe

PC1 Cable (For use with

a camera’s PC terminal.)

Optional Accessories:

MPCF Adapter (PC female

to miniphone male adapter,

for use with your existing

PC sync cords.)

Please pay attention to the following safety warnings:

• Operating temperature: above -15° C (5° F) and below 50° C (120° F)

•

Storage temperature, without batteries: above -30° C (-22° F) and below 85° C (185° F)

• Remove batteries during storage.

• Battery Requirements: IEC:LR6 (AA) Size

• Do not remove instrument covers during operation.

• Do not operate the device in the presence of flammable gases or fumes.

Operation of any electrical instrument in such an environment constitutes

a definite safety hazard.

• There are no user serviceable parts inside the PocketWizard Plus II. Do

not install substitute parts or perform any unauthorized modification of the

instrument. Refer servicing only to qualified and authorized personnel.

• Red LED’s are used for dim light application and do not indicate a hazardous status.

• The PocketWizard Plus II is an accessory device for cameras and flashes.

Do not use this product in a manner not specified in documentation.

baTTeries

CAUTION: Turn OFF your equipment (PocketWizard units,

electronic flash units, cameras, etc.) before making connections

or changing batteries.

Install 2 fresh AA (IEC:LR6) batteries into the Plus II Transceiver.

Make sure to note proper polarity. Alkaline batteries are recommended.

Rechargeable batteries will also work, though operation time may be reduced.

When the STATUS LEDs stop blinking, it is time to change the batteries.

Battery life is approximately 60 hours under typical use.

See NOTE 1 for more battery information.

WARNING – To avoid battery leakage, follow these guidelines:

• Always remove the batteries when the unit is not in use for extended periods of time,

or during shipping or long distance travel.

• Never mix old and new batteries. Always use a fresh pair of matched batteries.

• Always change batteries promptly at the first indication of low battery operation.

• Do not use or leave the unit in extreme temperature or humidity situations.

See “Technical Information” for normal operating and storage temperatures.

seTuP for remoTe flash Triggering

Camera Setup

Connect a Plus II Transceiver to the camera using one of the following methods:

Remote Flash Setup

Connect the Plus II Transceiver’s FLASH port to the flash unit’s sync terminal using:

a) the correct PocketWizard flash sync cable for best results.

- or -

b) your flash unit’s original sync cable and a PC female adapter

(PocketWizard part number MPCF (804-605)).

You may have as many remote Plus II Transceivers on the same

channel as you would like. Connecting 2 flashes to a single

Plus II Transceiver will not work. See NOTE 3.

Triggering

1. Turn on both Plus II Transceivers, and turn on the camera and flash.

2. On both Plus II Transceivers make sure that:

• The STATUS LEDs on each Plus II Transceiver blink every

few seconds.

• The same channel is selected using the CHANNEL slide switch.

• The TRANSMIT MODE switch is set to BOTH (middle position

which is default operation).

3. Press the TEST button on the camera’s Plus II Transceiver to

confirm that the remote flash triggers.

4. Begin triggering normally.

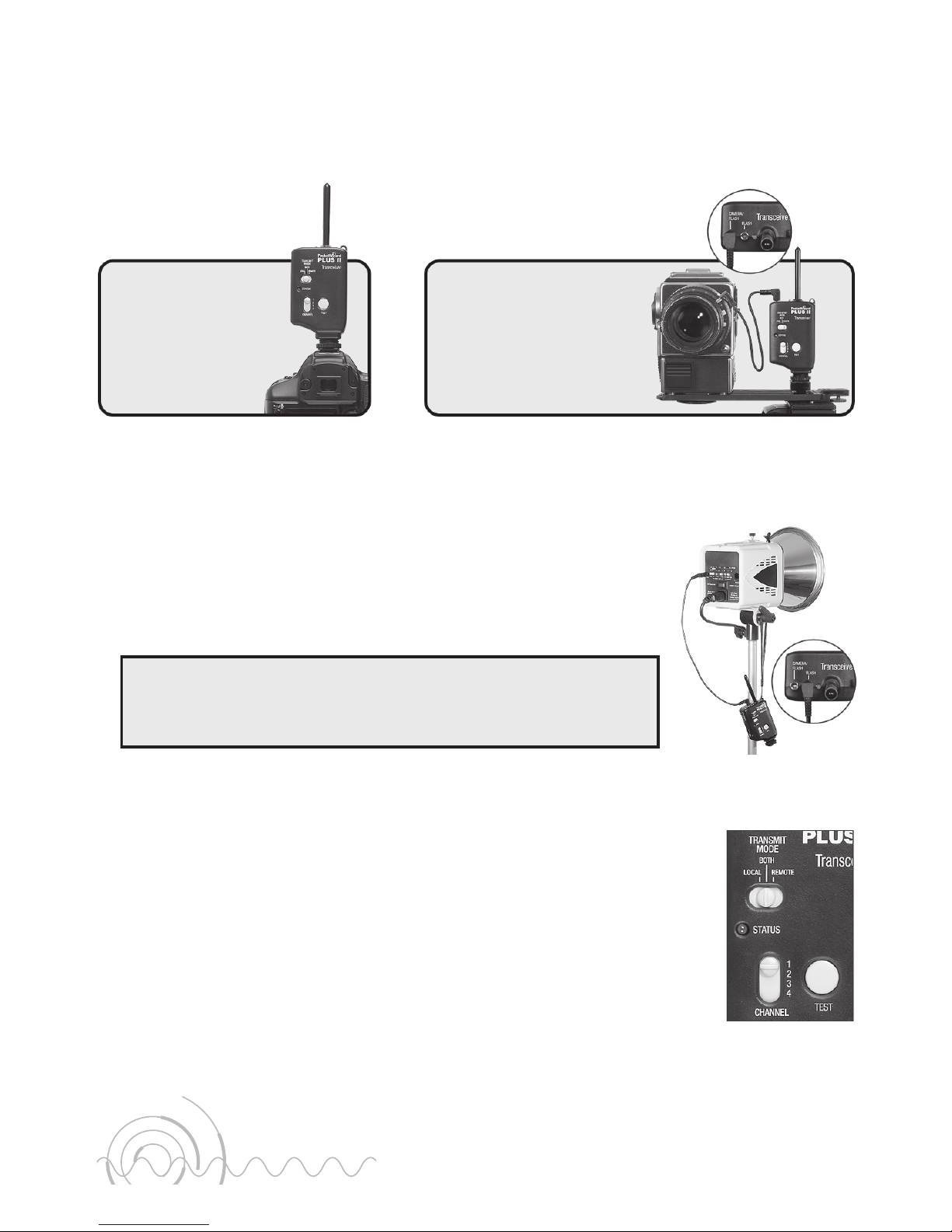

Slide the Plus II

Transceiver into

the camera’s hot

shoe and tighten

the hot shoe nut.

Option 1

Connect a PC sync

cable from the camera’s

PC terminal to the port

labeled CAMERA / FLASH.

Option 2

Shown with

default settings.

Connecting a Flash to the Camera’s Transceiver (Local Flash)

A LOCAL flash is usually a non-TTL flash that is mounted on or near the camera,

for example on the camera’s bracket. It can be triggered from the camera’s

Plus II Transceiver ensuring perfect synchronization with remote flashes.

See below for using a LOCAL TTL FLASH.

1. On the camera’s Plus II Transceiver, connect the

FLASH port to your local flash unit’s sync terminal.

Use a PocketWizard flash sync cable for best results.

2. Use the TRANSMIT MODE switch to creatively

select which flashes will trigger:

• LOCAL = Only the flash connected to

the camera’s Transceiver will trigger.

Remote PocketWizards will not trigger.

• BOTH (Default) = Both the local and remote

flashes will trigger in perfect synchronization.

• REMOTE = Only the flashes connected

to remote PocketWizards will trigger.

The flash connected to the camera’s

Plus II Transceiver will not trigger.

Local TTL Flash

Plus II Transceivers do not transmit TTL information.

You can use a TTL flash directly connected to your

camera and have remote flashes (not in TTL mode)

triggered by PocketWizards.

See NOTE 4 for important timing information.

To operate in this manner, simply connect the

Transceiver’s CAMERA / FLASH port to your camera’s

PC terminal and make all other camera to TTL flash connections normally.

Alternate Connection Method: You may connect a local flash directly

to your camera’s PC terminal. In this case, the local flash will always

trigger regardless of the position of the TRANSMIT MODE switch.

See NOTE 4 for important timing information.

Triggering a remoTe Camera

A Plus II Transceiver, paired with any PocketWizard Transmitter, can be used to

trigger a remote camera. The camera needs to have an electronic shutter release

connection and have a compatible PocketWizard motor drive cable available.

Please visit www.PocketWizard.com to determine the correct motor drive cable.

Basic Remote Camera Setup

1. Connect a Plus II Transceiver’s

CAMERA / FLASH port to the motor

drive port of the camera using a

PocketWizard motor drive cable.

2. Make sure the Plus II Transceiver

and the hand-held PocketWizard are

set to the same channel and turned on.

3. Press the TEST button on the hand-held

PocketWizard to trigger the remote camera.

You can have a flash directly connected to the remote camera. Connecting a flash to the

FLASH port of the Plus II Transceiver will not work in this setup. See NOTE 3.

relay mode

You can trigger a remote flash in sync with your remote camera. This is called

relay mode and requires only 3 PocketWizards. Here is how it works:

• You press TEST on a PocketWizard that you are holding in your hands.

• The Plus II Transceiver connected to your remote

camera receives the signal and triggers your camera.

• The Plus II Transceiver switches to transmit mode,

one channel higher, and waits for the camera to

provide a sync pulse.

• The PocketWizard connected to your flash receives

the camera’s sync pulse and triggers your flash.

Hand Held

Trigger

Remote Camera

Relay Mode Setup

1. Set the master triggering PocketWizard

(the one in your hands) to Channel 1.

2. Set the Plus II Transceiver (the one for your remote

camera) to Channel 1 and set TRANSMIT MODE to BOTH.

3. Connect the Plus II Transceiver’s CAMERA / FLASH port to

the motor drive port of the camera.

4. Slide the Plus II Transceiver into your camera’s hot shoe.

5. Set the PocketWizard for your remote flash to Channel 2.

6. Connect your remote flash to its PocketWizard normally.

7. Turn everything on, then press and release TEST on the

PocketWizard in your hands to begin the sequence.

If you are using a camera with no hot shoe, or the hot shoe cannot be used, then

connect the Plus II in this manner: Connect the camera’s motor drive cable to the FLASH

port. Connect the camera’s PC sync terminal to the CAMERA / FLASH port.

You can use different channels to perform the relay function. The

master triggering PocketWizard (usually the one held in your hand)

and the Plus II Transceiver connected to your remote camera need

to be on the same channel. The PocketWizard connected to your

remote flash needs to be set one channel higher.

If master trigger

PocketWizard is set to:

Set the remote camera’s

Plus II Transceiver to:

Set the remote flash’s

PocketWizard to:

112

2 2 3

334

441

Channel

Turning Off Relay Mode

If you want to trigger a remote camera and have the Plus II mounted in the

camera’s hot shoe, but you do not want the relay sequence to happen, simply

set the TRANSMIT MODE switch to LOCAL on the unit in the camera’s shoe.

See NOTE 5 for more information on relay triggering.

Using Hot Shoe

Without Hot Shoe

TransmiT mode only

The Plus II can be set to operate only as a Transmitter

and perform no Receive or Relay function.

Transmit Only Mode is helpful when 2 or more

photographers are sharing remote flash units on

the same PocketWizard channel, and are using

one or more Plus II units as Transmitters from

their cameras.

In normal operation, when the first photographer triggers

their camera, the second photographer’s Plus II performs

Receive/Relay functions. This may occur when an

immediate Transmit function is desired, for example when

the photographers are triggering within moments of each

other and using a fast recycling flash. In addition, the second photographer’s

on-camera flash may be triggered unintentionally. Transmit Only Mode resolves

these potential situations.

Activating Transmit Only Mode

Step 1: Turn off the Plus II unit(s) being used for Transmit

Step 2: Press and hold the TEST button as you turn the unit back on

The Status LEDs will show a fast blinking pattern indicating Transmit Only Mode. You

can verify Transmit Only operation by triggering any other PocketWizard Transmitter

and noting that this unit does not respond.

Transmit Only Mode is not remembered when the unit is turned off. You will need to

activate Transmit Only Mode every time you need it.

To return the unit to Normal Mode, turn it off and back on again normally. Do not hold

down TEST when powering on. The Status LED’s will show the normal slow blinking

pattern indicating normal mode.

Transmit Only Mode Fast Blink ~1 blink every second

Normal Mode Slow Blink ~1 blink every 2 seconds

Fast Blink

indicates

Transmit

Only Mode

Tabla de contenidos

Idiomas:

Otros manuales de Transceptor de Pocket Wizard

Pocket Wizard

Pocket Wizard Plus IV Manual de usuario

Pocket Wizard

Pocket Wizard Plus X Manual de usuario

Pocket Wizard

Pocket Wizard PLUS III Manual de usuario

Pocket Wizard

Pocket Wizard MultiMAX Manual de usuario

Pocket Wizard

Pocket Wizard MultiMAX II Manual de usuario

Pocket Wizard

Pocket Wizard PLUS III Manual de usuario

Pocket Wizard

Pocket Wizard Plus IV Manual de usuario

Pocket Wizard

Pocket Wizard PLUS III Manual de usuario

Pocket Wizard

Pocket Wizard PLUS III Manual de usuario

Pocket Wizard

Pocket Wizard PLUS IIIe Manual de usuario

Pocket Wizard

Pocket Wizard PLUS III Manual de usuario

Pocket Wizard

Pocket Wizard FlexTT5 Manual de usuario

Pocket Wizard

Pocket Wizard MultiMAX Manual de usuario

Pocket Wizard

Pocket Wizard Mini TT1 Manual de usuario

Pocket Wizard

Pocket Wizard PLUS IVe Manual de usuario

Pocket Wizard

Pocket Wizard Plus II Manual de usuario

Pocket Wizard

Pocket Wizard MiniTT1 Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
