PMK SKID Manual de usuario
SKID
Test-& Debugging Platform
2
Copyright © 2016 PMK GmbH All rights reserved.
Information in this publication supersedes that in all previously published material.
Specifications are subject to change without notice.
Manufacturer
PMK Mess- und Kommunikationstechnik GmbH
Königsteiner Str. 98
65812 Bad Soden am Taunus, germany Internet: www.pmk.de
Fax: +49 (0) 6196 5927 - 939
Warranty
PMK GmbH warrants this accessory for normal use and operation within specifications for a period of two (2)
years from date of shipment and will repair or replace any defective product which was not damaged by
negligence, misuse, improper installation, accident or unauthorized repair or modification by the buyer. This
warranty is applicable only to defects due to material or workmanship. PMK GmbH disclaim any other implied
warranties of merchantability or fitness for a particular purpose. PMK GmbH will not be liable for any indirect,
special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of use
or data, interruption of business and the like), even if PMK GmbH has been advised of the possibility of such
damages arising from any defect or error in this manual or product.

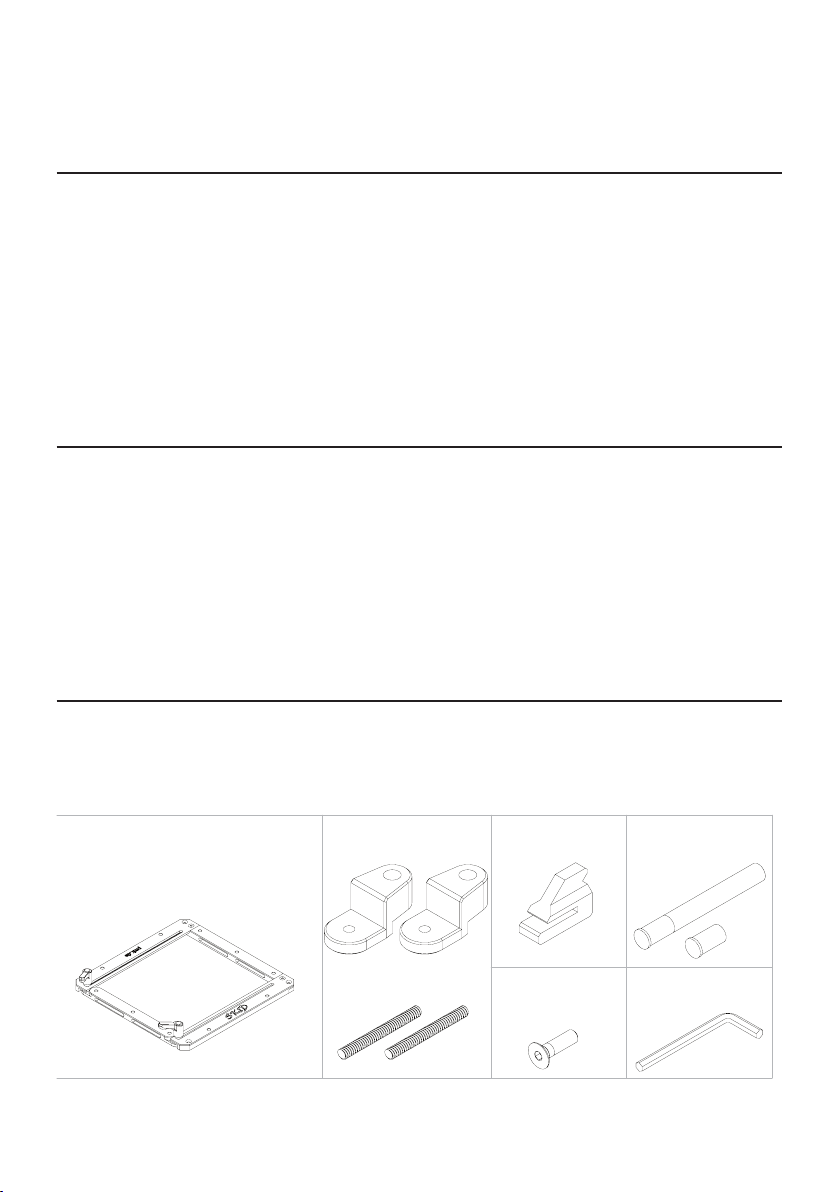

Scope of delivery
Despite the fact, that the assembly of the Skid is self-explanatory, we would like to show you the parts it
consists of and other viable accessories you might enjoy.
1 x Frame incl. 2 x Release Lever 4 + 4 x Pedestal
4 x Screw M4
6 x für Skid L
5 x PCBA Spacer
1 x Vertical Adapter Kit
1 x Hex-wrench
1
0
c
m
2
cm
3
Assembly SKID
Horizontal Assembly:
Vertical Assembly:
PCBA Spacers
016-292-501
Release Lever
016-291-500
PTFE Sliders
016-292-502
Rubber Coating
016-292-500
Vertical Adapter Kit
893-291-501
2
1
SKID
Units in millimeters (mm)
This manual is valid for all SKID models.
■SKIDS (160x160mmSpanwidth) 893-500-000
■SKID-Starter-Kit (160x160mmSpanwidth) 893-500-START
■SKIDM (160x240mmSpanwidth) 893-500-010
■SKIDL (300x340mmSpanwidth) 893-500-020
Available Accessories and Spares for SKID:
■ReleaseLever 016-291-500
■PCBASpacer 016-292-501
■RubberCoatingforPedestals 016-292-500
■3-FoldHolder 893-050-000
■Uniholder 893-090-000
■PMK3DPositioner,130mm 893-200-130
■PMK3DPositioner,130mm,stainlesssteel 893-200-13V
■PMK3DPositioner,200mm 893-200-200
■PMK3DPositioner,200mm,stainlesssteel 893-200-20V
■Cameraadapter1/4"toM6 893-000-M16
■PTFESliders 016-292-502
■WrenchAF7mm 893-000-SW7
■Hex-wrench 893-000-125
■SKIDVerticalAdapterKit 893-291-501
■4xSKIDPedestal2cm 893-291-503
M93-500-000
M93-500-START
M93-500-010
M93-500-020 RevisionI-May2016
225
225
305
405
365
SKID S
SKID L
S
K
I
D
M
