Platek SUN Series Manual de usuario
Istruzioni di montaggio
Instructions de montage
Montageanleitung
Instrucciones de montaje
Assembly instructions
SUN floodlight
Design by
LUNDBERGDESIGN
More details at:
platek.eu/SUN
IT
EN
DE
FR
ES
2 PLATEK - USER GUIDE
SUN floodlight
TECHNICAL DATATECHNICAL DATA
SUN floodlight - IP 66 - IK 08
Categoria
Category
Kategorie
Catégorie
Categorìa
Classe
Class
Schutzklasse
Classe
Clase
Alimentazione
Power supply
Versorgung
Alimentation
Alimentación
Peso
Weight
Gewicht
Poids
Peso
SUN small
27W LED White 220-240V 0/50/60Hz - DALI dimmable 2,10 Kg
20W LED RGBW max 900mA 2,10 Kg
SUN medium
40W LED White 220-240V 0/50/60Hz - DALI dimmable 2,90 Kg
34W LED White - Asymmetrical 220-240V 0/50/60Hz - DALI dimmable 2,90 Kg
38W LED White - Street optic 220-240V 0/50/60Hz - DALI dimmable 2,90 Kg
40W LED RGBW max 900mA 2,90 Kg
SUN large
80W LED White 220-240V 0/50/60Hz - DALI dimmable 4,90 Kg
79W LED White - Asymmetrical 220-240V 0/50/60Hz - DALI dimmable 4,90 Kg
76W LED White - Street optic 220-240V 0/50/60Hz - DALI dimmable 4,90 Kg
80W LED RGBW max 900mA 4,90 Kg
SUN floodlight
3 PLATEK - USER GUIDE
TECHNICAL DATATECHNICAL INFORMATION
Altezza di installazione: Qualunque
Installation width: any
Altezza di installazione: Qualunque
Installation width: any
Altezza di installazione: Qualunque
Installation width: any
SUN small
SUN medium
SUN large
Supercie esposta al vento
Surface exposed to wind 0,04 m2
Supercie esposta al vento
Surface exposed to wind 0,05 m2
Supercie esposta al vento
Surface exposed to wind 0,1 m2
329
368
Ø 102
229
268
Ø 102
198
160
Ø 102
399
73
299
72
229
70
329
368
Ø 102
229
268
Ø 102
198
160
Ø 102
399
73
299
72
229
70
329
368
Ø 102
229
268
Ø 102
198
160
Ø 102
399
73
299
72
229
70
44
5
5.5
120°
120°
45
1
2
0
°
9
0
°
4 PLATEK - USER GUIDE
SUN floodlight
TECHNICAL DATAINSTALLATION
CH 3
SUN floodlight
5 PLATEK - USER GUIDE
TECHNICAL DATAINSTALLATION
ON
OFF
ON
OFF

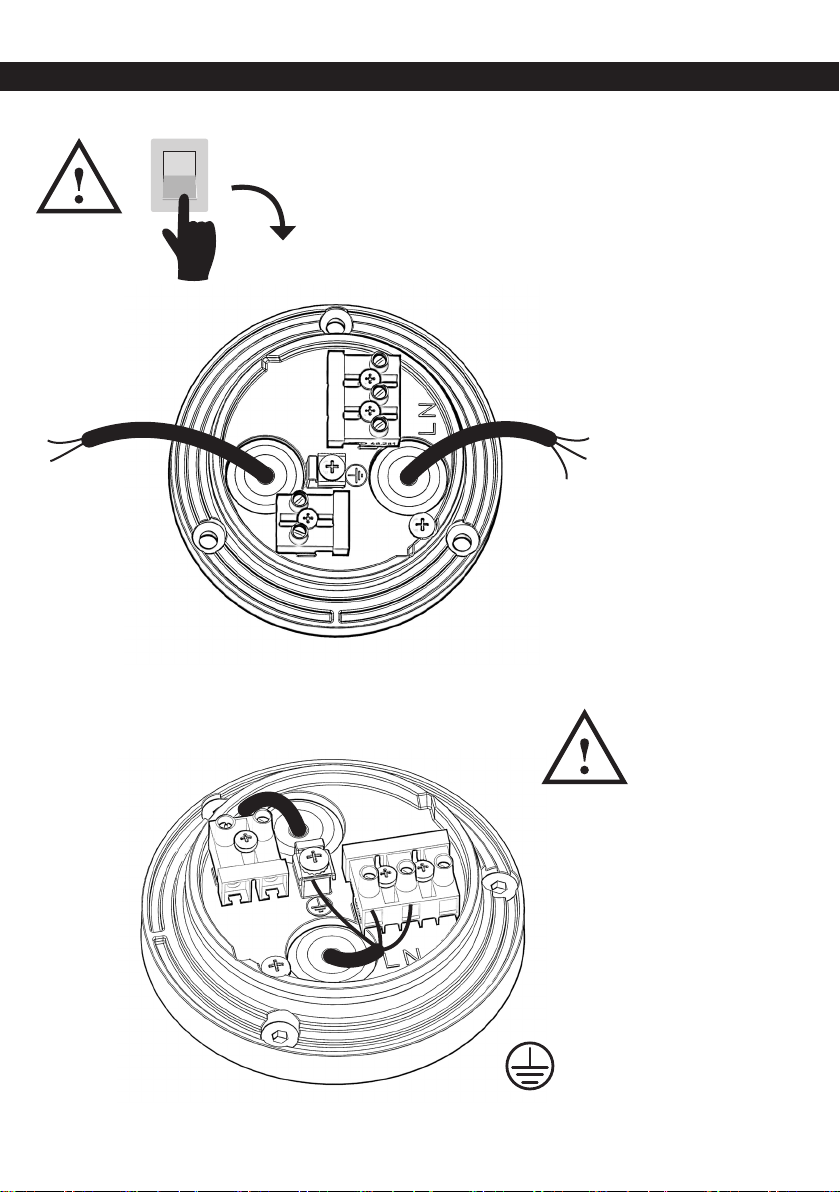

DALI 220-240V
DA1 DA2
Ø cavi 5-10 mm H05RN-F <HAR>
Ø cables 5-10 mm H05RN-F <HAR>
Ø câbles 5-10 mm H05RN-F <HAR>
Ø du holstheraus 5-10 mm H05RN-F <HAR>
Ø cables 5-10 mm H05RN-F <HAR>
Ø cabos 5-10 mm H05RN-F <HAR>
LN
6 PLATEK - USER GUIDE
SUN floodlight
TECHNICAL DATAINSTALLATION
SUN floodlight
7 PLATEK - USER GUIDE
CH 3
2 Nm
1
2
0
°
9
0
°
330°
TECHNICAL DATAINSTALLATION
8 PLATEK - USER GUIDE
SUN floodlight
ONE or LAST
PLATEK
CABLE
TECHNICAL DATAINSTALLATION
CH1+
CH1-
CH2+
CH2-
CH3+
CH3-
CH4+
CH4-
NTC
NTC
IN
DYNAMIC
max 900mA
SUN floodlight
9 PLATEK - USER GUIDE
in the MIDLE
TECHNICAL DATAINSTALLATION
IN OUT
DYNAMIC
max 900mA
10 PLATEK - USER GUIDE
SUN floodlight
TECHNICAL DATAINSTALLATION

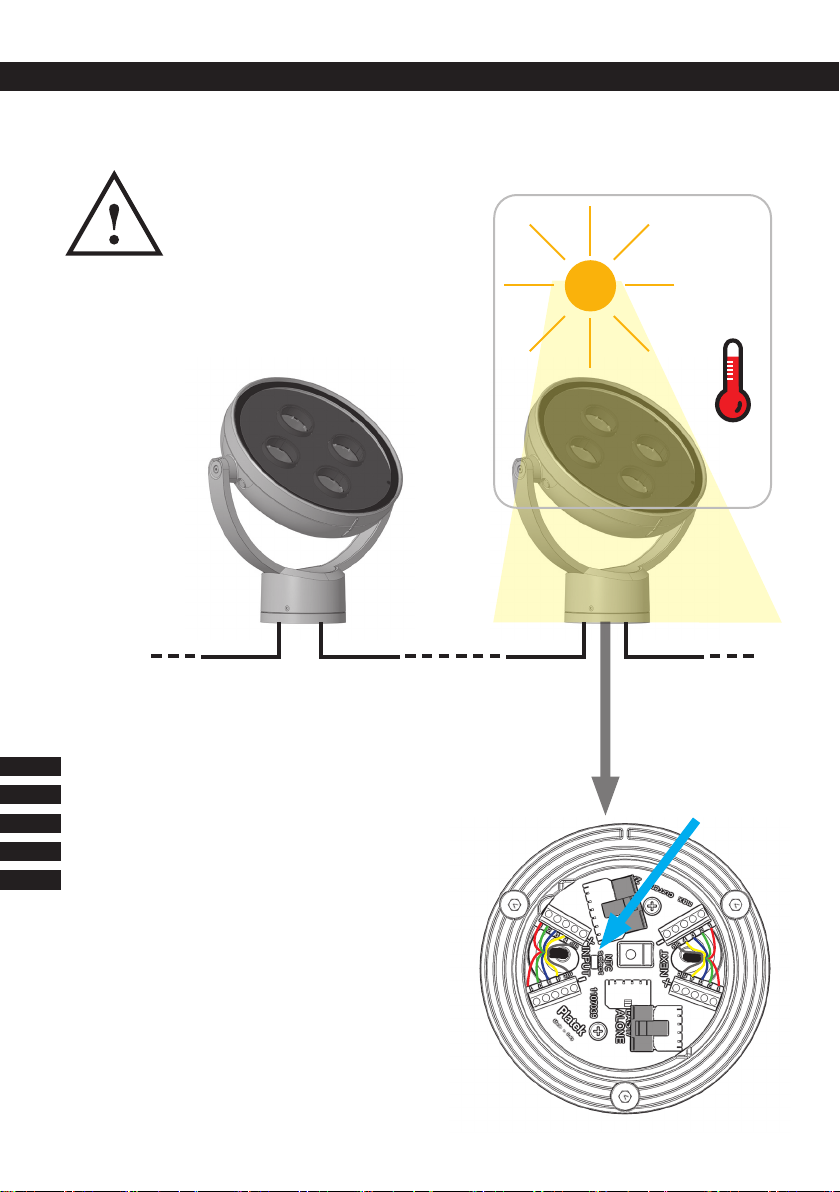

NTC:
ONLY 1 PRODUCT (critical)
CABLING
HOT
CRITICAL
DYNAMIC
INSERT
& PUSH
NTC collegabile solo su un apparecchio
NTC to be connected only to one fitting
NTC ist nur an eine Leuchte anzuschließen
NTC à connecter seulement sur un appareil
NTC conectado en un solo dispositivo
IT
EN
DE
FR
ES
