Plantronics VOYAGER 510 Manual de usuario

VOYAGER 510

BLUETOOTH®

HEADSET SYSTEM

User Guide

Thank you for selecting the

Voyager 510 Bluetooth®Headset

System from Plantronics.

The Voyager™ 510 system offers

wireless, hands-free headset

convenience and workspace

mobility.

This user guide provides

instructions on the installation

and usage of your system.

WELCOME

Voyager 510 Bluetooth®

Wireless Headset

System User Guide

www.plantronics.com

DIAGRAMS

HEADSET

DIAGRAMS

BASE UNIT

WELCOME

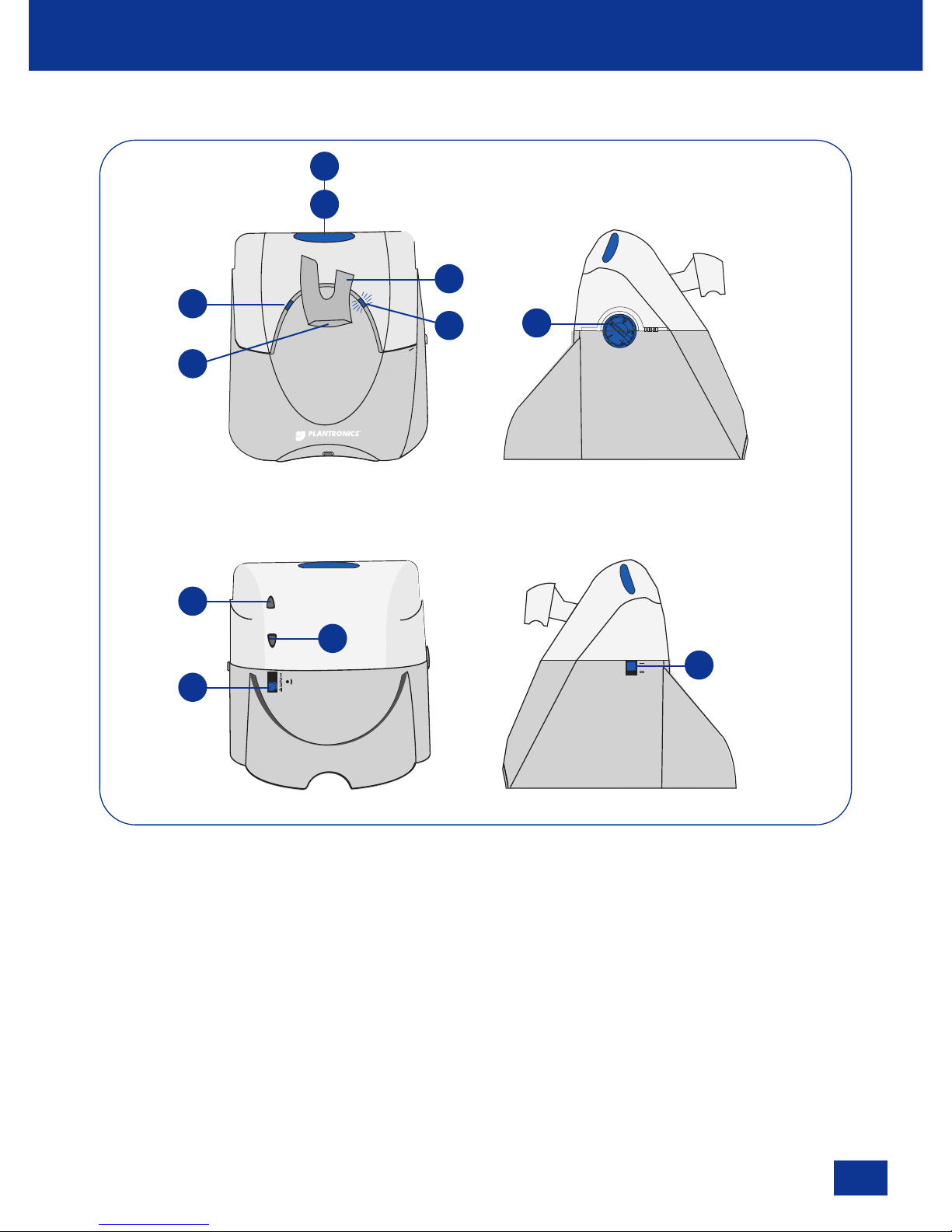

DIAGRAM KEY

1Tx Slide Switch (A-D)

2Rx Slide Switch (1-4)

3Speak Volume Adjust UP

4Speak Volume Adjust DOWN

5Call Control Button (Base)

6IntelliStandTM Switch ON/OFF

7Configuration Dial

8AC Power Adapter

9AC Power Adapter Port

10 Handset Cable Port

11 Telephone Cable Port

12 Accessory Port

13 Headset Docking Cradle

14 Charge contacts

15 Charge Indicator

16 Talk Indicator

17 Power Indicator

18 Handset Lifter (Optional)

19 Microphone

20 Earpiece

21 Call Control Button (Headset)

22 Listen Volume Adjust +/-

23 Power/Mute Button

24 Status Indicator

25 Charge Contacts

BASE UNIT HEADSET

CONNECTING YOUR VOYAGER 510 SYSTEM

OPTION – HANDSET LIFTER

INFORMATION

This User Guide provides instructions on the installation and usage of your Voyager

510 Bluetooth®Headset System. For safety and regulatory information, please refer

to the separate “Important Safety and Operational Information” booklet. Detailed

technical information and a copy of the Declaration of Conformity can be found at

www.plantronics.com/documentation

CHARGING YOUR HEADSET

The Status Indicator will be illuminated red while charging and change to blue when

the headset is fully charged. The headset must be charged for a minimum of 1 hour

prior to use – 3 hours to fully charge.

WELCOME

POSITIONING YOUR SYSTEM

Positioning: Recommended separation distance. Important: Incorrect positioning can

cause problems with noise and interference.

45cm 30cm

15cm

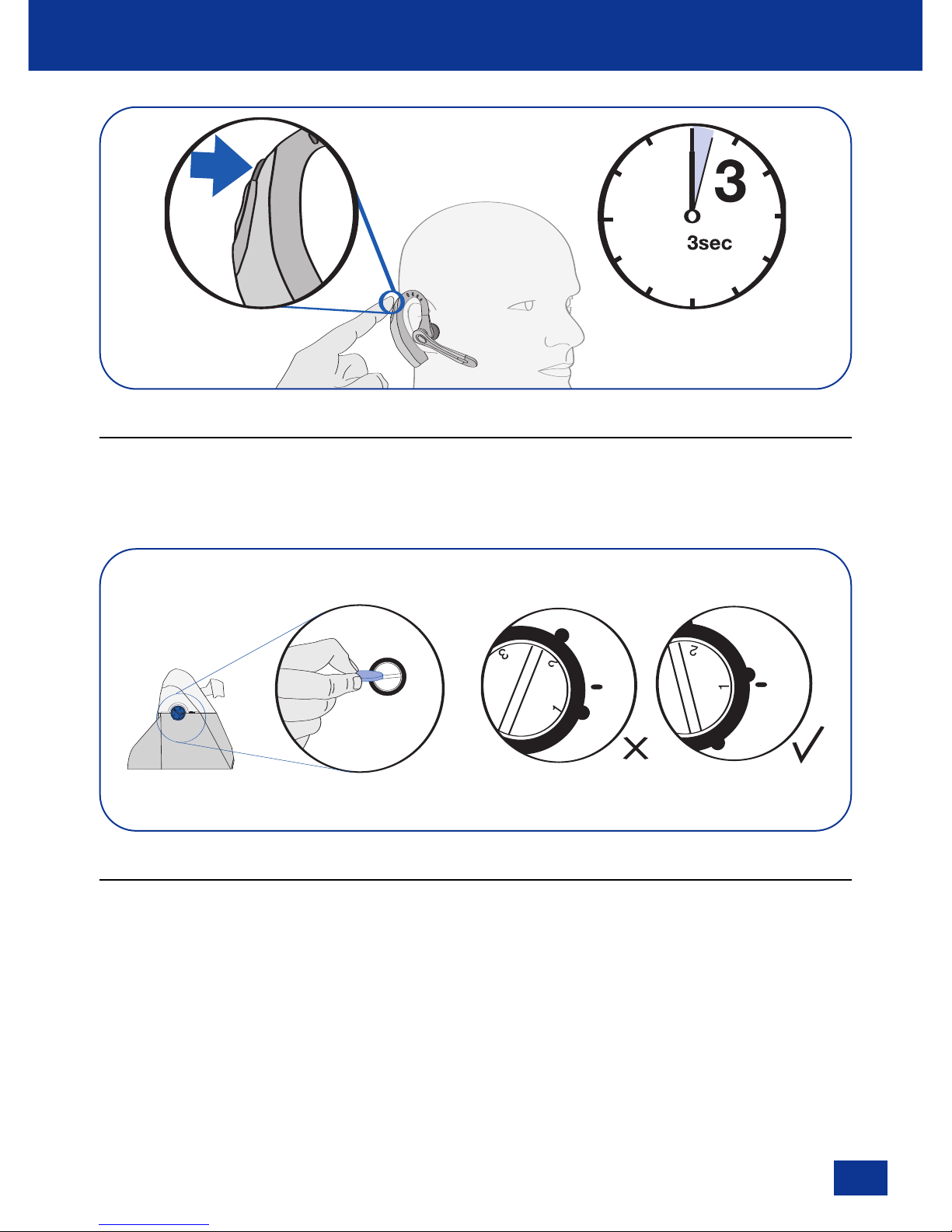

POWERING THE HEADSET ON & OFF

To turn the headset on press in and hold the Power/Mute Button for 3 seconds until

the Status Indicator flashes blue. To turn off, press and hold the button again for 3

seconds until the Status Indicator flashes red.

COMPATIBILITY WITH YOUR TELEPHONE

It is very important that the Configuration Dial is positioned correctly. Audio problems

may be experienced if this is incorrectly set. If you cannot hear a dial tone through

your headset, turn the configuration dial until you obtain it. Then dial a co-worker and

while speaking, turn the configuration dial through the 4 positions. Select the position

that provides the best sound quality for both you and your co-worker. During this call

you should also adjust the Listen and Speak Volume as described next. Once set, the

configuration dial will not require any further adjustment.

ANSWERING A CALL

If the corded telephone is ringing press the Call Control button on the headset (A) or

on the base. (B). If the mobile handset is ringing then press the call control button on

the headset (A) to answer the call.

Note: If IntellistandTM is enabled the system will always activate the Handset Lifter.

To disable IntellistandTM please follow instructions on page 13.

PLACING A CALL

Placing a call on your corded telephone:

Lift the handset and then press either the Call Control button on the headset (A) or

base unit (B). When you hear the dial tone, dial as normal. If you do not obtain a dial

tone, check that the Configuration Dial is set correctly as described on page 8.

Important: If your corded telephone has a receive volume control, ensure it is set no

higher than mid-range. Too high a setting could cause audio problems.

Placing a call on your mobile handset:

Dial using your telephone keypad or voice-dialling (if supported by your telephone).

Important: You will first need to pair the headset to your mobile handset. Refer to the

instructions on Pairing in the Voyager 510 Headset Quickstart Guide.

A B
