PLANTRONICS BLACKWIRE C325-M

SET UP & USER GUIDE

Find more user manuals and product information at www.liGo.co.uk/manuals/

www.liGo.co.uk

For all the latest product news, reviews and advice from liGo,

please visit www.liGo.co.uk/blog/

TELEPHONES |HEADSETS |TWO WAY RADIOS

PERSONAL CARE |BABY MONITORS |AND MUCH MORE

GET £5 OFF*

your next purchase over £50

with voucher code:

liGo5reward

Not in conjunction

with any other oer

Blackwire™C310-M/

C320-M

USB Corded Headset

User Guide

Contents

Welcome 3

System Requirements 3

Need More Help? 3

What's in the Box 4

Headset Basics 5

Wearing Your Headset 6

Adjust the Headband 6

Position the Boom 6

Adjust the Boom 6

Daily Use 7

Headset Power 7

Incoming/Outgoing Calls 7

Adjust Your Headset Volume 7

Mute a Call 8

Troubleshooting 9

Headset 9

Congratulations on purchasing your new Plantronics product. This guide contains instructions

for setting up and using your Blackwire C310-M/C320-M headset.

Please refer to the safety instructions in the quick start guide for important product safety

information prior to installation or use of the product.

Computer

• Supported Operating Systems: Windows®7, Windows XP®, Windows Vista®

• Processor: 400 MHz Pentium®processor or equivalent (Minimum); 1 GHz Pentium processor

or equivalent (Recommended)

• RAM: 96 MB (Minimum); 256 MB (Recommended)

• Hard Disk: 280 MB (Minimum); 500 MB or more (Recommended)

• Microsoft Windows XP-Service Pack 3 (SP3) or later (Recommended) Microsoft Windows Vista-

Service Pack 1 (SP1) or later (Recommended)

Display

• At least 800 x 600, 256 colors

• 1024 x 768 high color, 32-bit (Recommended)

Browser

• Internet Explorer®V6 or better must be on the user’s system (Required)

Visit our website at plantronics.com/support for technical support including frequently asked

questions, compatibility and accessibility information.

Welcome

System Requirements

Need More Help?

Blackwire C310 Blackwire C320

What's in the Box

Headset inline control icons Function

Answer/End button*

Answers or ends a call Incoming call

Flashes green

On a call

Solid green

Volume up button

Increases the listening volume

Volume down button

Decreases the listening volume

Mute/Unmute button

Mutes/unmutse the headset

microphone

Solid red when muted

* Plantronics software required. Plantronics software enables call control features including call

answer/end control.

Headset Basics

Lengthen or shorten the band until it fits comfortably. The foam cushions should sit

comfortably over the center of your ears.

This headset can be worn on the left or right side.

Rotate the boom to align with your mouth.

CAUTION To avoid breaking the boom, only rotate it up and over 180°.

Gently bend the boom in or out so it is approximately two finger widths from the corner of your

mouth.

Wearing Your Headset

Adjust the Headband

Position the Boom

Adjust the Boom

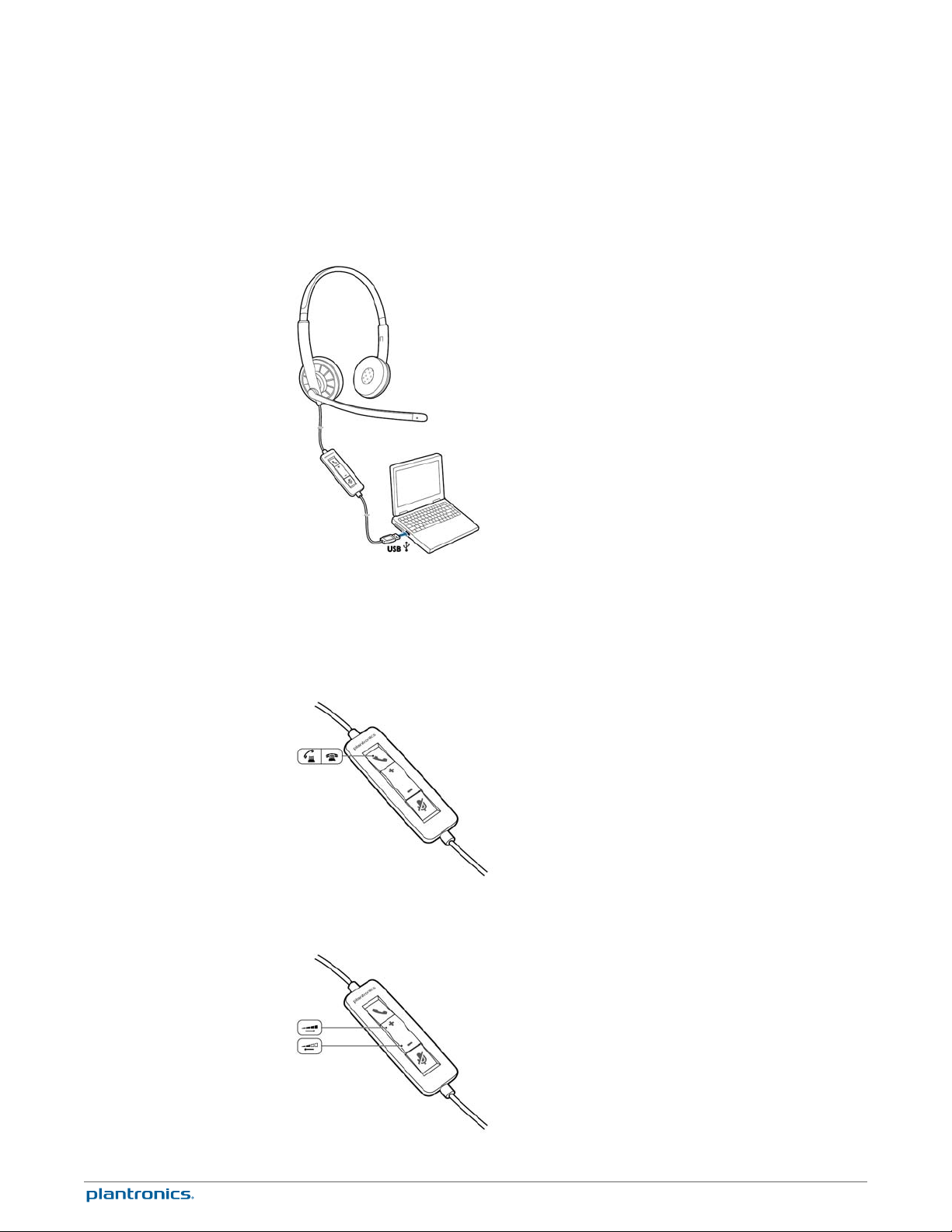

The USB headset is automatically powered on when it is plugged into the USB port of the

computer.

Headset call control is a software feature and dependent on a compatible softphone. If you do

not install the software or do not have a compatible softphone, press the headset call button

first and then answer/end/place the call using the softphone application. Visit

plantronics.com/software for more information.

1Incoming Calls Press the answer/end button on the headset inline control to answer or end a

call.

2Outgoing Calls Dial the phone number with your softphone application to make an outgoing

call.

Daily Use

Headset Power

Incoming/Outgoing Calls

Adjust Your Headset

Volume

Listening Volume

1Press the volume up button ( ) on the headset inline control to increase listening volume.

2Press the volume down button ( ) on the headset inline control to decrease listening volume.

Speaking Volume

To adjust the headset speaking volume, use the audio settings in your computer's sound control

panel/preferences.

For Windows XP systems

• Go to Control Panel > Sounds and Audio Devices > Audio tab.

For Windows Vista and Windows 7 systems

• Go to Control Panel > Sound > Recording tab.

For Mac OS X

• Choose Apple menu > System Preferences > Sound > Input tab.

1During a call, press the mute button on the headset inline control to mute the microphone.

When mute is on, the mute LED is solid red (you will still be able to hear the caller).

2To turn mute off, press the mute button again.

Mute a Call

I cannot hear caller. Listening volume is too low. Press the volume up button on the

headset.

The USB headset is not set as the default audio device. Use the

audio settings in your sound control panel/preferences to select

your headset as the default audio device.

For Windows XP systems

• Go to Control Panel > Sounds and Audio Devices > Audio tab.

• Select your headset as the "Sound playback" default device.

For Windows Vista and Windows 7 systems

• Go to Control Panel > Sound > Output tab.

• Highlight the headset, select the Set Default > Default

Communications Device from the drop-down list and click OK.

For Mac OS X

• Choose Apple menu > System Preferences > Sound > Output tab.

• Select your headset in the "Select a device for sound output"

window.

Callers cannot hear me. Headset is muted. Press the mute button to unmute the

microphone.

Headset microphone boom aligned incorrectly. Align the headset

boom with your mouth.

The USB headset is not set as the default Voice device. Use the

audio settings in your sound control panel/preferences to

change the input device.

For Windows XP systems

• Go to Control Panel > Sounds and Audio Devices > Audio tab.

• Select your headset as the "Sound recording" default device.

For Windows Vista and Windows 7 systems

• Go to Control Panel > Sound > Recording tab.

• Highlight the headset, select the Set Default button and click OK.

For Mac OS X

• Choose Apple menu > System Preferences > Sound > Input tab.

• Select your headset in the "Select a device for sound input"

window

The sound in the headset is

distorted.

I can hear an echo in the headset.

Lower the listen volume on your softphone until the distortion

disappears.

Adjust volume on headset.

The other headset I was using to

listen to music does not work any

more.

The USB headset will set itself as the default audio device in

Windows. Use the audio settings in your sound control panel/

preferences to change the audio device.

For Windows XP systems

• Go to Control Panel > Sounds and Audio Devices > Audio tab.

• Under “Sound Playback”, change the default setting from your

headset to your device choice.

Troubleshooting

Headset
