Plantronics Blackwire 435 Manual de usuario

Blackwire®C435

Headset

User guide

ContentsContentsContents

Welcome 3

System requirements 3

Registering your product online 3

Technical assistance 3

What’s in the box 4

Headset features 5

Accessories 6

Using your headset 7

Connecting the headset 7

Wearing the headset 7

In-line controls 9

Useful tips 10

Clothing clip 10

Stereo cable tidy 10

Hook and eye cable tidy 11

Troubleshooting 12

Welcome

Congratulations on purchasing your new Plantronics product. This guide contains instructions

for using your Blackwire C435 headset.

Please refer to the safety instructions found in the Quick Start Guide for important product

safety information prior to installation or use of the product.

System requirements

Computer

• Supported operating systems: Windows XP®, Windows Vista®, Windows® 7

• Processor: 400 MHz Pentium® processor or equivalent (Minimum); 1 GHz Pentium processor or

equivalent (Recommended)

• RAM: 96 MB (Minimum); 256 MB (Recommended)

• Hard disk: 280 MB (Minimum); 500 MB (Recommended)

• Microsoft Windows XP - Service Pack 3 (SP3) or later (Recommended)

Microsoft Windows Vista - Service Pack 1 (SP1) or later (Recommended)

Display

• At least 800 x 600, 256 colours

• We recommend: 1024 x 768 high colour, 32-bit (Recommended)

Browser

• Internet Explorer® V6 or better must be on the user’s system (Required)

Registering your product online

Visit plantronics.com/productregistration to register your product online

so we can provide you with the best possible service and technical support.

Technical assistance

Visit our web site at plantronics.com/support for technical support including frequently asked

questions, compatibility and accessibility information.

Large and small ear gels and mono connector cover

Carrying caseBlackwire C435 headset

What’s in the box

Headset features

1 Noise-cancelling microphone

2 Right speaker

3 Right ear loop

4 Ear gel (ﬁtted)

5 Left ear loop

6 Ear gel (ﬁtted)

7 Left speaker

8 Stereo cable tidy

9Mono/stereo connection

10 In-line control

11 Mute/unmute

12 Volume up/volume down

13 Call answer/end

14 USB connector

2 3 4 5 6 7

131198 1210

Accessories

(Sold separately)

Headband and case For those who would prefer a neckband wearing style. An accessory (with

its own larger case) is available as an option.

Connecting the headset

Simply plug the headset into the USB port on your PC.

NOTE For call control and other features, download Plantronics software at

http://www.plantronics.com/businesssoftware.

Wearing the headset

The headset comes ﬁtted with the ear loop and medium ear gel.

1 To wear the headset, simply place the ear gel in your ear with the loop at the top of your ear

and rotate the microphone boom forwards. The microphone should be pointed to the corner of

your mouth. If it cannot be comfortably positioned there, you can rotate the ear loop and gel to

ﬁt your ear.

Using your headset

2 The headset comes conﬁgured with the microphone on the left but it’s very simple to switch

the microphone to your right ear if you prefer that conﬁguration. Simply pull the ear loops off

the speaker, rotate them and replace.

3 The headset comes with medium ear gels already ﬁtted. If you ﬁnd that the headset is

uncomfortable or unstable, you can easily change the gel to suit. Simply unpeel the gel that is

on the speaker and replace with a different one.

Large Small

4 Once the headset is positioned on your head, adjust the ﬂexible boom to place the tip closer to

the corner of your mouth. The boom can be shaped to follow the curvature of your face.

50.8

5 For those users who do not want speakers in both ears (all the time or just occasionally),

you can disconnect the second speaker at the connection point shown below. This will

automatically change the headset from stereo to mono (and vice versa when reconnecting).

*The headset is supplied with a cover for the connector when conﬁgured as a mono headset

In-line controls

Call answer/end Can be used to answer or end a call directly from the headset with a single press.

LED will ﬂash green when a call is coming in and be solid green when on a call.

Volume Volume up and down are available.

Mute A single press of the mute button will mute the microphone. A red LED will be on

when you are muted. Pressing this button again will take the microphone off mute.

NOTE For call control and other features, download Plantronics software at

http://www.plantronics.com/businesssoftware.

IMPORTANT For your safety, do not use headset at high volumes for extended periods

of time. Doing so can cause hearing loss. Always listen at moderate levels. For more

information on headsets and hearing visit: plantronics.com/healthandsafety.

1010

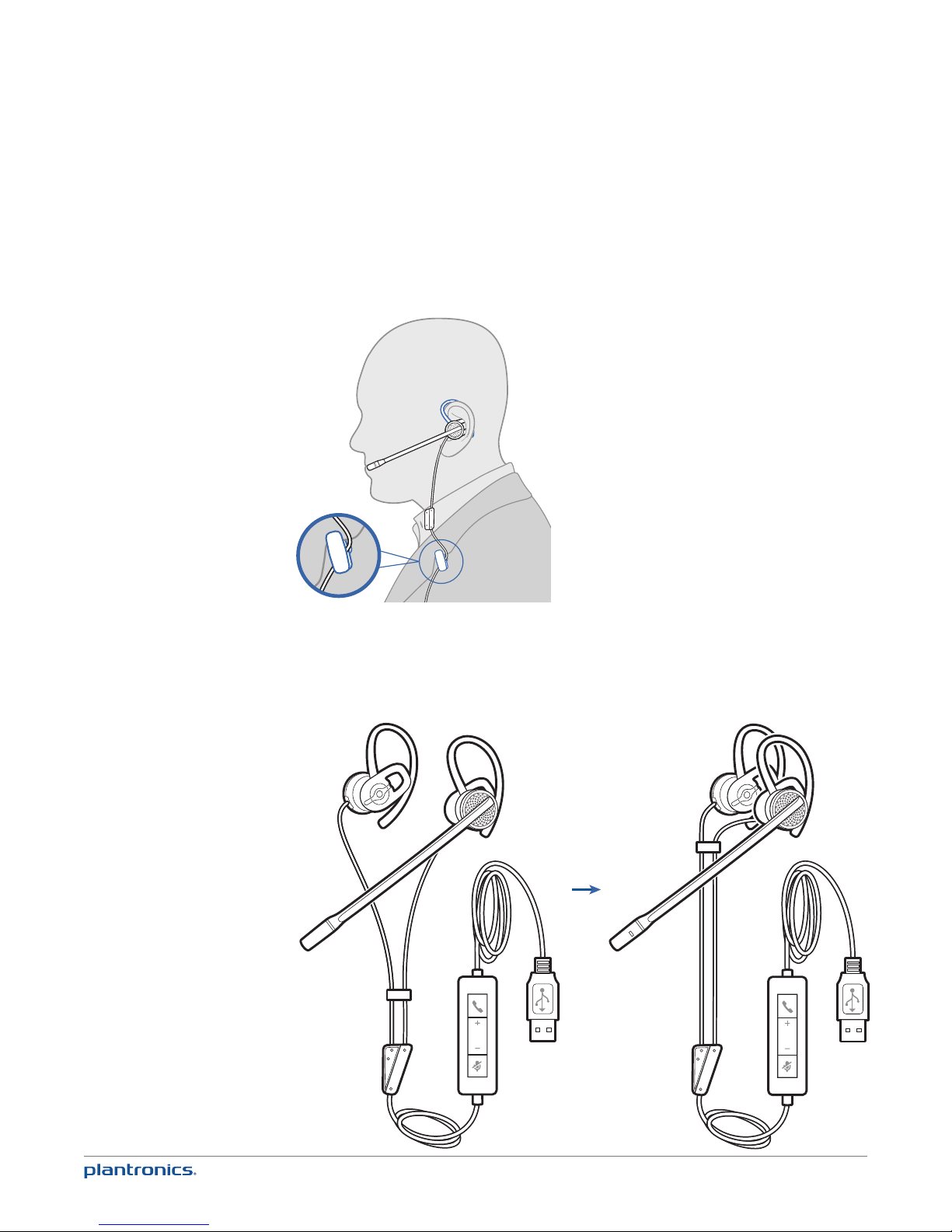

Clothing clip

This will reduce the weight of the cable on the capsule for greater comfort. It will also reduce

the tug on the capsule from the USB cable if you move away from the PC whilst wearing the

headset.

Stereo cable tidy

This can help reduce cable tangle. When you remove the headset, zip up the cable and you

reduce the risk of the headset cable becoming tangled. This is also advised when wrapping the

cable to stow in the case.

Useful tips
