500Mbps Powerline Ethernet Bridge

PL-701

Quick Installation Guide

Table of Contents

1. Important Safety Instructions ............................................ 3

2. Package Content............................................................... 4

Package Details ................................................................ 4

LED Denition .................................................................. 5

Button Denition .............................................................. 5

Planning your Powerline Network ....................................... 6

3. Connecting Powerline Ethernet Bridge................................. 7

Hardware Installation ........................................................ 7

Utility Installation for Windows........................................... 8

Further Conguration ........................................................ 8

1.Important Safety Instructions

This product is intended for connection to the AC power line.

The following pre-cautions should be taken when using this

product:

Please read all instructions before installing and operating thisl

product.

Please follow all warnings and instructions marked on thel

product.

Do not operate this product near water.l

This product should never be place near or over radiator, orl

heat register.

This product relies on a building’s electrical installation forl

short-circuit (over current) protection.

Ensure that a fuse or circuit breaker is used on the phasel

conductors (all current-carrying conductors).

Do not allow anything to reset on the product interconnectl

cords.

Do not locate this product where people may walk on thel

cords.

The power cord should be plugged directly into a specication l

AC wall outlet.

Only a qualied technician should service this product. l

Opening or removing covers may result in exposure to

dangerous voltage points or other risk.

Unplug this product from the wall outlet and refer the productl

to qualied service personal for the following conditions:

1. When the interconnect cords are damaged or frayed.

2. If liquid has been spilled onto the product.

3. If the product has been exposed to rain or water.

4. If the product does not operate normally when the oper-

ating instructions have been followed.

5. If the product exhibits a distinct change in performance.

2.Package Content

PL-701

PL-701 x 1 (PL-701 x 2 for PL-701-KIT)

CD-ROM x 1 (User’s Manual, Quick Guide and Utility)

RJ-45 Cable x 1 (RJ-45 Cable x 2 for PL-701-KIT)

Quick Installation Guide x 1

If any of the above items are missing or damaged, contact your

local dealer for support.

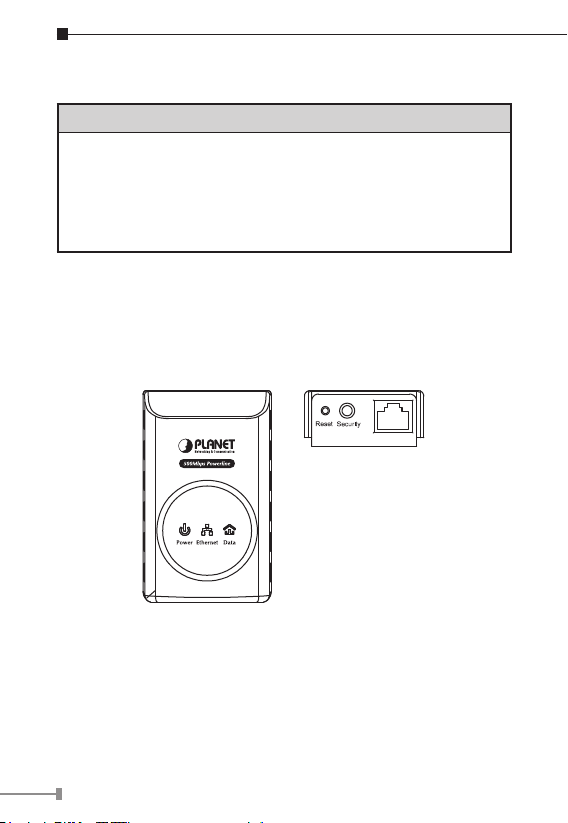

Package Details

LED Denition

LED Status Description

Power On Steady on indicate the Powerline device

connect to the power outlet

Ethernet

Blinking Blinking indicates the data are transferring

Steady on indicates the RJ-45 port has

correctly connected to the network card of

your PC or the Ethernet network

Data

Blinking

If the powerline device serving as a

STATION (STA), the LED indicator will

ash to indicated transmit or receive

powerline activity.

If the powerline device is serving as

a CCO (Central Coordinator), the LED

indicator will light steadily ON, even in the

presence of powerline activity.

Button Denition

Button Description

Reset Reset to factory default

Security

Press security button

more than 3 seconds.

Join a another

HomePlugAV network

Press security button

more than 10 seconds

Set its security to

random value

Planning your Powerline Network

ADSL Router

Internet

PL-701PL-701

Power

1000Base-T UTP

With a PL-701 and the other Powerline device installed, a

network can be created over residential Powerline of your

house. PL-701 can be connected to Ethernet switch, hub,

and broadband router or directly connected to PC. If connect

directly to a PC, of course, the PC must be equipped with an

Ethernet card.

All the Powerline devices on the network must use the same

password to communicate each other. This password can be

congured through the Powerline Conguration utility that can

be found in the CD-ROM. The default password of PLANET

Powerline devices is “HomePlugAV”. Thus, all the PLANET

Powerline devices can communicate each other without prior

password conguration. Please refer to User’s Manual on detail

of installing and using Powerline Conguration utility.

3.Connecting Powerline Ethernet Bridge

Hardware Installation

Setp 1. Connect one Powerline

Ethernet bridge to your

ADSL or Cable modem’s

Ethernet port.

Setp 2. Plug it into the nearest

power socket.

Setp 3. Plug in the second

Powerline Ethernet bridge

next to your PC and

connect the Ethernet

ports.

Setp 4. Internet access from any

power socket in your

home.

Utility Installation for Windows

The installation procedure for the Powerline Conguration utility

will vary depending on which operating system you are using on

your computer. The following procedure is for installation under

Windows XP. Installation on other operation system is similar.

1. Insert the CD into the CD-ROM drive to initiate the Autorun

program. Once completed, a menu screen will appear.

2. Click on the “Powerline Conguration Utility” hyperlink in

PL-701 eld to start the installation. If the menu screen is

not shown, you can start the installation as follows.

Click onlStart Menu/ Run.

Enterl“E:\Utility\setup.exe” in the appeared box, where

“E” is the letter of your CD-ROM drive.

Click onl“OK” button.

3. The utility will be installed into your computer and

a new icon called “Power Packet Utility” will

appear on your desktop.

Note

This utility is only for Windows 2000, 2003, XP,

Vista and Windows 7.

Further Conguration

If you want to congure more detail settings of PL-701, please

refer to user’s manual on the bundled CD.

If you have any difculty on resolving the problem while

installing or using the PL-701, please contact the dealer where

you purchased this product or you can contact PLANET directly

at the following email address: [email protected]w
