Planet DVR-1671 Manual de usuario

4/16-ch H.264 Digital Video Recorder

DVR-471 / DVR-1671

Version: 1.0

Quick Installation Guide

Table of Contents

1. Overview ................................................................................................ 3

2. Package Contents ........................................................................................ 4

3. Rear Panel Description ................................................................................. 5

4. HDD Installation .......................................................................................... 6

5. Hardware Installation ................................................................................... 8

3

1. Overview

This quick installation guide describes the objectives, organization and basic

installation of the PLANET DVR-471 / DVR-1671 surveillance system, and offers

standalone system to build a distributed surveillance system, which can be

monitored via network, and equipped with hard disc drive that records the video

directly. Also, this guide shows you how to nd additional information on related

products and services.

4

2. Package Contents

1 x DVR-471 / DVR-1671

1 x Power adapter

1 x Power cord

1 x Quick installation guide

1 x User’s manual CD

2 x SATA cable

1 x SATA power cable

4 x HDD rack

8 x HDD screw

1 x Remote controller

2 x Battery

Note

If any of above items are missed or damaged, please contact your

local dealer for support.

ó

ó

ó

ó

ó

ó

ó

ó

ó

ó

ó

5

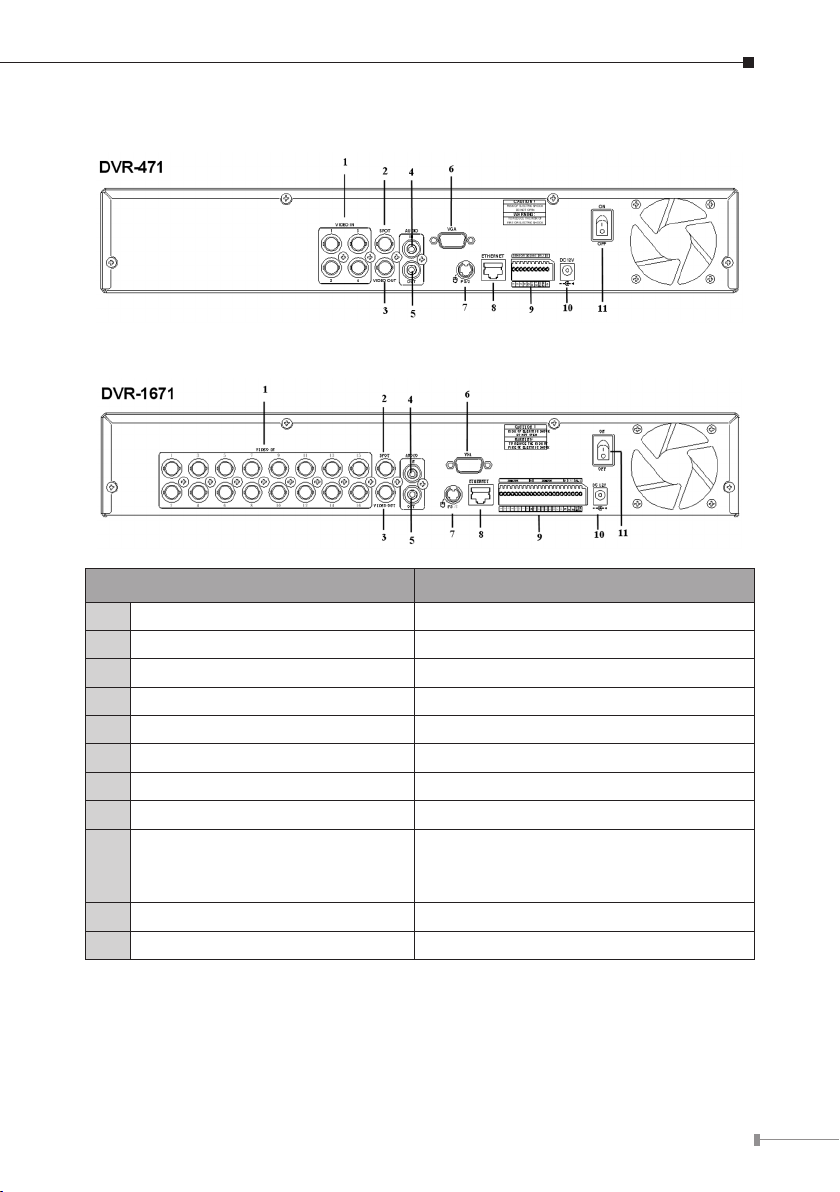

3. Rear Panel Description

Item Description

1 VIDEO IN BNC input ports for cameras

2 SPOT BNC output port for spot monitor

3 VIDEO OUT BNC output port for the main monitor

4 AUDIO IN RCA input port for an audio signal

5 AUDIO OUT RCA output port for an audio signal

6 VGA Output port for the VGA monitor

7 PS/2 PS/2 mouse connection port

8 ETHERNET Port for 10/100Mbps Ethernet

9 SENSOR / RS-485 / RELAY OUT

Input terminal blocks for alarm signals/

Terminal blocks of RS-485 / Relay

output terminal blocks

10 POWER IN Socket for DC 12V power adapter

11 POWER SWITCH Switch to turn the power on/off

6

4. HDD Installation

Step 1:

Lock HDD holder symmetrically in the two sides of HDD with racks and

screws.

Make sure the position between HDD and racks.

Note

The HDD must be installed before the DVR is turned on.

Step 2:

Insert the SATA cable and power cable into SATA HDD.

7

Step 3:

Lock the HDD onto DVR machine.

Step 4:

Insert the SATA cables into the sockets on the main board. Make sure the

HDD1, 2 cables insert into HDD1, 2 sockets.

Now, the installation was nished

8

5. Hardware Installation

1. Connect your cameras to the Video Inputs.

2. Connect your main monitor to “Video Output” or “VGA” connector.

3. Connect the “Ethernet” port to your switch / hub via RJ-45 cable.

4. Connect the bundled power adapter (DC 12V) to the “Power In”

5. Switch the “Power Switch” to turn on your DVR.

Further conguration and information can be found in the user’s manual CD. Please

check the user’s manual for more understanding.
