Planet VIP-156 Manual de usuario

Table of Contents

English:

Preparation before beginning administration on SIP Analog

Telephone Adapter ............................................................. 1-3

Voice communication samples........................................... 1-10

Further Conguration ....................................................... 1-15

Português:

Preparativos antes de começar a administração do SIP ATA... 2-2

Exemplos de conexões de voz ............................................ 2-8

Mais Congurações .......................................................... 2-11

Russian:

Подготовка к первому подключению ................................. 3-3

Настройка голосовой связи ............................................. 3-10

Дополнительная конфигурация ...................................... 3-13

Español:

Preparaciones previas a la administración del Adaptador de

Teléfono Analógico SIP ....................................................... 4-2

Ejemplos de comunicación de voz ....................................... 4-8

Conguración adicional..................................................... 4-11

Polish:

Przygotowanie do zarządzania adapterem ATA...................... 5-3

Przykłady realizacji połączeń głosowych ............................... 5-9

Dalsza konguracja.......................................................... 5-12

VIP-156/VIP-157

SIP Analog Telephone Adapter

Quick Start Guide

English

1-1

Overview

This quick installation guide describes the objectives,

organization and basic installation of PLANET VIP-156/VIP-

157 VoIP Phone Adapter (also named as “ATA” in short), and

explains how to establish your rst voice over IP communication

via PLANET product. Also, this guide shows you how to nd

additional information on related products and services.

The related models are shown below:

VIP-156: SIP Analog Telephone Adapter

VIP-156PE: 802.3af PoE SIP Analog Telephone Adapter

VIP-157: 1 FXS/1 FXO SIP Analog Telephone Adapter

VIP-157S: 2-port FXS SIP Analog Telephone Adapter

The VIP-156/VIP-157 ATA series comes with a web-based

graphical user interface that can cover most congurations and

machine status monitoring. Via standard web browser, you can

congure and check machine status from anywhere around the

world.

1-2

Objectives

This guide provides physical installation, network congurations,

and Internet access establishment information for the ATA.

Organization

This guide is organized as follows:

• Preparation before beginning VIP-156/VIP-157 administration

• Administration interface

• Network interface quick congurations

• Internet access setup guide

1-3

Preparation before beginning administration

on SIP Analog Telephone Adapter

Physical Interfaces

1PC

RJ45 connector, to maintain the existing network

structure, is connected directly to the PC

through straight Cat5 cable.

2LAN

RJ45 connector, for Internet access, is connected

directly to Switch/Hub through straight Cat5

cable.

312V DC 12V DC power

Note

1. Use proper AC adapter for the ATA; improper

power supply will damage device permanently.

2. For VIP-156PE, please connect IEEE 802.3af

standard compliant power injector to the LAN

interface for power resource. At the same time,

either PoE or AC adapter can be deployed at

one time.

Administration Interface

The ATA provides GUI (Web based, Graphical User Interface)

for machine management and keypad administration is also

available for simple conguration.

Web conguration access:

To start ATA web conguration, you must have one of these web

browsers installed on computer for management:

• Microsoft Internet Explorer 4.01 or higher with Java support.

1-4

Default IP address of ATA is 192.168.0.1. Please execute web

browser, and insert http://192.168.0.1 in the address bar of

your web browser to log on to the ATA web conguration page.

VIP-156/VIP-157 will prompt for logon username/password;

please enter: root/null (no password) to continue machine

administration.

Note

In order to connect machine for administration,

please locate your PC in the same network

segment (192.168.0.x) of the ATA. If you’re

not familiar with TCP/IP, please refer to the

related chapter of the user’s manual or consult

your network administrator for proper network

configurations.

1-5

Network Interface quick congurations

Execute your web browser, and insert the IP address (default:

192.168.0.1) of VIP in the adddress bar. After logging on to

machine with username/password (default: root/no password),

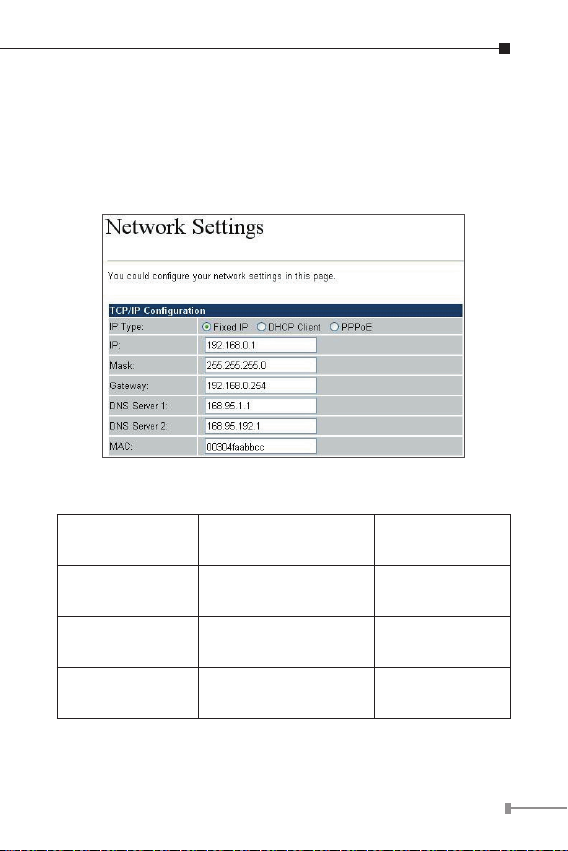

browse “Network” “Network settings” conguration menu:

Parameter Description

IP address LAN IP address of the

ATA

Default:

192.168.0.1

Mask LAN mask of the ATA Default:

255.255.255.0

Default Gateway Gateway of the ATA Default:

192.168.0.254

DNS The Domain Name

Server IP address

Default:

168.95.192.1

1-6

Connection Type Data required.

Fixed IP The ISP will assign IP address, and

related information.

DHCP Client Under most circumstances, there’s no

need to congure the DHCP settings.

PPPoE The ISP will assign PPPoE username /

password for Internet access.

After conrming the modication you’ve done, please click

on the Submit button to apply settings and browse “Save

& Reboot” menu to reboot machine to make the settings

effective.

Save Change to Flash Memory

Most of the modications on ATA will take effective after

modications, but they are just temporarily stored on RAM only.

They will disappear after your reboot or power off the VoIP

Phone Adapter. To save the parameters into Flash ROM and let

them take effective forever, please remember to press the Save

& Reboot button after you have modied the parameters.

Keypad Congurations

The ATA series supports telephone keypad congurations. Please

connect analog telephone set and refer to the following table for

machine network congurations.

1-7

Choice

Machine

Operation Parameter(s) Remarks:

#111# Set DHCP

Client None ATA will change

to DHCP Client

#112xxx*

xxx*xxx*

xxx#

Set up

Static IP

Address

Use the * key

when entering

a decimal point.

DHCP will be

disabled and

system will

change to the

Static IP type.

#113xxx*

xxx*xxx*

xxx#

Set Network

Mask

Use the * key

when entering

a decimal point.

Must set Static

IP rst.

#114xxx*

xxx*xxx*

xxx#

Set Gateway

IP Address

Use the * key

when entering

a decimal point.

Must set Static

IP rst.

#115xxx*

xxx*xxx*

xxx#

Set Primary

DNS Server

Use the * key

when entering

a decimal point.

Must set Static

IP rst.

#136# Enable Auto-

cong mode None For PLANET IPX-

2000 IP PBX

#137#

Disable

Auto-cong

mode

None For PLANET IPX-

2000 IP PBX

#190# Unlock None

Must unlock the

protect function

before setting up

network settings

via keypad.

1-8

#191# Lock None

The system will

be locked and

can’t set up

network settings

via keypad.

#195# Reboot None

The system

will reboot

automatically.

#198# Factory

Reset None

The system

will be reset to

factory default

value and reboot

automatically.

0* To switch

PSTN mode None VIP-157 only

The following keypad commands can be used to display the

network settings enabled on ATA via voice prompt.
