Planet POE-151 Manual de usuario

1-1

English

1. Overview

Thank you for purchasing PLANET IEEE 802.3at / af Power over

Ethernet Injectors. These PoE injectors will work with any Power Device

(PD) that also supports the IEEE 802.3af / at standards. The models

bellowed are included:

Model PoE Standard Max. PoE

Out

Power

Pass-thru.

Speed

POE-151 IEEE 802.3af 15.4 Watts 48V DC 10/100Mbps

POE-152 IEEE 802.3af 15.4 Watts 48V DC 10/100/1000Mbps

POE-161 IEEE 802.3at / af 30 Watts 56V DC 10/100/1000Mbps

Unless specied, terms of “PoE Injector” in the following sections

means the model listed above.

2. Package Contents

Upon open the box of the PoE Injector and carefully unpack it. The box

should contain the following items:

POE-151 / POE-152 POE-161

The 802.3af PoE Injectorl

x 1

User’s Manual x 1l

DC 48V Power Adapter x 1l

The 802.3at High Power over Ethernetl

Injector x 1

User’s Manual x 1l

DC 56V Power Adapter x 1l

Power Cord x 1l

Note

If any of these pieces are missing or damaged, please

contact your dealer immediately. If possible, retain the

carton including the original packing material, and use

them again to repack the product in case of a need to

return for repair.

1-2

English

3. Product Outlook

POE-151 / POE-152

There are two RJ-45 Twisted-Pair jack, one DC 48V Power socket and

two LED indicators.

48V DC

Ethernet

Power over Ethernet Injector

IEEE 802.3af

PoE

PWR Ethernet+DC

PoE-IEEE 802.3af

Ready

Power in-use

Figure 1: POE-151 / POE-152

POE-161

There are two RJ-45 Twisted-Pair jack, one DC 56V Power socket and

two LED indicators.

Figure 2: POE-161 Overview

4. LED Indication

LED Description

Power Lights to indicate that the PoE Injector has power

from AC-DC adapter.

PoE In-use Lights to indicate the PoE Injector is providing DC

in-line power.

1-3

English

5. Hardware Installation

This section describes the hardware features of PoE Injector. Before

connecting any network device to the PoE Injector,refertothischapter

carefully.

5.1 Before Installation

Before your installation, it is recommended to check your network

environment. The PLANET PoE Injector is with an AC-DC adapter and

inject the DC power into the pin of the twisted pair cable follow the IEEE

standard,thepowerandpinassignmentrelationshipisthetablebelow:

Model Required AC-DC adapter

Spec. PoE Pin Assignment

POE-151 Input: 100~240V AC

Output: 48V DC

4/5(+),7/8(-)

POE-152 1/2(+),3/6(-)

POE-161 Input: 100~240C AC

Output: 56V DC 4/5(+),7/8(-)

Category 5/5e/6 UTP/STP cable that with 8-wire are required for the

installation. UTP cable with 4-wire (pin 1/2, 3/6) can not work with

POE-151/161 and only can work with POE-152 in 10/100Base-TX

Ethernet.

Note

PLANET PoE Injector and PLANET PoE Splitter (ex.

POE-151S, POE-152S and POE-162S) can be installed

in pair. Use of third-party device is allowed if the device

complied with IEEE 802.3at or IEEE 802.3af standard.

5.2 PoE Injector Installation

1.Connect a standard network cable from Switch/workstation to

“Ethernet” port of PoE Injector.

2.Connect the long cable that will be used to connect to the remote

device to the port “Ethernet+DC”.

3. Connect the AC adapter to “DC 48V” of POE-151/POE-152. The

power LED will be steady on. Connect the AC adapter to “DC 56V” of

POE-161. The power LED will be steady on.

1-4

English

4.Connect with IEEE 802.3af devices. Base on IEEE 802.3af standard,

the POE-151/POE-152 can directly connect with any IEEE 802.3af

end-nodes like wireless access point, VoIP phones and IP camera that

support IEEE 802.3af Power over Ethernet interface.

Note

ForPOE-161,baseonIEEE802.3atstandard,thePOE-161

can directly connect with any IEEE 802.3at end-nodes such

as PTZ (Pan, Tilt & Zoom) IP camera, Speed Dome, high

power consumption wireless LAN access point that support

IEEE 802.3at Power over Ethernet port.

Ethernet Switch

100 meters

PoE IP Camera

POE-151/152

PoE Injector

Power

Power Line (DC)

100Base-TX UTP

100Base-TX UTP with PoE

PoE

Power Line (AC)

PoE

Power

Data

PoE

PWR Ethernet+DC

PoE-IEEE 802.3af

Ready

Power in-use

48V DC

Ethernet

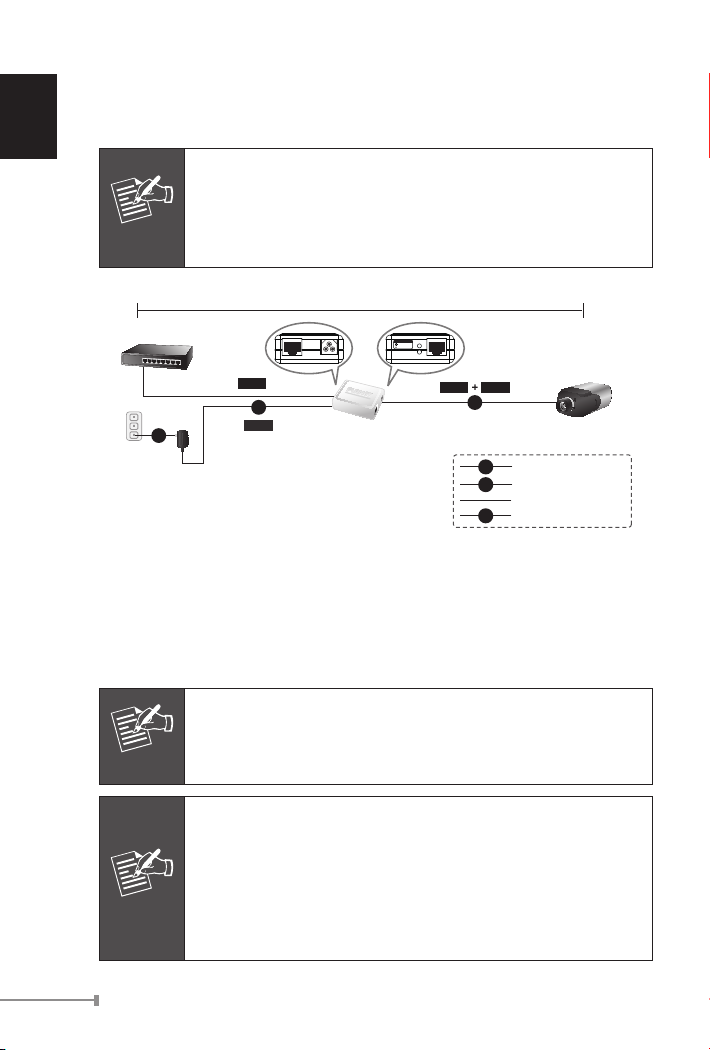

Figure 3: Connection to IEEE 802.3af Device

5.Once POE-151/POE-152 detects the existence of an IEEE 802.3af

device, the LED indicator will be steady ON to shows it is providing

power. The same to POE-161 that detects the existence of an IEEE

802.3at / af device.

Note

If the connected device is not fully complying with IEEE

802.3af standard, the LED indicator of POE-151/POE-152

will not be steady on.

Note

1. Since the POE-161 PoE port supports 56V DC PoE

power output, please check and assure the Powered

Device (PD) acceptable DC power range is from 52 to

56V DC. Otherwise, it will damage the Powered Device

(PD).

2. If the connected device is not fully complying with IEEE

802.3at / af Power over Ethernet, the LED indicator of

POE-161 will not be steady on.

1-5

English

5.3 PoE Injector and PoE Splitter Installation

FornonPoEremotedeviceorEthernetequipment,thePoE Injector and

PoE SplittercanrunsinpairtoprovideDCPowerforthosedevices,the

table below shows the model of PLANET PoE Splitters:

Model PoE Standard DC Power Out Pass-thru. Speed

POE-151S IEEE 802.3af 5V / 12V DC 10/100Mbps

POE-152S IEEE 802.3af 5V / 12V DC 10/100/1000Mbps

POE-162S IEEE 802.3at 12V / 24V DC 10/100/1000Mbps

1.Followstep1,step2andstep3ofSection5.2fortheconnection.

2. Connect the UTP cable in the package from “Ethernet” of the PoE

splitter to the RJ-45 port of remote device.

3. Connect proper DC plug from “DC OUT” of PoE Splitter to the remote

device.

100 meters

100Base-TX UTP

DC Power Line (DC)

AC Power Line (AC)

PoE 100Base-TX UTP with PoE

Data

Power

Data

Wireless AP

PoE

Power

Data

Ethernet Switch

POE-151/152

PoE Injector

POE-151S

PoE Splitter

PoE

Ethernet+DC

PoE-IEEE 802.3af

Ready

Power in-use

DC OUT

Ethernet 5V 12V

Power

Figure 4: Connection Architecture via PoE Injector and PoE Splitter

Note

Please ensure the PoE Splitter output voltage is correct

before applying power to remote device otherwise, it may

damage the remote device.

1-6

English

6.ProductSpecication

Product POE-151 POE-152 POE-161

HardwareSpecication

Interface

“Data” Input Port 1 x RJ-45 STP

“PoE

(Data+Power)”

Output Port

1 x RJ-45 STP

DC Input power

socket 1 x 48V DC 1 x 56V DC

LED Indicator System: Power x 1 (Yellow)

PoE Port: PoE in Use x 1 (Green)

System:

Power x 1 (Green)

PoE Port:

PoE in Use x 1

(Green)

Network Cable UTPCat.5/5e/6,upto100m(328ft)

Data Rate 10/100Mbps 10/100/1000Mbps 10/100/1000Mbps

Dimension (W x D x H) 73 x 55 x 24 mm 73 x 55 x 24 mm 95 x 70 x 25 mm

Weight 50g 50g 83g

Unit Input Voltage DC48V,0.4A DC48V,0.4A DC56V,0.53A

Power Requirement 100-240VAC,50/60Hz

Power Consumption 15.4 Watts max. 15.4 Watts max. 30 Watts max.

Power over Ethernet

PoE Standard IEEE 802.3af Power over Ethernet / PSE

IEEE 802.3at / af

Power over Ethernet

/ PSE

PoE Power Output DC 48V / 15.4 Watts DC 56V / 30 Watts

PoE Power supply Type Mid-Span End-Span Mid-Span

Power Pin Assignment 4/5(+),7/8(-) 1/2(+),3/6(-) 4/5(+),7/8(-)

Standards Conformance

IEEE 802.3 10Base-T Ethernet



IEEE 802.3u 100Base-TX

Fast Ethernet



IEEE 802.3ab 1000Base-T

Gigabit Ethernet -

 

IEEE 802.3af Power over Ethernet



IEEE 802.3at Power over Ethernet - -



Regulation Compliance FCCClassB,CE

mark

FCCClassB,CE

mark

FCCClassA,CE

mark

Environment

Operating Temperature 0 ~ 50 Degree C

Storage Temperature -10 ~ 70 Degree C

Humidity 5 ~ 90% (Non-condensing)
