Planar PR3010 Manual de usuario

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All

rights are reserved. No part of this document may be reproduced, translated to

another language or stored in a retrieval system, or transmitted by any means,

electronic, mechanical, photocopying, recording, or otherwise, without prior written

permission. Windows is a registered trademark of Microsoft, Inc. Other brand or

product names are trademarks of their respective holders.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific

disposal information check WWW.LAMPRECYCLE.ORG.

Thank you for choosing Planar. To assure you receive all the benefits of your Planar

product and services, register your Planar product today. Visit our website to register

your product at http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD

monitor, touchscreen or other Planar products visit our online store at

www.PlanarOnline.com or find other stores who carry Planar products at

http://www.planar.com/howtobuy

5 48

2 3

1415

8 9 10

6CB

Main

Language

Menu= Exit Item Adjust Scroll

Remote control test

USB test

Button test

Color test

Sound test

English

Setup Config Utility Tool Status

1 2 3 4 5 6

7891011121314

—

r’

’s

—

HECK

ARTS

IST

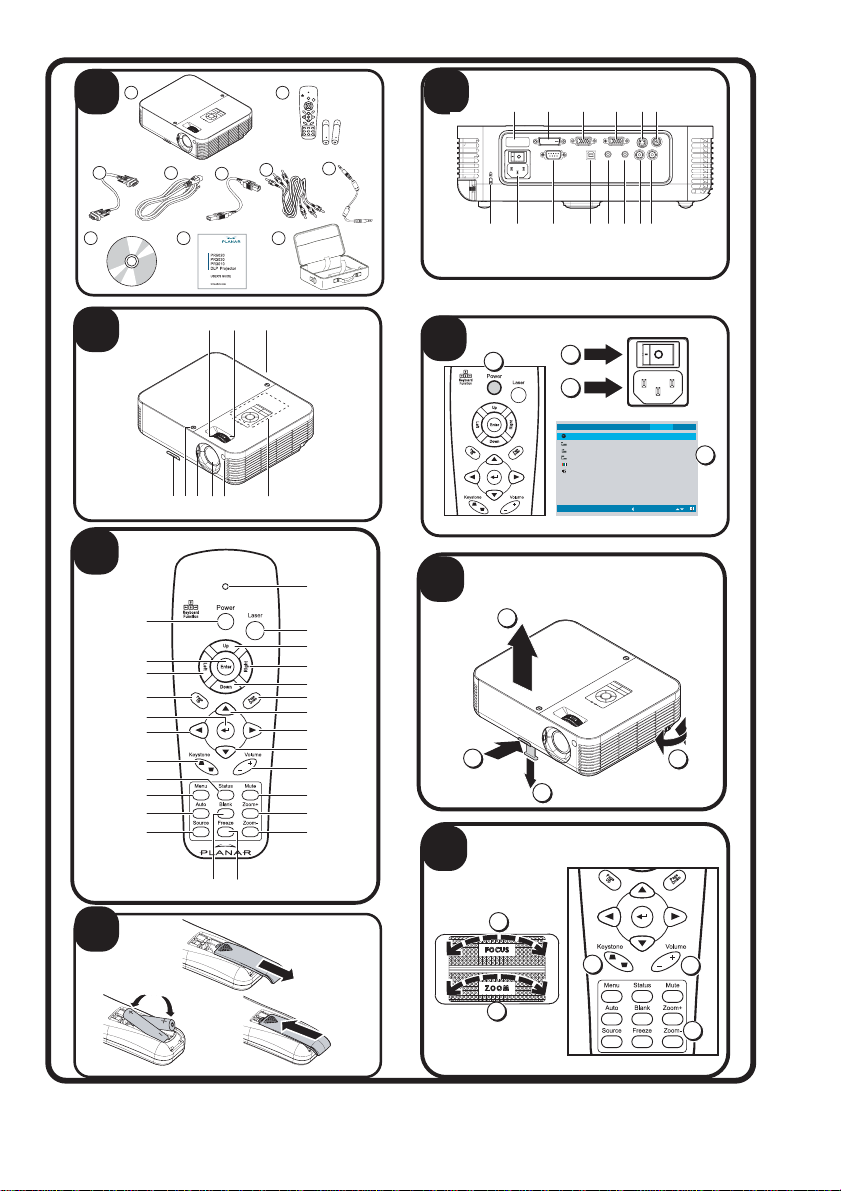

Congratulations on your purchase!

Please check that the following items are

included with your projector.

Parts List

1. Projector

2. Remote control with batteries

3. Power cord

4. Computer cable (VGA-VGA)

5. USB cable

6. Composite cable (RCAx3-RCAx3)

7. Audio cable (Mini jack-Mini jack)

8. CD-ROM (user manual)

9. User’s Guide

10. Carrying case

Contact your dealer immediately if any

items are missing or damaged.

DENTIFY

ROJECTOR

ARTS

Projector Parts Description

1. Focus—turn to focus the projected


2. Zoom—turn to enlarge the projected


3. Lamp cover screws

4. OSD buttons and LEDs

5. Front IR receiver

6. Lens

7. Lens cover

8. Height adjusters—adjusts level of

projector

Caution:

Overheating can damage the projector.

Do not block any of the air vents around

the unit.

DENTIFY

EMOTE

ONTROL

ARTS

Remote Buttons Description

Lights when the remote control is

used

Remote Buttons Description

Press to operate the on-screen

pointer

Up arrow when connected

through USB to a PC

Right arrow when connected

through USB to a PC

Down arrow when connected

through USB to a PC

Page down when connected

through USB to a PC

Navigate and change settings in

the OSD

10.

Adjust volume

11.

Mutes the built-in speaker

12.

Zoom in

13.

Zoom out

14.

Freeze/unfreeze the on-screen


15.

Make the screen blank

16.

Detect the input device

17.

Auto adjustment for phase,

tracking, size, position

18.

Open the OSD

19.

Open the OSD Status menu

(menu only opens when input

device detected)

20.

Correct image-trapezoid (wider

top/bottom) effect

21.

Navigate and change settings in

the OSD

22.

Change settings in the OSD

23.

Page up when connected

through USB to a PC

24.

Left arrow when connected

through USB to a PC

25.

Enter key when connected

through USB to a PC

—

r’

’s

—

Remote Buttons Description

26.

Turn the projector on or off

NSERT

EMOTE

ONTROL

ATTERIES

1. Remove the battery

compartment cover by sliding

the cover in the direction of the

arrow.

2. Insert the supplied batteries

taking note of the polarity (+/-).

3. Replace the cover.

AKE

ONNECTIONS

Warning:

As a safety precaution, disconnect all

power to the projector and connecting

devices before making connections.

Label Description

Rear IR

receiver Receiver for IR

signal from

remote control

DVI-D

(For PR5020

only)

Connect the DVI-

D cable from a

computer (not

supplied)

VGA IN Connect a VGA

cable from a

computer

(supplied)

VGA OUT Connect to a

monitor (not

supplied)

S-video Connect S-video

cable from a

video device (not

supplied)

Video Connect a

composite video

cable from a video

device (supplied)

Audio in-R Connect the

audio cable from

an audio input

device (supplied)

Audio in-L Connect the

audio cable from

an audio input

device (supplied)

Audio-in Connect an audio

cable from the

computer’s audio-

out connector

(supplied)

—

r’

’s

—

Label Description

10.

Audio-out Audio loop-thru

11.

USB Connect the USB

cable from a

computer

(supplied)

12.

RS-232

(For PR5020

only)

Installation control

13.

Power Connect the

power cord

(supplied)

14.

Security

Lock Secure to

permanent object

with a

Kensington® Lock

system

OWER ON

OFF AND

ANGUAGE

1. Connect the power cord to the

projector [A] .Connect the other

end to a wall outlet.

Switch [B] from on (O) to off (

—

)

2. The POWER and READY LEDs

on the projector turn on.

Turn on the connected devices.

3. Ensure the Power LED is on (not

flashing) and then press the

Power button [C] to turn on the

projector.

(If any LEDs are flashing, do not

press the Power button. See

“LED Error Messages” in the

CD-ROM user manual.)

The projector splash screen

displays and connected devices

are detected.

4. Press the Menu button and then

press the cursor button until

Tool is highlighted [D].

5. Press the cursor button until

Language is highlighted [D].

6. Press the until your

language is displayed.

7. Press the Menu button twice to

close the OSD.

DJUST

ROJECTOR

EVEL

1. To raise the level of the

projector, lift the projector [A]

and press the height-adjuster

button [B].

The height adjuster drops down

[C].

2. To lower the level of the

projector, press the height-

adjuster button and push down

on the top of the projector.

3. To adjust the angle of the picture

[D], turn the tilt adjuster right or

left until desired angle has been

achieved.

DJUST

MAGE AND

OLUME

1. Use the Image-focus control to

sharpen the projected image (A).

2. Use the Image-zoom control to

resize the projected image and

screen size (B).

—

r’

’s

—

3. Use the Keystone buttons to

correct keystone (wider top or

bottom) effect (C).

4. Use the Volume buttons to

adjust the volume (D).

EED

ORE

NFORMATION

The CD-ROM that shipped with your

projector features a detailed user manual

in a printer-friendly format. The user

manual includes hardware, operation,

and maintenance descriptions. You will

also find troubleshooting procedures and

instructions on securing the projector by

means of a security lock.

The projector has an On-Screen Display

(OSD) that lets you make image

adjustments and change various settings.

To open the OSD, press the Menu

button on the remote control. Use the

remote control cursor buttons to navigate

and make changes to the projector

settings.

Refer to the “On-Screen Display

Settings” section of the CD-ROM user

manual for more information.
