Planar PT191MU Manual de usuario

PT191MU

Touchscreen Monitor

USER’S GUIDE

www.planar.com

2PT191MU User’s Guide (020-0418-00 B)

The information contained in this document is subject to change without notice.This document

contains proprietary information that is protected by copyright. All rights are reserved. No part of

this document may be reproduced, translated to another language or stored in a retrieval system,

or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, with-

out prior written permission.

Windows® is a registered trademark of Microsoft, Inc.

Other brands or product names are trademarks of their respective holders.

Important Recycle Instruction:

LCD Lamp(s) inside this product contain mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or dispose

in accordance with local, state, or federal Laws. For more information, contact the

Electronic Industries Alliance at HYPERLINK“http://WWW.EIAE.ORG”WWW.EIAE.OR

For lamp speciﬁc disposal information check WWW.LAMPRECYCLE.ORG.

PT191MU User’s Guide (020-0418-00 B) 3

Table of Contents

Usage Notice

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction

About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Package Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Start Your Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

User Controls

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

How to Use the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

On-Screen Display Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Appendix

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Warning Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Compatibility Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Touchscreen Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4PT191MU User’s Guide (020-0418-00 B)

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s

manual to maximize the life of your unit.

Do:

qTurn o the product before cleaning.

qUse only a dry soft cloth or clean room wiper when cleaning

the LCD panel surface.

qUse a soft cloth moistened with mild detergent to clean the

display housing.

qUse only high quality and safety approved AC/DC power adapter.

qDisconnect the power plug from AC outlet if the product is not

used for a long period of time.

Don’t:

qDo not touch the LCD panel surface with sharp or hard objects.

qDo not use abrasive cleaners, waxes or solvents for cleaning.

qDo not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- Place in direct sunlight.

WARNING – To prevent the risk of re or shock hazards, do not expose

this product to rain or moisture.

WARNING – Please do not open or disassemble the product as this may

cause electric shock.

PT191MU User’s Guide (020-0418-00 B) 5

Introduction

About Planar’s PT191MU

The PT191MU is a 19” at panel screen with an active matrix, thin-lm transis-

tor (TFT), liquid crystal display (LCD).

Features include:

qAnalog and Digital dual signal input

q19” diagonal screen size

q1280 x 1024 high resolution

q16.7 million displayable colors

q31.5~80kHz horizontal scan

q56~75 Hz high refresh rate

q0.294 mm x 0.294 mm pixel pitch

q300 cd/m2(typ.) brightness

q4 CCFT backlight lamps w/ 50,000 hrs life

q1000:1(typ.) contrast ratio

qL/R=89°/89°, U/D =89°/89° viewing angle, CR=10:1

qTr + Tf: 8 ms (typ.) response time

qAuto-adjustment function

qIntegrated multimedia audio function

qMultilingual OSD user controls

qVESA DPMS power saving

qUSB hub with 1 upstream and 2 downstream ports on the stand base

qStand with tilt and swivel functions

q3M® ClearTek™ II Capacitive touchscreen

6PT191MU User’s Guide (020-0418-00 B)

Touchscreen for PT191MU

qSurface: Anti-glare treatment

qInterface: USB

qDurability:

Capacitive: 225 million activations

qHardness of surface =

Capacitive: 6.5 Mohs

qTransmittance: Up to 91.5% typical

qS/W Driver Compatibility: Windows® 95/98/Me/NT/2000/XP, Linux

PT191MU User’s Guide (020-0418-00 B) 7

Package Overview

LCD Display

VGA Signal Cable

USB Upstream Cable

Power Adapter

DVI-D Cable

Power Cord

Audio-In Cable

User’s Guide Landing Strip

Touchscreen Driver

Installation CD-ROM

8PT191MU User’s Guide (020-0418-00 B)

Installation

Product Overview

• Front View

• Rear View

LCD Display

Front Panel Con-

trols

Stand

PT191MU User’s Guide (020-0418-00 B) 9

• USB Hub Ports

1. USB Downstream Ports

These two USB ports are available for connecting USB type peripheral

devices such as keyboard, mouse, printer and so on.

2. USB Upstream Port

This Port is for connecting the USB Upstream cable to computer’s or other

hub’s USB port.

10 PT191MU User’s Guide (020-0418-00 B)

• VESA Mount your monitor• VESA Mount your monitor

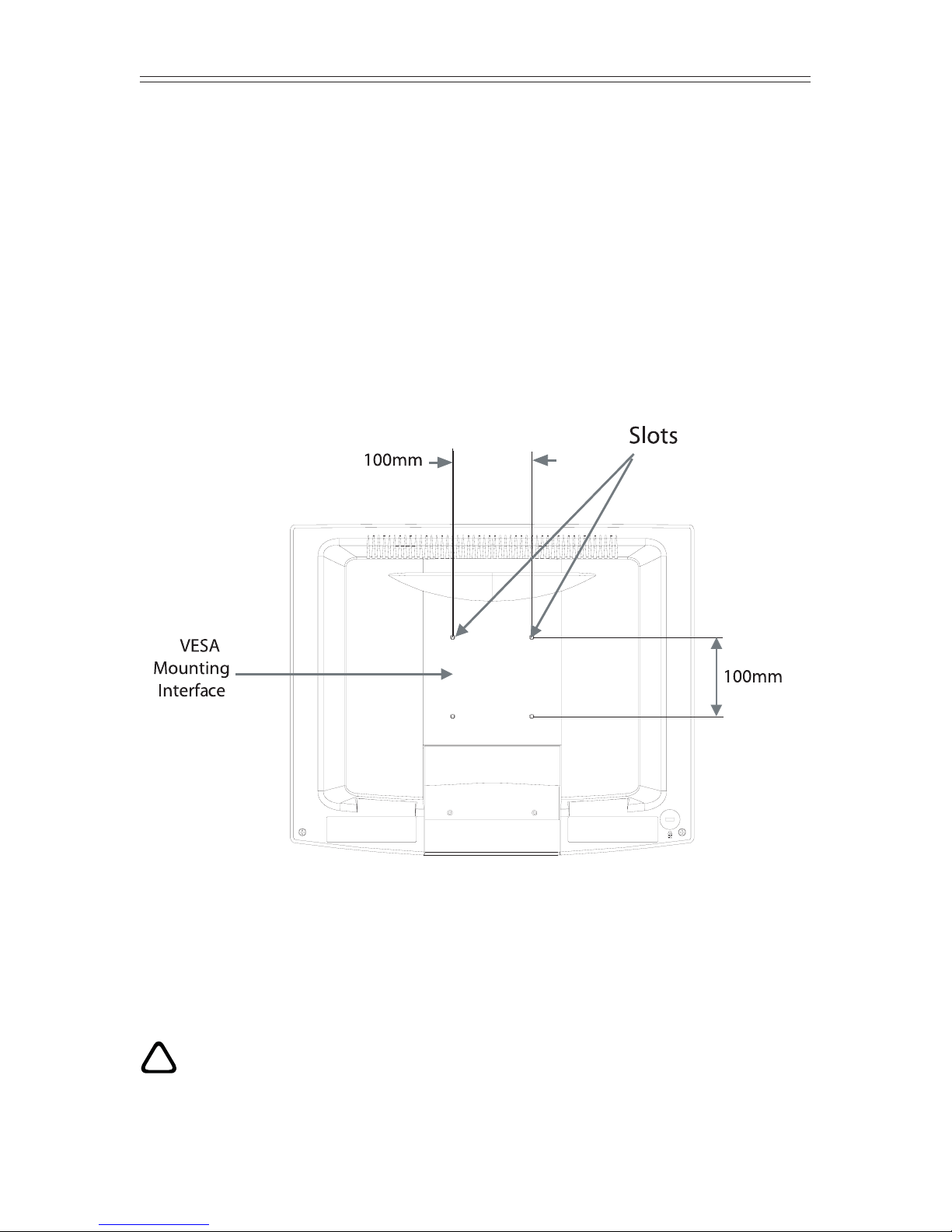

• VESA Mount your monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting

Interface Standard which denes a physical mounting interface for at panel

monitors, and corresponding standards for at panel monitor mounting devices,

such as wall and table arms.The VESA mounting interface is located on the back

of your monitor.To mount the monitor on a swing arm or other mounting

xture, follow the instruction included with the mounting xture to be used.

Note!Note!

Note!

Please select the proper screws!

The distance between the back cover surface and the bottom of the screw

hole is 8mm. Please use a M4 screw.
