Planar PT1545R Manual de usuario

PT1545R / PT1545S / PT1545RPF

Touch Screen LCD Monitor

USER’S GUIDE

www.planartouch.com

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be reproduced,translated to another language

or stored in a retrieval system, or transmitted by any means, electronic, mechanical,

photocopying, recording, or otherwise, without prior written permission. Windows is a registered

trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective

holders.

The test results show that this device meets the FCC rules. Those limits are set to protect

residential areas from the devices with harmful emission. This device will produce, use and

radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use

this device might produce harmful interference with radio communication. Not withstanding

the foregoing, it does not guarantee that this type of harmful interference does not occur in

some special installations. The interference caused by this device to the reception of radio

or television signals may be veriﬁed by turning it on and off. Any changes or modiﬁcations to

this TFT LCD would void the user’s authority to operate this device.

Important Recycle Instructions:

Lamp(s) inside this product contains mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp speciﬁc

disposal information check WWW.LAMPRECYCLE.ORG.

For more information on how to recycle your product, please visit

WWW.PLANARSYSTEMS.COM/GREEN.

Table of Contents

Usage Notice

Precautions............................................................................................................................. 1

Introduction

About PT1545R/PT1545S/PT1545RPF ................................................................................. 2

Touch Screen for PT1545R/PT1545S/PT1545RPF........................................................ 2

Package Overview ...................................................................................................... 3

Installation

Product Overview ........................................................................................................ 4

Front View .............................................................................................................. 4

Bottom View .......................................................................................................... 4

Start Your Installation .................................................................................................. 5

Connecting the Display (Figure 7.1)............................................................................. 6

(Figure 7.1) ........................................................................................................... 7

Kensington Security Slot.............................................................................................. 8

VESA Mount Your Monitor ........................................................................................... 9

Remove the Deskstand..........................................................................................10

User Controls

Side Panel Controls....................................................................................................11

How to Use the OSD Menus .......................................................................................12

On-Screen Display Menus ..........................................................................................13

Appendix

Troubleshooting..........................................................................................................14

Warning Signal ...........................................................................................................15

No Signal................................................................................................................15

Going to Sleep .......................................................................................................15

Out of Range .........................................................................................................15

Product Dimensions ...................................................................................................16

Compatibility Modes ...................................................................................................17

Touch Screen Driver Installation .................................................................................18

PT1545R/PT1545S/PT1545RPF Optional Calibration Tool Install ................................18

PT1545R/PT1545S/PT1545RPF Install Instructions .................................................19

Product Registraton and Technical Support ................................................................21

Usage Notice

! Warnin

- To prevent the risk o

ﬁ

re or shock hazards, do not expose

this product to rain or moisture.

! Warnin

- Please do not open or disassemble the product as this ma

cause

tri

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit.

Do:

• Turn off the product before cleaning.

• Touch screen surface may be cleaned using a soft clean cloth moistened with

mild window glass commercial cleaners or 50/50 mixture of water and isopropyl

alcohol.

• Use a soft cloth moistened with mild detergent to clean the display housing.

• Disconnect the power plug from AC outlet if the product is not going to be used for

an extended period of time.

Don’t:

• Do not touch the LCD Display screen surface with sharp or hard objects.

• Do not use abrasive cleaners, waxes or solvents for your cleaning.

• Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic ﬁeld.

- In direct sunlight.

Introduction

About PT1545R/PT1545S/PT1545RPF

The PT1545R/PT1545S/PT1545RPF is a 15" ﬂat panel screen with an active matrix,

thin-ﬁlm transistor (TFT) liquid crystal display (LCD).

Features include:

• Direct Analog signal input

• Active matrix TFT LCD technology

• 1024 x 768 XGA resolution

• 15" viewable display area

• 31.5 ~ 60 KHz horizontal scan

• 56 ~ 75 Hz high refresh rate

• 0.297mm x 0.297mm pixel pitch

• Auto adjustment function

• Multilingual OSD user control

• Kensington security slot

• 100 mm VESA mount

• Removable base for ﬂexible mounting solutions.

• PT1545R/PT1545RPF - 5-wire resistive touch screen with dual RS-232 Serial/USB

controller.

• PT1545S - SAW touch screen with dual RS-232 Serial/USB controller

• Build-in audio-1W x 2

Touch Screen for PT1545R/PT1545RPF

• 5-wire resistive touch screen for ﬁnger and stylus input

• Surface: Anti-glare treatment

• Interface: Dual RS-232 Serial/USB controller

• PT1545R Transmittance: 82%±5%

• PT1545RPF Transmittance: 50%±5% (with Privacy Filter)

• Driver: Windows® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux,

Apple® Mac OS

Touch Screen for PT1545S

• Surface Acoustic Wave (SAW) touch screen for ﬁnger and stylus input

• Surface: Anti-glare treatment

• Interface: Dual RS-232 Serial/USB controller

• Transmittance: 92±5%

• Driver: Windows®7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux,

Apple®Mac OS

Package Overview

LCD Display Power Cord VGA Signal Cable

RS-232 Cable

USB Cable ( A to B) Audio-in Cable

Touch Screen Driver

Installation CD-ROM

Landing Strip User’s Guide

xxxxxxxxx

USER’S GUIDE

www.planartouch.com

Screw

Installation

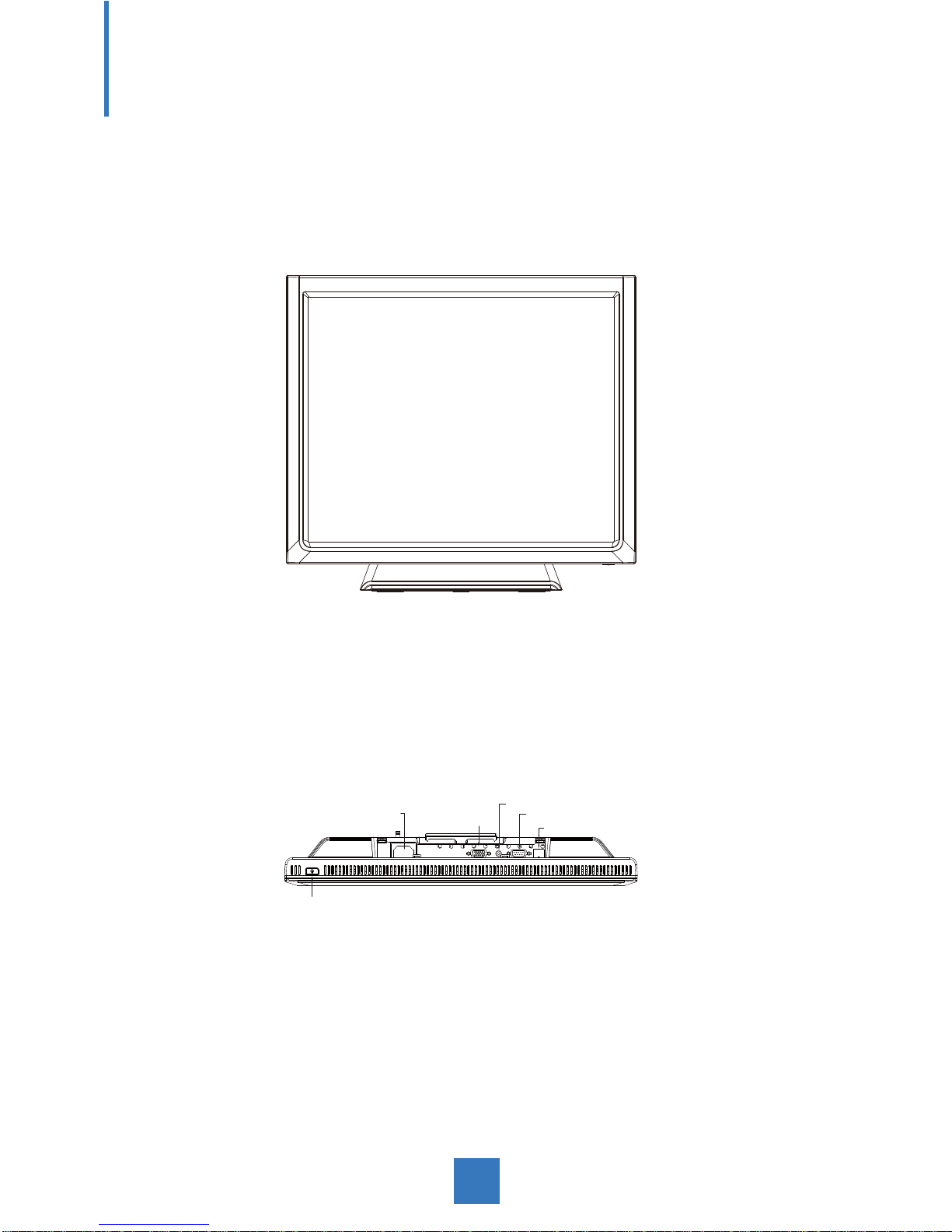

Product Overview

• Front View

• Bottom View

RS-232

VGA

AC IN

USB

POWER SWITCH

AUDIO

Start Your Installation

Please follow these instructions so that you can hookup the cables to associated connector.

1. Lay the LCD ﬂat on an even surface.

2. Move the stand into position as seen in the step 2 diagram.

3. Remove the cable cover as seen in the step 3 diagram.

4. Connect the cables to the appropriate connectors as seen in the step 4 diagram. Use

step 4-1 diagram if using the RS-232 serial connector. Use the step 4-2 diagram if using

the USB connector.

5. Position all cables under the cover lip as seen in the step 5 diagram.

6. Re-attach the cable cover . Remove the screw (CBM M3x6) from the accessory box, and

insert the screw into the cable cover and monitor as seen in the step 5 diagram.

Step 2

RS-232

VGA Audio

Power VGA Audio

Power USB

Step 4-2Step 4-1

Step 2 Step 3

Step 5

Connecting the Display (Figure 7.1)

To setup this display, please refer to the following ﬁgure and procedures.

1. Be sure all equipment is turned off.

2. Connect the AC power cord to the power connector on the monitor and the other end

into an electrical outlet (7.1).

3. Connect the D-SUB cable from the display's VGA input connector to the D-SUB

connector of your host computer and tighten the screws (7.1).

4. Connector the audio-in cable from the audio input port of your display to the audio out

port of your computer (7.1).

5. Connect the RS-232 or USB cable from the RS-232 or USB port of your display to the

RS-232 port or USB port (7.1) of your computer.

6. Conﬁgure the touch screen. Refer to the “Touch Screen Driver Installation” section on

page 18.

7. Once the touch screen is conﬁgured, the monitor is ready for use.

! Notice!

To ensure the LCD display works well with your computer, please conﬁgure the

display mode of your graphics card to make it less than or equal to 1024 x 768

resolution and make sure the timing of the display mode is compatible with the LCD

display.

We have listed the compatible “Video Modes” of your LCD display in the appendix

(on page 17) for your reference.

(Figure 7.1)
