Pioneer GEX-P910XM Manual de usuario

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2003 K-ZZB. DEC. 2003 Printed in Japan

ORDER NO.

CRT3214

XM SATELLITE DIGITAL TUNER

GEX-P910XMXN/UC1

Service

Manual

-This service manual should be used together with the manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following

manual(s).

Model No. Order No. Mech. Module Remarks

GEX-P900XM/UC CRT2744

-GEX-P910XM/XN/UC1 is identical to GEX-P910XM/XN/UC in appearance and they share the same

model number.

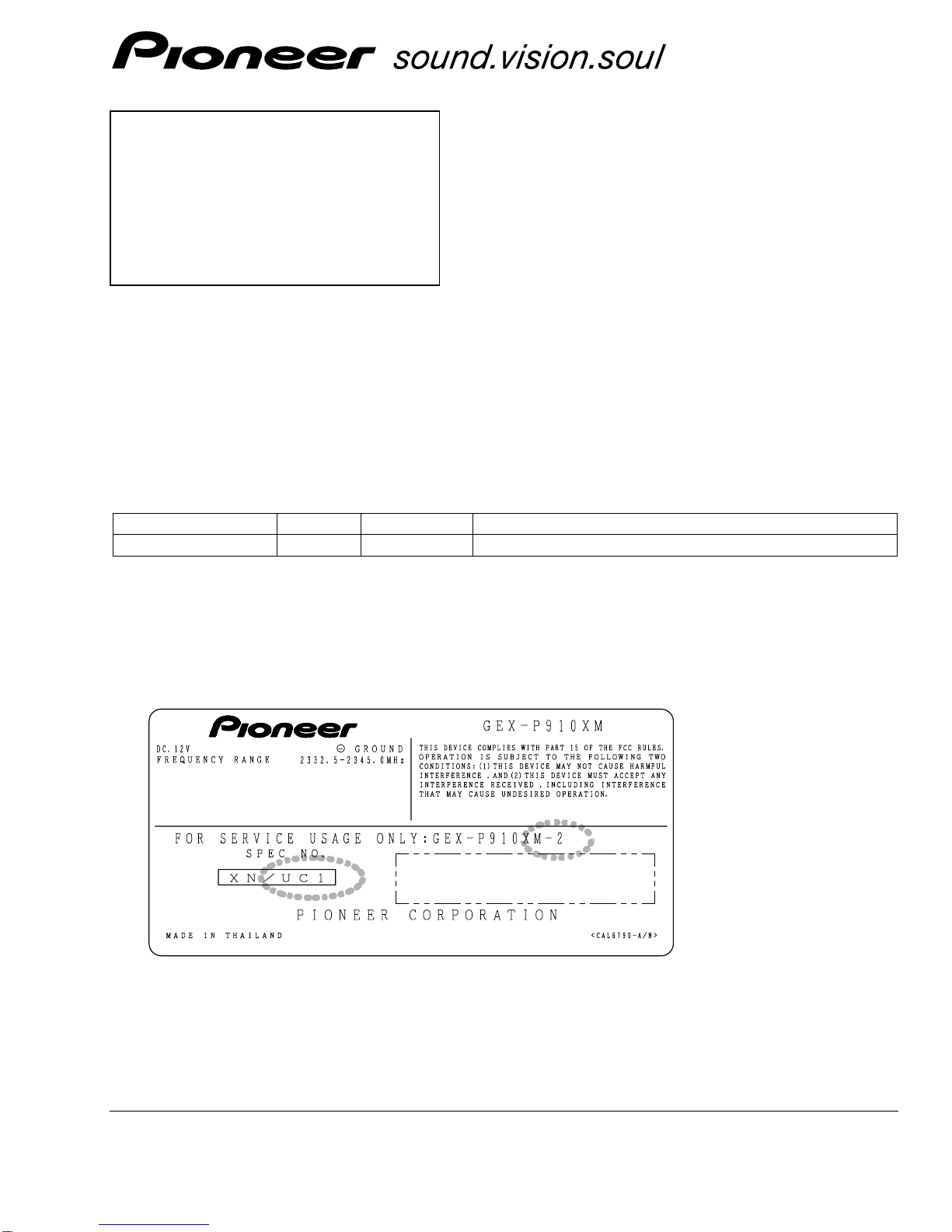

GEX-P910XM/XN/UC1 name plate is shown below. Check this against the name plate on the unit to

identify the model.

If the name plate differs, please refer to the CRT2964 GEX-P910XM/XN/UC service manual.

1234

GEX-P910XM/XN/UC1

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 2)

-PACKING SECTION PARTS LIST Part No.

Mark No. Description GEX-P900XM/UC GEX-P910XM/XN/UC1

1-3 Owner's Manual CRB1732 CRB1801

1-4 Installation Manual CRB1733 CRB1802

10 Carton CHG4466 CHG4632

11 Sub Carton CHG4469 CHG5216(Carton)

12 Contain Box CHL4466 CHL5216

13 Protector CHP2443 CHP2527

14 Inner Box CHW1920 Not used

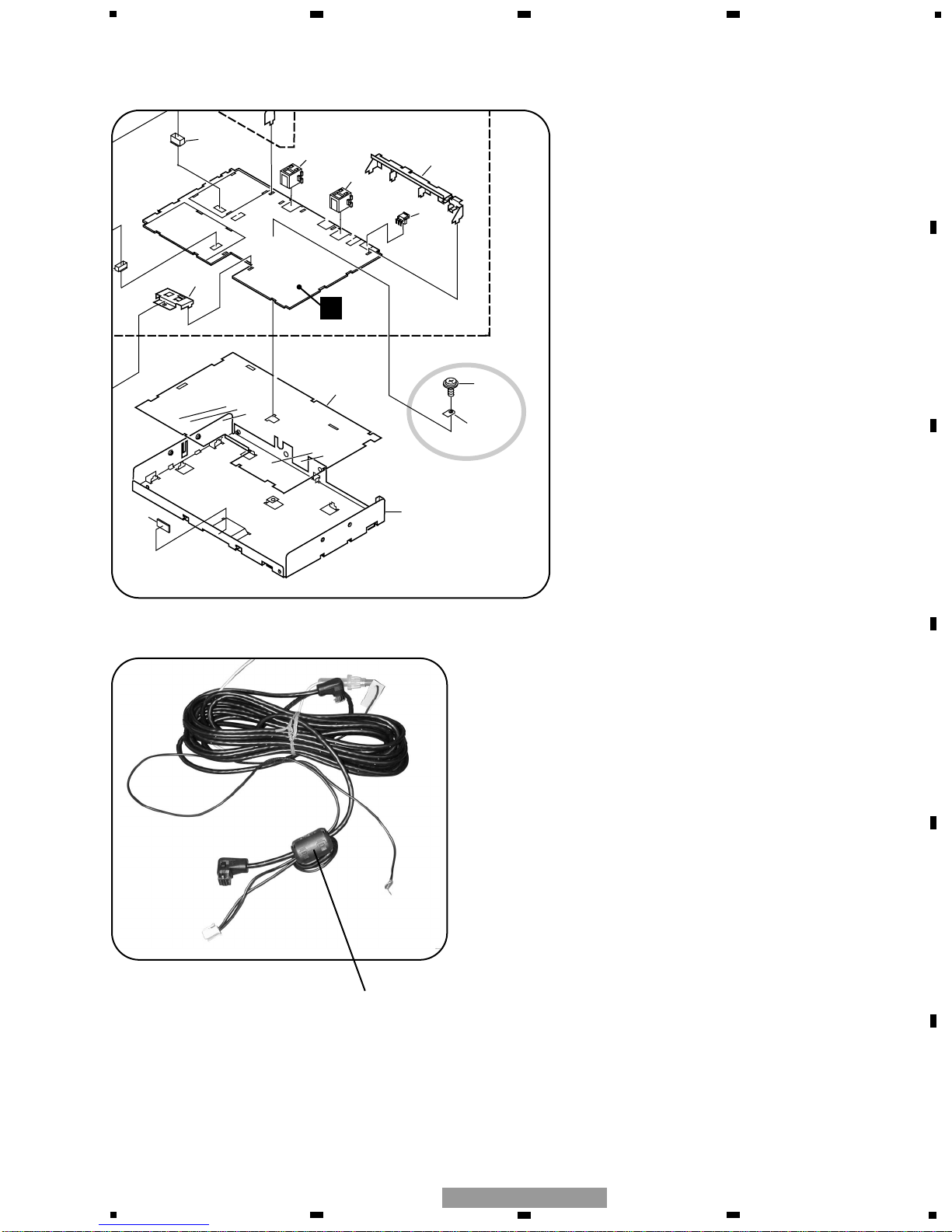

EXTERIOR(Page 4)

-EXTERIOR SECTION PARTS LIST Part No.

Mark No. Description GEX-P900XM/UC GEX-P910XM/XN/UC1

3 Case CNB2659 CNB2820

6 Main Unit CWM7660 CWM9523

28 DSP Module CWX2555 CWX2972

40 Holder CNC9332 CND2275

43 Screw ISS26P055FUC ISS26P055FTC

45 Terminal(CN601) Not used VNF1084

46 Filter(Service) Not used CXX1678

5678

GEX-P910XM/XN/UC1

12 11

10 14

1234

GEX-P910XM/XN/UC1

ELECTRICAL PARTS LIST(Page 30)

RF Module Part No.

Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1

Q2 Transistor 2SA1774 Not used

Q3 Transistor UMX2N Not used

L15 Inductor LCYB1N8S1005 LCYB1N2S1005

L20 Inductor LCYB3N9S1005 LCYB2N2S1005

L53 Inductor LCYB2N7S1005 LCYB82NJ1005

R3,6 RS1/16SS101J RS1/16SS431J

R4 RS1/16SS680J RS1/16SS120J

R5,7 RS1/16SS751J RS1/16SS122J

R9,11 RS1/16SS431J Not used

R10 RS1/16SS120J RS1/16SS0R0J

R13 RS1/16SS562J RS1/16SS0R0J

R14 RS1/16SS362J RS1/16SS9100F

R15 RS1/16SS362J RS1/16SS2400F

R30 RS1/16SS473J Not used

R32 RS1/16SS332J Not used

R33 RS1/16SS222J Not used

R36 RS1/16SS472J Not used

R39 RS1/16SS471J Not used

R41 RS1/16SS151J RS1/16SS221J

R48 RS1/16SS472J RS1/16SS0R0J

R57,58 RS1/16SS471J RS1/16SS121J

R71,72 RS1/16SS221J Not used

R73 RS1/16SS220J RS1/16SS0R0J

R74 RS1/16SS220J RS1/16SS180J

R75,76 RS1/16SS221J RS1/16SS301J

C9,10,15,16 CCSSCH101J50 CCSSCH220J50

C30 CSZS3R3M16 Not used

C37,85,155 CKSSYB103K16 Not used

C138 CCSSCJ3R0C50 CCSSCH120J50

DSP Module Part No.

Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1

IC202 IC STA-400 STA-400A

IC203 IC K4S640832E-TL1H K4S280832E-TL1H

IC205 IC K4S640832E-TL1H Not used

IC208 IC STA-450 STA-450A

R337 RS1/16SS103J Not used

R349 Not used RS1/16SS103J

C283,307,313 CCSSCH101J50 Not used

C284,285,290,297,302,308,314 CKSSYB104K10 Not used

C387 Not used CKSSYB102K50

5678

GEX-P910XM/XN/UC1

SSDEC

CAP

ST19AF08BR20QMAA

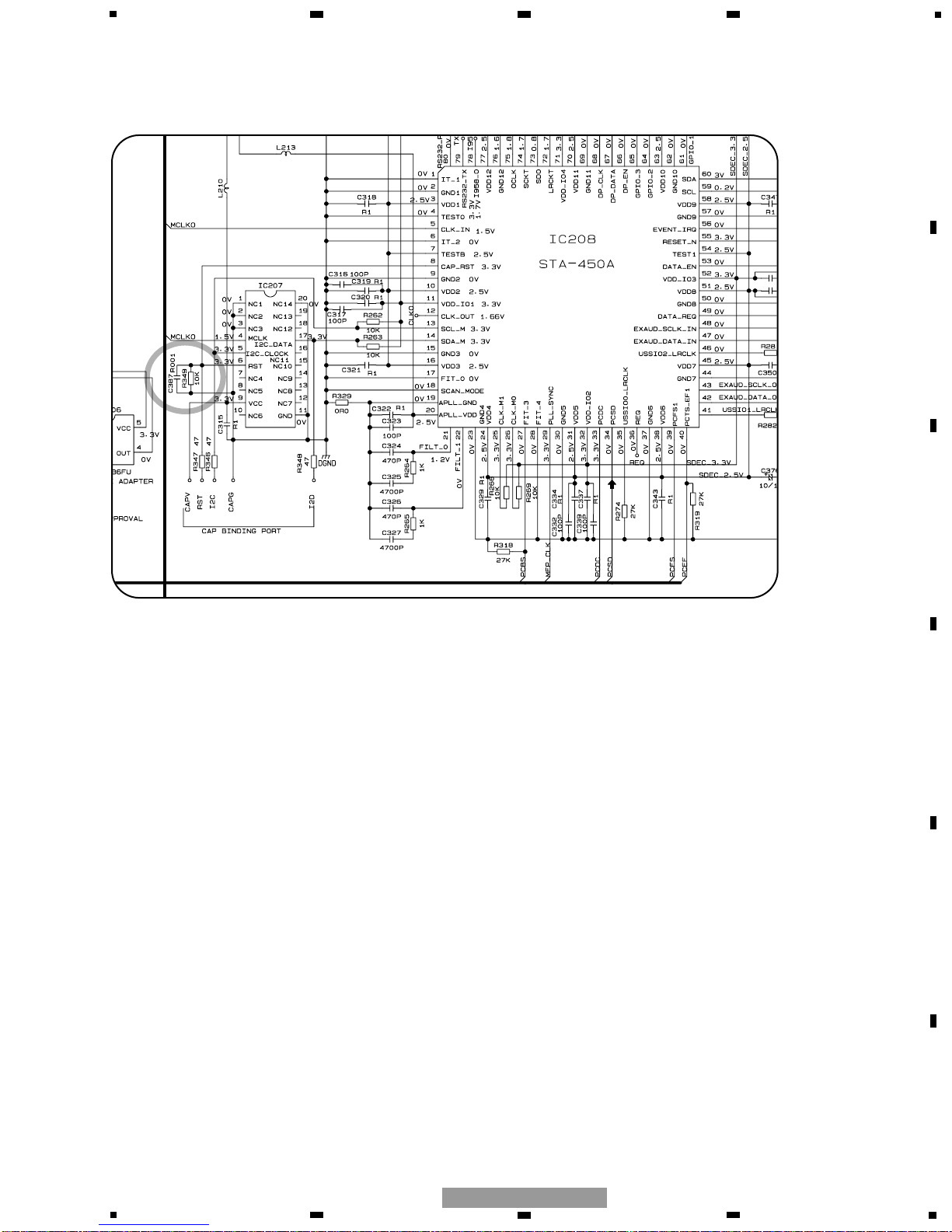

DSP Module Page 17 C-6

1234

GEX-P910XM/XN/UC1

Main Unit Part No.

Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1

IC601 IC PD5680C PD5845A

IC806 IC S-80827ANUP-EDQ S-80827CNUA-B8M

IC810 IC Not used BA18BC0WFP

D810,814 Diode F2J4S RB060L-40

D812,813 Diode ERA15-02VH Not used

L456 Inductor Not used CTF1346

FU801 Fuse(2A) CEK1190 CEK1257

R457,465 RS1/16SS563J RS1/16SS473J

R469 RS1/16SS102J RS1/16SS152J

R474 Not used RS1/16SS361J

R607 RS1/16SS473J RS1/16SS104J

C829 CCH1337-A-P35 CEAT101M10

(470µF/25V)

C832 Not used CKSRYB474K10

RB060L-40

CEK1257

1.8V

CCN201

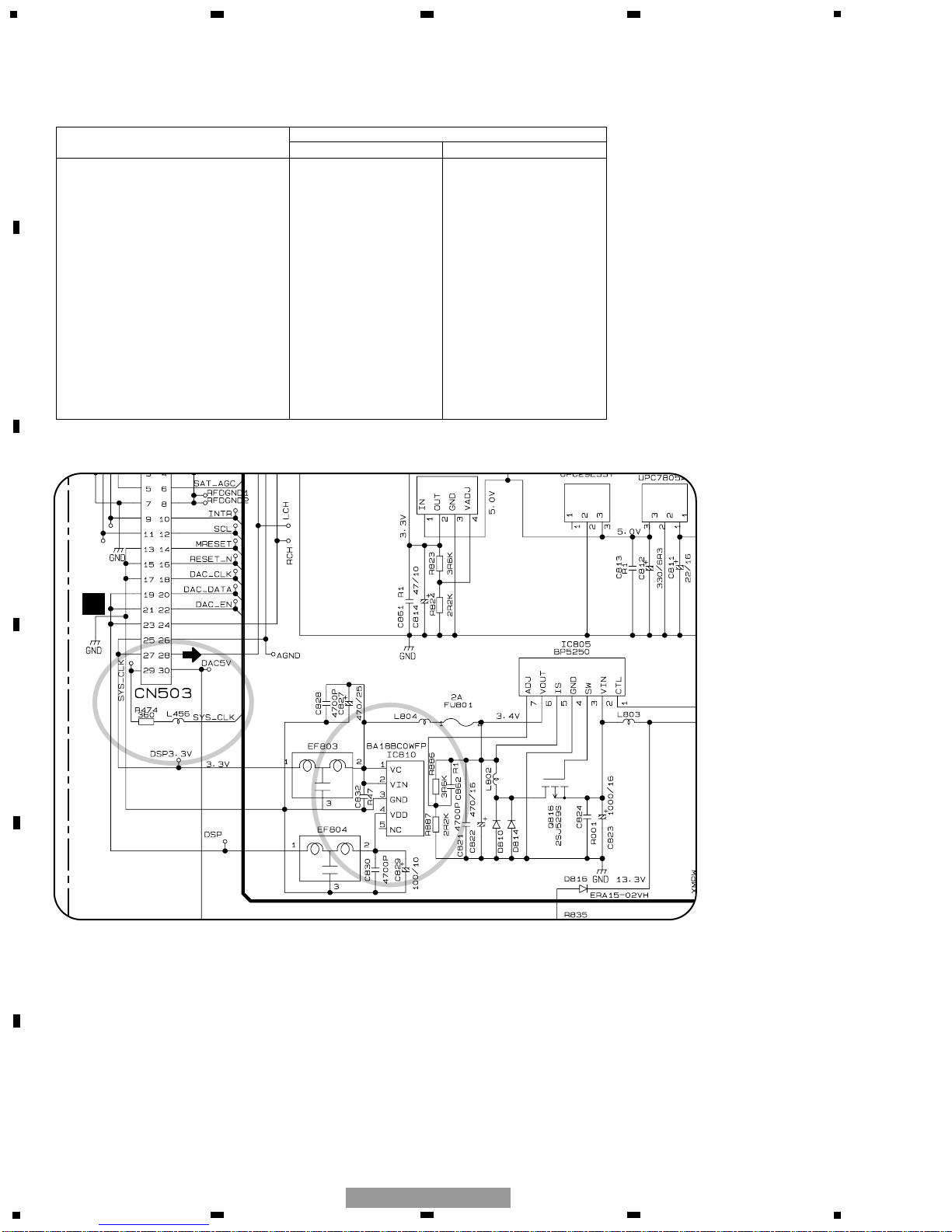

Main Unit Page 8 C-2
