TS-WX205A

TRT1124

H – IZX JUNE 1999 Printed in Japan

AMPLIFIED BANDPASS SUBWOOFER

1. SPECIFICATIONS

• Speaker specifications

Size ...............................................................φ200mm (8" Dia.)

High compliance, rolled edge

Heat-resistant voice coil

Strontium magnet : 500g (18oz)

• Amplifier

Max. Power output ............................ 100W (65Hz, 22% THD)

DIN output power (DIN45324, 65Hz, 1.8Ω+B=14.4V).... 70W

INPUT LEVEL (at Gain Max)

(RCA)............................................. 100mV+100mV/20kΩ

(Speaker line) ..................................................2V+2V/5kΩ

Power source ....................... DC14.4V (10.8~15.6V allowable)

Max. current consumption .................................................... 9A

Grounding ....................................................... Negative ground

• Speaker system......................................................Bandpass type

• Cabinet material .....................................................Particle board

• Sensitivity.......................................107dB/W (In car, SUV type)

• Size ...............................................................................................

..... 474mm(18-5/8”)(W)×280mm(11”)(D)×248mm(9-3/4”)(H)

• Weight (including accessory parts) ................. 10.1kg (22lb 4oz)

• Gross weight (including packaging) ............... 11.5kg (25lb 6oz)

Note:

Specifications and the design are subject to possible modification

without notice due to improvements.

2. HOW TO INSTALL

Iron plate

Belt end

Backle

TS-WX205A

1 Woofer 20-211AZ ×1

NSP 2 AMP UNIT TWK1010 ×1

NSP 3 SWITCH UNIT TWS1028 ×1

4 Cabinet Assy TXC1145 ×1

5 Screw TBA1121 ×10

6 Cord TDC2260 ×1

7 Screw BNC40P200FMC ×6

8 Screw BNC40P300FNI ×4

9 Heat Sink TNA1515 ×1

10 Shield Plate TNA1517 ×1

11 Terminal Panel TNS1018 ×1

12 Screw BBZ30P080FMC ×11

13 Screw PBB30P140FMC ×2

14 PCB Unit TWX1025-AZ ×1

3.1 MAIN UNIT

•MAIN UNIT PARTS LIST

Mark No. Description Part No. Remark

3. EXPLODED VIEWS AND PARTS LIST

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•Screws adjacent to mark on the product are used for disassembly.

12 12

13 14

Mark No. Description Part No. Remark

TS-WX205A

1 Parts Bag TEA1272 ×1

1-1 Screw BNC40P250FZK ×8

NSP 1-2 Fitting Metal TNA1220 ×4

2 Belt Assy TXH1420 ×2

3 Cord Poly. Assy TXH1558 ×1

3-1 Cord TDC2259 ×1

3-2 Cord TDC2244 ×1

3-3 Cord TDC2245 ×1

Operating Instructions TRD1139 ×1

Styrofoam Protector TEC1906 One pair

Mount THC1614 ×1

Packing Case THF3280 ×1

3.2 PACKING PARTS LIST

×8

×4

×2

×1

1-1

1-2

3-1

3-2

3-3

PARTS INCLUDED

4.8m

25cm

Mark No. Description Part No. Remark

TS-WX205A

1234

4. PCB UNIT(TWX1025-AZ)

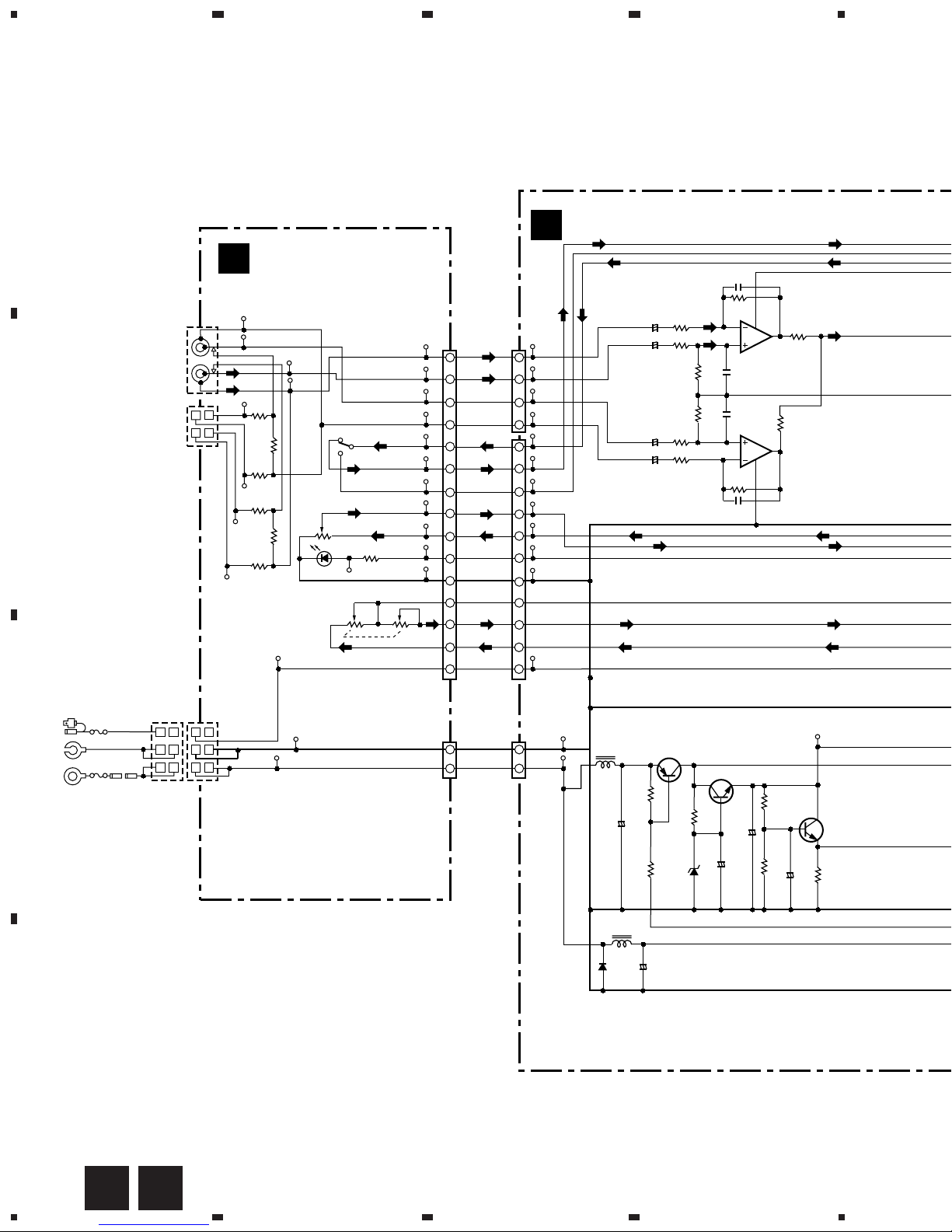

4.1 SCHEMATIC DIAGRAM

CN101

CN201

CN202

CN102

CN103

D174

RD9R1JS

D171

Q172

2SD2005

REGULATOR

ISOLATOR

Q173

2SC2458

D171

RM10-LF-D2K

14.4V

Q152

2SB1329

Q173

R102

10k

C108

100p

C107

100p

VR201

2.2k

VR202

20k

TCS1019

SW201

TSG1010

NOR

REV

R106

10k

R105

10k

R104

10k R108

10k

C103

2.2/50

(NP)

C101

2.2/50

(NP)

C102

2.2/50

(NP)

C104

2.2/50

(NP)

R103

10k

R101

10k

R109

10k

R110

10k

IC101

(1/2)

IC101

(2/2)

C106

100p

C105

100p

R174

R167

R166

R175

8.2k

R176

10k R177

10k

R201

2.2k

R205

240

R206

240

R203

2.2k

R202

2.2k

R204

2.2k

R211

TP202

TP203

TP204

TP201

TP209

TP210

TP114

TP116

TP113

TP112

TP111

TP110

TP109

TP108

TP107

TP106

TP105

TP104

TP103

TP102

TP101

TP221

TP223 TP222

TP220

TP219

TP218

TP217

TP216

TP215

TP214

TP213

TP212

TP205

TP206

TP207

TP208 D202

SLH-34VC3F

TCS1018

TP211

3 1

4 2

4 1

5 2

6 3

4 1

5 2

6 3

L172

(EMI)

REMOTE

GND

BACKUP

CN205

CN204

CN203

RCA INPUT

SP INPUT

0.5A

10A

R107

10k

C172

100

/16

C175

100

/10

C176

100

/10

C177

100

/10

IC101:

UPC4570HA

L171

(EMI)

C171

3300

/16

SWITCH UNIT

(TWS1028)

AMP UNIT (TWK1010)

TS-WX205A

5678

Note :When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

CN105

SP UNIT

SWITCHING

POWER AMP

LPF AMP

BUFFER

MIXER

D172

D172:RD6R8JS Q174:2SA1048

D173

1SS133 D177

1SS133

D181

1SS133

D180 1SS133

D175

1SS133 D179 1SS133

Q178Q178:DTA114ES

Q179

2SC2458

TH171

TCX1005

Q177

DTC114ES

Q175

DTC114ES

Q176

2SC2458

Q174 D176

RD5R6JS

Q171

2SA1048

D178

RD7R5JS

TP115

TP122

TP121TP120

TP118TP119

TP117

C179

0.1

C174

100p

C155

820p

C141

0.022

C139

0.1

C137

0.1

C112

0.056

C152

0.047

C151

0.1 C111

0.18

C109

100p

R171

47k R178

10k

R182

R141

100

R183

470

R132

100k

R135

2.2

R133

2.2

R173

100

D156

ISS133

D155

RD5R6JS

R179

10k

R172

5.6k

C178

100

/10

C173

220

/16

R180

R185

10k

R184

22k

STBY

RIP

GND

OUT –

OUT +

VCC

OUT1 –

OUT1

3978

R168

4.7k

R181

100

R112

100

R111

10k R113

510

R114

5.6k

R115

3.3k

R116

27k

R117

68k

R120

12k

R121

12k

R131

18k

R118

39k

R169

22k

IC102

(2/2)

IC102

(1/2)

IC103

(2/2)

IC103:

UPC4570HA

IC102:

UPC4570HA

C131

0.47/50

C142

47/16 C135

220

/16

C133

220

/16

C140

0.1

C138

0.1

R136

2.2

R134

2.2

C136

220

/16

C134

220

/16

C110 100p

R119

75k

R151

12k

C132

0.47/50

R122

510

IC103

(1/2)

C113

/50

IC131

(1/2)

IC131:

TA8231L

Pre-GND

GND

OUT –

OUT +

VCC

OUT2 –

OUT2

1710 15 13

IC131

(2/2)

R152

12k

: AUDIO SIGNAL ROUTE

TS-WX205A

1234

4.2 PCB CONNECTION DIAGRAM

• This diagram is viewed from the mounted parts side.

IC101

CN101

CN103

CN205

BLE

CN202

BLK

ORG

BLK

ORG

R206

R205

R211

SW201

VR201

VR202

D202

CN203

CN204

WHT

CN201

R204

R202

R203

R201

IC102

IC103

CN102

CN105

C178

C106

C108

R106

C107

R107

C103

R103

R110

R108 R102

SP UNIT

Q152

Q172

Q171

Q179

Q178

Q176

Q173

Q174

Q175

Q177

IC103

IC102

IC101

IC131

AMP UNIT

SWITCH UNIT

TS-WX205A

1234

TP101

TP102

TP103

TP104

TP116

TP105

TP117

TP121

TP120

TP119

TP118

TP115

TP106

TP107

TP108

TP109

TP110

TP111

TP114

TP113

TP222

TP206

TP223

TP205

TP221

TP220

TP219

TP218

TP217

TP216

TP215

TP214

TP204

TP203

TP201

TP202

TP210 TP210

TP209

TP208

TP207

AMP UNIT

SWITCH UNIT

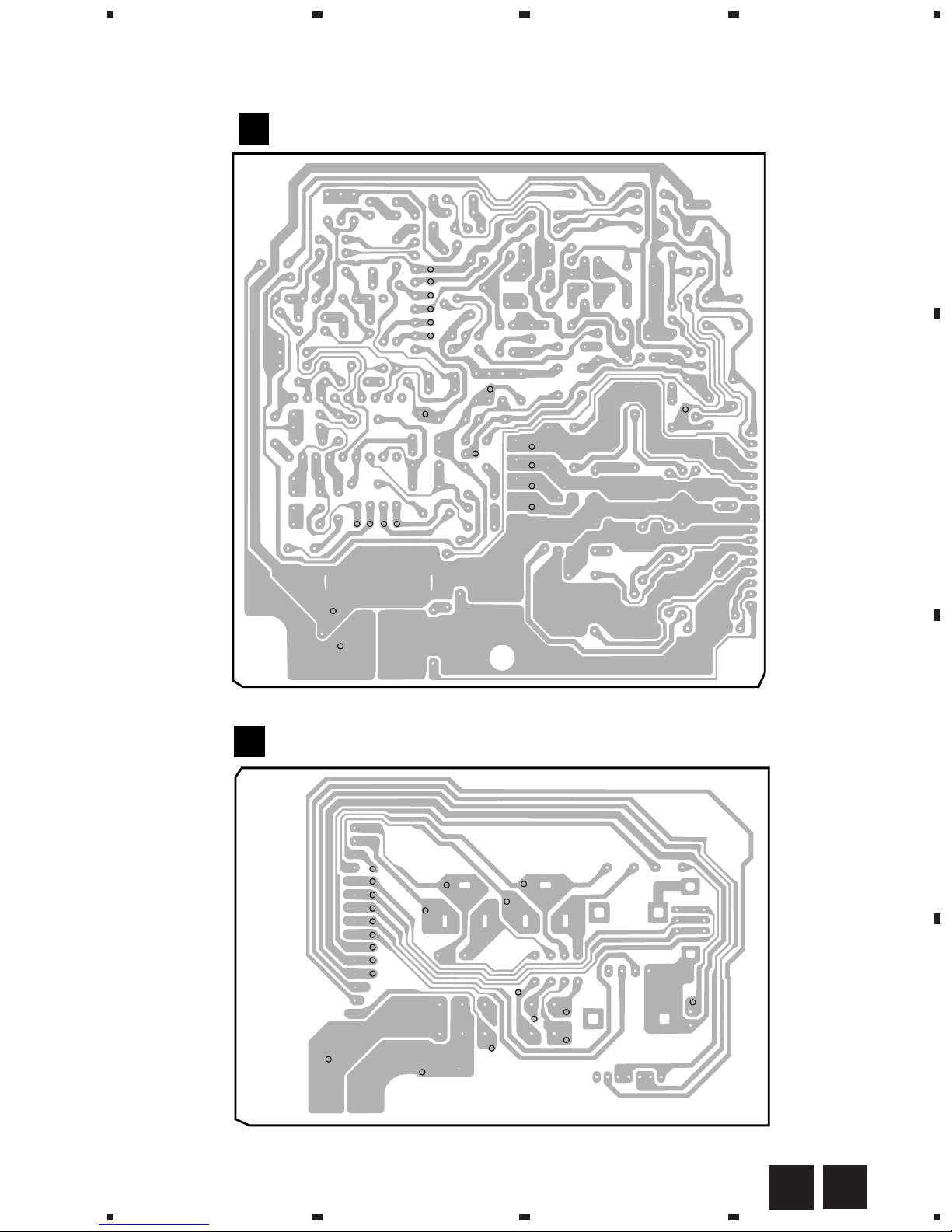

• This diagram is viewed from the foil side.

TS-WX205A

PCB UNIT TWX1025-AZ

AMP UNIT TWK1010

SWITCH UNIT TWS1028

AMP UNIT

SEMICONDUCTORS

IC101-IC103 UPC4570HA

IC131 TA8231L

Q171,Q174 2SA1048

Q152 2SB1239

Q172 2SD2005

Q173,Q176,Q179 2SC2458

Q178 DTA114ES

Q175,Q177 DTC114ES

D156,D173,D175 1SS133

D177,D179-D181 1SS133

D155,D176 RD5R6JS

D172 RD6R8JS

D178 RD7R5JS

D174 RD9R1JS

D171 RM10-LF-D2K

COILSL171 TTH1075

L172 TTH1079

CAPACITORS

C171 (3300µ/16V) TCH1218

C133-C136,C173 (220µ/16V) TCH1219

C175-C178 CEAS101M10

C172 CEAS101M16

C113 CEAS220M50

C142 CEAS470M16

C131,C132 CEASR47M50

C101-C104 CEJANP2R2M50

C137-C140,C151,C179 CFTNA104J50

C111 CFTNA184J50

C152 CFTNA473J50

C112 CFTNA563J50

C141 CFTNA223J50

C105-C110,C174 CKCYB101K50

C155 CKCYB821K50

RESISTORS

All Resistors RD1/4PU J

OTHERS

TH171 THERMISTER TCX1005

CN101 CORD TDC2253

CN103 CORD TDC2254

CN105 CONNECTOR TKS1079

SWITCH UNIT

SEMICONDUCTOR

D202 SLH-34VC3F

SWITCH

SW201 TSG1010

RESISTORS

VR201 (2.2kΩ) TCS1018

VR202 (20kΩ) TCS1019

Other Resistors RD1/4PU J

OTHERS

CN203 CONNECTOR TKS1062

CN204 CONNECTOR TKS1063

CN205 RCA JACK TKS1061

LED SPACER MNK1123

SCREW BPZ26P060FZK

LIST OF ASSEMBLIES

Mark No. Description Part No. Mark No. Description Part No.

5. PCB PARTS LIST

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

560 Ω→56 × 101→561 ........................................................RD1/4PU 561J

47k Ω→47 × 103→473 ........................................................ RD1/4PU

0.5 Ω→R50 .....................................................................................RN2H R50K

1 Ω→1R0 .....................................................................................RS1P 1R

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω→ 562 × 101→5621 ......................................................RN1/4PC 56

TS-WX205A

5. CONNECTIONS

Wiring Example 1 (Speaker line Input system)

Speaker

For ground

Speaker

line

input

Connect all the other leads, and finally connect

this terminal to the positive (+) terminal of the

battery.

Connect firmly to a metal part of the car body.

Improper grounding will cause this unit to

operate abnormally.

This connection is made to the accessory connectorin the

car's fuse unit from which over 2A can be supplied.

Car stereo

TS-WX205A

Wiring Example 2 (RCA Input system)

Speaker

Power

amplifier

For ground

RCA cord (Not included)

Connect all the other leads, and finally connect

this terminal to the positive (+) terminal of the

battery.

Connect firmly to a metal part of the car body.

Improper grounding will cause this unit to

operate abnormally.

System remote control input cord (blue cord included) supplies

power to your unit, determining whether it is ON or OFF.

Wire the cord to the system remote control output of your deck, etc.

Deck, etc. RCA preout

System remote

control output

Tabla de contenidos

Otros manuales de Subwoofer de Pioneer

Pioneer

Pioneer TS-W26154 Manual de usuario

Pioneer

Pioneer TSW306DVC - Car Subwoofer Driver Manual de usuario

Pioneer

Pioneer XY-218HS Manual de usuario

Pioneer

Pioneer TS-W304R Manual de usuario

Pioneer

Pioneer XY-218S Manual de usuario

Pioneer

Pioneer S-51W Manual de usuario

Pioneer

Pioneer TS-SW251 Manual de usuario

Pioneer

Pioneer TS-A3000LB Manual de usuario

Pioneer

Pioneer SW841D - Premier Car Subwoofer Driver Manual de usuario

Pioneer

Pioneer ts-w8102spl Manual de usuario

Pioneer

Pioneer Elite S-W1EX Manual de usuario

Pioneer

Pioneer TS-W302R - Car Subwoofer Driver Manual de usuario

Pioneer

Pioneer S-DVR9SW Manual de usuario

Pioneer

Pioneer Elite S-LX70-W Manual de usuario

Pioneer

Pioneer TS-W2502D4 Manual de usuario

Pioneer

Pioneer XY-215S-W Manual de usuario

Pioneer

Pioneer TS-1200M Manual de usuario

Pioneer

Pioneer TS-SW2541D - Car Subwoofer Driver Manual de usuario

Pioneer

Pioneer TS-W106C Manual de usuario

Pioneer

Pioneer PRIEMIER TS-W2502D4 Manual de usuario

Pioneer

Pioneer XY-118S Manual de usuario

Pioneer

Pioneer TS-SW2501S2 - Shallow Subwoofer With 1200 Watts Max... Manual de usuario

Pioneer

Pioneer HTP-105 Manual de usuario

Pioneer

Pioneer TS-SW300254 Manual de usuario

Manuales populares de Subwoofer de otras marcas

Sony

Sony XS-AW8 Manual de usuario

Sony

Sony XS-L836 Manual de usuario

B&C Speakers

B&C Speakers 15 HPL 76W Manual de usuario

Velodyne

Velodyne DD-18+ Manual de usuario

Sonance

Sonance Cinema Series SUB 10-150 Manual de usuario

Hifonics

Hifonics HW-12 Guía de inicio rápido

Magnat Audio

Magnat Audio ADR 130 BP Manual de usuario

Blitz

Blitz BZP106 Manual de usuario

Technics

Technics SB-AS500 Manual de usuario

Lyngdorf

Lyngdorf BW-2 Manual de usuario

Lyngdorf

Lyngdorf BW-3 Manual de usuario

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Manual de usuario

REL Acoustics

REL Acoustics Q Series Manual de usuario

L-Acoustics

L-Acoustics KIVA SB15M Guía de inicio rápido

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Manual de usuario

KEF

KEF KUBE 200 Manual de usuario

Yamaha

Yamaha SW500 Manual de usuario

Adam

Adam Sub15 Manual de usuario
