Pioneer PDWB-5003 Manual de usuario

PLASMA DISPLAY MOUNT MODEL

INSTALLATION MANUAL

VISIT US AT WWW.PREMIERMOUNTS.COM

3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888

For service and parts contact

o Safety & precautions

o Mount diagrams

o Parts List

o Optional Adapters

o Installing the mounting bracket

o Installing the mount

o Electrical

o Securing the mount

o Checking for proper safety and security

Contents

The wall or ceiling structure must be capable of supporting at least five (5) times the weight of plasma display.

If not, the wall or ceiling must be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions

must be adhered to. Failure to do so could result in serious

ersonal in

The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before

beginning installation. The installation instructions should be read, understood and followed to prevent personal injury or property damage.

Keep these installation instructions in an easily accessible location for future reference.

Indicates that the power plug is to be disconnected from

the power outlet.

Safety precautions must be taken at all times.

Contact Premier Mounts for an

uestions

Warning and caution in general

A secured structure wooden stud wall must always support the weight or load of the plasma. Always conform the center of the wood

stud before beginning the installation.

Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in plasma cracking or

falling from the wall causing damage and injury.

Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may

result in damage to the plasma television and could cause a risk of fire.

At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling

the plasma television.

Mounting structure recommended wood studs, solid-flat concrete, and reinforced metal studs. If installing the mount on other than

wood studs use (commercially available) suitable hardware.

Safety & Precautions

WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and tools for the

installations

rocedure to

revent

ersonal in

or dama

e to the

lasma dis

s or

lasma mounts.

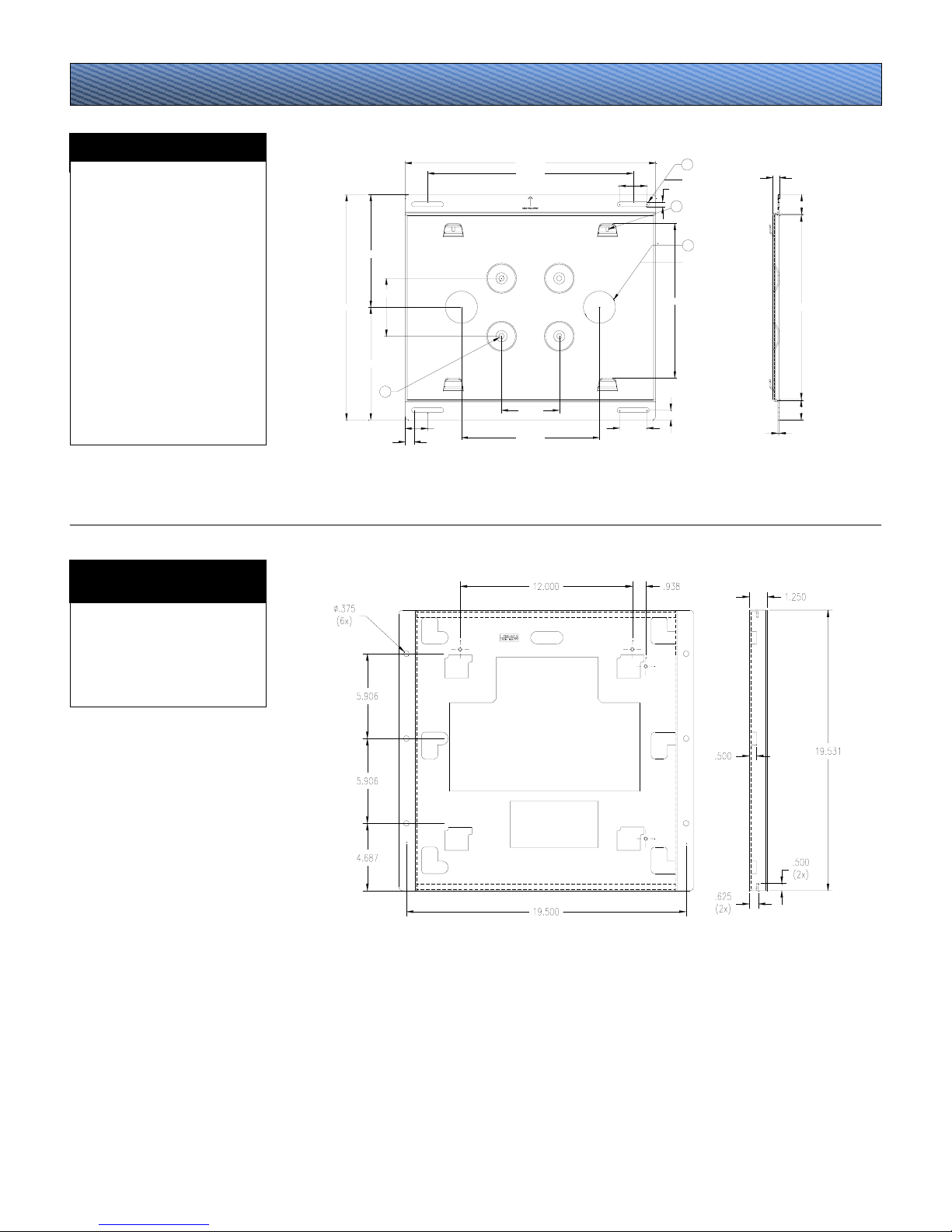

10.750

4.500

1.750

0.688

4.500

14.324

12.000

2.125

0.750

0.104

1.528

0.500

0.375

Ø0.375 (x4)

Ø2.500

16.000

19.500

8.750

17.500

2.125

UNIVERSAL FLAT MOUNT

MOUNTING BRACKET

PART#:

PDB-UWFB

MATERIAL:

12 (GA) CRS

COLOR:

Black powder coat

Lag bolt access slot.

Mounting points (4.5") used on

installations other than wall mounting.

Access hole for power or cables.

M6 security screw mounting points

used on installations other than flat

wall mounting.

PART#:

Mounting bracket

MATERIAL:

12 (GA) P & O

COLOR:

Black Powder coat

Mount Diagrams

o Phillips screwdriver

o Drill gun

o Soft material or a blanket

o Pencil

o ¼" drill bit

o Level

o Measuring tape

o Wrench with a 1/2" socket

o Stud finder

o PCA-1 – 4.5" Ceiling adapter mates directly to the PDB-UWFB flat bracket

o PSA-1 – Height adjustable ceiling adapter adjustable range 24" to 46"

QTY SIZE DESCRIPTION

4 5/16” Dia Lag bolts & flat washers

1  Mounting bracket

1  PDB-UWFB (back plate)

2 M6 x 12 (mm) Phillip security

screws

Used for additional security on

mobile carts, floor stands and

ceiling mounts

1  Installations instructions

6 M8 x 20 Phillip screws Mount hardware

Parts List

TOOLS & SUPPLY NEEDED

CEILING ADAPTERS (OPTIONAL)

HARDWARE LIST

PSA-1

Height adjustable

ceiling adapter

PCA-1

Ceilin

ada

ter

Step 1

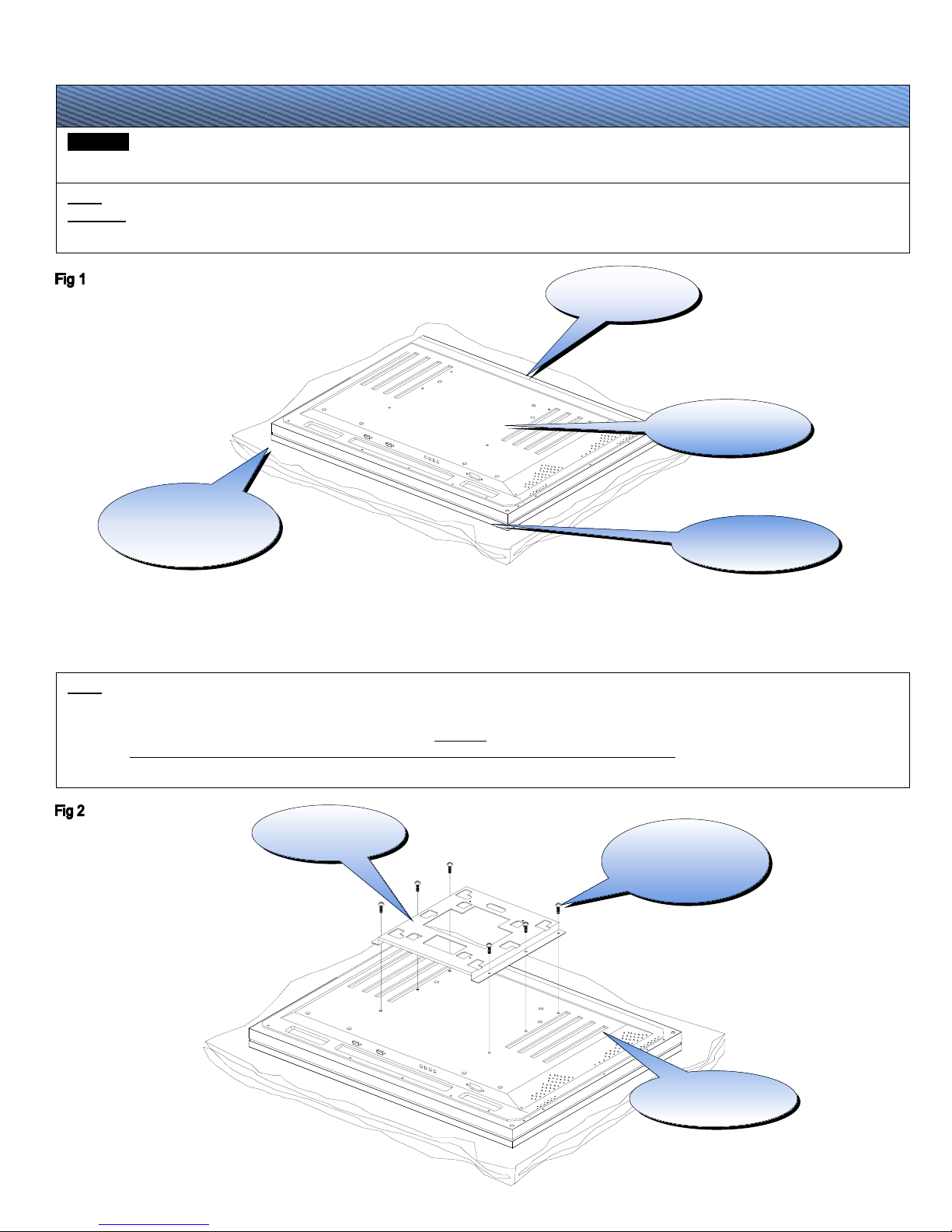

CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.

Invert the plasma display and set it on a flat and soft material such as (blankets, foam, cloth etc.) to prevent any damage to the plasma display. See fig 1.

WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could

result in serious personal injury and possible damage to the plasma display.

Step 2

Locate the mounting points found on the back of the plasma display, align the mounting holes from the mounting bracket to the holes on the plasma display. Arrow

found on the mount must always be pointing to the top of the plasma display before securing it to the plasma display. Loosely install the six (6) M8 x 20 Phillip

screws to the plasma then secure the screws with a Phillips screwdriver CAUTION: Do not over tighten the M8 x 20 Phillips screws. See fig 2.

WARNING: Do not use the drill gun to secure the screws to the plasma display. A Phillips head screwdriver is preferred.

Soft and flat surface

blankets, foam, cloth

etc.

Inverted plasma

dis

Top of the plasma

dis

Bottom of the

lasma dis

Inverted plasma

dis

PDWB-5001

series mount Mounting hardware

(6) M8 x 20 Phillip

screws

Installing the mounting bracket

16"

floor floor

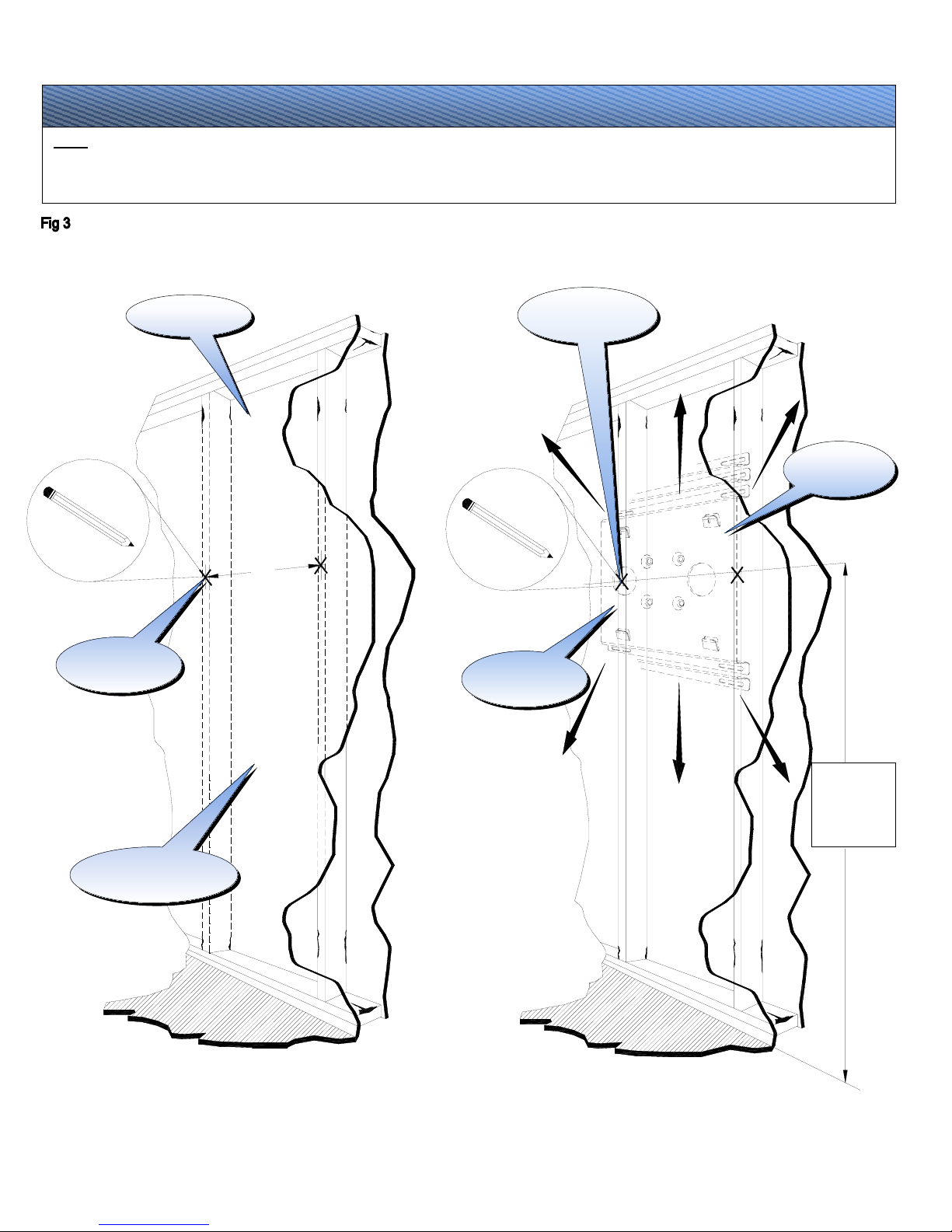

Step 3

Select the area where the plasma will be installed and make sure it can support the weight standards (see warning on page 3). Locate the 16" wood stud centers behind the wall using

a (commercially available) stud finder and mark the center of the studs when found. Set the mounting bracket to the wall and mark the desired height by marking the center of the

Flat back plate See fig 3

Wall structure

Wood studs behind

the wall structure

Stud centers

marking

Universal flat

mount

djusting the

mount

Desired height

marking

Installing the mounts

CENTER

IEWING

HEIGHT

floor

To determine the desired viewing height, use the center slot opening in the wall mount as a center reference for the plasma television when mounted. Once the height is determined,

use the bubble level to insure that the bracket is level. Next, using a pencil, mark the four (4) lag bolt slot openings on the mounting bracket. Before continuing, confirm the marks are

located on the center of the studs.

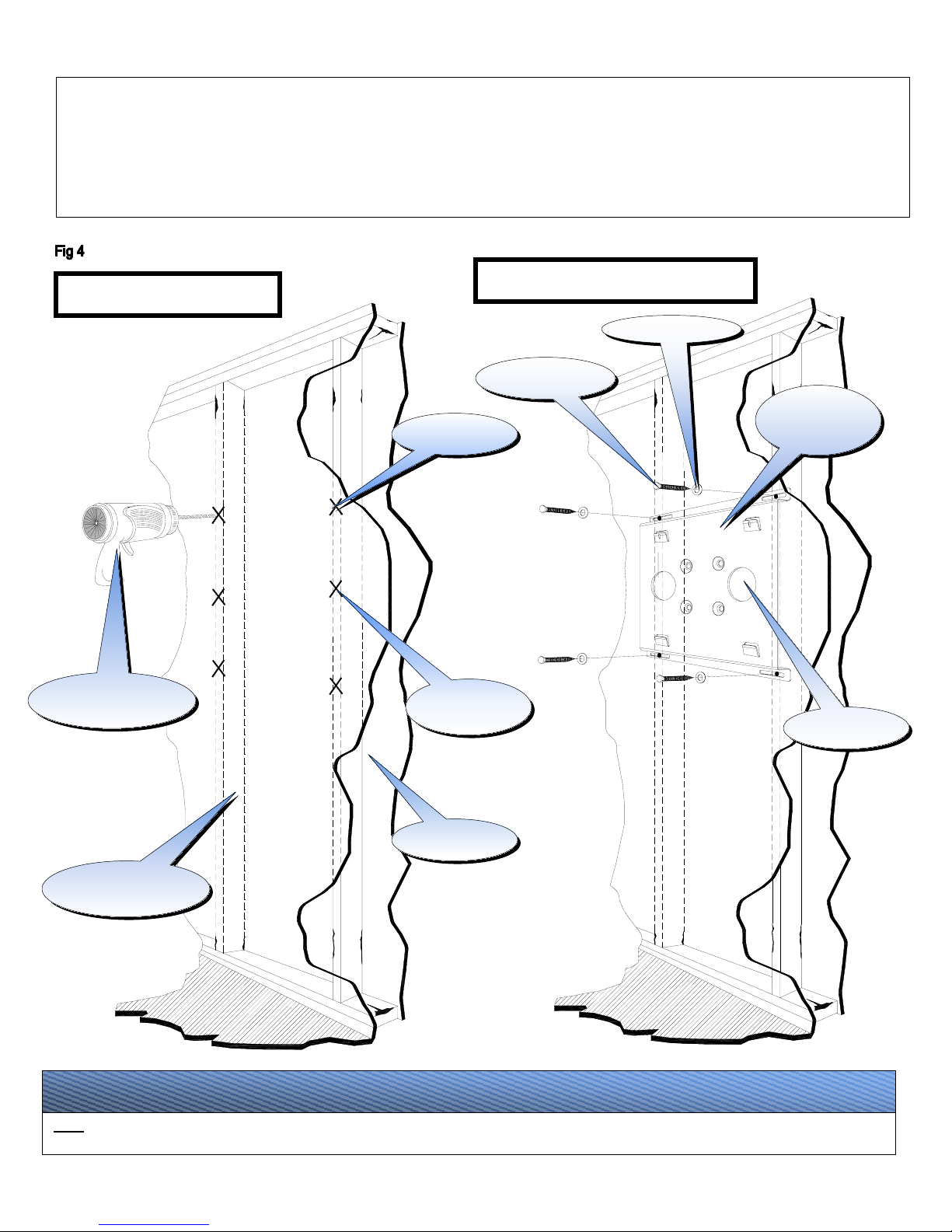

Drill 1/4" pilot holes on the four (4) markings on the wall. Raise the flat back plate and have someone hold it in place (arrow side away from the wall and pointing up).

Put the lag bolt through the flat washers. Screw the lag bolt through the upper left slot opening into the 1/4" pilot hole. Confirm that the wall mount is still leveled and then screw a lag

bolt to the upper right side slot opening into the 1/4" pilot hole. Then install the remaining two lag bolts tightly into the wall studs in the lower left and right slot openings on the wall

mount. Lateral movement of approximately 1½" for final positioning is now possible. Make any positioning changes then secure the lag bolts. See fig 4.

Wood studs behind

the wall structure

Drill gun with a 1/4"

drill bit

Wall structure

Marking on wall

Flat washers

5/16" Lag bolts

Access holes

PDB-UWFB

(back plate)

Electrical

Step 4

All electrical wiring components should be installed at this time to ensure that the plasma display has enough power sources.

Note: Pre drill before the securing the

5/16" la

bolts.

Caution: Do not over tighten the 5/16" lag bolts

Center of

viewing marks

Securing the mount

Step 5

Warning: The plasma display is heavy and 2 people are needed to lift and install it. Failure to do so could result in serious personal injury.

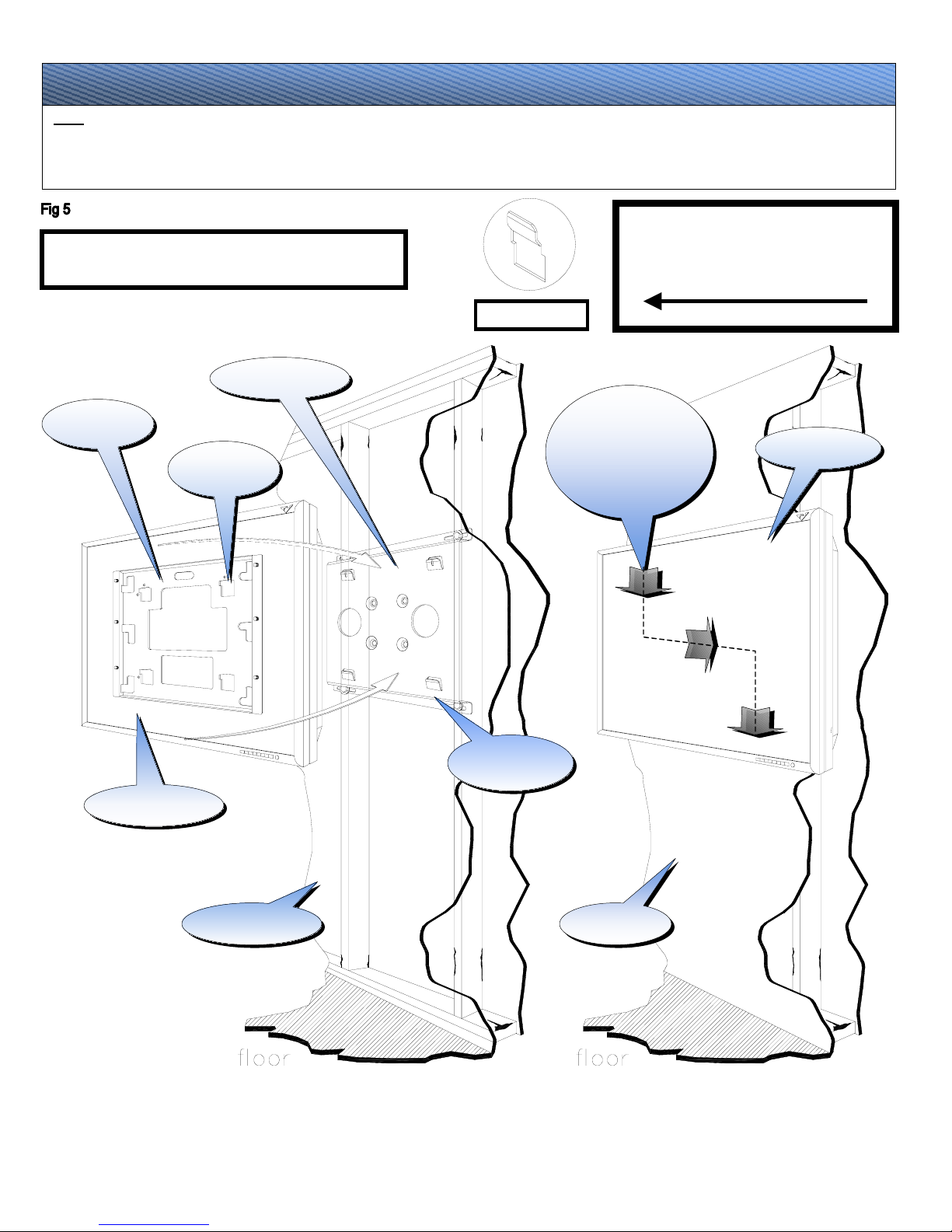

Before placing the plasma on the wall recheck all hardware for proper tightness and security. Before installing, become familiar with the way the plasma mount attaches to the wall

mount. Align the four (4) tab openings to the four (4) receiving tabs on the flat back plate. When all four (4) the tabs are aligned slide the plasma down, right and down again to lock the

mounts together. Make sure all (4) tab openings are interlocked with the receiving tabs before letting go of the plasma. See fig 5.

Plasma display

Mounting

bracket

Flat back plate

(4) Securing

tabs

(4) Tab

openings

Wall structure

Plasma display

Wall structure

lign all four (4) tab

openings to the flat

back plate receiving

tabs and push the

plasma as shown on

arrows to lock in place

Caution: The plasma display is heavy and 2 people are needed to lift and

install it. Failure to do so could result in serious personal injury.

Caution: All four (4) receiving tab openings from the

mounting bracket must be locked to the tabs found on

the flat back plate before letting go of the plasma

display. See the diagram on the left to see the

interlocked tab.

Locked tab
