Pioneer PDP-4300 Manual de usuario

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2003

Model No. Order No. Remarks

PDP-433CMX/LUCBW ARP3155 EXPLODED VIEWS and PARTS LIST, BLOCK DIAGRAM, ADJUSTMENT

PDP-433CMX/LUCBW ARP3156 SCHEMATIC DIAGRAM and PCB DIAGRAM

ARP3162

T – ZZR APR. 2003 Printed in Japan

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

PDP-4300

Type Power Requirement

KUC/CA

PLASMA DISPLAY

PDP-4300

AC120V

¶This service manual should be used together with the following manual(s).

Remarks

1234

PDP-4300

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on product are used for disassembly.

For the applying amount of lubricants or glue, follow the instructions in this manual.

(In the case of no amount instructions, apply as you think it appropriate.)

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

561

473

R50

1R0

5621

560

47k

0.5

RD1/4PU J

RN2H K

RS1P K

56 x 10

47 x10

R50

1R0

561

473

5.62k RN1/4PC F562 x 10

5621

1. CONTRAST OF MISCELLANEOUS PARTS

Part No.

Ref. No. Mark Symbol and Description PDP-433CMX PDP-4300 Remarks

/LUCBW /KUC/CA

PCB ASSEMBLIES

VIDEO SLOT US ASSY Not used AWV1907 No.1

PACKING SECTION

P9- 1 Packing Case AHD3130 AHD3164

P9- 7 Accessory Case AHC1040 AHC1036

P9-12 Plasma Caution Sheet ARM1147 Not used

P9-18 NSP Warranty Card ARY1093 Not used

P9-19 NSP Warranty Card ARY1102 ARY1112

P9-20 Remote Control Unit AXD1459 AXD1466

P9-22 NSP Dry Cell Battery (R6p,AA) VEM1031 AEX1026

P9-28 Display Stand AMR3264 Not used

P9-29 Remote Control Holder AMR3268 Not used

P9-30 Hex Hole Bolt SMZ80H400FZB Not used

P9-31 Washer WB80FZB Not used

P9-32 Plasma Caution Sheet ARM1220 ARM1194

P9-33 Operating Instructions ARD1052 Not used

(Japaneese/English/French)

P9-33 Operating Instructions (English) Not used ARB1551

P9-37 Warranty Card Contens Label AAX2911 Not used

FRONT CASE SECTION

P28- 2 Front Case Assy AMB2712 AMB2762

P28- 7 Lead Cover AMB2703 AMR3341

REAR SECTION

P29- 6 NSP Name Label AAL2430 AAL2444

P29- 9 Terminal Display Label Gray AAX2936 AAX2927

VIDEO SLOT SECTION

Screw Not used ABA1300 No.2

CONTRAST TABLE

PDP-4300/KUC/CA and PDP-433CMX/LUCBW are constructed the same except for the following :

Notes : The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.

For the VIDEO SLOT US ASSY, refer to “PCB PARTS LIST”, “2. SCHEMATIC DIAGRAM” and “ 3. PCB CONNECTION

DIAGRAM”.

For Adjustment of the VIDEO SLOT US ASSY, refer to the service manual ARP3093 for PDA-5002.

1234

PDP-4300

(No.2)

•VIDEO SLOT US Parts List

Mark No. Description Part No.

1 VIDEO SLOT US Assy AWV1907

2 Video Terminal Panel PRO ANG2540

3 Screw ABA1300

4•••••

5 Screw BPZ30P080FZK

6 Rivet AEP-211

7 Sheet AMR3282

No.1

BMZ30P060FZK

Rear Case

EXPLODED VIEWS

÷EXTERIOR SECTION

÷VIDEO SLOT US ASSY

1234

PDP-4300

VIDEO SLOT US ASSY (AWV1907)

[VIDEO I/O BLOCK]

SEMICONDUCTORS

IC7002 NJM2234M

IC7003 TC4052BF

IC7001 TK15420M

IC7004 UPC4570G2

Q7001,Q7002,Q7006,Q7007 2SC2412K

Q7004,Q7005 HN1C01FU

D7001-D7004,D7007-D7010 1SS226

D7005,D7006 1SS355

CAPACITORS

C7002,C7006 CEANP470M25

C7003,C7012,C7015 CEAT100M50

C7004,C7007,C7010,C7011,C7014 CEAT220M50

C7013,C7016 CEAT4R7M50

C7017,C7020 CKSQYB105K10

C7009 CKSRYB103K50

C7022,C7023,C7025,C7026 CKSRYB222K50

C7001,C7005,C7008,C7018,C7019 CKSRYF104Z16

C7021,C7024 CKSRYF104Z16

RESISTORS

All Resistors RS1/16S J

OTHERS

CN7002 4P DIN SOCKET AKP1217

CN7001 BNC SOCKET AKX1051

JA7003,JA7004 2P PIN JACK DKB1031

7005,7006 SCREW TERMINAL VNE1949

[Y/C SEPA BLOCK]

SEMICONDUCTORS

IC7104 24LC01B

IC7103 CXA1875AM

IC7101,IC7105 ML6428CS-1

Q7107 HN1A01FU

COILS

L7102,L7103 LCYA270J2520

L7101 LCYA470J2520

CAPACITORS

C7114 CCSRCH102J50

C7107 CCSRCH220J50

C7108 CCSRCH470J50

C7102 CCSRCH560J50

C7103,C7104 CEAT220M50

C7110,C7133 CEAT221M16

C7105 CKSQYB105K10

C7109 CKSRYB104K16

C7113 CKSRYB223K50

C7106,C7123,C7129 CKSRYF104Z16

RESISTORS

R7148,R7161 RAB4C470J

Other Resistors RS1/16S J

PCB PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

[3D Y/C BLOCK]

SEMICONDUCTORS

IC7203 IS41C16256-35K

IC7201 ML6428CS-1

IC7202 UPD64082GF-3BA

Q7201-Q7203,Q7206,Q7209,Q7211 2SA1037K

Q7208 2SC2412K

Q7205 DTC124EK

Q7207 HN1B04FU

COILS

L7207,L7209 FERRITE BEAD ATX1008

L7205 LCTA4R7J2520

L7201 LCYA120J2520

L7202 LCYA220J2520

CAPACITORS

C7202 CCSRCH100D50

C7201,C7205 CCSRCH150J50

C7204,C7246,C7247 CCSRCH180J50

C7224 CCSRCH391J50

C7210 CCSRCH470J50

C7236 CCSRCH471J50

C7208 CCSRCH560J50

C7245 CEAT100M50

C7249 CEAT101M25

C7227,C7237 CEAT220M50

C7226,C7235 CKSQYB105K10

C7223,C7225 CKSRYB103K50

C7220,C7254 CKSRYB104K16

C7214,C7215,C7219,C7221,C7222 CKSRYF104Z16

C7228-C7234,C7238,C7239 CKSRYF104Z16

C7241,C7242,C7250,C7251 CKSRYF104Z16

RESISTORS

All Resistors RS1/16S J

OTHERS

K7201,K7202 TEST PIN AKX9002

X7201 CRYSTAL RESONATOR ASS1143

(20MHz)

[CHROMA DEC BLOCK]

SEMICONDUCTORS

IC7301 BA7655AF

IC7302 TB1274AF

IC7303 TC7WH04FU

Q7301,Q7302 2SA1037K

Q7303-Q7306 2SC2412K

Q7307 HN1C01FU

D7301 1SS355

CAPACITORS

C7305 CCSRCH8R0D50

C7340 CCSRCH390J50

C7302,C7316,C7337 CEAT100M50

C7341 CEAT220M50

C7333 CEAT2R2M50

1234

PDP-4300

Mark No. Description Part No. Mark No. Description Part No.

C7323 CEAT4R7M50

C7304 CEATR47M50

C7327,C7331,C7338 CKSQYB105K10

C7303 CKSRYB103K50

C7328,C7332,C7336 CKSRYB104K16

C7334 CKSRYB223K50

C7301,C7306-C7315,C7317,C7322 CKSRYF104Z16

C7324-C7326,C7329,C7330,C7335 CKSRYF104Z16

RESISTORS

All Resistors RS1/16S J

OTHERS

K7301-K7304 TEST PIN AKX9002

X7301 CRYSTAL RESONATOR ASS1152

(16.2MHz)

[DVI BLOCK] (AWV1906 Only)

SEMICONDUCTORS

IC7409 24LCS21A

IC7402-IC7408 TC74LCX541FT

IC7410 TC7WH04FU

IC7401 TFP201A

D7401 1SS184

D7402,D7404 1SS226

D7403 RD6.8MB

CAPACITORS

C7406,C7408,C7410,C7413,C7414 CCSRCH101J50

C7417,C7420,C7421,C7425-C7428 CCSRCH101J50

C7432,C7434 CCSRCH101J50

C7403 CEAT470M10

C7401,C7402,C7404,C7405,C7407 CKSRYF104Z16

C7409,C7411,C7412,C7415,C7416 CKSRYF104Z16

C7418,C7419,C7422-C7424 CKSRYF104Z16

C7429-C7431,C7433,C7435-C7438 CKSRYF104Z16

RESISTORS

R7412 RAB4C220J

R7401,R7402,R7408,R7409 RAB4C680J

R7413-R7416,R7423,R7429,R7432 RAB4C680J

R7438 RAB4C680J

R7417,R7418 RN1/16SE1001D

Other Resistors RS1/16S J

OTHERS

CN7402 24P DVI SOCKET AKP1216

[CONNECTOR BLOCK]

RESISTORS

R7430 RS1/16S101J

R7439, R7440 RS1/16S103J

R7433 RS1/16S182J

R7435 RS1/16S223J

R7434 RS1/16S332J

[VIDEO REG BLOCK]

SEMICONDUCTORS

IC7501 PQ05DZ11

IC7504 PQ3DZ13

IC7502 TA79L05F

FILTERS

F7501-F7515 EMI FILTER ATF1194

CAPACITORS

C7504,C7539 CEAT101M6R3

C7501,C7511 CEAT221M16

C7506,C7508,C7510,C7514,C7516 CEAT470M25

C7520,C7524,C7526,C7528,C7530 CEAT470M25

C7532,C7534,C7536,C7541,C7543 CEAT470M25

C7545 CEAT470M25

C7502,C7503,C7505,C7507,C7509 CKSRYF104Z16

C7512,C7513,C7515,C7517,C7519 CKSRYF104Z16

C7522,C7523,C7525,C7527,C7529 CKSRYF104Z16

C7531,C7533,C7535,C7537,C7538 CKSRYF104Z16

C7540,C7542,C7544 CKSRYF104Z16

RESISTORS

R7502 RS1MMF1R0J

R7519 RS1MMF4R7J

OTHERS

SCREW ABA1295

NYRON RIVET AEP-211

3004 PROTECTION SHEET AMR3282

HEXAGONAL HEAD SCREW BBA1051

SCREW BPZ30P080FZK

1234

PDP-4300

2. SCHEMATIC DIAGRAM

VIDEO OUT DRIVER

VIDEO SIGNAL

SELECTOR

AUDI

AUDIO SIGNAL

SELECTOR

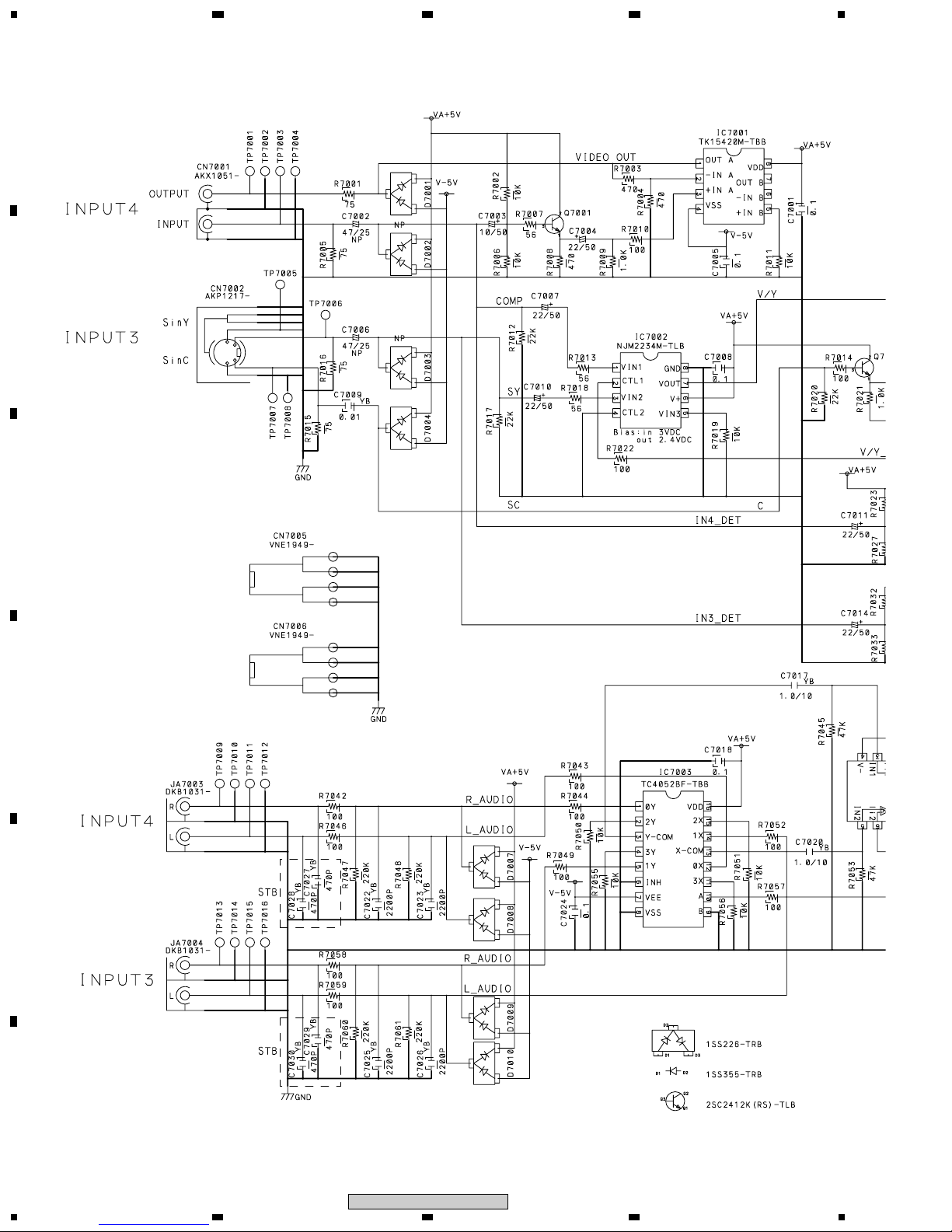

2.1 VIDEO SLOT US ASSY(1/6)

• VIDEO I/O BLOCK

5678

PDP-4300

SIGNAL DETECTION

AUDIO BUFFER

1234

PDP-4300

2.2 VIDEO SLOT US ASSY(2/6)

• Y/C SEPA BLOCK

3L Y/C SEP.

5678

PDP-4300

B-Y LEVEL CONTROL

R-Y LEVEL CONTROL

1234

PDP-4300

2.3 VIDEO SLOT US ASSY(3/6)

• 3D Y/C BLOCK

3DYC GAIN COMPEMSATION AMP

3DY OUTPUT ANTI-AREA THING

3DC OUTPUT ANTI-AREA THING

3DY INPUT ANTI-AREA THING

3DC INPUT ANTI-AREA THING

3DYC SYNC SEP.

3D Y/
