Pioneer XDV-P9 Manual de usuario

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2000 K-ZZD. MAY 2000 Printed in Japan

ORDER NO.

CRT2511

6-DISC MULTI-DVD PLAYER

XDV-P9 UC,ES/RC,ES/RD,EW

Service

Manual

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-692 CRT2533 MM-1 DVD/CD Mech. Unit:Circuit Description, Mech.Description, Disassembly

-Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

-Manufactured under license from Digital Theater Systems, Inc. “DTS” and “DTS Digital Surround” are trademarks

of Digital Theater Systems, Inc.

CONTENTS

1. SAFETY INFORMATION ............................................3

2. EXPLODED VIEWS AND PARTS LIST.......................4

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...12

4. PCB CONNECTION DIAGRAM ................................40

5. ELECTRICAL PARTS LIST........................................54

6. ADJUSTMENT..........................................................64

7. GENERAL INFORMATION.......................................73

7.1 DIAGNOSIS ........................................................73

7.1.1 TEST MODE..............................................73

7.1.2 DISASSEMBLY .........................................84

7.2 IC ........................................................................88

7.3 OPERATIONAL FLOW CHART.........................111

8. OPERATIONS AND SPECIFICATIONS..................112

XDV-P9/UC

XDV-P9

-DVD Player Service Precautions

1. Never adjust the LD VR in the pickup unit to

protect the pickup from electrical damages.

2. For pickup unit(CGY2020) handling, please refer

to"Disassembly"(see page 84).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(set the

short switch of the pickup unit to the SHORT side).

3. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a

connector is plugged or unplugged.

4. Please adjusting the skew after changing the pickup

unit(see page 67).

-Transportation of Multi-DVD Player

A transport screw has been attached to the set in order to protect it during transportation. After

removing the transport screw, cover the hole with the supplied seal. Be sure to remove the

transport screw before mounting the set. The removed transport screw should be retained in

the accessory bag for use the next time the set is transported.

Seal

After removing the transport screw, cover

the hole with the supplied seal.

Transport screw

Attach to the original position before transporting the set.

XDV-P9

1. SAFETY INFORMATION

1.1 XDV-P9/UC

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

1.2 XDV-P9/EW

1. Safety Precautions for those who Service this Unit.

• Follow the adjustment steps (see pages 64 through 71)in the service manual when servicing this unit. When

checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.

Caution:

1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.

2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. A “CLASS 1 LASER PRODUCT” label is affixed to the

rear of the player. 3. The triangular label is attached to the mechanism

unit frame.

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.

Wavelength = 650 nanometers(DVD)

Wavelength = 780 nanometers(CD)

XDV-P9

2. EXPLODED VIEWS AND PARTS LIST

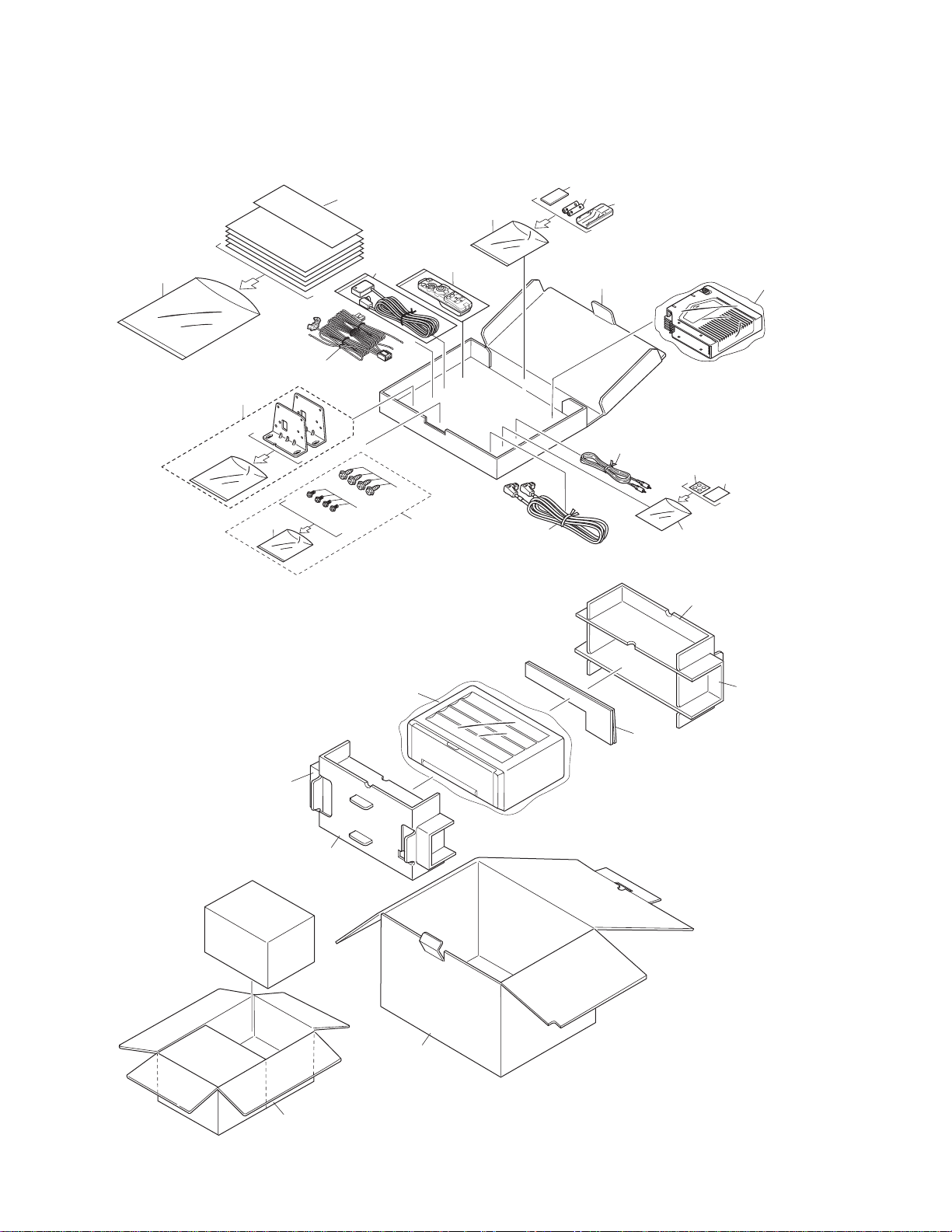

2.1 PACKING

15 25

879

23 27

XDV-P9

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

-PACKING SECTION PARTS LIST

Part No.

Mark No. Description XDV-P9/UC XDV-P9/ES/RC XDV-P9/ES/RD XDV-P9/EW

* 1-1 Card ARY1048 Not used Not used Not used

1-2 Owner’s Manual(English) CRB1613 CRB1613 CRB1613 CRB1613

1-3 Owner’s Manual(Spanish) Not used Not used Not used CRB1614

1-4 Owner’s Manual(German) Not used Not used Not used CRB1615

1-5 Owner’s Manual(French) CRB1616 Not used Not used CRB1616

1-6 Owner’s Manual(Italian) Not used Not used Not used CRB1617

1-7 Owner’s Manual(Dutch) Not used Not used Not used CRB1618

1-8 Owner’s Manual(Chinese) Not used CRB1619 Not used Not used

* 1-9 Caution Card Not used Not used Not used CRP1226

* 1-10 Caution Card Not used CRP1227 CRP1227 CRP1227

* 1-11 Warranty Card Not used Not used Not used CRY1157

* 2 Cord CDE4167 CDE4167 CDE4167 CDE4167

3 Cord Assy CDE6377 CDE6377 CDE6377 CDE6377

4 Cord Assy CDE6398 CDE6398 CDE6398 Not used

5 •••••

6 Polyethylene Bag CEG1011 CEG1011 CEG1011 Not used

7 Battery CEX1021 CEX1021 CEX1021 Not used

8 Sheet CNM5288 CNM5288 CNM5288 Not used

9 Holder CNS4502 CNS4502 CNS4502 CNS4502

10 Screw Assy CEA2624 CEA2624 CEA2624 CEA2624

11 Screw CBA1295 CBA1295 CBA1295 CBA1295

* 12 Polyethylene Sheet CNM5158 CNM5158 CNM5158 CNM5158

13 Screw HMF40P080FZK HMF40P080FZK HMF40P080FZK HMF40P080FZK

* 14 Polyethylene Bag CEG1099 CEG1099 CEG1099 CEG1099

15 Polyethylene Bag CEG1116 CEG1116 Not used CEG1116

16 Polyethylene Bag CEG1174 CEG1026 CEG1026 CEG1026

17 Contain Box CHL4093 CHL4090 CHL4091 CHL4092

18 Sub Carton CHG4094 CHG4094 CHG4094 CHG4094

19 Carton CHG4093 CHG4090 CHG4091 CHG4092

20 Protector CHP2281 CHP2281 CHP2281 CHP2281

21 Protector CHP2282 CHP2282 CHP2282 CHP2282

* 22 Spacer CHW1834 CHW1834 CHW1834 CHW1834

23 Seal CNM5741 CNM5741 CNM5741 CNM5741

24 Remote Control Main Assy CPN1638 CPN1639 CPN1639 Not used

25 Magazine Assy CXB5932 CXB5932 CXB5932 CXB5932

26 Sensor Assy CXB5928 CXB5928 CXB5928 Not used

* 27 Caution Card CRP1090 CRP1090 CRP1090 CRP1090

28 •••••

29 Angle Assy CXB5933 CXB5933 CXB5933 CXB5933

XDV-P9

2.2 EXTERIOR

XDV-P9

1 Screw BMZ30P040FZK

2 Screw CBA1353

3 Spring CBH2354

4 IC(IC3951) PQ30RV31

5 Flat Cable CDE6278

6 Flat Cable CDE6279

7 Cord Assy CDE6283

8 Resistor RS1/2PMF102J

9 Cord Assy CDE6398

10 Fuse(4A) CEK1001

11 Cap CNS1472

12 Upper Case CNB2564

13 Arm CNC8058

14 Stopper CNC8765

15 Stopper CNC8768

16 Transistor(Q3921) 2SB942

17 Insulator CNM6405

18 Insulator CNM6690

19 PCB CNP5604

20 Panel CNS6007

21 Cap CNV2680

22 Damper CNV6346

23 Remote Control Main Assy See Contrast table(2)

24 Case See Contrast table(2)

25 Extension Unit See Contrast table(2)

26 Screw BMZ26P060FMC

27 Plug(CN2903) CKS-461

28 Connector(CN3801) CKS1940

29 Connector(CN3891) CKS1945

30 Connector(CN3991) CKS1953

31 Connector(CN3841) CKS3407

32 Connector(CN3842) CKS3408

33 Connector(CN3831) CKS3602

34 Connector(CN3701) CKS3749

35 Connector(CN3811) CKS4362

36 Holder CNC8766

37 Holder CNC8767

38 Main Unit CWM7264

39 Terminal(CN1603) CKF1064

40 Terminal(CN1604) CKF1064

41 Terminal(CN1605) CKF1064

42 Terminal(CN1607) CKF1064

43 Connector(CN1601) CKS1953

44 Connector(CN101) CKS1964

45 Connector(CN312) CKS2191

46 Connector(CN302) CKS3480

47 Connector(CN1600) CKS3749

48 Connector(CN310) CKS3767

49 Connector(CN301) CKS4358

50 Connector(CN1000) CKS4374

51 Screw BPZ20P060FMC

52 Screw BPZ20P080FMC

53 Screw BPZ20P080FZK

54 Screw BPZ26P080FZK

55 Button(EJECT) CAC6566

56 Screw(M2x2) CBA1176

57 Spring CBH2351

58 Spring CBH2352

59 Spring CBH2353

60 Flat Cable CDE6277

61 Double Side Tape CNM6672

62 Sheet CNM6689

63 Filter CNM6789

64 Cover CNS5915

65 Gear CNV6151

66 Stopper CNV6155

67 Keyboard Unit CWM7084

68 Connector(CN4001) CKS1945

69 Damper Unit CXB5480

70 Bracket Unit CXB5481

71 Holder Unit CXB5482

72 Holder Unit CXB5483

73 Bracket Unit CXB5868

74 Holder Unit CXB6621

75 Panel Unit CXB5872

76 Grille Unit CXB5873

77 Washer YE30FUC

78 Lower Case Unit CXB5484

79 DVD/CD Mechanism Unit(MM-1) CXK7010

80 Screw IMS20P035FZK

81 Screw IMS30P040FMC

82 Screw PMB26P050FMC

83 Screw PMB26P060FMC

84 IC(IC3961) BA08T

* 85 Caution Card CRP1219

(1) EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

XDV-P9

(2) CONTRAST TABLE

XDV-P9/UC, XDV-P9/ES/RC, XDV-P9/ES/RD and XDV-P9/EW are constructed same except for the

following:

Part No.

Mark No. Description XDV-P9/UC XDV-P9/ES/RC XDV-P9/ES/RD XDV-P9/EW

23 Remote Control Main Assy CPN1638 CPN1639 CPN1639 Not used

24 Case CNS6050 CNS6050 CNS6050 Not used

25 Extension Unit CWM7079 CWM7081 CWM7082 CWM7080

XDV-P9

2.3 DVD MECHANISM

XDV-P9

1 Screw CBA1026

2 Screw(M2x2.5) CBA1037

3 Screw(M2x2.5) CBA1041

4 Screw(M2x3.5) CBA1114

5 Screw(M2x3) CBA1154

6 Screw CBA1243

7 Screw(M2x1.4) CBA1387

8 Screw CBA1419

9 Washer CBF1002

10 Washer CBF1037

11 Washer CBF1038

12 Spring CBH1826

13 Spring CBH1827

14 Spring CBH1828

15 Spring CBH1829

16 Spring CBH1830

17 Spring CBH1919

18 Spring CBH1930

19 Spring CBH2070

20 Spring CBH2091

21 Spring CBH2159

22 Spring CBH2227

23 Spring CBH2238

24 Spring CBH2279

25 Spring CBL1307

26 Spring CBL1362

27 Spring CBL1388

28 Spring CBL1416

29 Spring CBL1417

30 Spring CBL1418

31 Spring CBL1419

32 Spring CBL1420

33 Spring CBL1422

34 Connector CDE6156

35 PU Unit CGY2020

36 Shaft CLA2803

37 Shaft CLA3428

* 38 Shaft CLA3431

39 Shaft CLA3562

40 Lever CNC6194

41 Plate CNC6847

42 Holder CNC7448

43 Lever CNC7975

44 Lever CNC8065

45 Frame CNC8068

46 Lever CNC8097

47 Bracket CNC8106

48 Cover CNC8129

49 Arm CNC8335

50 Arm CNC8336

* 51 Cover CNC8347

52 Holder CNC8476

53 Cover CNC8921

54 Cover CNC8922

55 Cover CNC8923

56 Plate CNC9010

57 Cover CNC9083

58 Cushion CNM6301

59 Spacer CNM6334

60 Sheet CNM6385

61 Sheet CNM6581

62 PCB CNP5371

63 PCB CNP5380

64 PCB CNP5381

65 Ball CNR1189

66 Bearing CNR1415

67 Rail CNV4420

68 Lever CNV4422

69 Guide CNV4597

70 Guide CNV4722

71 Rack CNV4828

72 Guide CNV5193

* 73 Rack CNV5451

74 Gear CNV5658

75 Gear CNV5659

76 Holder CNV5661

77 Holder CNV5662

78 Guide CNV5663

79 Guide CNV5664

80 Rail CNV5668

81 Guide CNV5671

82 Arm CNV5868

83 Arm CNV6158

84 Gear CNV6226

85 Gear CNV6242

86 Gear CNV6285

87 Connector(CN301) CKS3476

88 PCB CNX3040

89 Damper Unit CXA7714

90 Plate Unit CXB2262

-DVD MECHANISM SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

Otros manuales para XDV-P9

Tabla de contenidos

Otros manuales de Reproductor de DVD de Pioneer

Pioneer

Pioneer PR-8210 Manual de usuario

Pioneer

Pioneer DV-300-K Manual de usuario

Pioneer

Pioneer DV-120K-K - Compact ALL Multi Region Code Zone Free DVD... Manual de usuario

Pioneer

Pioneer Elite DVL-91 Manual de usuario

Pioneer

Pioneer DVD-V5000 Manual de usuario

Pioneer

Pioneer DV-333 Manual de usuario

Pioneer

Pioneer AVH-P4900DVD - DVD Player With LCD Monitor Manual de usuario

Pioneer

Pioneer DV-49AV - Elite DVD Player Manual de usuario

Pioneer

Pioneer DV-340 Manual de usuario

Pioneer

Pioneer DVJ-X1 - Professional DVD Turntable Manual de usuario

Pioneer

Pioneer DV-757AI Manual de usuario

Pioneer

Pioneer DV-333 Manual de usuario

Pioneer

Pioneer DV46AV - Elite DVD Player Manual de usuario

Pioneer

Pioneer DV-3052V Manual del propietario

Pioneer

Pioneer DV-K301C Manual de usuario

Pioneer

Pioneer DV-595K-S Manual de usuario

Pioneer

Pioneer DV-588A-S Manual de usuario

Pioneer

Pioneer DV-S733A Manual de usuario

Pioneer

Pioneer DV-410V-K Manual de usuario

Pioneer

Pioneer DV-500K-S Manual de usuario

Pioneer

Pioneer DV-400V-S Manual de usuario

Pioneer

Pioneer DV-59AVi Manual de usuario

Pioneer

Pioneer DV-59AVi Manual de usuario

Pioneer

Pioneer DVL-919 Manual de usuario

Manuales populares de Reproductor de DVD de otras marcas

Sony

Sony DVP-F11 Manual de usuario

Philips

Philips DVP3560K/F8 Manual de usuario

LENCO

LENCO DVP-740 X2 Manual de usuario

JVC

JVC XV-N650BEU Manual de usuario

Aiwa

Aiwa XD-DV370 Manual de usuario

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manual de usuario

Denon

Denon DVM-1805 - DVD Changer Manual de usuario

Toshiba

Toshiba SD-3815 Manual de usuario

Tevion

Tevion 44330 Manual de usuario

Samsung

Samsung DVD-HD860 Manual de usuario

Sylvania

Sylvania DP170SL8 Manual de usuario

Toshiba

Toshiba SD-P1200 Manual de usuario

JVC

JVC XV-D9000E Manual de usuario

Dolby Laboratories

Dolby Laboratories CP650 Manual de usuario

Philips

Philips DVD737K/931 Manual de usuario

Denon

Denon DVD-5900 Manual de usuario

Philips

Philips DVD 951 Manual de usuario

Philips

Philips DVDR3460 Manual de usuario
