Pioneer DV-K101 Manual de usuario

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1999

DV-K101 (1)

RRV2088

T – IZE JAN. 1999 Printed in Japan

DVD PLAYER

1. SAFETY INFORMATION...................................... 2

2. EXPLODED VIEWS AND PARTS LIST................ 3

3. SCHEMATIC DIAGRAM ..................................... 10

4. PCB CONNECTION DIAGRAM.......................... 25

5. PCB PARTS LIST ............................................... 35

6. ADJUSTMENT .................................................... 40

CONTENTS 7. GENERAL INFORMATION ................................ 42

7.1 IC .................................................................. 42

7.2 DISASSEMBLY ............................................ 46

7.3 BLOCK DIAGRAM........................................ 47

8. PANEL FACILITIES AND SPECIFICATIONS.... 48

Refer to the service guide RRV2004 for DV-515.

DVDPLAYER

DV-K101

1 2 3 4 5 6 7 8 9 0 +

PLAYBACK ONE-TOUCH KARAOKE

CONTROL KARAOKE MODE

ON/OFF

OPEN/CLOSE

STANDBY

MIN MAX MIN MAX MIN MAX MICCONTROL PREVIOUS NEXT

RETURN SELECT

STOP PLAY PAUSE

STANDBY/ON

LOW CONTROL HIGH

KEY

ECHO MIC1 MIC2 MIC 1 MIC2

DIGITALVIDEO

Type Model Power Requirement Region No.

DV-K101 (1)

RL/2 AC110-127V / 220-240V Automatic select 3

RAM/2 AC110-127V / 220-240V Automatic select 6

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

The Voltage can be converted by the

following method.

DV-K101 has two models which specifications are different.

Each distinction will be confirmed with the indication of

the rear panel. Refer to the following service manuals.

Indication of Rear Panel Service Manual No.

DV-K101 RRV1942

DV-K101 (1) RRV2088 (this manual)

DV-K101 (1)

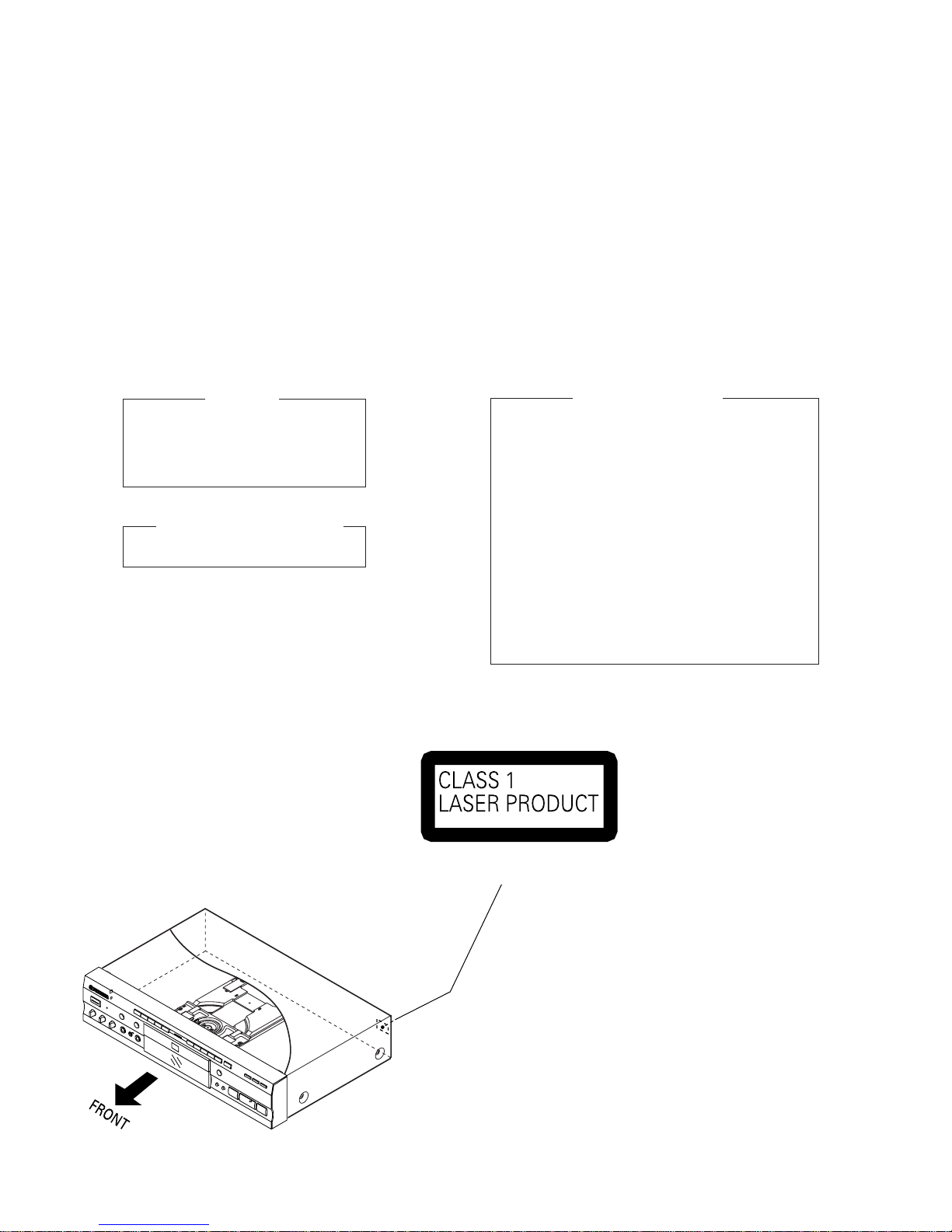

LABEL CHECK

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER : 7 mW

WAVELENGTH : 650 nm

Additional Laser Caution

1. Inside detection switch (S201 on the INSB assy) and loading-

status detection switch (S301 on the LOSB assy) are detected

by the microprocessor (IC501 in the DVDM assy).

• To permit the laser diode to oscillate, it is required to set the

inside detection switch for the inside position (S201 : ON) and to

set the loading-status detection switch for the clamp position (the

center terminal of S301 is shorted to +5V). The laser diode

oscillation will continue if pin 13 of IC101 is shorted to +5V (fault

condition) in the DVDM assy.

In the test mode ∗, the laser diode oscillates when microproces-

sor detects a PLAY signal, or when the PLAY key is pressed

(S106 ON in the FLKY assy), with the above requirements satis-

fied.

2. When the cover is open, close viewing through the objective lens

with the naked eye will cause exposure to the laser beam.

∗: Refer to the service guide RRV2004.

(Printed on the Rear Panel)

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-

yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained

to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause

cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65

DV-K101 (1)

Mark No. Symbol and Description Part No. Remarks

RL/2 Type RAM/2 Type

1 Power Cord ADG1127 ADG7017

6 Operating Instructions (Trad-Chinese) VRC1087 Not used

6 Operating Instructions (Simp-Chinese) Not used VRC1086

NSP 7 Regular User’s Card Not used VRY1112

14 Packing Case VHG1751 VHG1741

NSP 15 Warranty Card PJ Not used ARY7029

(1) PACKING PARTS LIST

1 Power Cord See Contrast table (2)

2 Video Cord (L=1.5m) VDE1048

3 Audio Cord (L=1.5m) VDE1033

NSP 4 Dry Cell Battery (R6P, AA) VEM-013

5 Operating Instructions VRB1213

(English)

6 Operating Instructions See Contrast table (2)

NSP 7 Regular User’s Card See Contrast table (2)

8 Polyethylene Bag Z21-038

(230×340×0.03)

9 Remote Control Unit VXX2576

(CU-DV020)

10 Battery Cover VNK3703

11 Pad F VHA1220

12 Pad R VHA1221

13 Mirror Mat Sheet Z23-007

(750×600×0.5)

14 Packing Case See Contrast table (2)

NSP 15 Warranty Card PJ See Contrast table (2)

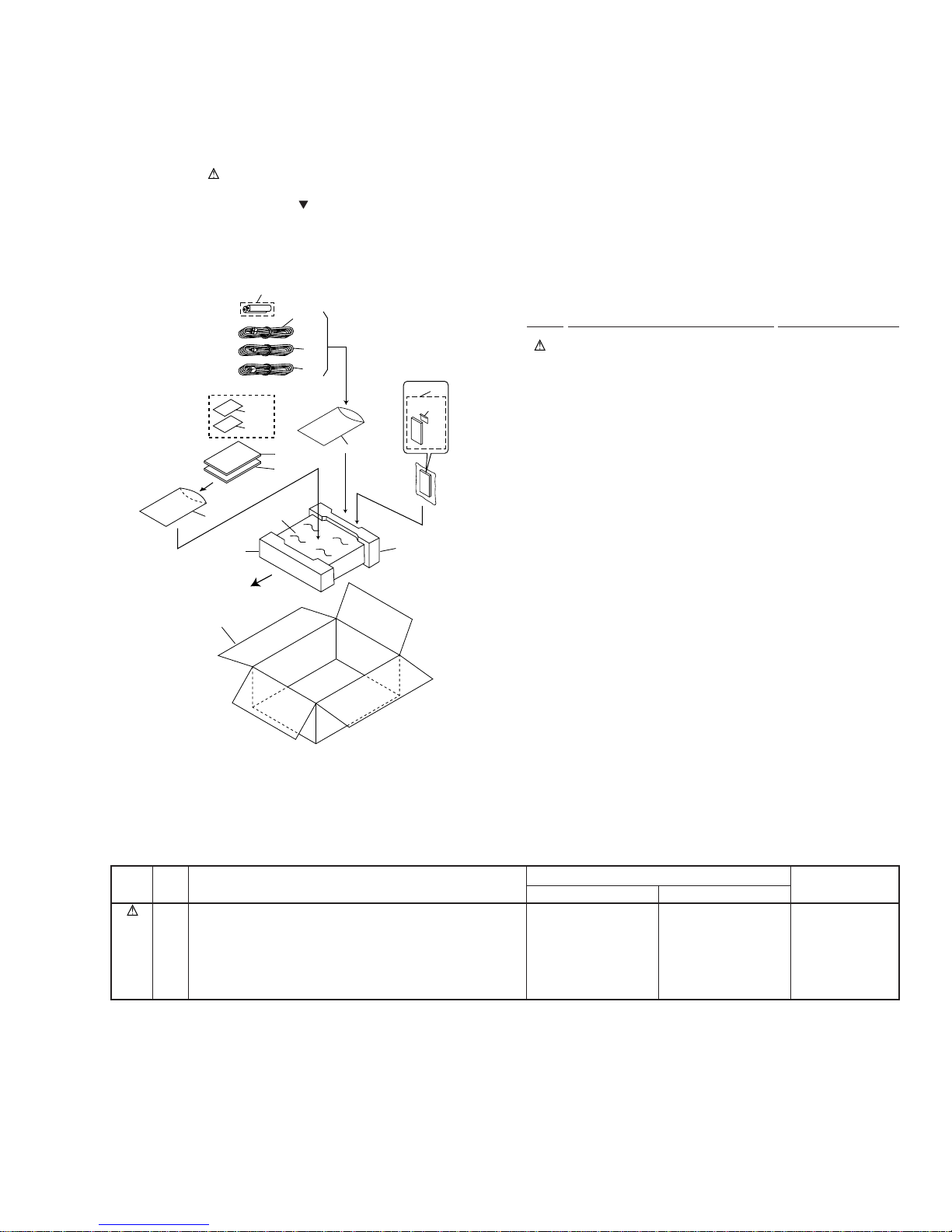

2.1 PACKING

2. EXPLODED VIEWS AND PARTS LIST

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•Screws adjacent to mark on the product are used for disassembly.

Mark No. Description Part No.

FRONT

RAM/2 Type Only

11 12

(2) CONTRAST TABLE

DV-K101/RL/2 and RAM/2 are constructed the same except for the following :

DV-K101 (1)

Refer to

"2.3 FRONT PANEL SECTION".

14 13

RL/2 Type

Only

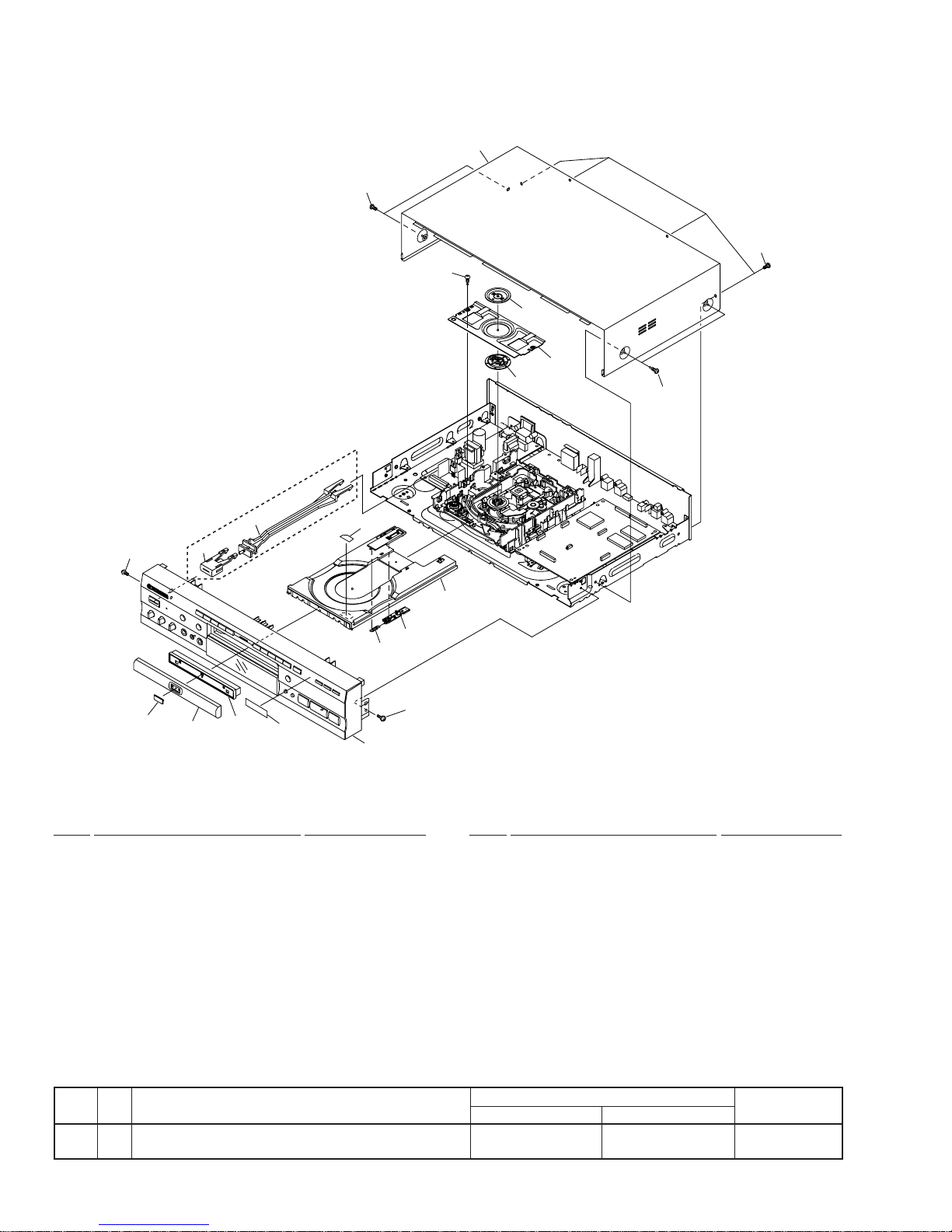

2.2 EXTERIOR SECTION

1 Bonnet Case S VXX2620

2 Tray Panel VNK4158

3 DVD Plate VAM1080

4 Tray Panel Plate VNK4273

NSP 5 Getter VRW1730

6 Tray VNL1731

7 Tray Stopper VNL1739

8 Spring VBH1277

9 Tray Label VRW1628

10 Screw IBZ30P080FMC

11 Screw BCZ40P060FNI

12 Clamper Plate VNE2068

13 Bridge VNE2069

14 Clamper VNL1738

15 Screw BPZ26P080FZK

16 Screw BBZ30P080FMC

17 Power Button See Contrast table (2)

18 Power Button Joint See Contrast table (2)

(1) EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

Mark No. Symbol and Description Part No. Remarks

RL/2 Type RAM/2 Type

17 Power Button VNK4159 Not used

18 Power Button Joint VNK4267 Not used

(2) CONTRAST TABLE

DV-K101/RL/2 and RAM/2 are constructed the same except for the following :

DV-K101 (1)

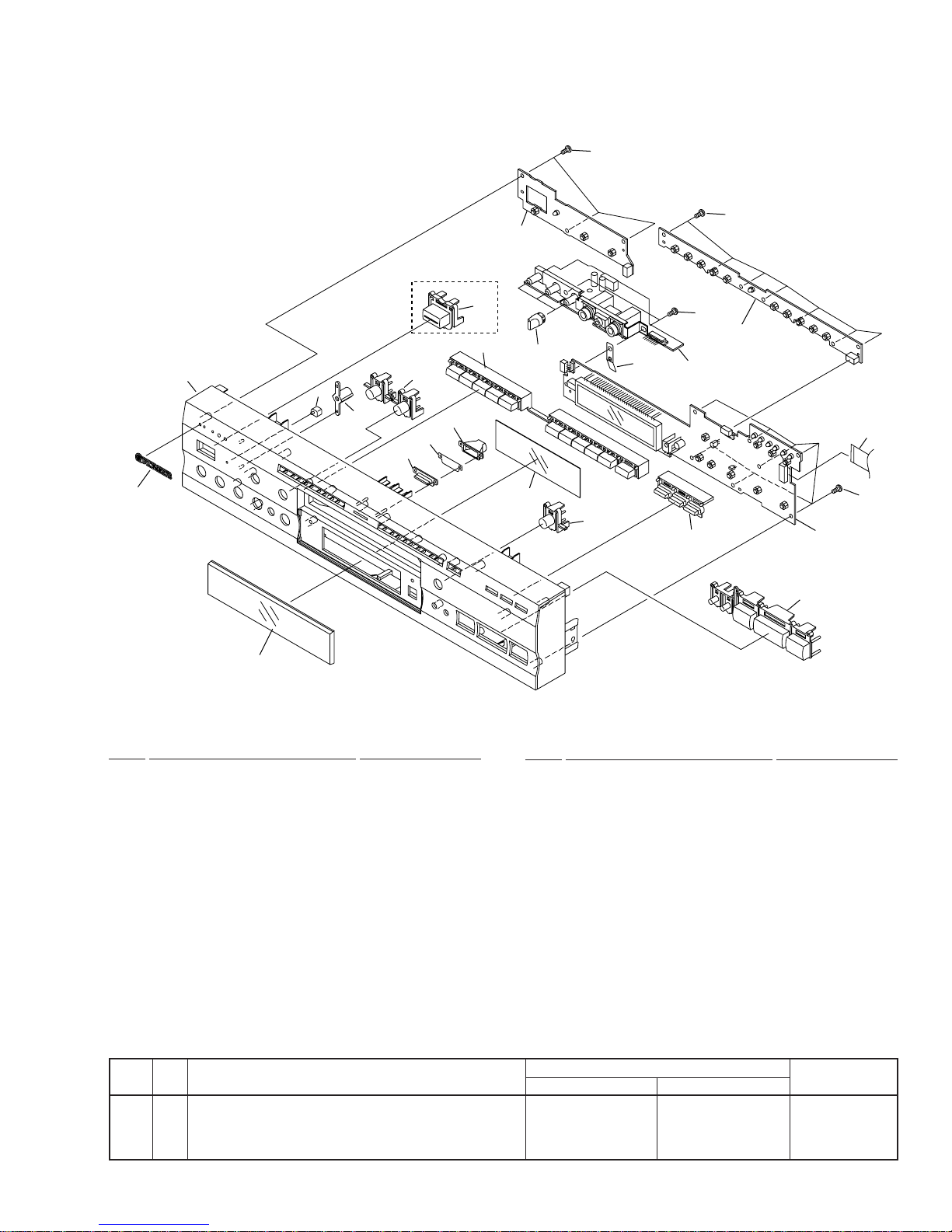

2.3 FRONT PANEL SECTION

1 FLKY Assy See Contrast table (2)

NSP 2 PWSB Assy See Contrast table (2)

3 KYLB Assy VWG2019

4 Front Panel See Contrast table (2)

5 FL Lens VNK4272

6 Name Plate VAM1067

7 LED Lens PNW2019

8 Main Key VNK4269

9 11 Key VNK4271

10 MICB Assy VWV1664

11 FL Filter VEC1643

12 Illumination Lens VNK4264

13 Illumination Filter VEC1983

14 Illumination Holder VNK4265

15 Flexible Cable (14P) VDA1646

(FLKY CN101 ↔DVDM CN602)

16 Screw BBZ30P080FMC

17 • • • • •

18 Volume Knob VNK4279

19 3 Key VNK4270

20 Light Key VNK4261

21 Earth Plate VBK1075

22 Power Button See Contrast table (2)

23 Lens Holder VNK4266

(1) FRONT PANEL SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

Mark No. Symbol and Description Part No. Remarks

RL/2 Type RAM/2 Type

1 FLKY Assy VWG2024 VWG2023

NSP 2 PWSB Assy VWG2021 VWG2020

4 Front Panel VNK4257 VNK4255

22 Power Button Not used VNK4059

(2) CONTRAST TABLE

DV-K101/RL/2 and RAM/2 are constructed the same except for the following :

19(1/2)

216

918

RAM/2 Type Only

19(2/2)

DV-K101 (1)

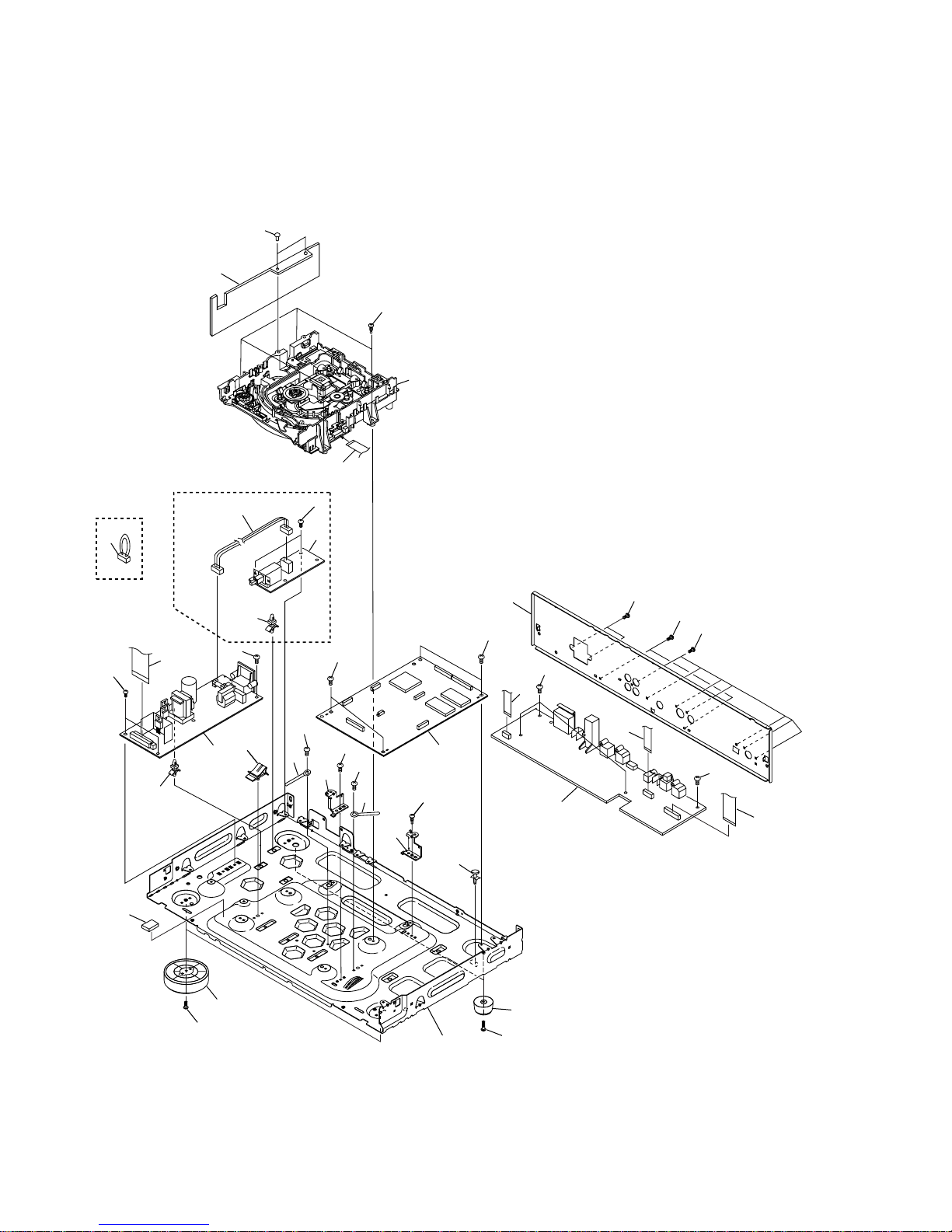

2.4 BOTTOM VIEW SECTION

611

418

710

Refer to

"2.5 LOADING MECHANISM ASSY".

444

RAM/2 Type

Only

RL/2 Type Only

DV-K101 (1)

NSP 1 Base Chassis See Contrast table (2)

2 Insulator PNW2766

3 Insulator Assy (F) VXA1680

4 Screw BBZ30P080FMC

5 Screw BBZ30P180FMC

6 POWER SUPPLY Assy VWR1306

NSP 7 PCB Holder PNW2100

8 Flat Cable Clip VEC2018

NSP 9 Cord Stopper ZCB-069Z

NSP 10 PCB Holder VNE2122

11 DVDM Assy VWS1368

12 KGJB Assy See Contrast table (2)

13 Rear Panel See Contrast table (2)

NSP 14 Loading Mechanism Assy VWT1157

15 Screw BBZ30P100FMC

16 Flexible Cable (12P) VDA1692

(LOSB CN301 ↔DVDM CN1030)

17 • • • • •

18 Flexible Cable (26P) VDA1689

(POWER SUPPLY CN103 ↔DVDM CN110)

19 Flexible Cable (26P) VDA1695

(KGJB CN901 ↔DVDM CN9020)

20 Flexible Cable (18P) VDA1709

(KGJB CN501 ↔DVDM CN9032)

21 Flexible Cable (9P) VDA1714

(KGJB CN401 ↔MICB CN402)

22 Rivet AEC-525

NSP 23 Card Spacer DEC1770

NSP 24 Filter Cushion VEC1287

25 Sheet VEC2000

26 MSWB Assy See Contrast table (2)

NSP 27 Housing Assy See Contrast table (2)

NSp 28 Housing Assy See Contrast table (2)

(1) BOTTOM VIEW SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

Mark No. Symbol and Description Part No. Remarks

RL/2 Type RAM/2 Type

NSP 1 Base Chassis VNA1998 VNA1981

12 KGJB Assy VWV1657 VWV1649

13 Rear Panel VNA2048 VNA2036

26 MSWB Assy VWG2001 Not used

NSP 27 Housing Assy VKP2160 Not used

NSP 28 Housing Assy Not used VKP2189

(2) CONTRAST TABLE

DV-K101/RL/2 and RAM/2 are constructed the same except for the following :

DV-K101 (1)

LOADING MECHANISM ASSY PARTS LIST

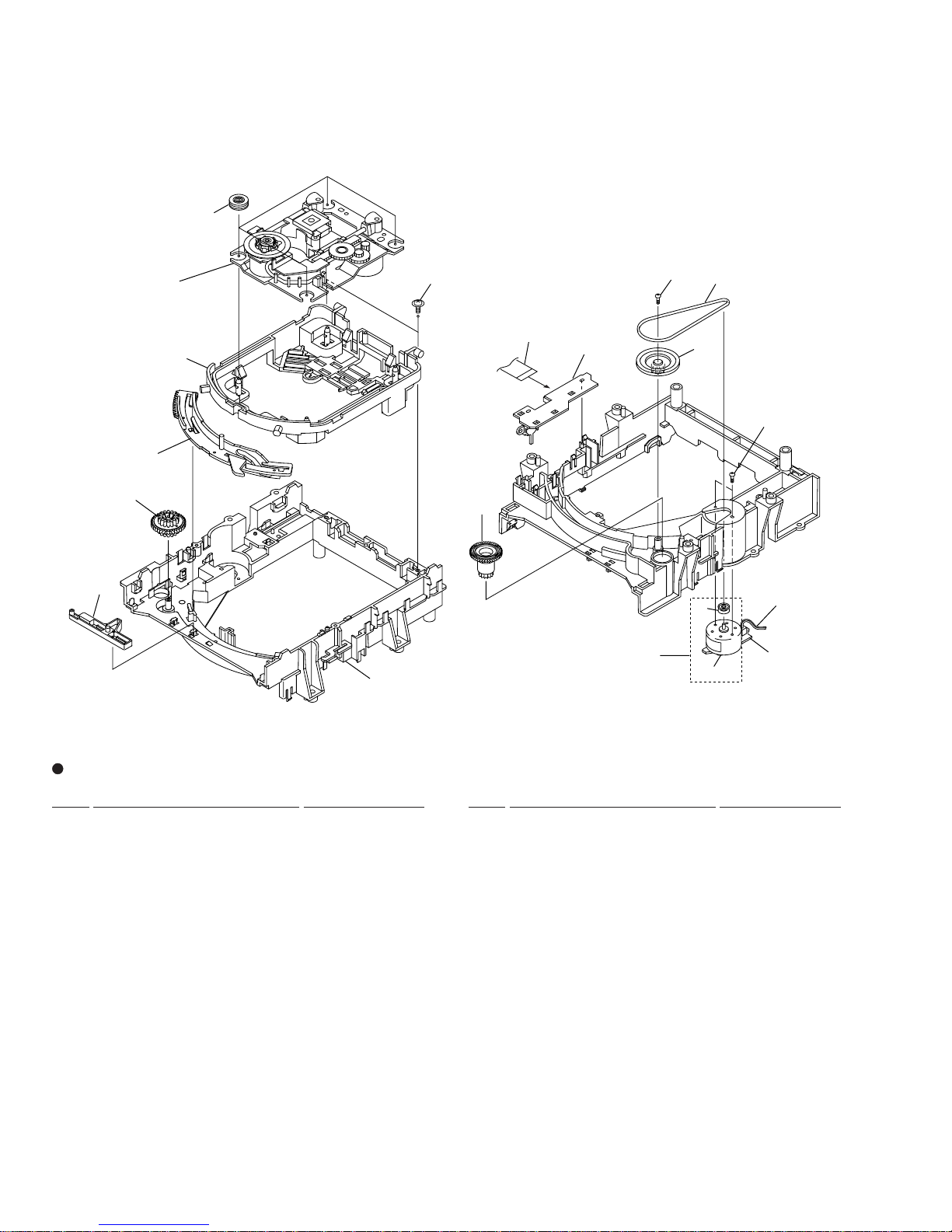

2.5 LOADING MECHANISM ASSY

12 14

•Top View •Bottom View

Refer to

"2.6 SERVO MECHANISM

ASSY"

1 Servo Mechanism Assy-S VXX2606

2 Screw DBA1006

3 Drive Cam VNL1736

4 Drive Gear VNL1735

5 Lock Plate VNL1820

6 Loading Base VNL1730

7 Belt VEB1260

8 Gear Pulley VNL1733

NSP 9 LOSB Assy VWG1885

10 Loading Gear VNL1734

11 Loading Motor Assy VXX2505

12 DC Motor / 0.3W PXM1027

13 Motor Pulley PNW1634

NSP 14 LOMB Assy VWG1886

15 Connector Assy VKP2198

(LOMB CN401 ↔LOSB CN306)

16 Screw VBA1055

17 Screw Z39-019

18 Flexible Cable (08P) VDA1698

(LOSB CN303 ↔SMEB CN202)

19 Float Base VNL1815

20 Floating Rubber VEB1286

Mark No. Description Part No. Mark No. Description Part No.

DV-K101 (1)

NSP 1 SMEB Assy VWG1968

NSP 2 FGSB Assy VWG2009

3 Motor VXM1074

4 Motor VXM1075

5 Pickup Assy VWY1050

6 Table Sheet DEC2040

7 Screw VBA1058

8 Centering Spring VBH1278

9 Hook Spring VBH1291

10 Skew Spring VBH1303

11 Gear Spring VBH1308

NSP 12 Reflected Sheet VEC1959

13 Guide Bar VLL1504

14 Sub-guide Bar VLL1505

15 Hold Spring VNC1017

NSP 16 Magnet Holder VNE2070

NSP 17 Motor Base VNE2154

NSP 18 Cover VNE2155

19 Centering Ring VNL1746

NSP 20 Disc Table VNL1747

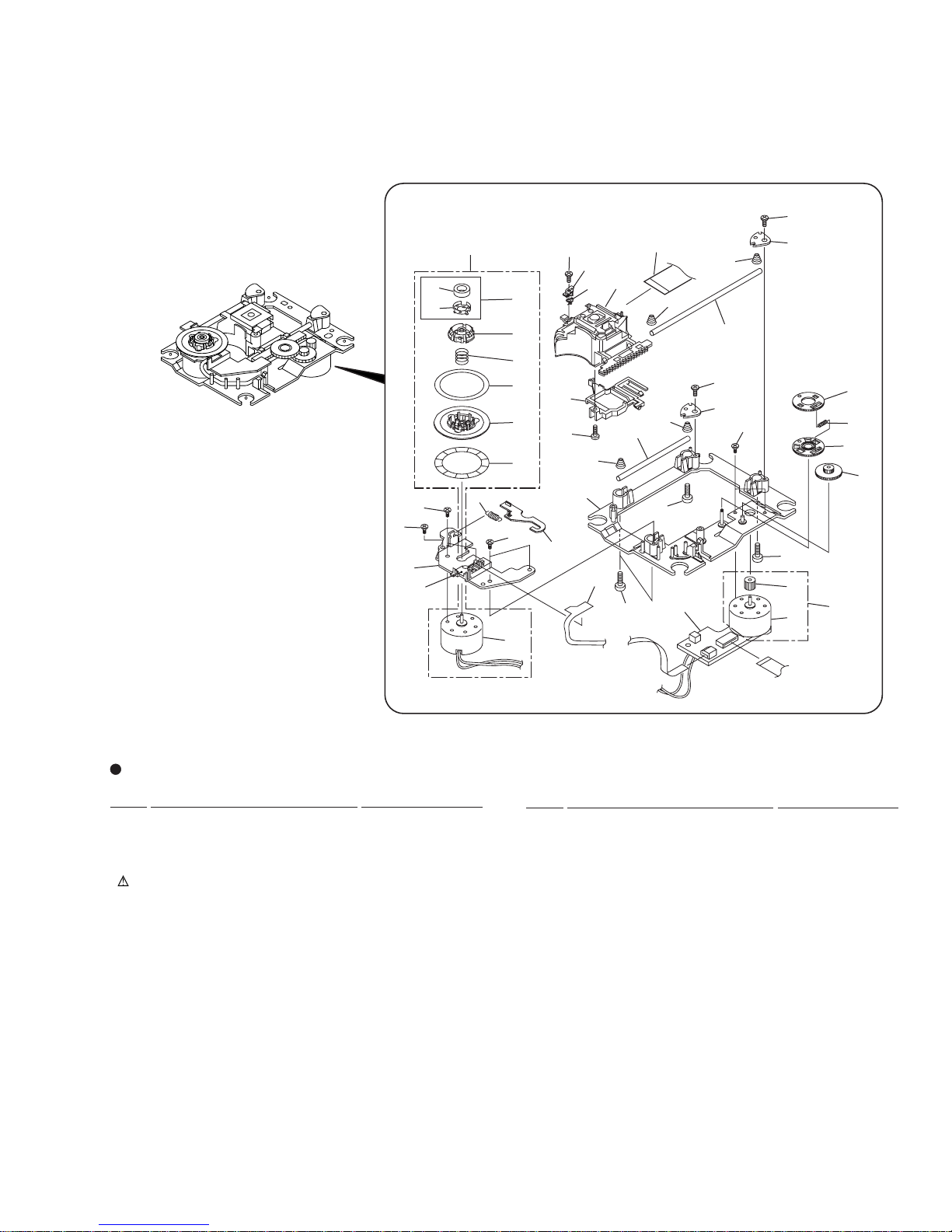

2.6 SERVO MECHANISM ASSY

21 Hook VNL1770

22 FFC Holder VNL1802

23 Mechanism Base VNL1806

24 FG Holder VNL1807

25 Gear A VNL1808

26 Gear B VNL1809

27 Gear C VNL1810

28 Slider VNL1811

29 Gear D VNL1814

NSP 30 Magnet VYM1024

31 Screw JFZ17P025FZK

32 Screw JGZ17P028FMC

33 Screw VBA1051

34 Magnet Holder Assy VXX2507

35 Spindle Motor Assy VXX2604

36 Carriage Motor Assy VXX2605

37 Precision Screw PBA1069

38 Flexible Cable (24P) VDA1701

(DVDM CN120 ↔Pickup Assy)

•Top View

16 34

15 10

14 10

18 32

SERVO MECHANISM ASSY PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

DV-K101 (1)

1234

1/2, 2/2

KGJB ASSY

(RL/2 TYPE : VWV1657)

(RAM/2 TYPE : VWV1649)

J J

HMICB ASSY

(VWV1664)

FRPB ASSY

(RL/2 TYPE : VWM1891)

(RAM/2 TYPE : VWM1890)

TV SYSTEM

AUTO

PAL

NTSC

FLKY ASSY

(RL/2 TYPE : VWG2024)

(RAM/2 TYPE : VWG2023)

KYLB ASSY

(VWG2019)

PWSB ASSY

(RL/2 TYPE : VWG2021)

(RAM/2 TYPE : VWG2020)

JA601

3. SCHEMATIC DIAGRAM

3.1 OVERALL CONNECTION DIAGRAM, LOMB, LOSB, SMEB and FGSB

ASSEMBLIES

Otros manuales para DV-K101

Tabla de contenidos

Otros manuales de Reproductor de DVD de Pioneer

Pioneer

Pioneer DV-470 Manual de usuario

Pioneer

Pioneer XDV-P9 Manual de usuario

Pioneer

Pioneer DV-490V-S Manual de usuario

Pioneer

Pioneer DV-220V-K Manual de usuario

Pioneer

Pioneer DV-989AVi-S Manual de usuario

Pioneer

Pioneer DV-600AV-S Manual de usuario

Pioneer

Pioneer Menu Maker Helper Manual de usuario

Pioneer

Pioneer DV-S733A Manual de usuario

Pioneer

Pioneer DV-393-S Manual de usuario

Pioneer

Pioneer DV320K - MULTISYSTEM REGION FREE DVD PLAYER.ALL REGIONS... Manual de usuario

Pioneer

Pioneer DVL-90 Manual de usuario

Pioneer

Pioneer DV-263 Manual de usuario

Pioneer

Pioneer MDV442 Manual de usuario

Pioneer

Pioneer DV-545 Manual de usuario

Pioneer

Pioneer DV-410V-K Manual de usuario

Pioneer

Pioneer DV-470 Manual de usuario

Pioneer

Pioneer DV-120K-K - Compact ALL Multi Region Code Zone Free DVD... Manual de usuario

Pioneer

Pioneer DV-251 Manual de usuario

Pioneer

Pioneer DV-2750-S Manual de usuario

Pioneer

Pioneer DV-510K-S Manual de usuario

Pioneer

Pioneer DV-393-S Manual de usuario

Pioneer

Pioneer DV-454-K Manual de usuario

Pioneer

Pioneer DV-588A-S Manual de usuario

Pioneer

Pioneer DV-400V-S Manual de usuario

Manuales populares de Reproductor de DVD de otras marcas

Sony

Sony DVP-F11 Manual de usuario

Philips

Philips DVP3560K/F8 Manual de usuario

LENCO

LENCO DVP-740 X2 Manual de usuario

JVC

JVC XV-N650BEU Manual de usuario

Aiwa

Aiwa XD-DV370 Manual de usuario

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manual de usuario

Denon

Denon DVM-1805 - DVD Changer Manual de usuario

Toshiba

Toshiba SD-3815 Manual de usuario

Tevion

Tevion 44330 Manual de usuario

Samsung

Samsung DVD-HD860 Manual de usuario

Sylvania

Sylvania DP170SL8 Manual de usuario

Toshiba

Toshiba SD-P1200 Manual de usuario

JVC

JVC XV-D9000E Manual de usuario

Dolby Laboratories

Dolby Laboratories CP650 Manual de usuario

Philips

Philips DVD737K/931 Manual de usuario

Denon

Denon DVD-5900 Manual de usuario

Philips

Philips DVD 951 Manual de usuario

Philips

Philips DVDR3460 Manual de usuario
