Pioneer SPH-EVO93DAB Manual de usuario

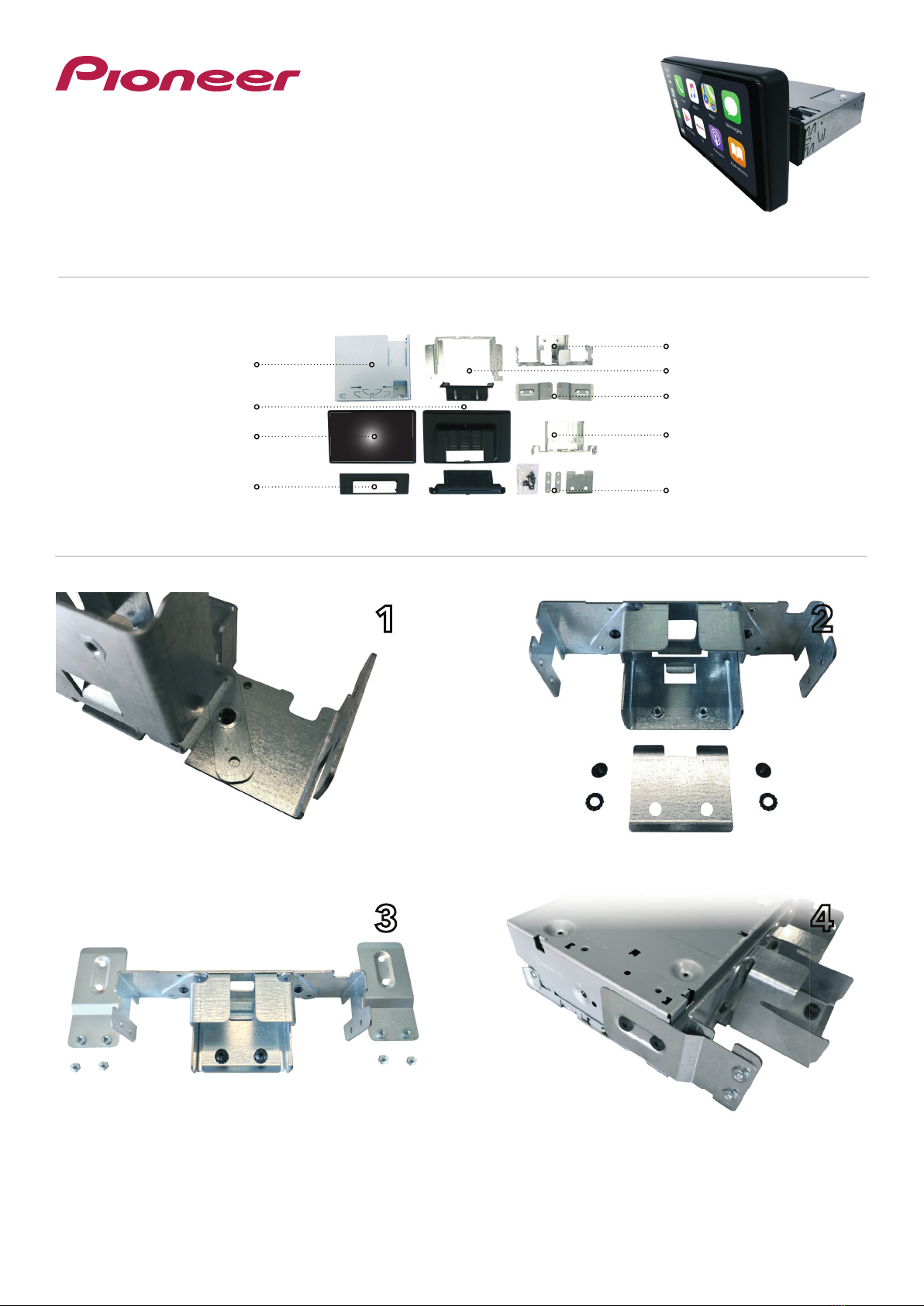

Installation manual CA-HM-UNI-EVO.006 | Version 1.0

Mount the locking tabs (bulge up) onto the unit support

Install the side support with a wrench n°7 (not included)

Install the sliding mecha with the supplied hardware

Once finalised, mount the complete bracket to the silver box

using the supplied hex screws

1 2

43

SPH-EVO93DAB

KIT INSTALLATION 1 DIN réglablePOUR

CA-HM-UNI-EVO.006

Habillage 1 DIN

Habillage écran

Cache connecteur

Cage 1 DIN

Pièces d'ajustement

Support écran

Fixation écran

Pattes métalliques

Installation manual CA-HM-UNI-EVO.006 | Version 1.0

Slide the metal cage into the vehicle with the opening on top

Put the screen holder on and fix only the top two screws

Close the locking tabs and secure with the necessary screws

Click the plastic tabs onto the metal holder as shown (L+R)

Whilst sliding the silver box in the car pull the display cable

through using some tape and extension cable CD-RGB150E

(not included)

install the metal holder - you can adjust height and angle

by using different positions

Put the DIN cover over the unit

By using the two top screws, mount the screen holder

to the screen

5

11

6

12

8

10

7

9

Installation manual CA-HM-UNI-EVO.006 | Version 1.0

After having to determined the correct position

install the bottom cover

13

Fix the bottom cover using two screws -

If the bottom cover collides with the metal bracket,

you need to break off some strips

14

Slide the screen into the support and secure with two screws

15

Verify the necessary lenght of the neck cover

16

Installation manual CA-HM-UNI-EVO.006 | Version 1.0

Final product image

Slide the cover onto the screen and fix the screwInstall the neck cover onto the screen and fix the screws

Put the screw cover over it

17

19 20

18
