Pioneer DEH-S5120BT Manual de usuario

English Français Español

CD RDS RECEIVER

AUTORADIO CD RDS

REPRODUCTOR DE CD CON RECEPTOR RDS

DEH-S5120BT

DEH-S5100BT

DEH-S4120BT

DEH-S4100BT

DEH-S31BT

Operation Manual

Mode d’emploi

Manual de operación

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to

record this number on the enclosed warranty card.

Important (Numéro de série)

Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité, veillez à noter ce

numéro sur la carte de garantie fournie.

Importante (Número de serie)

El número de serie se encuentra en la parte inferior de esta unidad. Por su propia seguridad y comodidad,

asegúrese de anotar este número en la tarjeta de garantía que se adjunta.

- 2 -

English

Getting Started ........................................................................................ 3

Radio.......................................................................................................... 7

CD/USB/iPhone®/AUX............................................................................. 8

Bluetooth ............................................................................................... 11

Pandora® ................................................................................................ 15

Spotify® .................................................................................................. 17

Using Pioneer Smart Sync/APP.......................................................... 18

Audio Adjustments .............................................................................. 22

Settings .................................................................................................. 23

FUNCTION settings ............................................................................... 23

AUDIO settings ...................................................................................... 24

SYSTEM settings.................................................................................... 26

ILLUMINATION settings........................................................................ 29

MIXTRAX settings.................................................................................. 30

Additional Information ....................................................................... 32

About this manual:

•In the following instructions, a USB memory or USB audio player are referred to as

“USB device”.

Table of Contents

- 3 -- 3 -

English

DEH-S5100BT/S5120BT

DEH-S4100BT/S4120BT/S31BT

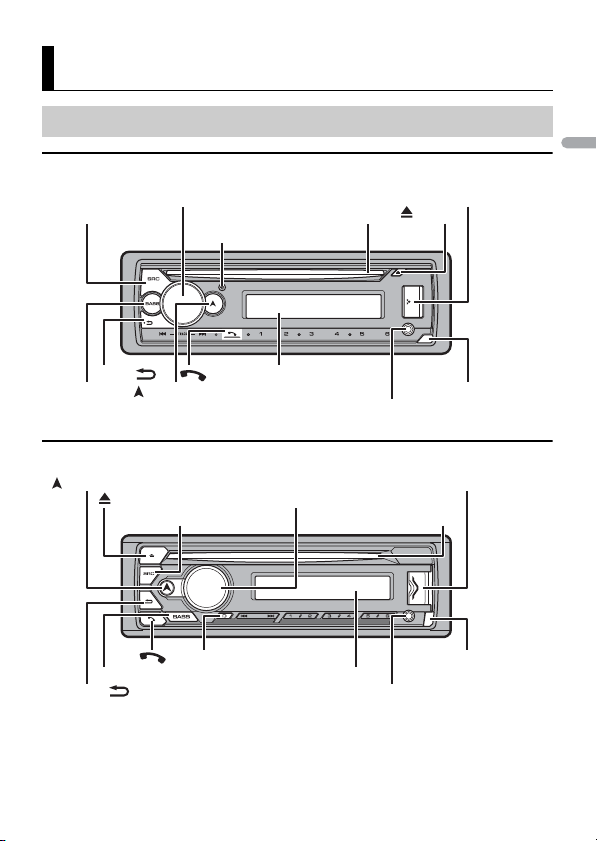

Getting Started

Basic operation

SRC (source)/OFF

Detach button

Display window

M.C. (multi-control) dial

BAND/

DISP (display)

(navigation)/LIST

USB port

AUX input jack (3.5 mm stereo jack)

(eject)

Disc loading slot

BASS

Detach button

Display window

M.C. (multi-control) dial

BAND/

DISP (display)

SRC (source)/OFF

USB port

(eject)

AUX input jack (3.5 mm stereo jack)

Disc loading slot

BASS

(navigation)/LIST

- 4 -

English

Optional remote control

The remote control CD-R510 is sold separately.

Frequently used operations

The available buttons vary depending on the unit.

* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,

the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the

source off.

Display indication

Purpose Operation

Turn on the power* Press SRC/OFF to turn on the power.

Press and hold SRC/OFF to turn off the

power.

Adjust the volume Turn the M.C. dial.

Select a source Press SRC/OFF repeatedly.

Change the display information Press DISP repeatedly.

Return to the previous display/list Press BAND/.

Return to the normal display from the menu Press and hold BAND/.

Change the display brightness Press and hold BAND/.

Answering a call Press any button.

Ending a call Press .

Boost the bass level Press BASS.

•You can select the bass level ([HI] or

[LOW]) in [D.BASS] (page 26).

Indication Description

Appears when a lower tier of the menu or folder exists.

BASS Appears when the BASS function is activated.

Appears when random/shuffle play is set (except when BT AUDIO is

selected as the source).

Appears when repeat play is set (except when BT AUDIO is selected as the

source).

Appears when a Bluetooth connection is made (page 11).

APP Appears when a Pioneer Smart Sync connection is made (page 18).

- 5 -- 5 -

English

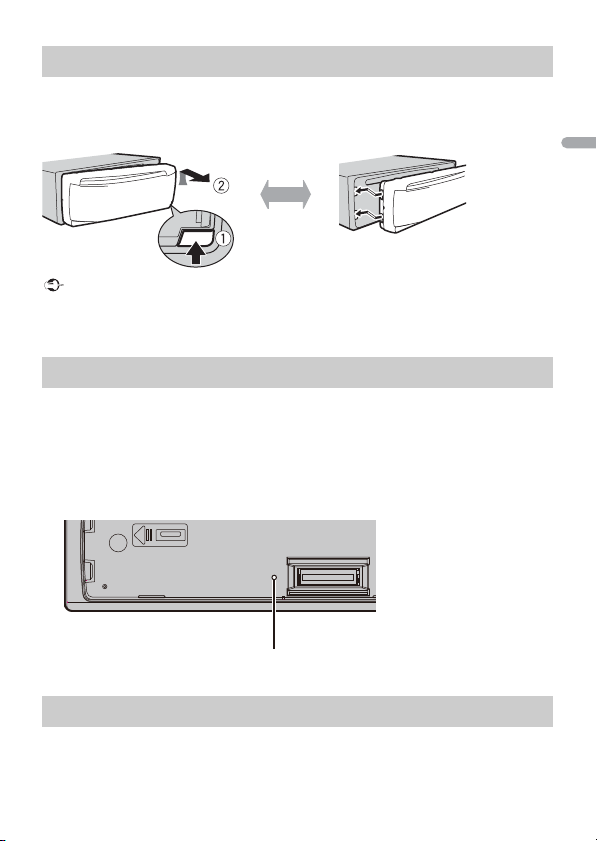

Detach the front panel to prevent theft. Remove any cables and devices attached to the

front panel and turn off the unit before detaching it.

Important

•Avoid subjecting the front panel to excessive shock.

•Keep the front panel out of direct sunlight and high temperatures.

•Always store the detached front panel in a protective case or bag.

The microprocessor must be reset in the following situations:

– Before using this unit for the first time after installation

– If the unit fails to operate properly

– When strange or incorrect messages appear on the display

1Remove the front panel (page 5).

2Press the RESET button with a pointed instrument longer than 8 mm.

When you turn the ignition switch to ON after installation, the setup menu appears in

the display.

Detaching the front panel

Resetting the microprocessor

Setup menu

Detach Attach

RESET button

- 6 -

English

1Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

2[USB CONN. SET] appears when all the settings have been made.

Press the M.C. dial to clear the message.

•A message that prompts you to install the Pioneer Smart Sync application will

appear on your iPhone/Android device by connecting your device to the unit via

USB.

3[QUIT :YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO],

then press to confirm.

4Press the M.C. dial to confirm the settings.

NOTE

These settings can be made at any time from the SYSTEM settings (page 26).

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [SYSTEM], then press to confirm.

3Turn the M.C. dial to select [DEMO OFF], then press to confirm.

4Turn the M.C. dial to select [YES], then press to confirm.

1Press and hold SRC/OFF until the unit turns off.

2Press the M.C. dial to display the main menu.

Menu Item Description

LANGUAGE Select the language to display the text information from a

compressed audio file.

[ENG](English),

[ESP](Spanish),

[FRA] (Canadian

French)

CLOCK SET Set the clock.

1Turn the M.C. dial to adjust the hour, then press to confirm.

The indicator moves to the minute setting automatically.

2Turn the M.C. dial to adjust the minute, then press to confirm.

Canceling the demonstration display (DEMO OFF)

INITIAL settings

- 7 -- 7 -

English

3Turn the M.C. dial to select [INITIAL], then press to confirm.

4Turn the M.C. dial to select an option, then press to confirm.

NOTE

The options vary depending on the unit.

The tuner frequencies on this unit are allocated for use in North America. Use in other

areas may result in poor reception.

1Press SRC/OFF to select [RADIO].

Menu Item Description

REAR-SP Select when there is a full-range speaker connected to the rear

speaker output leads.

[FUL]

[SW] Select when there is a subwoofer connected directly to the rear

speaker output leads without any auxiliary amplifier.

SP-P/O MODE Select when there is a full-range speaker connected to the rear

speaker output leads and there is a subwoofer connected to the

RCA output.

[REAR/SUB.W]

[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to

the rear speaker output leads and there is a subwoofer

connected to the RCA output.

[REAR/REAR] Select when there are full-range speakers connected to the rear

speaker output leads and RCA output. If there is a full-range

speaker connected to the rear speaker output leads, and the

RCA output is not used, you may select either [REAR/SUB.W] or

[REAR/REAR].

SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information

on the unit.

Select [S/W UPDATE] to update the unit to the latest software

and initialize the unit settings. For details on the latest software

and updating, visit our website.

[SYSTEM INFO], [S/

W UPDATE]

SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

restarted automatically.

[YES], [NO]

Radio

Receiving preset stations

- 8 -

English

2Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].

3Press a number button (1/ to6/).

TIP

The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the

FUNCTION settings (page 23).

The six strongest stations are stored on the number buttons (1/ to6/).

1After selecting the band, press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [FUNCTION], then press to confirm.

3Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1After selecting the band, press / to select a station.

Press and hold / then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press / .

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 23).

To store stations manually

1While receiving the station you want to store, press and hold one of the number

buttons (1/ to6/ ) until it stops flashing.

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings

(page 28).)

NOTE

iPhone function is not available for DEH-S31BT.

Disconnect headphones from the device before connecting it to the unit.

Best stations memory (BSM)

CD/USB/iPhone®/AUX

Playing back

- 9 -- 9 -

English

1Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press .

USB devices (including Android™)/iPhone

1Open the USB port cover.

2Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB

AUTO] to [ON] in the SYSTEM settings (page 28).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the

unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device running Android OS 4.1 or later installed and also supports AOA (Android Open

Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the

device.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 27) and [USB MTP]

needs to be set to [OFF] (page 28) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP,

using the cable supplied with the device. However, depending on the connected device, OS version or

the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.

Note thatMTP connection isnot compatible with WAV file formats and FLAC file formats, and cannot be

used with the MIXTRAX function.

NOTE

If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 28).

AUX

1Insert the stereo mini plug into the AUX input jack.

2Press SRC/OFF to select [AUX IN] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 27).

- 10 -

English

You can make adjustments in the FUNCTION settings (page 23) (except for AUX IN/CD/

USB source).

Note that the following operations do not work for an AUX device. To operate an AUX

device, use the device itself.

*1 Compressed audio files only

*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may

be not correct.

The MIXTRAX function creates a non-stop mix of your music library, accompanied by

illumination effects. For details on MIXTRAX settings, see page 30.

NOTES

•iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 18).

•Depending on the file/song, sound effects may not be available.

•Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

Operations

Purpose Operation

Select a folder*1 Press 1/ or2/.

Select a track/song (chapter) Press or .

Fast forward or reverse*2 Press and hold or .

Search for a file from a list (CD/USB only) 1Press and hold to display the list.

2Turn the M.C. dial to select the desired

file (folder) name or category, then press

to confirm.

3Turn the M.C. dial to select the desired

file, then press to confirm.

Playback starts.

View a list of the files in the selected folder/

category*1

Press the M.C. dial when a folder/category

is selected.

Play a song in the selected folder/

category*1

Press and hold the M.C. dial when a folder/

category is selected.

Repeat play Press 6/.

Random/shuffle play Press 5/.

Pause/resume playback Press 4/PAUSE.

Return to root folder (CD/USB only)*1 Press and hold 1/.

Switch between compressed audio and CD-

DA (CD only)

Press BAND/.

About MIXTRAX (USB/iPhone only)

Otros manuales para DEH-S5120BT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de coche de Pioneer

Pioneer

Pioneer DEH-P80RS Manual de usuario

Pioneer

Pioneer P680 - CDX CD Changer Manual de usuario

Pioneer

Pioneer DEH-2820MP Manual de usuario

Pioneer

Pioneer FH-X720BT Manual de usuario

Pioneer

Pioneer KEH-3910 Manual de usuario

Pioneer

Pioneer Super Tuner III D DEH-3100UB Manual de usuario

Pioneer

Pioneer DEH-2950MP/XN/ES Manual de usuario

Pioneer

Pioneer AVH-X5650BT Manual de usuario

Pioneer

Pioneer DEH-P600UB - Premier Radio / CD Manual de usuario

Pioneer

Pioneer MEH-P5000RII Manual de usuario

Pioneer

Pioneer DEH-P4100UB Manual de usuario

Pioneer

Pioneer MVH-G210BT Manual de usuario

Pioneer

Pioneer DEH-6450BT Manual de usuario

Pioneer

Pioneer AppRadio SPH-DA01 Manual de usuario

Pioneer

Pioneer DEH-14UB Manual de usuario

Pioneer

Pioneer XC-P01-S Manual de usuario

Pioneer

Pioneer XV-DV525 Instrucciones de uso

Pioneer

Pioneer DEH-1600R Manual de usuario

Pioneer

Pioneer DEH-3300UB/XSUC Manual de usuario

Pioneer

Pioneer DEH-P6000UB - Radio / CD Manual de usuario

Pioneer

Pioneer AVIC-F9210BT Manual de usuario

Pioneer

Pioneer DEH-1820R Manual de usuario

Pioneer

Pioneer DEH-P3000IB/XS/UC Manual de usuario

Pioneer

Pioneer FH-S720BS Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario

Philips

Philips CEM5000 Manual de usuario
