MANUEL D’INSTALLATION

DEH-P65BT

INSTALLATION MANUAL

English Español Deutsch Français Italiano Nederlands PyÒÒÍËÈ

This product conforms to new cord colors.

Los colores de los cables de este producto se confor-

man con un nuevo código de colores.

Dieses Produkt entspricht den neuen Kabelfarben.

Le code de couleur des câbles utilisé pour ce produit est

nouveau.

Questo prodotto è conforme ai nuovi codici colori.

De kleuren van de snoeren van dit toestel zijn gewijzigd.

Ñ‡ÌÌÓÂ ÛÒÚÓÈÒÚ‚Ó ÒÓÓÚ‚ÂÚÒÚ‚ÛÂÚ ÌÓ‚˚Ï

ÚÂ·Ó‚‡ÌËﬂÏ Í ˆ‚ÂÚÛ ÔÓ‚Ó‰Ó‚.

Connecting the Units ................................ 1

Power cable connection .................................... 3

Connecting to separately sold power amp ........ 5

Installation .................................................. 7

DIN Front/Rear-mount ...................................... 7

DIN Front-mount .............................................. 7

DIN Rear-mount ................................................ 8

Fastening the front panel .................................. 9

Installing the microphone .................................. 9

Adjusting the microphone angle ......................10

Connecting the Units

Contents

Note:

•When this unit is installed in a vehicle without

ACC (accessory) position on the ignition switch,

red cable must be wired to the terminal that can

detect the operation of the ignition key.

Otherwise, battery drain may result.

•Use this unit in other than the following condi-

tions could result in fire or malfunction.

—Vehicles with a 12-volt battery and negative

grounding.

—Speakers with 50 W (output value) and 4 ohm

to 8 ohm (impedance value).

•To prevent short-circuit, overheating or malfunc-

tion, be sure to follow the directions below.

—Disconnect the negative terminal of the bat-

tery before installation.

—Secure the wiring with cable clamps or adhe-

sive tape. To protect the wiring, wrap adhe-

sive tape around them where they lie against

metal parts.

—Place all cables away from moving parts,

such as gear shift and seat rails.

—Place all cables away from hot places, such as

near the heater outlet.

—Do not pass the yellow cable through a hole

into the engine compartment to connect to a

battery.

—Cover any disconnected cable connectors

with insulating tape.

—Do not shorten any cables.

—Never cut the insulation of the power cable of

this unit in order to share the power to other

equipment. Current capacity of the cable is

limited.

—Use a fuse of the rating prescribed.

—Never wire the speaker negative cable direct-

ly to ground.

—Never band together multiple speaker’s nega-

tive cables.

No ACC positionACC position

English Español Deutsch Français Italiano Nederlands

•Control signal is output through blue/white cable

when this unit is powered on. Connect it to an

external power amp’s system remote control or

the vehicle’s auto-antenna relay control terminal

(max. 300 mA, 12 V DC). If the vehicle is

equipped with a glass antenna, connect it to the

antenna booster power supply terminal.

•Never connect blue/white cable to external power

amp’s power terminal. Also, never connect it to

the power terminal of the auto antenna.

Otherwise, battery drain or malfunction may

result.

•IP-BUS connectors are color-coded. Be sure to

connect connectors of the same color.

•Black cable is ground. This cable and other prod-

uct’s ground cable (especially, high-current prod-

ucts such as power amp) must be wired separate-

ly. Otherwise, fire or malfunction may result if

they are accidentally detached.

•Cord function may differ according to the

product, even if cord color is the same. When

connecting this system, be sure to check all

manuals and connect cords correctly.

FRANÇAIS

Connecting the Units

ote

Dependin

on the kind of vehicle, the function

of 3* and 5* ma

be different. In this case, be

sure to connect 2* to

* and 4* to

Connect leads of the same

color to each other.

Cap (1*)

Do not remove cap if

this terminal is not in

use.

Yellow (3*)

Back-up (or

accessory)

Red (5*)

Accessory

(or back-up)

Yellow (2*)

Connect to the constant

12 V supply terminal.

Red (4*)

Connect to terminal controlled

by ignition switch (12 V DC).

ote

In some vehicles

the ISO connecto

be divided into two. In this case,

be sure to connect to both connectors.

otes

•

Chan

e the initial settin

of this unit (refer to the

eration Manual). The subwoofer out

ut of this unit is

monaural

•

When usin

a subwoofer of 70 W (2

Ω) , be sure to

connect with Violet and Violet/black leads of this unit. Do

not connect anything with Green and Green/black leads.

Black (chassis ground)

Connect to a clean, paint-free metal location.

Power cable connection

English Español Deutsch Français Italiano Nederlands

Speaker leads

White: Front left +

White/black: Front left ≠

Gray: Front right +

Gray/black: Front right ≠

Green: Rear left +or subwoofer +

Green/black: Rear left ≠or subwoofer ≠

Violet: Rear right +or subwoofer +

Violet/black: Rear right ≠or subwoofer ≠

Blue/white

Connect to system control terminal of the

power amp (max. 300 mA 12 V DC).

Blue/white (7*)

Connect to auto-antenna relay control

terminal (max. 300 mA 12 V DC).

The pin position of the ISO connector will differ depends

on the type of vehicle. Connect 6* and 7* when Pin 5 is

an antenna control type. In another type of vehicle, never

connect 6* and 7*.

Yellow/black

If you use an equipment with Mute function, wire

this lead to the Audio Mute lead on that equipment.

If not, keep the Audio Mute lead free of any

connections.

4 m

This product

Rear output or

subwoofer output

(Refer to page 5 to 6.)

Front output

(Refer to page 5 to 6.)

Antenna jack

Fuse (10 A)

Fuse resistor

AUX

ack (3.5

)

Wired remote in

ard-wired remote control ada

tor can be

connected (sold separately)

IP-BUS input

(Blue)

IP-BUS cable

Multi-CD pla

(sold separately)

Blue/white (6*)

14 cm

Use a stereo mini plu

cable to connec

with auxiliar

equipment

Microphone

Microphone input

Connecting the Units

This product

Rear output or

subwoofer output

Front output

Antenna jack

AUX jack (3.5 ø)

Wired remote input

ard-wired remote control ada

can be connected (sold separatel

)

IP-BUS

input (Blue)

IP-BUS cable

Multi-CD player

(sold separately)

14 cm

Use a stereo mini plu

cable to connec

with auxiliar

equipment

Refer to page 3 to 4.

Microphone input

(Refer to page 3 to 4.)

Connecting to separately sold power amp

English Español Deutsch Français Italiano Nederlands

≠≠

Connect with RCA cables

(sold separately)

Blue/white (7*)

Connect to auto-antenna relay control terminal

(max. 300 mA 12 V DC).

Rear speaker or

subwoofer

Perform these connections when

using the optional amplifier.

Power amp (sold

separately)

Power amp (sold

separately)

System remote control

Blue/white (6*)

Front speaker Front speaker

Left Right

Rear speaker or

subwoofer

The pin position of the ISO connector

will differ depends on the type of

vehicle. Connect 6* and 7* when Pin

5 is an antenna control type. In

another type of vehicle, never connect

6* and 7*.

Installation

Note:

•Check all connections and systems before final

installation.

•Do not use unauthorized parts. The use of

unauthorized parts may cause malfunctions.

•Consult with your dealer if installation requires

drilling of holes or other modifications of the

vehicle.

•Do not install this unit where:

—it may interfere with operation of the vehicle.

—it may cause injury to a passenger as a result

of a sudden stop.

•The semiconductor laser will be damaged if it

overheats. Install this unit away from hot places

such as near the heater outlet.

•Optimum performance is obtained when the unit

is installed at an angle of less than 60°.

•When installing, to ensure proper heat dispersal

when using this unit, make sure you leave ample

space behind the rear panel and wrap any loose

cables so they are not blocking the vents.

DIN Front/Rear-mount

This unit can be properly installed either from

“Front” (conventional DIN Front-mount) or

“Rear” (DIN Rear-mount installation, utilizing

threaded screw holes at the sides of unit chassis).

For details, refer to the following installation

methods.

DIN Front-mount

Installation with the rubber bush

1. Insert the mounting sleeve into the dashboard.

•When installing in a shallow space, use a sup-

plied mounting sleeve. If there is enough

space behind the unit, use factory supplied

mounting sleeve.

2. Secure the mounting sleeve by using a screwdriv-

er to bend the metal tabs (90°) into place.

3. Install the unit as illustrated.

182182

10 cm

60°

Rubber bush

Screw

Dashboard Mounting sleeve

Leave ample space Dashboard

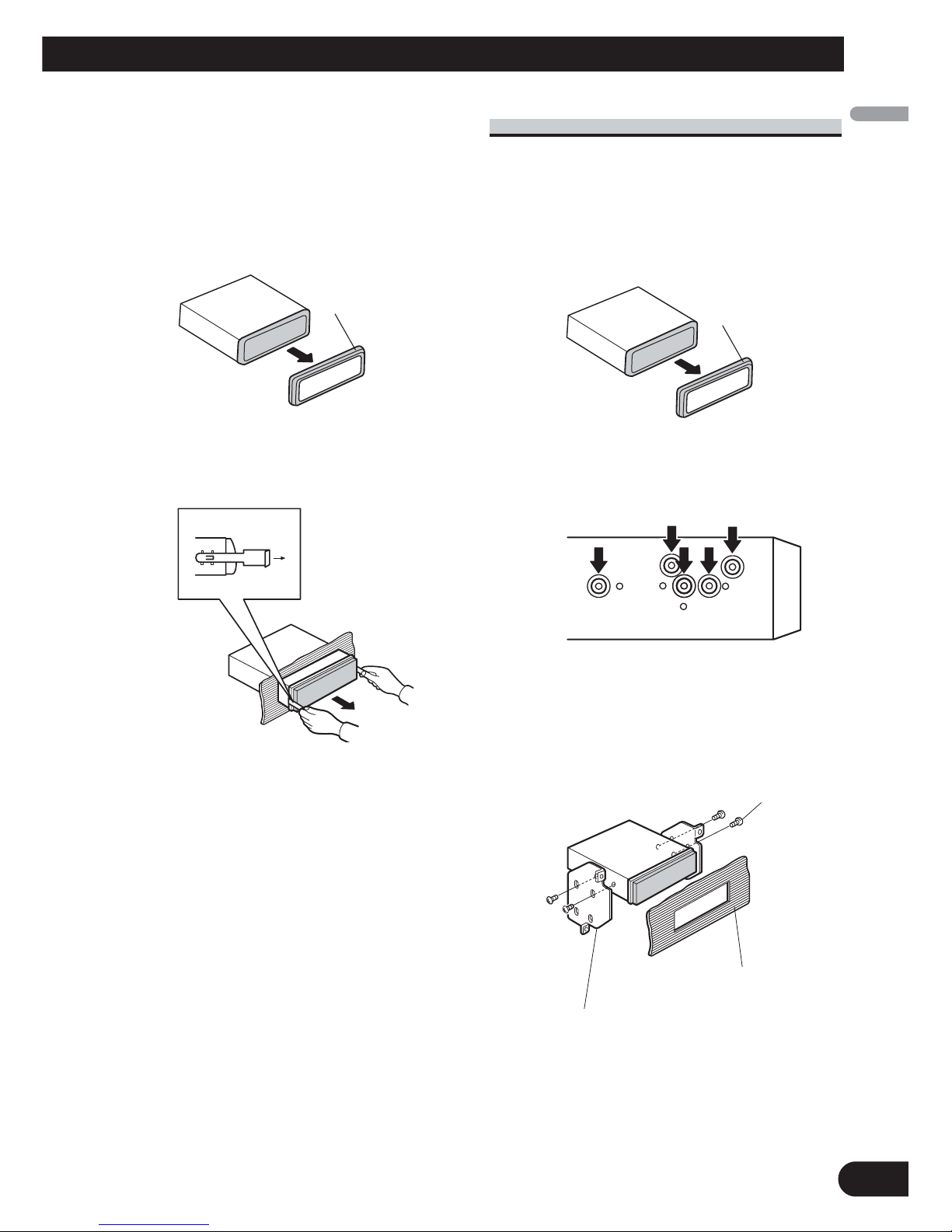

Removing the Unit

1. Extend top and bottom of the trim ring outwards

to remove the trim ring. When reattaching the

trim ring, push the trim ring onto the unit until it

clicks. (If the trim ring is attached upside down,

the trim ring will not fit properly.)

•It becomes easy to remove the trim ring if the

front panel is released.

2. Insert the supplied extraction keys into both sides

of the unit until they click into place.

3. Pull the unit out of the dashboard.

DIN Rear-mount

1. Extend top and bottom of the trim ring outwards

to remove the trim ring. When reattaching the

trim ring, push the trim ring onto the unit until it

clicks. (If the trim ring is attached upside down,

the trim ring will not fit properly.)

•It becomes easy to remove the trim ring if the

front panel is released.

2. Determine the appropriate position where the

holes on the bracket and the side of the unit

match.

3. Tighten two screws on each side.

•Use either truss screws (5 mm ×8 mm) or

flush surface screws (5 mm ×9 mm), depend-

ing on the shape of screw holes in the

bracket.

Trim ring Trim ring

Screw

Dashboard or Console

Factory radio mounting bracket

English Español Deutsch Français Italiano Nederlands

Installation

Fastening the front panel

If you do not plan to detach the front panel, the

front panel can be fastened with supplied screws

and holders.

1. Attach the holders to both sides of the front panel.

2. Replace the front panel to the unit.

3. Flip the holders into upright positions.

4. Fix the front panel to the unit using screws.

Installing the microphone

Installation notes

Install the microphone in a position and ori-

entation that will enable it to pick up the

voice of the person operating the system.

CAUTION

It is extremely dangerous to allow the

microphone lead to become wound

around the steering column or gearstick.

Be sure to install the unit in such a way

that it will not obstruct driving.

When installing the microphone on

the sun visor

1. Install the microphone on the micro-

phone clip.

Screw

Holder

Microphone

clip

Otros manuales para DEH-P65BT

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de coche de Pioneer

Pioneer

Pioneer DEH-P2500RB Manual de usuario

Pioneer

Pioneer DEH-1600UB Manual de usuario

Pioneer

Pioneer DEH-4200SD Manual de usuario

Pioneer

Pioneer DEH-P250 Manual de usuario

Pioneer

Pioneer FH-X720BT Manual de usuario

Pioneer

Pioneer Premier Super tuner III DEH-230 Manual de usuario

Pioneer

Pioneer AVH-P3100DVD/XN/UC Manual de usuario

Pioneer

Pioneer DEH-P3500 Manual de usuario

Pioneer

Pioneer DEH-P310UB - Premier Radio / CD Manual de usuario

Pioneer

Pioneer DEH-P5100R Manual de usuario

Pioneer

Pioneer AVH-P6400CD Manual de usuario

Pioneer

Pioneer KEH-P5010R Manual de usuario

Pioneer

Pioneer DEH-4800FD Manual de usuario

Pioneer

Pioneer FX-MG8227ZT/UC Manual de usuario

Pioneer

Pioneer GEX-P5750TV Manual de usuario

Pioneer

Pioneer DEH-1610 Manual de usuario

Pioneer

Pioneer DVH-P580MP SERIES Manual de usuario

Pioneer

Pioneer DEH-5200SD Manual de usuario

Pioneer

Pioneer KP-77G Manual de usuario

Pioneer

Pioneer DEH-P6050UB Manual de usuario

Pioneer

Pioneer DEH-1400UB Manual de usuario

Pioneer

Pioneer DEH-S210UI Manual de usuario

Pioneer

Pioneer DEH-1900R/XU/EW5 Manual de usuario

Pioneer

Pioneer DVH-P7000 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario

Philips

Philips CEM5000 Manual de usuario
