MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER

DEH-P6200 X1N/UC

Service

Manual

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................3

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.....8

4. PCB CONNECTION DIAGRAM................................26

5. ELECTRICAL PARTS LIST ........................................36

6. ADJUSTMENT..........................................................42

7. GENERAL INFORMATION .......................................46

7.1 DIAGNOSIS ........................................................46

7.1.1 TEST MODE..............................................46

7.1.2 DISASSEMBLY .........................................50

7.2 PARTS .................................................................54

7.2.1 IC................................................................54

7.2.2 DISPLAY....................................................60

7.3 OPERATIONAL FLOW CHART...........................61

8. OPERATIONS AND SPECIFICATIONS.....................62

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 50).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 44).

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

1. SAFETY INFORMATION

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

1 Cord Assy CDE6242

* 2 Accessory Assy CEA2395

3 Spring CBH1650

* 4 Screw Assy CEA2396

5 Screw CBA1002

* 6 Polyethylene Bag CEG-127

7 Screw CRZ50P090FMC

8 Screw TRZ50P080FMC

* 9 Polyethylene Bag CEG-158

10 Handle CNC5395

11 Bush CNV3930

12 Polyethylene Bag CEG1173

13 Battery CEX1030

14 Carton CHG3997

15 Contain Box CHL3997

16 Protector CHP2251

17 Protector CHP2252

18 Remote Control Unit CXB4285

19 Case Assy CXB3520

20-1 Polyethylene Bag CEG1116

20-2 Owner’s Manual CRD3152

(English, French)

20-3 Installation Manual CRD3153

(English, French)

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

2. EXPLODED VIEWS AND PARTS LIST

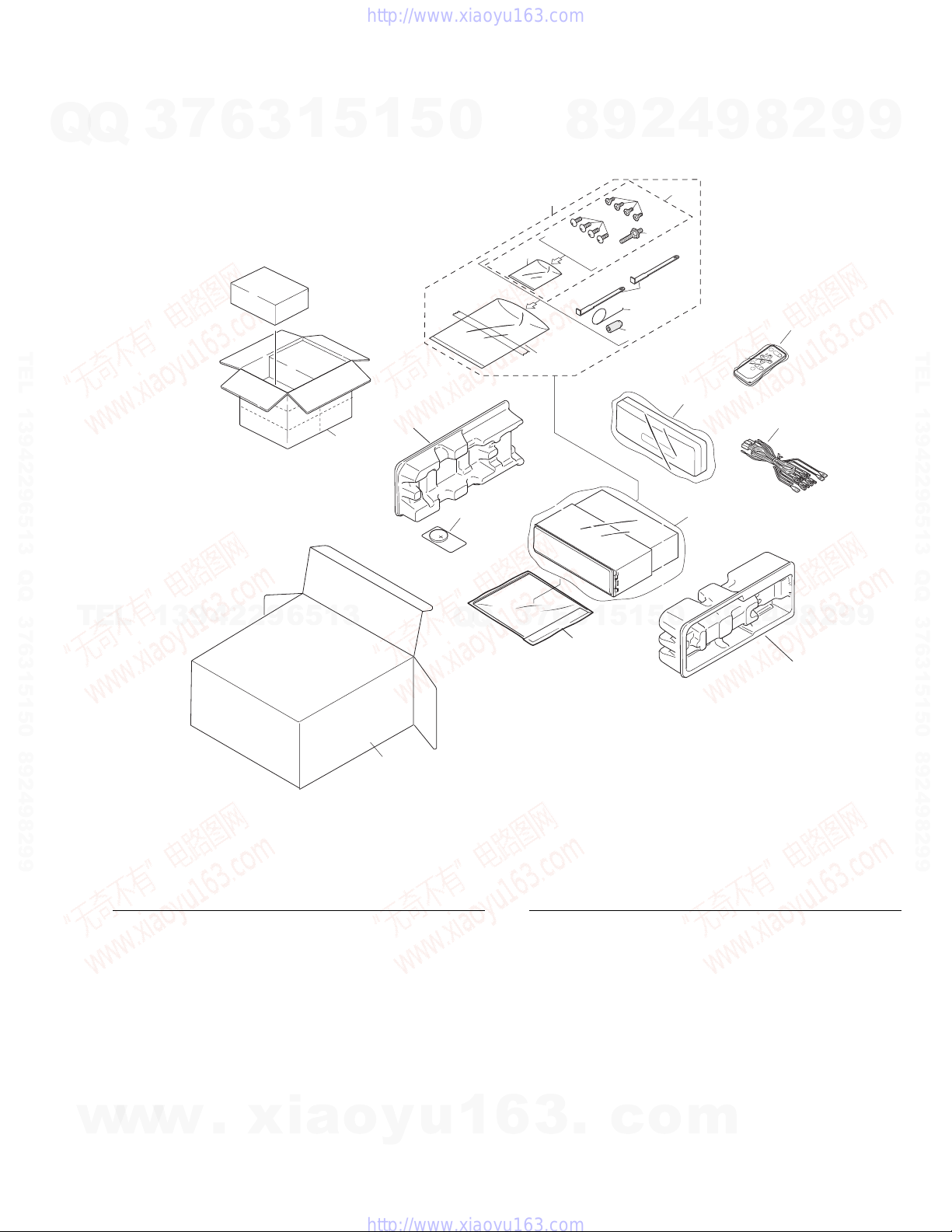

2.1 PACKING

310

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

1717

71 71 71

26 23

420

34 96 20

93 77

58 5946

6860

44 56 45

62 57

44 47

64 65

63 50

241

15 18

38 37

80 8

97 81

2.2 EXTERIOR

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

1 Screw ISS26P055FUC

2 Screw BMZ30P040FZK

3 Screw BSZ26P060FMC

4 Screw BSZ30P060FMC

5 Screw BSZ30P100FMC

6 Cord Assy CDE6146

7CD Mechanism Module(S8.1)CXK5201

8 Cable CDE6160

9 Cord Assy CDE6242

10 Fuse(10A) CEK1136

11 Holder CNC6798

12 Holder CNC8300

13 Holder CNC8357

14 Spacer CNM6482

15 Insulator CNM6606

16 Panel CNS5992

17 Cap CNV2680

18 Tuner Amp Unit CWM6903

19 Screw BPZ26P060FMC

20 Screw BSZ26P060FMC

21 Screw BSZ26P160FMC

22 Antenna Cable(CN502) CDH1254

23 Clamper CEF1009

24 Pin Jack(CN431) CKB1028

25 Terminal(CN501) CKF1059

26 Plug(CN952) CKM1294

27 Connector(CN411) CKS3408

28 Plug(CN651) CKS3537

29 Connector(CN433) CKS3602

30 Connector(CN681) CKS3838

31 Panel CNB2376

32 Holder CNC7533

33 Holder CNC8298

34 Holder CNC8615

35 Insulator CNM5967

36 Heat Sink CNR1550

37 FM/AM Tuner Unit CWE1501

38 Holder CNC7532

39 Remote Control Unit CXB4285

40 Cover CNS4948

41 Chassis Unit CXB5063

42 Button(EJECT) CAC6428

43 Screw(M2x2) CBA1176

44 Washer CBF1038

45 Spring CBH2310

46 Spring CBH2393

47 Spring CBH2312

48 Spring CBH2313

49 Spring CBL1492

50 Holder CNC8616

51 Cushion CNM5486

52 Cover CNM6854

53 Panel CNS5791

54 Arm CNV5991

55 Arm CNV5992

56 Arm CNV5993

57 Lever CNV5994

58 Gear CNV5995

59 Gear CNV5996

60 Gear CNV5997

61 Pin CNV6027

62 Lighting Conductor CNV6069

63 Panel PCB Unit CWM7157

64 Socket(CN902) CKS3550

65 Connector(CN903) CKS4206

66 Damper Unit CXB5070

67 Holder Unit CXB5736

68 Holder Unit CXB5737

69 Screw IMS20P045FZK

70 Detach Grille Assy CXB5677

71 Screw BPZ20P100FZK

72 Knob CAA1525

73 Button(SOURCE) CAC6331

74 Button(OPEN) CAC6333

75 Button(F,A) CAC6337

76 Button(DISP) CAC6340

77 Button(BAND) CAC6442

78 Spring CBH2316

79 Spring CBH2320

80 Cover CNS5737

81 Holder CNV6177

82 Keyboard Unit CWM6908

83 LCD(LCD901) CAW1565

84 Connector(CN901) CKS4205

85 Holder CNC8562

86 Spacer CNM6710

87 Spacer CNM6711

88 Spacer CNM6733

89 Spacer CNM6734

90 Connector CNV5990

91 Lighting Conductor CNV6001

92 Knob Unit CXB5350

93 Grille Unit CXB5678

94 IC(IC551) PAL005A

95 Case Unit CXB5788

96 Transistor(Q954,Q991) 2SD2396

97 Spacer CNM6871

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

2.3 CD MECHANISM MODULE

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

1 Control Unit CWX2411

2 Connector(CN802) CKS2192

3 Connector(CN801) CKS2193

4 Connector(CN701) CKS2773

5 Connector(CN101) CKS3486

6 Screw BMZ20P030FMC

7 Screw BSZ20P040FMC

8 Screw(M2x3) CBA1077

9 Screw(M2x5) EBA1028

10 Screw CBA1243

11 Screw(M2x4) CBA1362

12 Washer CBF1037

13 Washer CBF1038

14 Washer CBF1060

15 •••••

16 Spring CBH2079

17 Spring CBH2117

18 Spring CBH2314

19 Spring CBH2110

20 Spring CBH2282

21 Spring CBH2318

22 •••••

23 Spring CBH2324

24 Spring CBH2118

25 Spring CBH2161

26 Spring CBH2163

27 Spring CBH2189

28 Spring CBH2377

29 Spring CBH2260

30 Spring CBH2262

31 Bracket CNC8568

32 Spring CBL1369

33 Connector CDE5531

34 Connector CDE5532

35 Shaft CLA3304

36 Screw(M2.6x6) CBA1458

37 Frame CNC8565

38 Frame CNC8749

39 Lever CNC7546

40 Arm CNC8663

41 Bracket CNC8567

42 •••••

43 Spacer CNM3315

44 Sheet CNM6659

45 •••••

46 •••••

47 Ball CNR1189

48 Belt CNT1086

49 Roller CNV4509

50 Arm CNV6037

51 Arm CNV5247

52 Arm CNV5248

53 Arm CNV5249

54 Guide CNV5254

55 Guide CNV5255

56 Gear CNV5257

57 Gear CNV5256

58 Guide CNV6272

59 Damper CNV6010

60 Arm CNV6096

61 Arm CNV6031

62 Arm CNV6211

63 Guide CNV6012

64 Guide CNV5510

65 •••••

66 Guide CNV5751

67 Clamper CNV6013

68 Gear CNV5813

69 Motor Unit(M1) CXB2190

70 Screw Unit CXB5892

71 Chassis Unit CXB4797

72 Gear Unit CXB4728

73 Arm Unit CXB5753

74 Motor Unit(M2) CXB2195

75 Lever Unit CXB4730

76 Arm Unit CXB4731

77 Motor Unit(M3) CXB2562

78 Arm Unit CXB4732

79 Bracket Unit CXB4795

80 Screw JFZ20P025FMC

81 Screw JGZ17P025FZK

82 Washer YE20FUC

83 Pickup Unit(Service)(P8) CXX1285

84 Screw IMS26P030FMC

* 85 PCB CNX2982

86 Photo-transistor(Q1, 2) CPT230SX-TU

87 Damper CNV6011

88 Rack CNV6014

89 Spring CBH2315

DEH-P6200

Mark No. Description Part No. Mark No. Description Part No.

-CD MECHANISM MODULE SECTION PARTS LIST

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

1234

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

3.1 BLOCK DIAGRAM

Q411

R881,882,C881

Q412

IC 411

CA0008AM

IP-BUS DRIVER

MUTE

B.U

IL+B

EJECT

CSENS

SW5V

DPDT

KYDT

ROT1(H)

ROT0(L)

BL+B

CDLOAD

clamp PEE

61 100

CDEJET

CONT

EJTSNS

DSCSNS

CD5VON

VDCONT

LCDPW

eject

DPDT

KEYDT

KEYIN1

KEYIN2

120

SYSTEM -COM

IC 601(2/2)

PE5106B

22 38 42 4639

CN502

44 63 69

19 6

32DI/DO

34 33 41 44 11 12

33 45 55 57 61 74 75

CE2

CE1

SDBW

FMSD

NL1

CF202

AM 2ND IF 450kHz

T51 Q51 CF51 CF52 CF53

FM MPX

22 10 14 7 12 15 16 8 13 32

VDDB U

VDD

VCC

VDD

AM RF AM RFAGC

Q201

ANT FM FRONT END FM/AM 1ST IF 10.7MHz

Q204

127

FO +

TO +

FO +

TO +

X201 S801

HOME

S802

CLAMP

CDLOAD

CDEJET

CONT

EJTSNS

CDCSNS

CD5VON

V+5

ED/TD/SD/MD

98 21

PSW

L +

L —

FDP

TDP

SOP

MUTE R

SOM

COP

COM

LOP

LOM

6 LOUT

24 39

D802

DISC SENSE

SELECT

SENSE

MOTOR

CARRIAGE

MOTOR

SPINDLE

MOTOR

D801

28 DSCSNS

CD5VON

1 CDLOAD

LD +

ANT1 TV

ANT2 TV

RF TV

HOLOGRAM

UNIT

FOCUS ACT

TRACKINGACT

MIXER,IF AMP DET

IC 1

PML002A

IC 3

BR9010FV

IC 501

S-81250SGUP

POWER ON MUTE

EEPROM

IC 601

TA2063F

IC 2 PM4008A

IC 201

UPD63710GC

IC 301

BA5985FM

CD DRIVER

RF-AMP,SERVO,DSP,DAC LPF

CN701

CN802

CN801

CN101

5V REGULATOR

IC 701

BA05SFP

PICKUP UNIT(SERVICE)(P8)

BUS—

B.U

BUS+

BUS+L

BUS—L

5TX

IPPW

swvdd

csens

ILMPW

B.U

VDD

B.U

FLAP IL— 6

CN651

CN681

CN411

Q652

B.U

Q655

Q654

Q653

Q651

Q656

Q992

Q991

ATUNER AMP UNIT

BFM/AM TUNER UNIT

DCONTROL UNIT

EPHOTO UNIT(S8)

BZ601

ALARM

BUZZER DFS

ALARM

TEMP 81

X601

TH601

FLPILM

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DEH-P6200

5678

REAR RCA

adpw

bsens

asens

VDD B.U

B.U

B.U 5

B.U

NL1

SDBW

PCE1

tunpck

tunpce@

tunpdo

ASENBO

FL 11

RL 9

B.U

SYSPW

IL+B

COMGND

CSENS

SW5V

DPDT

KYDT

KEYIN1

KEYIN2

BL+B

Preout_L

23 10

RL—

21 RL+

3 FL—

5 FL+

FL—

FL+

RL—

RL+

B.REM

RLO

FLO

SLO

MUTE

ILL

ACC

ALARM

GND 1

BACK UP BACK UP

GND

TELIN

isens

DRELAY

(VDD)

TUN L

BUS+L

BUS—L

CD L

DFS

86 85 24 72

FLIN

RLIN

22 4 25

SYSTEM -COM

RESET

ALARM

POWER AMP

IC 601(1/2)

PE5106B

IC 451

PML004AF

IC 631

S-80734ANDYI

IC 851

TPD1018F

IC 551

PAL005A

IC 902

RS-140

reset

VDD

Q601

Q952 Q959

Q953

Q951

Q434 Q431

SYSPW

Q551

Q957

Q954 Q955

D904

D903

Q905

Q958

DALMON

IPPW

DALMON

ELECTRONIC VOLUME/

SOURCE SELECTOR

SYS+B

B.REMSTBYMUTE

REMOTE CONTROL

SENSOR

IC 901

PD6279

LCD DRIVER

KEY MATRIX

LCD

OPT IN 1

dim

KEY DATA

LCD DATA

REMIN

VCC

X901

48 50 60

CN903 CN901CN902

S930

KEYBOARD UNIT

FPANEL PCB UNIT

SUB W.

CN433

CN431

ALARM

ACC

RL—

RL+

ILL

MUTE

FL—

FL+

B.REM

Q432

FRONT RCA

Q433

CN952

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CN902

IL GND

BL+

IL +B

CSENS

SW5V

uGND

DPDT

KYDT

ROT0(L)

ROT1(H)

CN901 CN903

DEH-P6200

1234

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)

Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS

LIST”.

A-a A-b

A-b

A-a

Large size

SCH diagram

Guide page

Detailed page

A-a

TUNER AMP UNIT

FM/AM TUNER UNIT

CD MECHANISM

MODULE

PANEL PCB UNIT

KEYBOARD

UNIT

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Otros manuales para DEH-P6200

Tabla de contenidos

Otros manuales de Receptor de coche de Pioneer

Pioneer

Pioneer DEH-2220UB Manual de usuario

Pioneer

Pioneer DEH-240F Manual de usuario

Pioneer

Pioneer MVH-X390BT Manual de usuario

Pioneer

Pioneer KEH-P4900 Manual de usuario

Pioneer

Pioneer DEH 2000MP - Radio / CD Manual de usuario

Pioneer

Pioneer SUPER TUNER III D FH-P4200MP Manual de usuario

Pioneer

Pioneer KEH-P3206ZY Manual de usuario

Pioneer

Pioneer DEH-4400HD Manual de usuario

Pioneer

Pioneer DEH-X8700DAB Manual de usuario

Pioneer

Pioneer DEH-9/XU Manual de usuario

Pioneer

Pioneer DVH-P5000UB Manual de usuario

Pioneer

Pioneer DEH-P5780MP Manual de usuario

Pioneer

Pioneer DEH-X6900BT Manual de usuario

Pioneer

Pioneer Super Tuner III D DEH-P8600MP Manual de usuario

Pioneer

Pioneer DEH-P723 Manual de usuario

Pioneer

Pioneer DEH-2050MP Manual de usuario

Pioneer

Pioneer DEH-P6700MP Manual de usuario

Pioneer

Pioneer DEH-X5700BT Manual de usuario

Pioneer

Pioneer FH-MG6406ZH X1H Manual de usuario

Pioneer

Pioneer DEH-2330R Manual de usuario

Pioneer

Pioneer DEH-33HD Manual de usuario

Pioneer

Pioneer DEH-S1100UB Manual de usuario

Pioneer

Pioneer Premier DEH-P8MP Manual de usuario

Pioneer

Pioneer KEH-P5900 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario

Philips

Philips CEM5000 Manual de usuario
