PIEGA User Manual 28
PIEGA User Manual
PIEGA User Manual
«Music.That‘s really the only important issue
when it comes to loudspeakers...»
In our view, the superior loudspeaker is the one that does not interfere. One that
adds no sound of its own.That accurately and naturally conveys what was played
in the concert or recording studio. Since 1986 we have been working to perfect
this ideal – with a pioneering spirit, inventiveness and exacting craftsmanship. You
will now be able to hear for yourself how far we have succeeded.
By purchasing a loudspeaker from PIEGA you have expressed your trust in our
company, for which we thank you very much. At the same time we assure you
that you have purchased a product that is based on twenty years of R & D, and
which in terms of its design represents the state of the art. We are sure that you
will gain much listening enjoyment from your new Piega loudspeaker products.
Although using the loudspeakers is very straightforward, we recommend that
you read the contents of this user manual carefully. It will explain how to properly
connect up your new PIEGA loudspeaker products and install them for optimum
results. It also provides you with some useful information that will increase your
understanding of loudspeakers. But don’t worry. Even apparently complicated
details are explained very simply. On the last page of these instructions you will
find our warranty conditions. Please also read these carefully just in case.
We wish you an enjoyable read and above all much listening enjoyment with your
new PIEGA loudspeakers...!
User Manual
2
PIEGA User Manual
Contents
This user manual describes how to optimally install and connect the PIEGA loudspeakers for a wide range of uses
and contains some useful information on operating, caring for and maintaining your loudspeakers. It also contains
instructions for unpacking and setting up the loudspeakers.
Precautions 4
Unpacking the Loudspeakers 5
Uses 6
Positioning 7
On-Wall Installation 8
Connecting the Loudspeakers 9
Running the Loudspeakers 10
Daily Use 11
Warranty Conditions 12
3
PIEGA User Manual
Precautions
Please read this user manual carefully and pay special attention to the following precautions and warnings.
Safety Precautions:
Ensure without fail that your new PIEGA loudspeak-
ers are mounted, positioned and connected exactly
according to these instructions.
PIEGA loudspeakers were only designed for use in
dry residential environments within a temperature
range of 10...40°C.

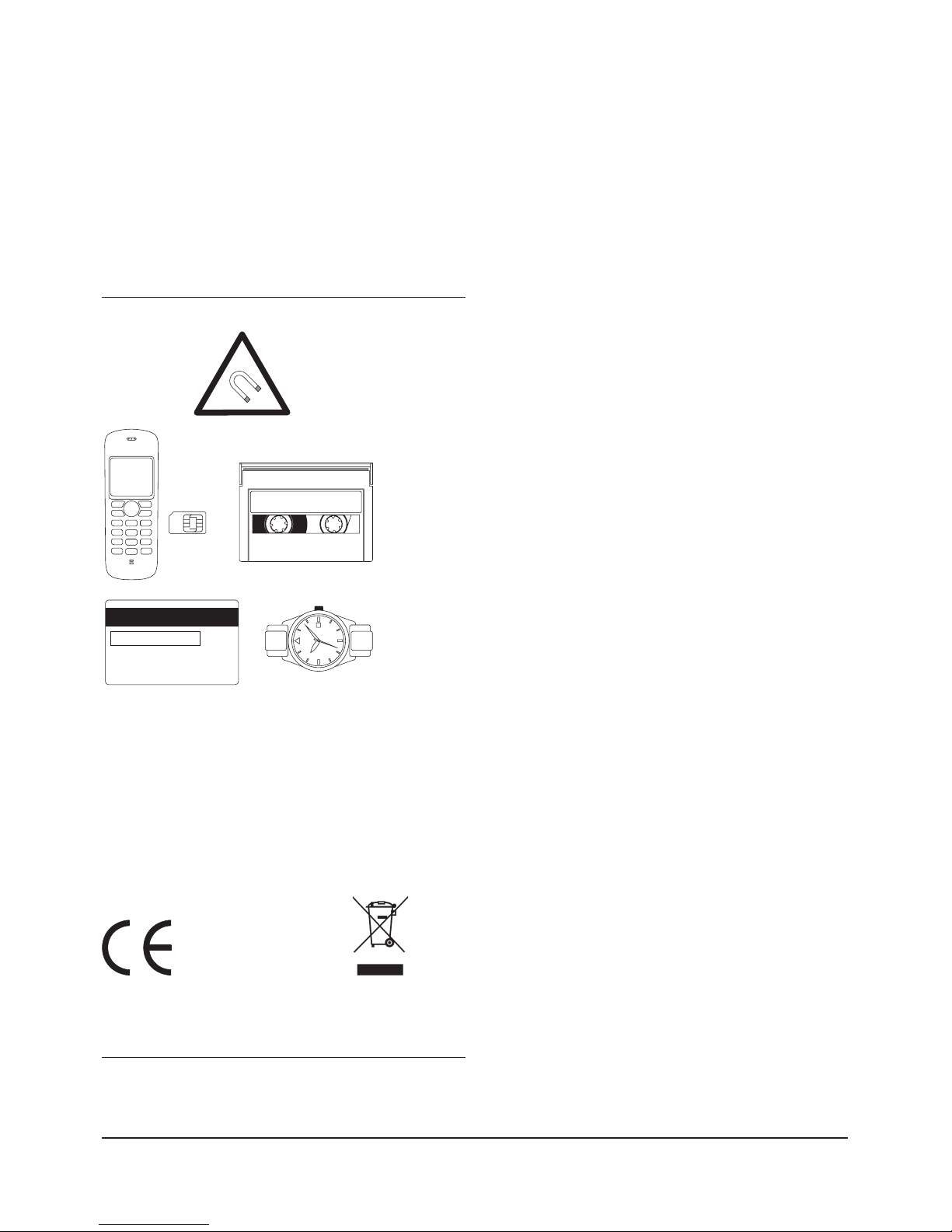

The high quality loudspeaker chassis of PIEGA loud-
speakers contain exceptionally strong magnets with
magnetic fields that may impair the operation of
other devices if the loudspeakers are not handled
properly.
Ensure that watches or other metallic objects are not
placed close to the loudspeakers.The strong mag-
netic fields may pull these into the diaphragms and
destroy them.
Keep items such as credit cards, electronic data stor-
age media and similar objects away from the loud-
speakers.The magnetic field may cause irrecoverable
loss of data.
Warnung:
Ensure, in particular with children, that hands are not
placed inside the bass tube openings (sharp edges
> risk of injury) and that objects are not inserted into
these openings.
CONFORMS TO
UL STD. 6500
CERTIFIED TO
CAN/CSA STD. E60065
4
PIEGA User Manual
Special care was taken in the packaging of your new PIEGA quality products in order to ensure that your
loudspeakers reach your living room safely and undamaged. In order to avoid any damage when unpacking
the loudspeakers, follow closely the instructions below without fail.
Procedure:
In order to avoid any damage when unpacking the
loudspeakers or during the installation, you should
always carry out the work with another person.
Before unpacking, remove any jewelry such as
watches, rings, bracelets etc. in order to avoid
scratching the aluminum surface.

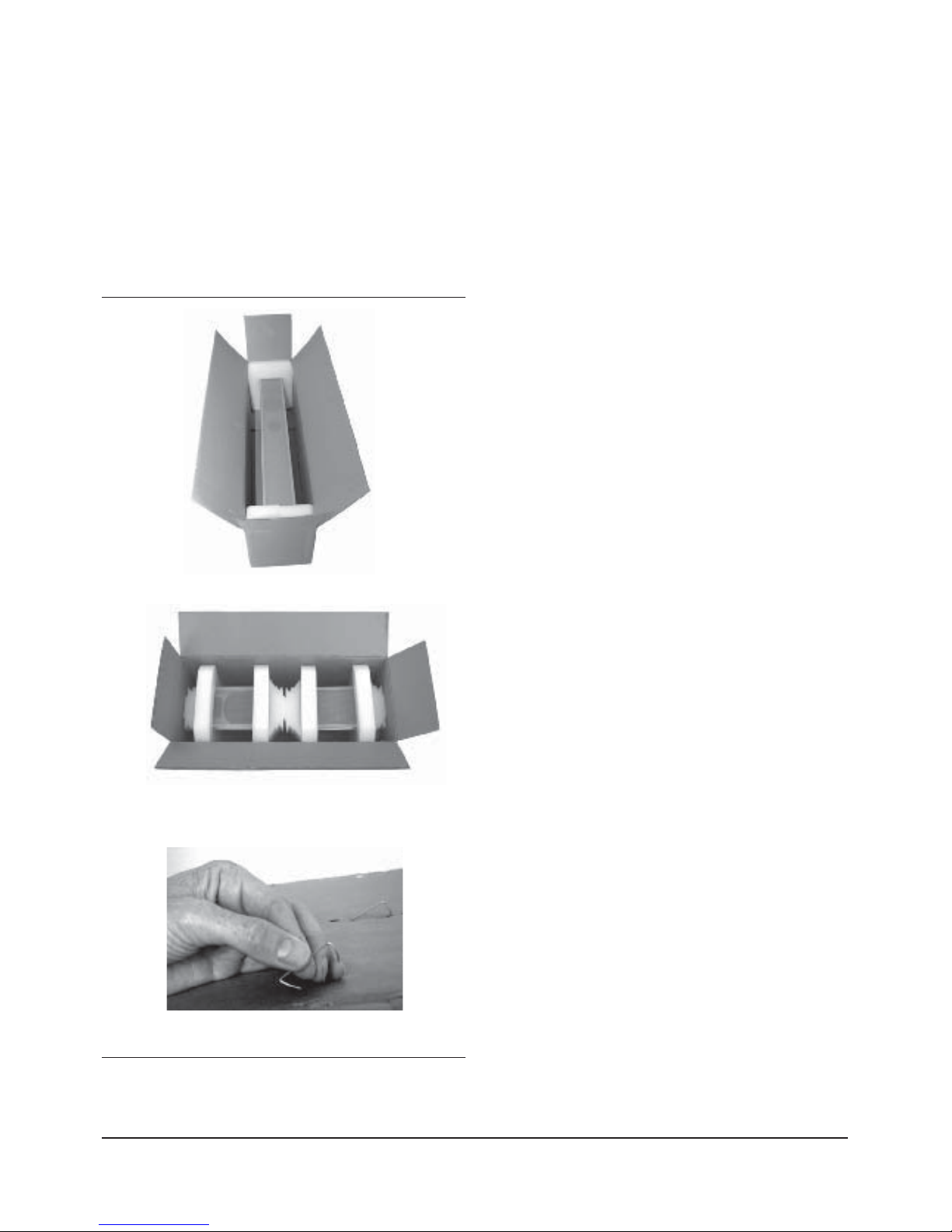

Open the carton as shown in the figure, remove the
metal brackets on the carton carefully and lift out the
loudspeakers and protective cushions.
Carefully remove the protective cushions and protec-
tive wrapping by carefully pulling it up over the
loudspeakers.
Check without fail that the delivery is complete, that
the loudspeaker version supplied corresponds to
your order, and that the loudspeakers have not been
damaged in transit.
If this is the case, follow the instructions on the
remaining pages or otherwise contact the dealer
where you purchased the loudspeakers.
Warning:
PIEGA loudspeakers have cabinets made from
polished aluminum. When unpacking, handle
carefully at all times...!
Unpacking the Loudspeakers
5
PIEGA User Manual
Uses
The PIEGA Loudspeaker Series comprises floor-standing, satellite and center loudspeakers. Some series
include all three loudspeaker types. All loudspeakers of the same series are based on the same technology,
either dome tweeter or PIEGA ribbon tweeter. All loudspeakers of the same technology can always be com-
bined and arranged into a cohesive home cinema system and also ideal for stereo systems, sound systems in
bars and restaurants, fitness centers etc. We recommend….
Multi-channel system
example
Multi-channel system
example
Stereo operation
example
Room sound system (in bars)
example
6
PIEGA User Manual
Perfect sound quality depends on the correct positioning and alignment of the loudspeakers. For stereo
operation, the best results are achieved using the stereo triangle layout. In multi-channel systems, the front,
center and rear speakers should be positioned as equidistantly as possible and aligned to the point of listening
and time delay should be adjusted in the setup of the AV-receiver.
Positioning

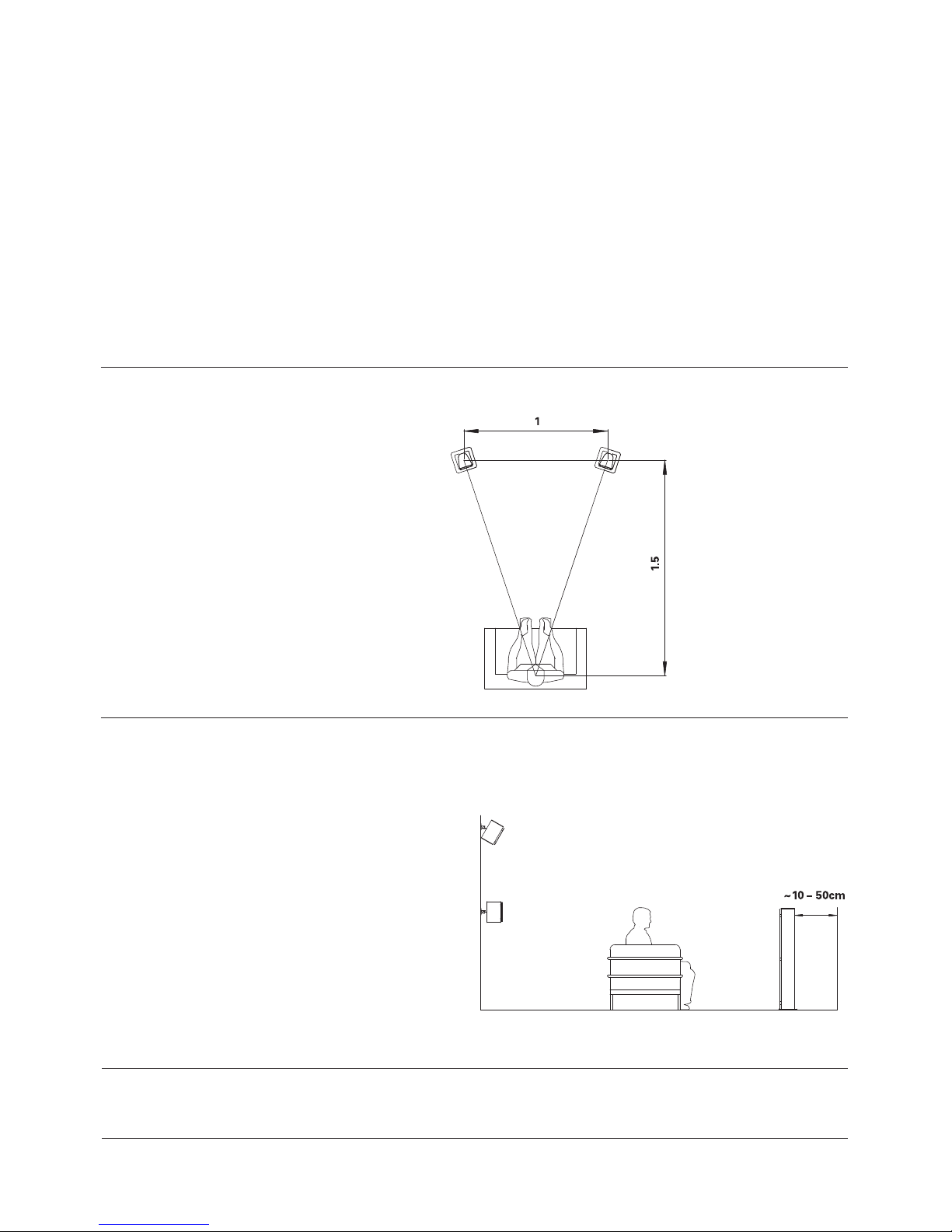

Stereo operation (Stereo Triangle)
The distances between the loudspeakers
and the point of listening form an isosce-
les triangle (Ratio 1 : 1.5).
Note: For best results align the tweeter at ear level.
Recommended wall distance approx. 10 - 50 cm,
depending on the model
7
PIEGA User Manual
On-Wall Installation
You can use the wall bracket (available as an accessory) to mount the satellite loudspeakers either on the wall
or ceiling and thus use it as a rear or side speaker for both diffused and direct sound. The brackets are also
used when installing the loudspeakers for a room sound system. A special bracket is also available (as an ac-
cessory) for mounting the center loudspeakers on walls.
Note: For mounting the wall brackets consult a specialist such as your authorized
PIEGA dealer if necessary.
- Remove the Allen screw on the rear of the
loudspeaker
- Fasten the base plate (1) to the wall with
the screws (4)
- Assemble the fixing ring (2) and the ball joint
and fit on the loudspeaker
- Fasten the ball joint/fixing ring onto the base
plate (1) with the screws (5)
- Position the loudspeaker and fasten with
the screws (5)
- Fasten the bracket to the wall
- Slightly unscrew the hexagon screws on the
loudspeaker
- Fit the center loudspeaker on the wall bracket
- Re-tighten the hexagon screws
Wall bracket for center speakers
Ball-jointed wall bracket for satellite loudspeakers
8
PIEGA User Manual
Connecting the Loudspeakers
The terminal for single wiring applications is provided at the back of the loudspeaker. This is used for connect-
ing standard loudspeaker cables with banana plugs or with a lead. Ideally, PIEGA loudspeakers should be con-
nected with the CableONE or CableTHREE loudspeaker cable which is available as an accessory.
Connection:
Ensure that the electronic components are switched
off before making the connection.
PIEGA loudspeakers must only be connected to elec-
tronic components with the amplifier outputs recom-
mended by PIEGA. Observe the specifications of the
amplifier manufacturer. Contact your dealer if you are
unsure whether the connection is permissible.
The loudspeakers have an impedance of 4 Ohms and
can therefore be connected to any standard amplifier.
Contact your specialist dealer concerning this.
Connect the PIEGA loudspeaker to your amplifier or
receiver using suitable cables as shown in the figure.
Ideally, use the CableONE or CableTHREE loudspeak-
er cable (optional) with banana plugs or standard
loudspeaker cables with a lead.
Important:
Ensure the poles are connected correctly! A com-
pletely diffuse sound with a weak bass will be pro-
duced if the plus and minus poles are incorrectly con-
nected.
Active variant:
For PIEGA loudspeakers with the Active module op-
tion, please contact your retailer.
Pass the wires fully through the opening
Fully insert the banana plugs up to the stop
9
PIEGA User Manual
Running in the Loudspeakers
As a loudspeaker is basically a mechanical transducer consisting of several different components, the individ-
ual elements must be run in during the initial weeks. This will ensure that the sound quality potential of your
loudspeakers is fully utilized. You will definitely notice the resulting improvement in sound.
Recommendations:
In the first days and weeks listen only at normal
volume.
Avoid very high volume levels during initial phase.
Listen to a wide range of programme material.
Limit range:
The recommended amplifier output is, depending on
the model, 20 – 250 Watt. It must be ensured that
the volume must only be turned up far enough for
the ear to register an overload.
If the loudspeaker chassis become damaged after a
long period of overload, this can be detected beyond
any doubt by PIEGA service technicians. In these
cases, PIEGA is not liable for any warranty claims.
Note:
Excessively loud music can damage your health.
Listen to music at an acceptable volume level for the
sake of your health.
