Phoenix Gold MX12D2 Manual de usuario
Subwoofer Manual
Features
Models: MX12D2, MX12D4
MX10D2, MX10D4
• 11mm of Linear Excursion
• Dual 2 Ohm or 4 Ohm Voice Coil models
• 12” or 10” versions
• High Excursion CAE/CAD Motor Design
• KlaraForm Vented Kapton Former technology
reduces distortion by reducing heat and resistance
• Glass Fiber Reinforced Cone for Increased Low End
© 2020 Phoenix Gold • www.phoenixgold.com
• Phoeniroll Surround Technology promotes
linear motion
• Torriform Voice Coil Technology:
Effectively dissipates heat and minimizes distortion
• Nickel Plated 12 Gauge Speaker Terminal
• Optimized for Sealed Enclosures
• Powder Coated Anti-Resonant Steel Basket
Subwoofer Owner’s Manual
© 2020 Phoenix Gold • www.phoenixgold.com
Enclosure Recommendations
SEALED MX10D2 MX10D4
MX12D2
MX12D4
Rock / Punchy Bass (cu. Ft.) 0.5 0.5 0.5 0.5
Neutral / Good All Around 0.75 0.75 0.75 0.75
Hip Hop / Low Bass / (cu. Ft.) 1.0 1.0 1.0 1.0
Enclosure recommendations already include driver and / or port displacement.
Specications
T/S Parameter MX10D2 MX10D4 MX12D2 MX12D4
Impedance (Ohm) Dual 2 Ohm Dual 4 Ohm Dual 2 Ohm Dual 4 Ohm
Znom (Ohm) 2.0 x 2 3.6 x 2 2.0 x 2 3.6 x 2
Revc (Ohm) 1 1.8 1 1.8
FS (Hz) 50.9 51.6 38 40.7
Sd (SqM) 0.034 0.034 0.051 0.051
BL (TM) 6.02 7.9 5.96 8.24
Qms 4.105 3.27 3.514 3.3
Qes 1.085 1.09 1.049 1.217
Qts 0.858 0.819 0.808 0.889
Vas (L) 13.54 15.23 41.68 35.097
Cms (uM/N) 79.45 81.37 112.5 94.76
Mms (gms) 123.228 116.8 155.88 161.46
SPL (dB) 84 85 85 85
Voice Coil Diameter 2in - 50mm 2in - 50mm 2in - 50mm 2in - 50mm
RMS Power Handling 300 watts 300 watts 300 watts 300 watts
PEAK Power Handling 600 watts 600 watts 600 watts 600 watts
Xmax (Linear) 11mm 11mm 11mm 11mm
Driver Displacement (cf) 0.037 0.037 0.040 0.040
Overall Diameter 10.35in - 263mm 10.35in - 263mm 12.5in - 318mm 12.5in - 318mm
Mounting Diameter 9.25in - 234mm 9.25in - 234mm 11.10in - 282mm 11.10in - 282mm
Mounting Depth 3.63in - 92mm
3.63 in - 92mm
4.10in - 104mm 4.10in / 104mm
© 2020 Phoenix Gold • www.phoenixgold.com
Subwoofer Owner’s Manual
Enclosure Examples
Sealed Enclosure / 0.5cu.ft
Sealed Enclosure / 0.75cu.ft
Sealed Enclosure / 1.0cu.ft
External Dimensions
A = 13 in
B = 21.35 in
C = 5.5 in
External Dimensions
A = 13 in
B = 31.55 in
C = 5.5 in
External Dimensions
A = 13 in
B = 40.14 in
C = 5.5 in
A
B
C
A
B
C
A
B
C
MX10
Qtc = 0.825
F3 = 59.9 Hz
MX10
Qtc = 0.779
F3 = 57.79 Hz
MX10
Qtc = 0.753
F3 = 56.85 Hz
MX12
Qtc = 0.991
F3 = 55.77 Hz
MX12
Qtc = 0.905
F3 = 51.06 Hz
MX12
Qtc = 0.852
F3 = 48.65 Hz
Detail Size Quantity
Top/Bottom 5.5” x 21.35” 2
Front/Rear 11.5” x 19.85” 2
Left/Right 5.5” x 11.5” 2
Detail Size Quantity
Top/Bottom 5.5” x 31.55” 2
Front/Rear 11.5” x 30.05” 2
Left/Right 5.5” x 11.5” 2
Detail Size Quantity
Top/Bottom 5.5” x 40.14” 2
Front/Rear 11.5” x 38.64” 2
Left/Right 5.5” x 11.5” 2
Vb = 0.5 cu.ft
V(total) = 0.53 cu.ft
Vb = 0.75 cu.ft
V(total) = 0.80 cu.ft
Vb = 1.0 cu.ft
V(total) = 1.035 cu.ft
CUBIC FEET
CUBIC FEET
CUBIC FEET
0.5
0.75
1.0
Material Thickness: 0.75 in
Material Thickness: 0.75 in
Material Thickness: 0.75 in
Subwoofer Owner’s Manual
© 2020 Phoenix Gold • www.phoenixgold.com

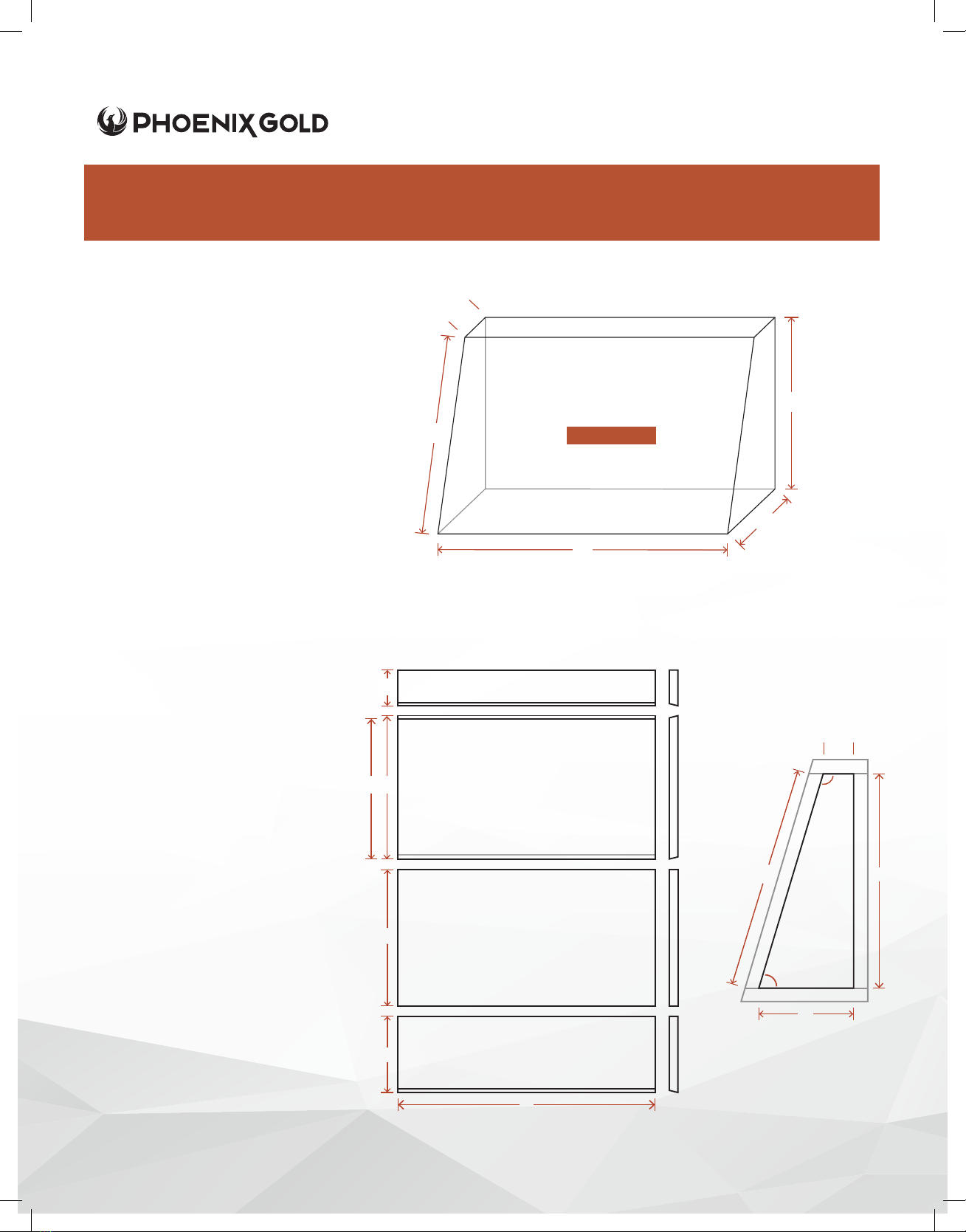

Sealed Slanted Enclosure / 0.5cu.ft
Properties/Parameters
A
C
B
E
D
G
H
TOP
FRONT
BACK
BOTTOM
d
e
a
c
b
m
n
a
h
k
n
g
MX10
Qtc = 0.825
F3 = 59.9 Hz
Vb = 0.5 cu.ft / V(total) = 0.53 cu.ft
MX12
Qtc = 0.991
F3 = 55.77 Hz
CUBIC FEET
0.5
External Dimensions
A = 14 in
B = 19.84 in
C = 7 in
D = 4 in
E = 14.32 in
Enclosure Details:
Material Thickness: 0.75 in
Top:
height (d) = 4.161 in
width (b) = 19.84 in
cut angle (front edge only) = 12.09°
Front:
total height (e) = 12.94 in
exposed surface height (n) = 12.78 in
width (b) = 19.84
top/bottom cut angles = ± 12.09°
Back:
height (a) = 12.5 in
width (b) = 19.84
Bottom:
height (c) = 7 in
width (b) = 19.84
cut angle (front edge only) = 12.09°
Sides (2):
top depth (k) = 2.644 in
height (a) = 12.5 in
bottom depth (m) = 5.322 in
front length (n) = 12.78 in
Angle g = 102.1°, Angle h = 77.91°
Angles
G = 102.1°
H = 77.91°
© 2020 Phoenix Gold • www.phoenixgold.com
Subwoofer Owner’s Manual
Sealed Slanted Enclosure / 0.75cu.ft
Properties/Parameters
A
C
B
E
D
G
H
TOP
FRONT
BACK
BOTTOM
d
e
a
c
b
m
n
a
h
k
n
g
MX10
Qtc = 0.779
F3 = 57.79 Hz
Vb = 0.75 cu.ft / V(total) = 0.80 cu.ft
MX12
Qtc = 0.905
F3 = 51.06 Hz
CUBIC FEET
0.75
External Dimensions
A = 14 in
B = 29.27 in
C = 7 in
D = 4 in
E = 14.32 in
Enclosure Details
Material Thickness: 0.75 in
Top:
height (d) = 4.161 in
width (b) = 29.27 in
cut angle (front edge only) = 12.09°
Front:
total height (e) = 12.94 in
exposed surface height (n) = 12.78 in
width (b) = 29.27
top/bottom cut angles = ± 12.09°
Back:
height (a) = 12.5 in
width (b) = 29.27
Bottom:
height (c) = 7 in
width (b) = 29.27
cut angle (front edge only) = 12.09°
Sides (2):
op depth (k) = 2.644 in
height (a) = 12.5 in
bottom depth (m) = 5.322 in
front length (n) = 12.78 in
Angle g = 102.1°, Angle h = 77.91°
Angles
G = 102.1°
H = 77.91°
Subwoofer Owner’s Manual
© 2020 Phoenix Gold • www.phoenixgold.com
Sealed Slanted Enclosure / 1.0cu.ft
Properties/Parameters
A
C
B
E
D
G
H
TOP
FRONT
BACK
BOTTOM
d
e
a
c
b
m
n
a
h
k
n
g
MX10
Qtc = 0.753
F3 = 56.85 Hz
Vb = 1.0 cu.ft / V(total) = 1.035 cu.ft
MX12
Qtc = 0.852
F3 = 48.65 Hz
CUBIC FEET
1.0
External Dimensions
A = 14 in
B = 37.01 in
C = 7 in
D = 4 in
E = 14.32 in
Enclosure Details:
Material Thickness: 0.75 in
Top:
height (d) = 4.161 in
width (b) = 37.01 in
cut angle (front edge only) = 12.09°
Front:
total height (e) = 12.94 in
exposed surface height (n) = 12.78 in
width (b) = 37.01
top/bottom cut angles = ± 12.09°
Back:
height (a) = 12.5 in
width (b) = 37.01
Bottom:
height (c) = 7 in
width (b) = 37.01
cut angle (front edge only) = 12.09°
Sides (2):
top depth (k) = 2.644 in
height (a) = 12.5 in
bottom depth (m) = 5.322 in
front length (n) = 12.78 in
Angle g = 102.1°, Angle h = 77.91°
Angles
G = 102.1°
H = 77.91°
© 2020 Phoenix Gold • www.phoenixgold.com
Subwoofer Owner’s Manual

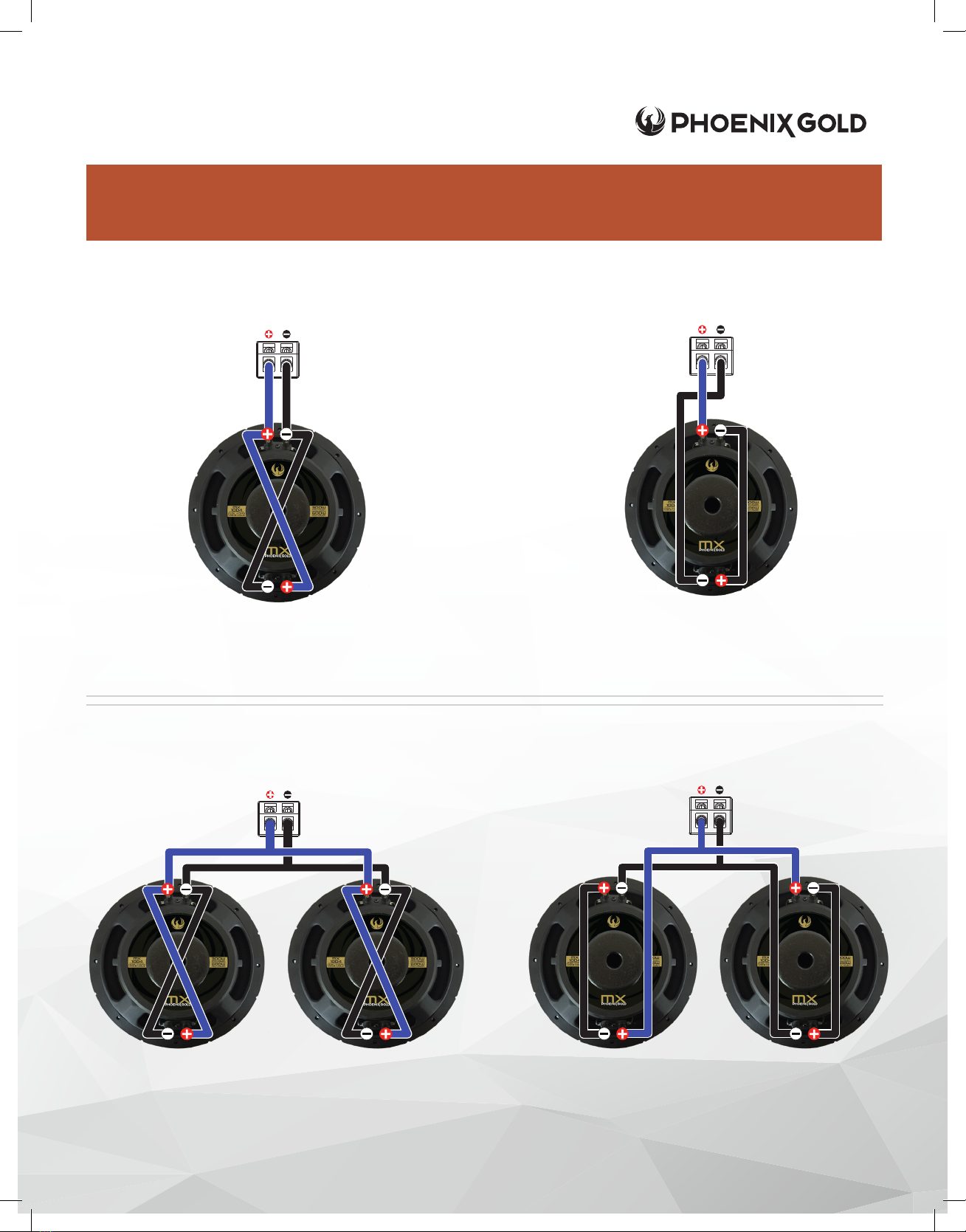

Speaker Wiring Diagrams
SINGLE SUBWOOFER SYSTEM
WIRED IN PARALLEL
DUAL SUBWOOFER SYSTEM
WIRED IN PARALLEL
DUAL SUBWOOFER SYSTEM
WIRED IN SERIES-PARALLEL
SINGLE SUBWOOFER SYSTEM
WIRED IN SERIES
MX12D2 / MX10D2 = 1 OHM
MX12D4 / MX10D4 = 2 OHM
MX12D2 / MX10D2 = 1/2 OHM
MX12D4 / MX10D4 = 1 OHM
MX12D2 / MX10D2 = 2 OHM
MX12D4 / MX10D4 = 4 OHM
MX12D2 / MX10D2 = 4 OHM
MX12D4 / MX10D4 = 8 OHM
Subwoofer Owner’s Manual
© 2020 Phoenix Gold • www.phoenixgold.com
Phoenix Gold
A Power Brand of AAMP Global.
Clearwater, Florida
P: 866-788-4237
Designed and Engineered in the USA
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SUBWOOFERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1)
years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser
from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under
this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion),
repair or replace the defective product with new or remanufactured product at no charge. Damage caused
by the following is not covered under warranty: accident, misuse, abuse, burnt voice coils, used as door stops
,salad bowls or hats, product modication or neglect, failure to follow installation instructions, unauthorized repair
attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and
does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear
and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix
Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must
contact that country’s reseller for information.
REV: 072920
