Phoenix Contact QUINT4-PS/12DC/24DC/5/PT Manual de usuario
1 Description
DC/DC converter
QUINT4-PS/12DC/24DC/5/PT
© PHOENIX CONTACT
Data sheet
QUINT POWER DC/DC converters with SFB Technology
and preventive function monitoring ensure superior system
availability.
Powerful
– SFB Technology: 6 times the nominal current for 15ms
– Power reserves:
Static boost of up to 125%(PN) for a sustained period
Dynamic boost of up to 200%(PN) for 5s
Preventive
– Comprehensive signaling:
Analog signal, digital signal, relay contact, LED bar
graph
Flexible connection technology
– Tried-and-tested screw connection
– Fast Push-in connection
Technical data (short form)
Input voltage range 12 VDC -25% ... +40%
Mains buffering typ. 4 ms (12VDC)
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage
(USet)
24 VDC ... 29.5 VDC
Nominal output current (IN)
Static Boost (IStat.Boost)
Dynamic Boost (IDyn.Boost)
Selective Fuse Breaking (ISFB)
5 A
6.25 A
10 A (5 s)
30 A (15 ms)
Output power (PN)
Output power (PStat. Boost)
Output power (PDyn. Boost)
120 W
150 W
240 W (5 s)
Efficiency typ. 91.3 % (24VDC)
Residual ripple < 20 mVPP
MTBF (IEC 61709, SN 29500) > 930000 h (40°C)
Ambient temperature (operation) -25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2,5 %/K
Dimensions W/H/D 36 mm / 130 mm / 125 mm
Weight 0.6 kg
All technical specifications are nominal values and refer to a room temperature of 25 °C and 70 % relative humidity
at 100 m above sea level.
109369_en_00 2021-11-03
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 2/49
2 Table of contents
1 Description .............................................................................................................................. 1
2 Table of contents..................................................................................................................... 2
3 Ordering data .......................................................................................................................... 3
4 Technical data ......................................................................................................................... 5
5 Safety and installation notes.................................................................................................. 15
6 High-voltage test (HIPOT) ..................................................................................................... 17
7 Structure of the power supply ................................................................................................ 18
8 Mounting/removing the power supply.................................................................................... 21
9 Device connection terminal blocks ........................................................................................ 25
10 Output characteristic curves .................................................................................................. 26
11 Configuring the power supply ................................................................................................ 29
12 Boost currents ....................................................................................................................... 30
13 SFB Technology.................................................................................................................... 32
14 Signaling................................................................................................................................ 36
15 Operating modes................................................................................................................... 44
16 Derating................................................................................................................................. 46
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 3/49
Description Type Item no. Pcs./Pkt.
Primary-switched DC/DC converter, QUINT POWER, DIN
rail mounting, SFB Technology (Selective Fuse Breaking),
Push-in connection, input: 12 VDC , output: 24 VDC / 5 A
QUINT4-PS/12DC/24DC/5/
PT
2910124 1
3 Ordering data
Accessories Type Item no. Pcs./Pkt.
Universal wall adapter for securely mounting the device in
the event of strong vibrations. The device is screwed
directly onto the mounting surface. The universal wall
adapter is attached on the top/bottom.
UWA 182/52 2938235 1
2-piece universal wall adapter for securely mounting the
device in the event of strong vibrations. The profiles that
are screwed onto the side of the device are screwed
directly onto the mounting surface. The universal wall
adapter is attached on the left/right.
UWA 130 2901664 1
Near Field Communication (NFC) programming adapter
with USB interface for the wireless configuration of NFC-
capable products from PHOENIX CONTACT with
software. No separate USB driver is required.
TWN4 MIFARE NFC USB
ADAPTER
2909681 1
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-4A NO 2906031 1
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-10A NO 2906032 1
Multi-channel electronic circuit breaker with IO-Link
interface for protecting four loads at 24VDC in the event
of overload and short circuit. With electronic locking of the
set nominal currents. For installation on DIN rails.
CBMC E4 24DC/1-4A+ IOL 2910410 1
Multi-channel electronic circuit breaker with IO-Link
interface for protecting four loads at 24VDC in the event
of overload and short circuit. With electronic locking of the
set nominal currents. For installation on DIN rails.
CBMC E4 24DC/1-10A IOL 2910411 1
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 4/49
Multi-channel, electronic circuit breaker with active
current limitation for protecting four loads at 24 V DC in the
event of overload and short circuit. With nominal current
assistant and electronic locking of the set nominal
currents. For installation on DIN rails.
CBM E4 24DC/0.5-10A NO-R 2905743 1
Multi-channel, electronic circuit breaker with active
current limitation for protecting eight loads at 24 V DC in
the event of overload and short circuit. With nominal
current assistant and electronic locking of the set nominal
currents. For installation on DIN rails.
CBM E8 24DC/0.5-10A NO-R 2905744 1
The range of accessories is being continuously extended. The current range of accessories can be found in
the download area for the product.
Accessories Type Item no. Pcs./Pkt.
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 5/49
4 Technical data
Input data
Unless otherwise stated, all data applies for 25°Cambient temperature, 12VDC input voltage, and nominal
output current (IN).
Input voltage range 12 VDC -25% ... +40%
Electric strength, max. 25 VDC (60 s)
Current draw typ. 14 A (12VDC)
Mains buffering typ. 4 ms (12VDC)
Switch-on time < 1 s
Typical response time from SLEEP MODE 300 ms
Inrush current limitation 2 A
Inrush current integral (I2t) < 0.07 A2s
Input fuse slow-blow, internal 30 A
During the first few microseconds, the current flow into the filter capacitors is excluded.
The SCCR value (short-circuit current rating) of the power supply unit corresponds to the SCCR value of the
backup fuse (see input protection table).
The external backup fuse must be approved for the (DC) supply voltage used and the voltage level.
Input protection , DC ( to be connected externally upstream )
Input current IIn
Input protection Circuit breaker Neozed fuse
or equivalent Power switch
Characteristics A B C D K gG ≤ 13 x IIn
(maximum magnetic tripping)
20 A - -
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 6/49

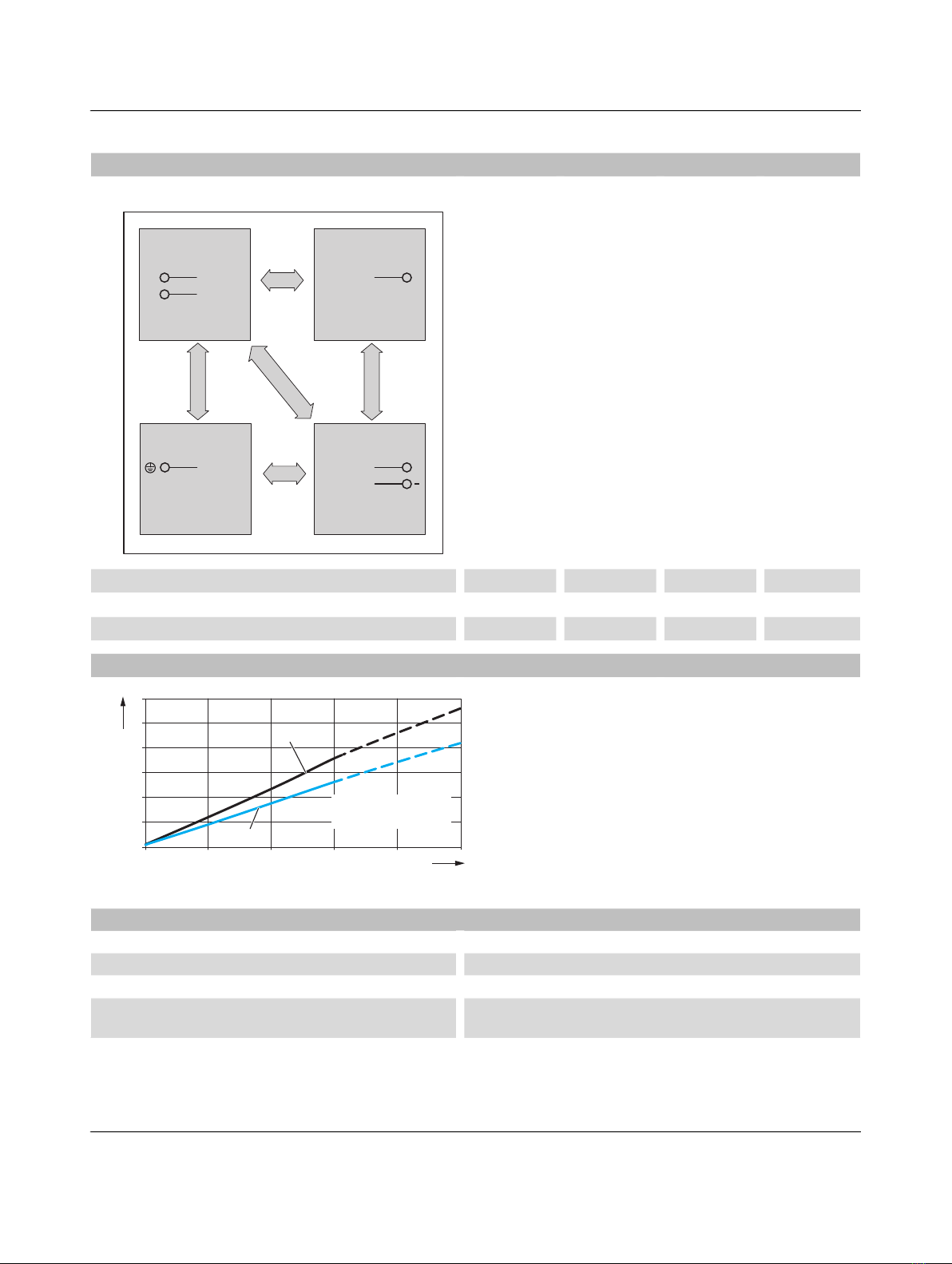

Electric strength of the insulation
A B C D
Type test ( IEC/EN61010-1 ) 2 kV DC 4 kV DC 0.5 kV DC 0.5 kV DC
Production test 2 kV DC 2 kV DC 0.5 kV DC 0.5 kV DC
Housing
Output
PE
Input Signaling
C
ABD
B
L
N
(+)
(-)
+
Input current vs. output current
0
0
5
10
15
20
25
30
246810
= UIn: 9 V DC/UOut: 24 V DC
= UIn: 12 V DC/UOut: 24 V DC
ij
ij
Ĵ
Ĵ
I
Out
[A]
IIn [A]
Input connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 6 mm²
Conductor cross section, flexible 0.2 mm² ... 6 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 4 mm²
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 7/49
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 4 mm²
Conductor cross section AWG 24 ... 10
Stripping length 10 mm
Input connection data
Output data
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage (USet) ( > 24VDC,
constant capacity )
24 VDC ... 29.5 VDC
Nominal output current (IN) 5 A
Static Boost (IStat.Boost) 6.25 A
Dynamic Boost (IDyn.Boost) 10 A (5 s)
Selective Fuse Breaking (ISFB) 30 A (15 ms)
Magnetic circuit breaker tripping A1 ... A4 / B2 / C1 ... C2 / Z1 ... Z4
Control deviation change in load, static 10 % ... 90 % < 1 %
Control deviation Dynamic load change 10 % ... 90 %,
10 Hz
< 2 %
Control deviation change in input voltage ±10 % < 0.1 %
Short-circuit-proof yes
No-load proof yes
Residual ripple < 20 mVPP
Connection in parallel yes, for redundancy and increased capacity
Connection in series yes
Feedback voltage resistance ≤ 35 VDC
Protection against overvoltage at the output (OVP) ≤ 32 VDC
Rise time typical < 1 s (UOUT (10 % ... 90 %))
Output connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 6 mm²
Conductor cross section, flexible 0.2 mm² ... 6 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 4 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 4 mm²
Conductor cross section AWG 24 ... 10
Stripping length 10 mm
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 8/49
LED signaling
POut > 100% LED lights up yellow, output power > 120W
POut > 75% LED lights up green, output power > 90W
POut > 50% LED lights up green, output power > 60W
UOut > 0.9xUSet LED lights up green
UOut < 0.9xUSet LED flashes green
UIn > 0.8 x UInNom LED off
UIn < 0.8 x UInNom LED lights up yellow
Signal contacts
Signal output Out1 (configurable)
Connection labeling 3.5 +
Digital 0/24VDC , 20 mA
Default UIN input voltage OK
Signal option Output voltage
Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Signal output Out2 (configurable)
Connection labeling 3.6 +
Digital 0/24VDC , 20 mA
Default Output power
Signal option Output voltage
Output current
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Analog 4 mA ... 20 mA ±5% ( Load ≤400Ω )
Signal option Output voltage
Output current
Output power
Signal output Relay13/14 (configurable)
Connection labeling 3.1, 3.2
Switch contact (floating) floating
Maximum contact load 24 VDC 1 A , 30 VAC 0.5 A
Default Output voltage
Signal option Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
UIN input voltage OK
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 9/49
Remote signal input (configurable)
Connection labeling 3.3 +
Function Output power ON/OFF (remote)
Default Output power ON (>40kΩ/24VDC/open bridge between REM
and SGnd)
Signal ground SGnd
Connection labeling 3.4 +
Function Signal ground
Reference potential to OUT1, OUT2, REM
Signal connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 1 mm²
Conductor cross section, flexible 0.2 mm² ... 1.5 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 0.75 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 1.5 mm²
Conductor cross section AWG 24 ... 16
Stripping length 8 mm
Reliability 24 VDC
MTBF (IEC 61709, SN 29500) > 1600000 h (25°C)
> 930000 h (40°C)
> 380000 h (60°C)
Life expectancy (electrolytic capacitors)
Output current (IOut)
24 VDC
2.5 A > 365000 h ( 40 °C )
5 A > 194000 h ( 40 °C )
5 A > 388000 h ( 30 °C )
The expected service life is based on the capacitors used. If the capacitor specification is observed, the
specified data will be ensured until the end of the stated service life. For runtimes beyond this time, error-free
operation may be reduced. The specified service life of more than 15 years is simply a comparative value.
Switching frequency Min. Max.
Auxiliary converter stage 190 kHz 220 kHz
Main converter stage 50 kHz 420 kHz
QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 10/49

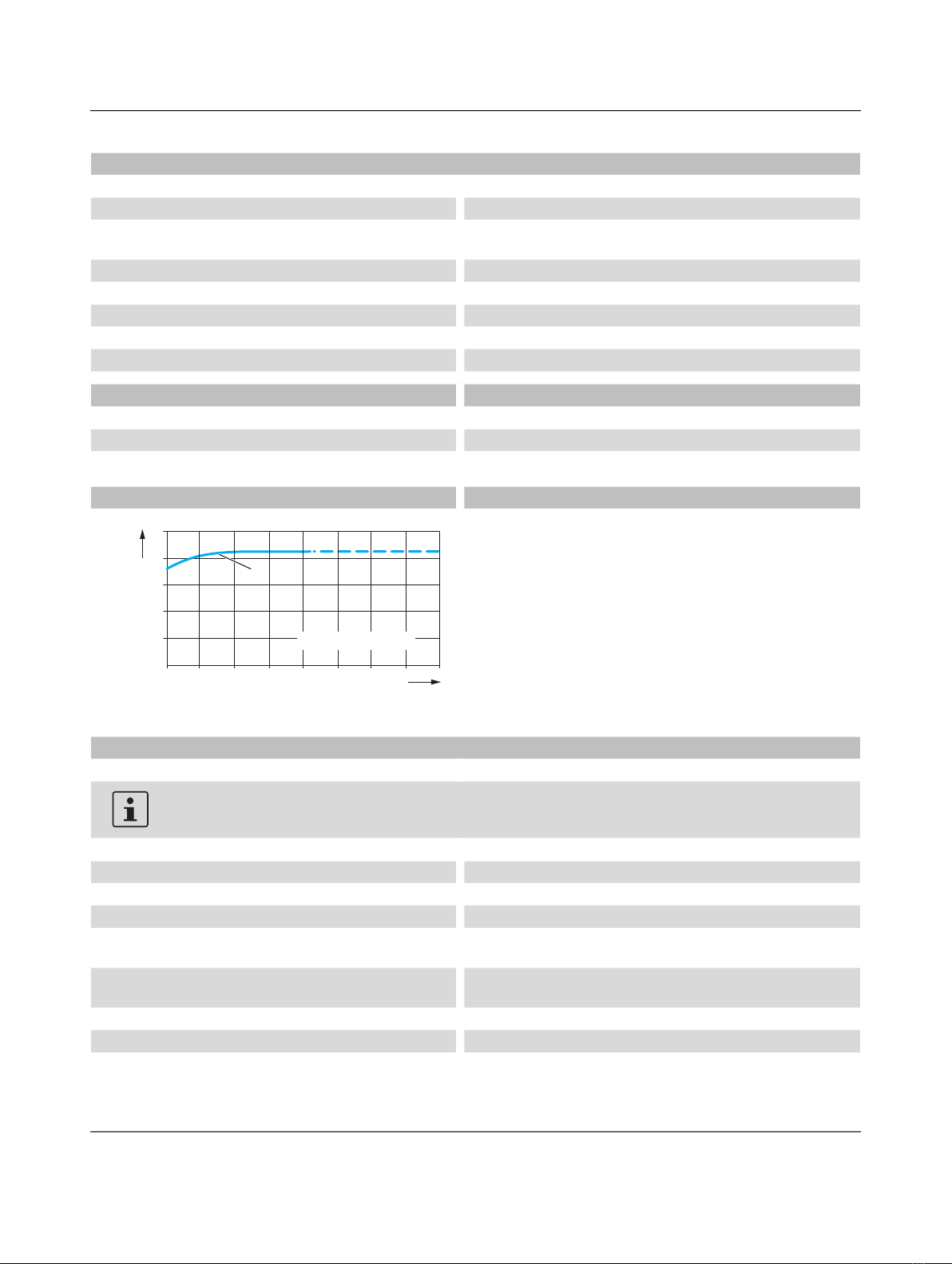

General data
Degree of protection IP20
Protection class Special with SELV input and output
Inflammability class in acc. with UL 94 (housing / terminal
blocks)
V0
Side element version Aluminum
Hood version Stainless steel X6Cr17
Dimensions W / H / D (state of delivery) 36 mm / 130 mm / 125 mm
Dimensions W / H / D (90° turned) 122 mm / 130 mm / 39 mm
Weight 0.6 kg
Power dissipation 24 VDC
Maximum power dissipation in no-load condition < 2 W
Power dissipation SLEEP MODE < 1 W
Power loss nominal load max. < 13 W
Efficiency 24 VDC
typ. 91.3 %
Eta [%]
IOut [A]
2
70
75
80
85
90
95
435678910
= UIn: 12 V DC/UOut: 24 V DC
ij
ij
Ambient conditions
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
The ambient temperature (operation) refers to IEC61010 surrounding air temperature.
Ambient temperature (start-up type tested) -40 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing)
Installation height ≤ 5000 m (> 2000 m, observe derating)
Vibration (operation) 5Hz ... 100Hz resonance search 2.3g, 90min., resonance
frequency 2.3g, 90min. (according to DNV GL Class C)
Shock 18 ms, 30g, in each space direction (according to IEC60068-
2-27)
Degree of pollution 2
Climatic class 3K3 (EN60721)
Overvoltage category
EN 61010-1
EN 62477-1
II
III
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Convertidor de medios de Phoenix Contact
Phoenix Contact
Phoenix Contact MACX MCR-SL-CAC-12-I-UP Guía de inicio rápido
Phoenix Contact
Phoenix Contact GW PN/DP 1E/1DB9 Manual de usuario
Phoenix Contact
Phoenix Contact PSI-MOS-RS422/FO1300 E Guía de inicio rápido
Phoenix Contact
Phoenix Contact PSM-ME-RS232 Guía de inicio rápido
Phoenix Contact
Phoenix Contact GW PN/DP 1E/1DB9 Manual de usuario
Phoenix Contact
Phoenix Contact QUINT4-PS/12-24DC/24DC/1.3/SC Manual de usuario
Phoenix Contact
Phoenix Contact GW PN/DP 1E/1DB9 Manual de usuario
Phoenix Contact
Phoenix Contact QUINT4-PS/48-110DC/24DC/2.5/ PT Manual de usuario
Phoenix Contact
Phoenix Contact FL MC EF 1300 MM SC Guía de inicio rápido
Phoenix Contact
Phoenix Contact FL MC 10BASE-T/FO G850 Manual de usuario
Phoenix Contact
Phoenix Contact GW PN/DP 1E/1DB9 Manual de usuario
Phoenix Contact
Phoenix Contact QUINT4-PS/12-24DC/24DC/1.3/PT Manual de usuario
Phoenix Contact
Phoenix Contact GW MODBUS TCP/ASCII 1E/1DB9 Manual de usuario
Phoenix Contact
Phoenix Contact FL MC 100BASE-T/FO G1300 Manual de usuario
Phoenix Contact
Phoenix Contact QUINT4-PS/12-24DC/5-15DC/2.5/ PT Manual de usuario
Phoenix Contact
Phoenix Contact QUINT-PS/24DC/24DC/5/CO Manual de usuario
Phoenix Contact
Phoenix Contact PSI-MOS-RS232/FO 850 E Manual de usuario
