EN User manual

LFH0652

Table of contents 2

Table of contents

1Welcome 3

Product highlights 3

2Important 4

Safety 4

Hearing safety 4

Disposal of your old product 4

3 Your Voice Tracer digital recorder 5

Whatʹs in the box? 5

Overview 6

4Getstarted 7

Insert the battery 7

Charge the battery 7

Power on/off 8

Keypad lock (HOLD function) 8

Using the Voice Tracer with a computer 8

5Record 9

Record with the built-in microphone 9

Record with an external microphone 10

Add index marks 10

6 Playback 11

Playback of a recording or music file 11

Playback functions 11

Repeated playback 12

7 Delete 14

Deleting files and index marks 14

8 Customize settings 15

9 Update the firmware 17

10 Frequently asked questions 18

11 Technical data 19

Welcome 3

Table of contents

1Welcome

Congratulations on your purchase and welcome to Philips! To fully

benefit from the support that Philips offers, visit our Website for

support information such as user manuals, software downloads,

warranty information and more:

www.philips.com

Product highlights

• ClearVoice – for dynamic enhancement of quiet recording passages

giving excellent speech intelligibility

• Instant one-touch recording – from power off to recording with a

single key press

• Record in the popular MP3 format

• Speedily transfer recordings and data via high-speed USB 2.0

• Voice-activated recording for hands-free note taking

• USB mass storage ensures maximum compatibility

• Organize recordings quickly and easily with four file folders

Important 4

Table of contents

2Important

Safety

• To avoid a short circuit, do not expose the product to rain or water.

• Do not expose the device to excessive heat caused by heating

equipment or direct sunlight.

• Protect the cables from being pinched, particularly at plugs.

• Back up your files. Philips is not responsible for any loss of data.

Hearing safety

Observe the following guidelines when using your

headphones:

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume higher as your hearing adapts.

• Do not turn up the volume so high that you can’t hear what’s around

you.

• You should use caution or temporarily discontinue use in potentially

hazardous situations.

• Do not use headphones while operating a motorized vehicle, cycling,

or skateboarding, etc. It may create a traffic hazard and is illegal in

many areas.

Important (for models supplied with headphones):

Philips guarantees compliance with the maximum sound power of its

audio players as determined by relevant regulatory bodies, but only

with the original model of provided headphones. If these headphones

need replacement, we recommend that you contact your retailer to

order a Philips model identical to that of the original.

Disposal of your old product

• Your product is designed and manufactured with high quality

materials and components that can be recycled and re-used.

• When this crossed-out wheeled bin symbol is attached to

a product, it indicates that the product is covered by the

European Directive 2002/96/EC.

• Become informed about your local separate collection

system for electrical and electronic products.

• Act according to your local rules and do not dispose of old products

with normal household waste. The correct disposal of old products

will help prevent potential negative consequences for the

environment and human health.

• Batteries (including built-in rechargeable batteries) contain

substances that may pollute the environment. All batteries should be

disposed of at an official collection point.

Your Voice Tracer digital recorder 5

Table of contents

3 Your Voice Tracer digital recorder

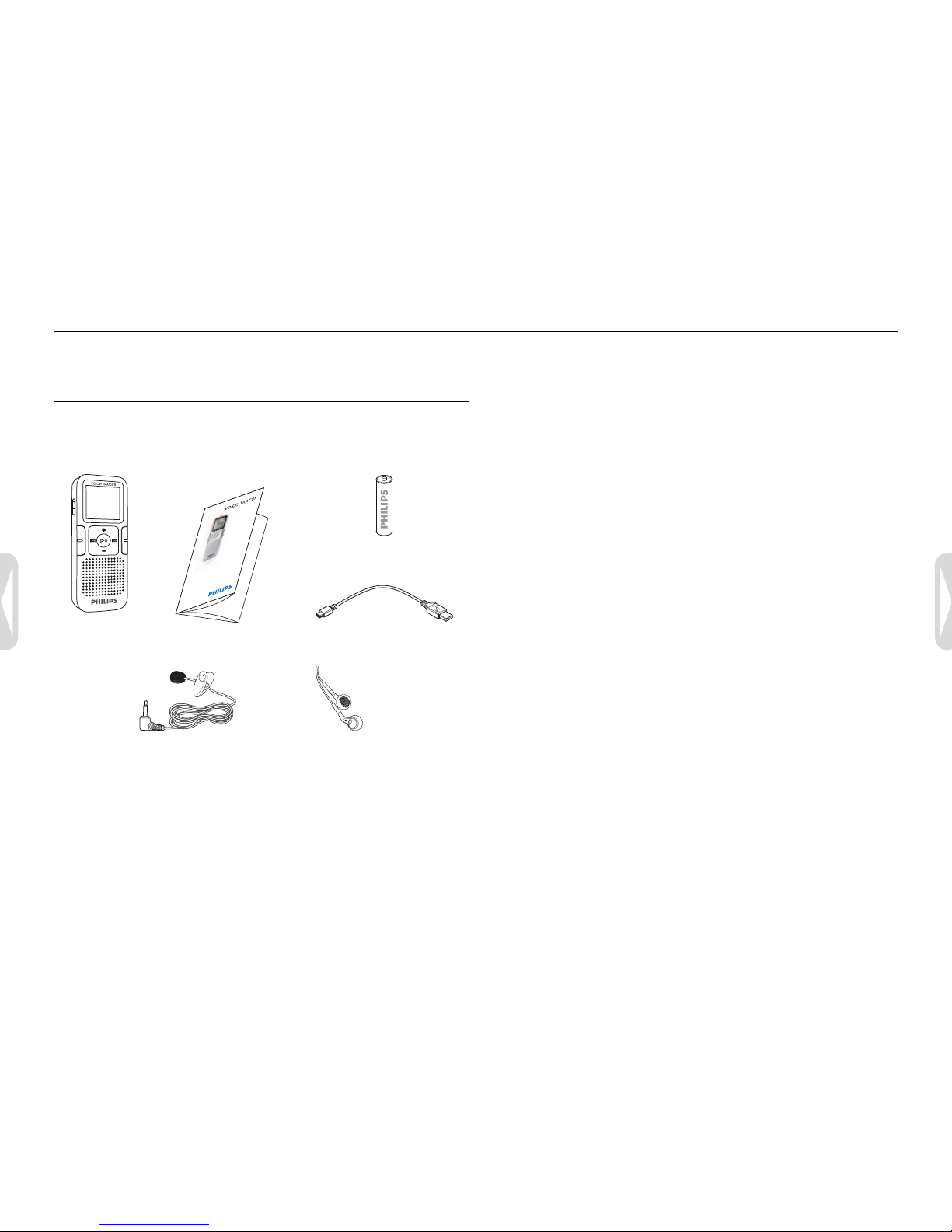

Whatʹs in the box?

Digital

recorder

battery

1 × AAA

www.philips.com/welcome

LFH0612

LFH0617

LFH0632

LFH0633

LFH0642

LFH0646

LFH0652

Quick start guide

Quick start guide USB cable

Clip-on microphone Stereo headphones

Your Voice Tracer digital recorder 6

Table of contents

Overview

j/DEL g

INDEX/a

Record/play indicator

Display

Hold switch

Index, Folder, Repeat (INDEX/a)

Fast rewind, File selection, Set menu option (h)

Menu (MENU)

Power on/off, Play/Pause, Play speed (f)

Speaker

Strap hole

Volume up, Menu item selection (+)

Record, Pause, Power On (g)

Fast forward, File selection,

Set menu option (b)

Stop, Display, Delete (j/DEL)

Volume down, Menu item selection (–)

Microphone jack (MIC)

USB socket

Headphones jack (EAR)

Integrated microphone

Get started 7

Table of contents

4Getstarted

Insert the battery

1Slide open the battery cover.

2Insert the battery as indicated. Make sure the polarity is correct.

3Close the cover again.

DNotes

• Remove the battery if you will not be using the Voice Tracer for an

extended period. The Voice Tracer could be damaged by a leaking

battery.

• If the Voice Tracer does not function properly, remove the battery

and re-insert it again.

• Stop the Voice Tracer before replacing the battery. Removing the

battery while the recorder is in use may corrupt the file.

• When the battery is nearly empty, the battery indicator blinks.

Charge the battery

The rechargeable battery Philips LFH9154 can be charged in the Voice

Tracer. When the Voice Tracer is connected to a computer, the

rechargeable battery is automatically charged. A complete recharge

cycle takes about 2.5 hours.

DNotes

• Only the supplied battery Philips LFH9154 can be charged.

• Fully charge the battery before first use.

• The computer must be ON when charging the batteries.

• If the USB port of the computer does not supply enough power

capacity, disable the charge function (for details see chapter 8,

Customize settings on page 15) and use an external battery charger.

AAA

Get started 8

Table of contents

Power on/off

1To power on, press the fbutton until the display shows a short

animation [ ].

2To power off, press the fbutton while the recorder is stopped

until the display shows BYE.

Keypad lock (HOLD function)

1Slide the HOLD switch up into the Hold position to lock the

keypad of the recorder.

• The display briefly shows ‘On Hold’ and turns off.

2Slide the HOLD switch down to the Off position to disengage the

keypad lock.

Using the Voice Tracer with a computer

As a USB mass storage device, the Voice Tracer offers a convenient

way to save, back up and move files. The Voice Tracer connects to a

computer using a USB connection and does not require special

software to be installed. The Voice Tracer is automatically displayed as

a removable drive.

DNotes

• Do not disconnect the Voice Tracer from the computer while files

are transferred from or to the recorder. The record /play

indicator flashes orange, when data is being transferred.

• Do not format the drive of the Voice Tracer on a computer.

Formatting on the Voice Tracer uses the correct file system and

automatically creates the required folders.

HOLD

Record 9

Table of contents

5Record

Please note the instructions in this section when you make the first

recording with your Voice Tracer!

Record with the built-in microphone

1Press the INDEX/abutton while the recorder is stopped to

select the desired folder.

2Press the gbutton to start recording.

• The record/play indicator lights red.

• Point the built-in microphone toward the sound source.

3To pause recording, press the gbutton.

• The record/play indicator will blink, and PAUSE will flash on the

display.

4Press the gbutton again to resume recording.

5To stop recording, press the j/DEL button.

DNotes

• Set the desired voice activation function and recording mode before

starting recording (see chapter 8, Customize settings on page 15 for

more information).

• Make a test recording to make sure that the Voice Tracer settings are

correct.

• Press and hold fduring recording to display the remaining

recording time.

•Pressbduring recording to create a new file.

• The maximum number of files in each folder is 99, for a total capacity

of 396 files (99 files x 4 folders).

• If the recording time exceeds the available capacity or the number of

files reaches 396, recording stops and FULL will be displayed.

Delete a few recordings or move them to a computer.

• Do not remove the battery when recording is in progress. This can

cause the unit to malfunction.

• If you are to start a long recording session, replace the batteries

before you begin.

Record 10

Table of contents

Record with an external microphone

To record with an external microphone, connect the microphone to

the microphone jack and follow the same procedure as for the built-in

microphone. The built-in microphone is switched off when an external

microphone is connected.

Add index marks

Index marks can be used to mark certain points in a recording as points

of reference (for example, to mark the start of a new subject of

discussion).

1Press the INDEX/abutton during recording to add an index

mark.

• The index number is displayed for one second.

DNotes

• The index icon indicates that the recording contains

index marks.

• Up to 32 index marks can be set per file.
