Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Video Cassette Recorder

VRB411AT

VRB611AT

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

CH3 CH4

OUT

ANT

AUDIO

VIDEO

OUT IN

OUT

75V

ANT /

CABLE

75V

ANT /

CABLE

6 Hookups without a Cable Box/Direct Broadcast System

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a

Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo

TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.

(The VRB611 is illustrated here. The VRB411 has single AUDIO IN/OUT jacks.)

ANTENNA IN

Jack

(on back of

TV)

Cable

(75 ohm)

Back of VCR

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

CH 4

CH 3

CH3 CH4

OUT

ANT

CH3 / CH4

Switch

CH3 CH4

AUDIO

VIDEO

OUT IN

OUT

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

75V

ANT/

CABLE

75V

ANT /

CABLE

CH3 CH4

OUT

ANT

AUDIO

VIDEO

OUT IN

OUT

RF coaxial cable

Antenna

or Cable

Connect the RF coaxial cable (supplied) to the OUT Jack on the back of the

VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever

channel is not used or least used in your area. Set the TV to the same channel. For

example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on

channel 03.

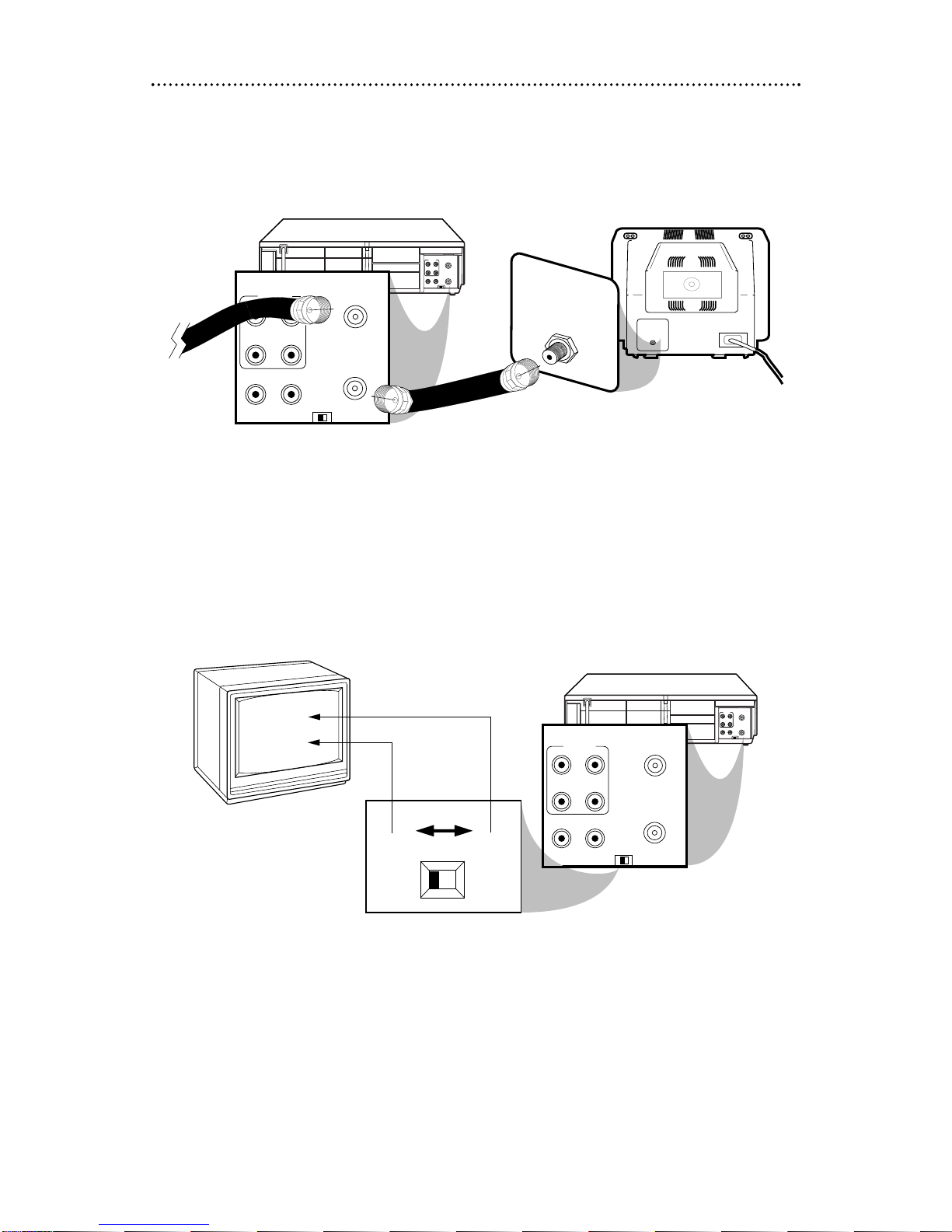

Hookups without a Cable Box/Direct Broadcast System (cont’d) 7

ANTENNA IN Jack

(on back of TV)

example only

Plug in the TV and the VCR.

You are ready to turn on the VCR. Please go to page 11 before turning on the

VCR.

8 Hookups with a Cable Box/Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the VCR. With this connection:

●You may view any channel.

●You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.

●You may not view a channel other than the one you are recording.

●You may not program channels at the VCR.

●You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS

output channel (channel 03 or 04). Set the CH3/CH4 switch to the same channel. Set your Cable Box/DBS to the

channel you want to record. When you enter the channel you want to record in a timer recording, select channel

03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 34.) Leave the Cable Box/DBS on for a timer

recording.

AUDIO

VIDEO

OUT IN

OUT

CH3 CH4

OUT

ANT

OUT

75V

ANT /

CABLE

TV’s

ANTENNA IN

Jack

Cable Box/DBS VCR

Recording/Viewing Any Channel

Connections

With the VCR on and in VCR position (the VCR light will appear on the display panel),

set the VCR to the Cable Box/DBS output channel (03 or 04).

Set the TV to the same channel to which you set the VCR. Set the CH3/CH4

switch on the VCR to the same channel.

Select the channel you want to view/record at the Cable Box/DBS.

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable Box/DBS to

the ANT(enna) IN Jack on the VCR.

Use a second RF coaxial cable to connect the OUT Jack on the VCR to the TV’s

ANTENNA IN Jack.

Cable

Signal RF coaxial

cable

RF coaxial

cable

Hookups with a Cable Box/Direct Broadcast System (cont’d) 9

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

IN OUT

75V

ANT /

CABLE

With this connection:

●You may watch one channel while recording another.

●You may not record scrambled channels.

Recording One Channel/Watching Another

Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4

switch. Set the TV to the Cable Box/DBS output channel (03 or 04).

Then, with the VCR in VCR position (the VCR light will appear on the

display panel), use the CH(annel) o/pbutton to select the chan-

nel you want to record at the VCR. Start the recording.

Press the VCR/TV button once to put the VCR in TV position.

(The VCR light will disappear.)

Select the channel you want to watch at the Cable Box/DBS.

To return to the channel you are recording, set the Cable Box/DBS to

the same channel as the VCR’s CH3/CH4 switch. Press the VCR/TV

button so that the VCR is in VCR position again. The VCR light will

appear on the display panel. The channel you are recording will appear

on the screen. Press the STOP/pbutton to stop recording.

TV’s ANTENNA

IN Jack

Cable Box/DBS

VCR

• When you play a tape, make sure

the Cable Box/DBS is set to the

same channel as the CH3/CH4

switch on the VCR. Set the TV to

the Cable Box/DBS output channel

(03 or 04).

Helpful Hint

Connect a Cable signal to the VCR’s ANT(enna) IN Jack.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the

VCR to the IN Jack on the Cable Box/DBS.

Use a second RF coaxial cable to connect the OUT Jack on the Cable

Box/DBS to the ANTENNA IN Jack on the TV.

Connections

Cable

Signal RF coaxial

cable

RF coaxial

cable

10 Hookups with a Stereo TV

●Audio and Video cables are not supplied.

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect

the other end of the video cable to the VIDEO IN Jack on your TV.

3VRB611

Connect a stereo audio cable to the red and white AUDIO OUT Jacks on the back of the

VCR. Then, connect the other end of the audio cable to the AUDIO IN Jacks on your TV.

Turn on your TV, making sure it is in Line Input mode. Please refer to your TV owner’s manual for details.

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Stereo Audio Cable

VIDEO (yellow) and

AUDIO (red and white)

OUT Jacks

Audio and Video

IN Jacks on TV

VRB611

3VRB411

Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. Then, connect

the other end of the audio cable to the AUDIO IN Jack on your TV.

(If your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver

audio to the TV’s right and left channels.) This hookup will not give you stereo sound. To get stereo sound, use

the connections on pages six - seven and select the channel to be viewed at the TV (with the VCR turned off).

CH3 CH4

OUT

ANT

VIDEO

OUT

AUDIO

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Audio Cable

VIDEO (yellow) and

AUDIO (white) OUT Jacks

Audio and Video

IN Jacks on TV

VRB411

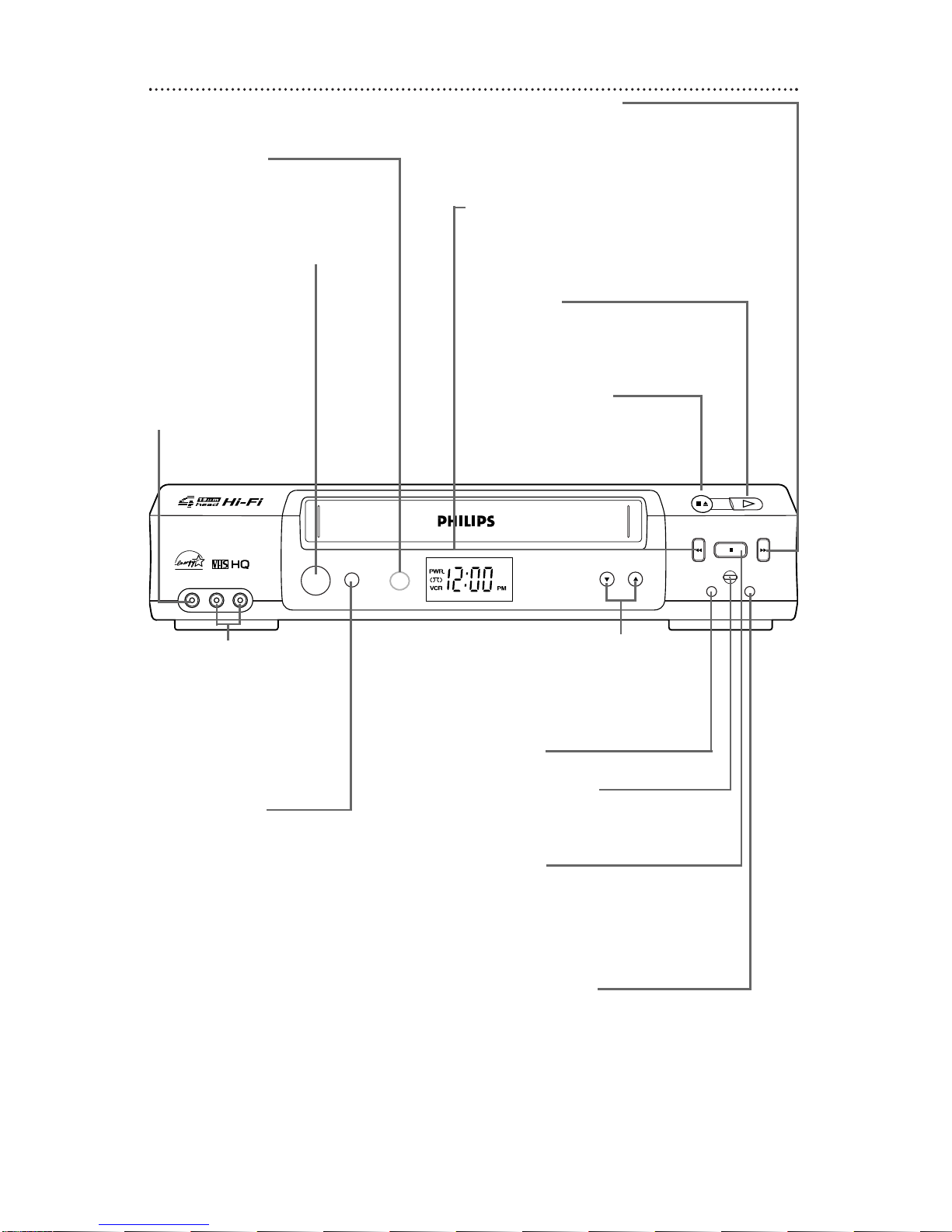

Front Panel 27

PAUSE Button

While recording, press to pause the recording.

Press again to resume recording. Details are on

page 30. You can not pause a One-Touch

Recording. During tape playback, press to freeze

the picture. Press again to resume playback.

Details are on page 41.

POWER Button

Press to turn the VCR power on and off.

VCR/TV Button

Press to select VCR or TV position.

●VCR Position

Use to watch a tape, to watch a program

while recording it, or to watch a TV pro-

gram (changing channels at the VCR).

When the VCR light appears on the dis-

play panel, the VCR is in VCR position.

●TV Position

Use to watch TV (changing channels at

the TV) or to watch one program while

recording another. When the VCR light

does not appear on the display panel, the

VCR is in TV position.

REC(ord)/OTR Button

Press once to start a recording. Press

repeatedly to start a One-Touch Recording.

Details are on page 32.

CHANNEL (p/o) Buttons

Press to change channels at the VCR.

Or, press to adjust the tracking of a

tape during normal playback or slow

motion playback. Also, press to

remove vertical jitter in a Still picture.

PLAY Button

Press to play a tape. Press to release

Slow, Search, or Still mode and return to

playback. Details are on page 41. Press to

select an item in the VCR menu.

REW(ind) Button

When playback is stopped, press to rewind the tape at

high speed. During playback, press to rewind the tape

while the picture stays on the screen. Details are on

page 41. Press to return to a previous VCR menu.

STOP/EJECT Button

Press once to stop the tape. When

playback is stopped, press to eject the

tape. Press to select an item in the

VCR menu.

F.FWD (Fast Forward) Button

When playback is stopped, press to fast forward the tape at high

speed. During tape playback, press to fast forward the tape while

the picture stays on the screen. Details are on page 41. Press to

select an item in the VCR menu or to change the setting of a

menu item.

STOP/EJECT

REC/OTR

MENU STATUS/EXIT

F.FWD

PAUSEREW

CHANNEL

POWER VCR/TV

PLAY

VIDEO L AUDIO R

Remote Sensor

Receives a signal from your

remote control so you can oper-

ate your VCR from a distance.

AUDIO In Jacks

Connect audio cables com-

ing from the audio out jacks

of a camcorder, another

VCR, or an audio source

here. Details are on page 37.

The VRB611 is shown here.

The VRB411 has only one

AUDIO In jack.

VIDEO In Jack

Connect a video cable

coming from the video

out jack of a camcorder,

another VCR, or an

audio-visual source (laser

disc player, video disc

player, etc.) here. Details

are on page 37.

VRB611

MENU Button

Press to access the VCR menu.

STATUS/EXIT Button

Press to access or remove the on-screen status display.

Details are on page 25. Press to exit on-screen menus.

28 Rear Panel

AUDIO IN Jack(s)

Connect audio cables coming from the AUDIO OUT Jacks of a

camcorder, another VCR, or an audio source here. Details are on

page 37.

The VRB611 is shown here. The VRB411 has only one AUDIO IN jack.

VIDEO IN Jack

Connect a video cable coming

from the VIDEO OUT Jack of a

camcorder, another VCR, or an

audio-visual source (laser disc

player, video disc player, etc.)

here. Details are on page 37.

ANT(enna) IN Jack

Connect your antenna or cable

here. Details are on pages six-10.

CH3/CH4 Switch

Set to channel 3 or 4

to use your TV with

your VCR. Details are

on pages six-nine.

OUT Jack

Use the supplied RF coaxi-

al cable to connect this

jack to the ANTENNA IN

Jack on your TV, Cable

Box, or Direct Broadcast

System. Details are on

pages six-nine.

VIDEO OUT Jack

Connect a video cable going to the VIDEO

IN Jack of a camcorder, another VCR, or

an audio-visual system (monitor, laser disc

player, video disc player, etc.) here. Details

are on pages 37 and 43.

AC Power Cord

Connect to a stan-

dard AC outlet to

supply power to the

VCR.

AUDIO OUT Jack(s)

Connect audio cables going to the AUDIO IN Jacks of

a camcorder, another VCR, or an audio system here.

Details are on pages 37 and 43.

The VRB611 is shown here. The VRB411 has only one

AUDIO OUT jack.

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

Make the connections shown above.

Rerecording (Tape Duplication) 37

VCR 2 will record your tape. Insert a blank tape in VCR 2.

The VCR must be in VCR position. (The VCR light will appear on

the display panel. If it does not, press the VCR/TV button once.)

Turn on the TV and set it to channel 03 or 04, whichever

channel the CH3/CH4 switch on VCR 2 is set to.

Point the remote control at VCR 2. Press the VCR but-

ton, then press Number buttons 0, 0, 1 or 0, 0, 2. (See

Helpful Hints at right.)

Press the SPEED button to select SP or SLP at VCR 2.

Press the PLAY button on VCR 1 and the REC(ord)/OTR

button on VCR 2 at the same time.

To stop recording, press the STOP/EJECT button on VCR 1, then

press the STOP/EJECT button on VCR 2.

VCR 1 will play your tape. Put a prerecorded tape in VCR 1.

• If you use the AUDIO and VIDEO

IN Jacks on the back of VCR 2,

press Number buttons 0, 0, 1. AV

REAR will appear on the screen.

(Blue Background should be set to

ON. Details are on page 46.)

• If you use the AUDIO and VIDEO

In Jacks on the front of VCR 2,

press Number buttons 0, 0, 2. AV

FRONT will appear on the screen.

(Blue Background should be set to

ON. Details are on page 46.)

• Unauthorized recording of copy-

righted television programs, video

tapes, or other materials may

infringe on the rights of copyright

owners and violate copyright laws.

• If a program has copyright protec-

tion, it may not record clearly.

• These instructions show you how to

copy tapes using two VCRs like

yours. Different VCRs may operate

differently.

• The VCR in the figure above is the

VRB611. If you have the VRB411,

use a single-plug audio cable to con-

nect the AUDIO OUT jack on VCR

1 to the AUDIO IN jack on VCR 2.

Helpful Hints

●Audio and Video cables are not supplied.

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

VIDEO

OUT

AUDIO

VCR 1

Playing VCR VCR 2 - Recording VCR

1. Audio cables from AUDIO OUT Jacks

of VCR 1 to AUDIO IN Jacks of VCR 2

2. Video cable from VIDEO OUT Jack

of VCR 1 to VIDEO IN Jack of VCR 2

3. RF coaxial cable

from the OUT jack of

VCR 2 to the TV’s

ANTENNA IN Jack

The instructions on this page show you how to copy tapes. The illustration uses two VRB611 VCRs. Different

VCRs may operate differently. To duplicate a tape, make the connections shown, then follow steps 1-7.

Otros manuales para VRB411AT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de VCR de Philips

Philips

Philips VR9010 Manual de usuario

Philips

Philips VRZ241AT Manual de usuario

Philips

Philips VR674CAT Manual de usuario

Philips

Philips VR530/07 Manual de usuario

Philips

Philips turbo drive VR550 Manual de usuario

Philips

Philips VR285/07 Manual de usuario

Philips

Philips ShowView VR286 Manual de usuario

Philips

Philips VR305 Manual de usuario

Philips

Philips TL24R/00T Manual de usuario

Philips

Philips VR 475 Manual de usuario

Philips

Philips 4-HEAD VIDEO CASSETTE RECORDER VR420CAT - Hook Up... Manual de usuario

Philips

Philips VR765 Manual de usuario

Philips

Philips VR 447 Manual de usuario

Philips

Philips VR588/50 Manual de instrucciones

Philips

Philips VR620/07 Manual de usuario

Philips

Philips VR 666 Manual de usuario

Philips

Philips VR 678/16 Manual de usuario

Philips

Philips MatchLine VR960BPH Manual de usuario

Philips

Philips VRX344AT Manual de usuario

Philips

Philips VPA115AT Manual de usuario

Philips

Philips VR151 Manual de usuario

Philips

Philips VR102 Manual de usuario

Philips

Philips VRX362AT Manual de usuario

Philips

Philips RT30A Manual de usuario

Manuales populares de Sistema de VCR de otras marcas

Toshiba

Toshiba M-662 Manual de usuario

Sony

Sony GV-500 Primary Manual de usuario

JVC

JVC HR-J282EU Manual de usuario

Sony

Sony HDCAM-SR SRW5800 Manual de usuario

Magnavox

Magnavox VRU242AT Manual de usuario

Sony

Sony HVR-M10C Manual de usuario

RCA

RCA VR634HF - Hi-Fi VCR Manual de usuario

JVC

JVC HR-5910U Manual de usuario

Panasonic

Panasonic ProLine AG-1320 Manual de usuario

JVC

JVC HR-S8600EU Manual de usuario

JVC

JVC HR-FS1U Manual de usuario

Sharp

Sharp VC-H9888U Manual de usuario

FUNAI

FUNAI LC-950 Manual de usuario

Sharp

Sharp VC-S2000GM Manual de usuario

Sony

Sony Video8 EV-A60 Manual de usuario

Panasonic

Panasonic Omnivision PV-V4523S Manual de usuario

Aiwa

Aiwa HV-E212 Manual de usuario

JVC

JVC HR-J3006UM Manual de usuario
