TAPE MANAGER

Tape Manager

Functions LOAD A RECORDED

CASSETTE

Insert a recorded cassette.

●While "– – – –" is blinking on the front display panel,

the tape will run for a few seconds to search for the

tape number.

ACCESS TITLE SCREEN

Press TAPE MANAGER.

●After pressing TAPE MANAGER, it may take a few

seconds to access the title screen while the recorder

searches for the programme information.

CHOOSE A PROGRAMME

Press %ﬁ(or 5∞) to

move the highlight bar

(pointer) to the

programme you want to

watch.

START PLAYBACK

Press OK. Playback begins automatically after the

selected programme is located.

●If you press

instead of OK, the editing screen will

appear. You can edit the programme title and

category (Zpg. 41).

Turn on the TV and select the AV mode.

This function is useful when you wish to quickly find out what

programmes you have recorded on a tape with this recorder.

This function allows you to select a programme to watch, and

then automatically searches for the start of the programme.

To start recording on the

blank portion of a tape

If you do not record programs consecutively, two tape

numbers will be recorded on one tape and the recorder

will not be able to search for the correct programme. To

continue recording on the blank portion of a tape, follow

the procedure described below:

1Press %ﬁ, and select a "BLANK" item on the program

title screen.

2Press OK. The recorder automatically searches for a

blank portion on the tape.

3After confirming that this is the tape on which you

really wish to record, begin recording.

PROG. +

PROG. –

TAPE MANAGER

TV PROG

OKOKOK

]0013 FOOTBALL '98 1/ 3

BLANK 1:25 (LS3)

22 : 00 26.02.99 BBC1

20 : 00 27.02.99 BBC2

BLANK 0 : 30 (LS3)

21 : 00 28.02.99 I-1

22 : 15 28.02.99 PR.07

21 : 00=22 : 30 1 : 30 (STD)

WORLD CUP '98 /SPORTS

[5∞] =

[

]

EDIT

[TAPE MANAGER]

EXIT

EN 39

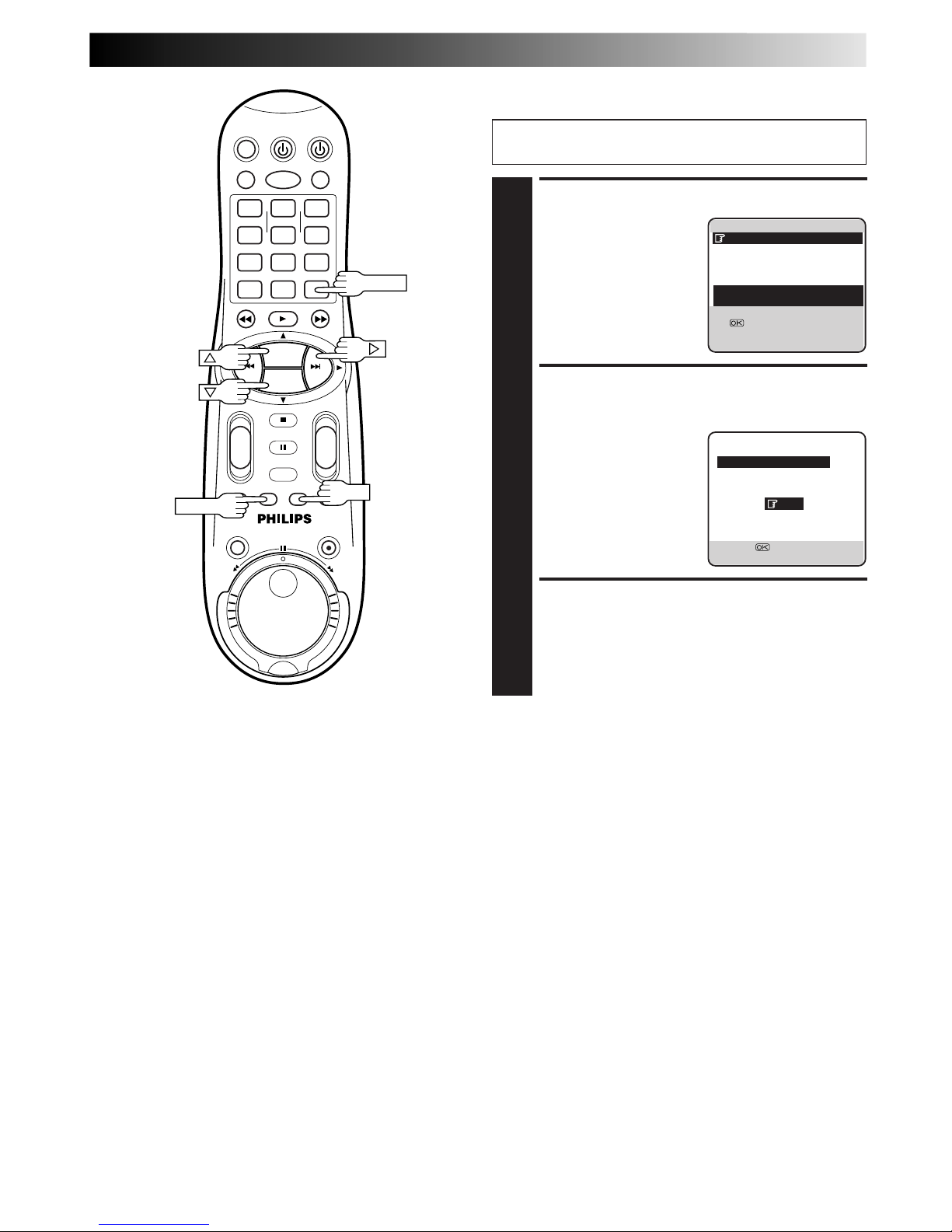

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS TAPE MANAGER

SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"TAPE MANAGER", then

press OK or

CHECK MEMORY

Press %ﬁto move the

highlight bar (pointer) to

"CHECKING MEMORY",

then press OK or

●The CHECKING

MEMORY screen will

appear.

RETURN TO NORMAL

SCREEN

Press MENU.

Checking Memory

You can check the amount of recorded information in the

memory.

MAIN MENU

MODE SET

AUTO CH SET

MANUAL CH SET

INITIAL SET

TAPE MANAGER

[5∞] =

[MENU] : EXIT

CHECKING MEMORY

0 100

[MENU] : EXIT

TAPE MANAGER

EDITING

SORTING

CHECKING MEMORY

TAPE MANAGER : ON

[5∞] =

[MENU] : EXIT

NOTES:

●

Tape Manager is possible with the cassettes recorded with this

recorder only.

●

To record the date and time as the programme title in this

recorder's memory, make sure the recorder's clock is set

correctly before recording.

●

To record the programme information in this recorder's

memory, you must record each programme for over the

minimum recording time; 10 min. for the D-VHS (STD) mode,

30 min. for the D-VHS (LS3) mode, 8 min. for the S-VHS/VHS

(SP) mode or 15 min. for the S-VHS/VHS (LP) mode.

●

Tape Manager may not work properly depending on the

cassette being used.

●

If the recorder finds two tape numbers in one tape while

playing back or searching for the beginning of a programme,

then when you remove the tape, the tape will be assigned just

one number (smaller number).

●

The programme information is stored in this recorder’s

memory. If the memory in this recorder should ever be

damaged and the programme information lost, it is impossible

to restore that information.

●

After recording a tape with this recorder, write the tape

number on a label and affix the label to the cassette in order

to allow you to find the tape by its number.

TURN OFF TAPE MANAGER

Press %ﬁto move the

highlight bar (pointer) to

"TAPE MANAGER", then

press OK or

to set to

"OFF".

RETURN TO NORMAL

SCREEN

Press MENU.

Turn Off Tape Manager

If you don't want to record information on the programmes, set

"TAPE MANAGER" to "OFF".

TAPE MANAGER

EDITING

SORTING

CHECKING MEMORY

TAPE MANAGER : OFF

[5∞] =

[MENU] : EXIT

Perform steps 1to 2of "Checking Memory" in the left

column before continuing.

40 EN

Title Editing

Turn on the TV and select the AV mode.

When you record a TV programme with this recorder, the

recorder automatically records the recording start time, date,

and channel in each programme title. If the tape is recorded for

the first time, the tape number and the date and time are

recorded in the tape title. You can then edit the tape title and

the programme titles as you like. You can also edit the category

in the programme title.

In short, you can use the Tape Manager function to create your

own video tape library.

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS TAPE MANAGER

SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"TAPE MANAGER", then

press OK or

ACCESS EDITING SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"EDITING", then press OK

SELECT TAPE NO.

Press %ﬁto move the

highlight bar (pointer) to

the number of the tape

whose title you want to

edit, then press OK or

●The "*" mark indicates the tape number of the

cassette that is currently in the recorder.

SELECT TAPE TITLE

Press %ﬁto move the

highlight bar (pointer) to

the tape number, then

press OK or

●The "*" mark indicates the current position on the

tape.

Edit Tape Title

TAPE MANAGER (cont.)

PROG. +

PROG. –

NUMBER

CLEAR

MAIN MENU

MODE SET

AUTO CH SET

MANUAL CH SET

INITIAL SET

TAPE MANAGER

[5∞] =

[MENU] : EXIT

TAPE MANAGER

EDITING

SORTING

CHECKING MEMORY

TAPE MANAGER : ON

[5∞] =

[MENU] : EXIT

]1/ 12

0115 MOVIE1

*0114 18.03.99 -

0113 25.02.99 -

0112 23.02.99 -

0111 MOVIE2

0110 BASEBALL

0108 05.09.98 -

0107 29.08.98 -

0106 BEST HIT

[5∞] =

[MENU]

EXIT

]0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1

21:00 28.02.99 I-1

*22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

[5∞]

= : EDIT

= [CLEAR] : DELETE ]

[MENU]

EXIT

EN 41

Edit Programme Title And

Category

SELECT PROGRAMME

Press %ﬁto move the

highlight bar (pointer) to

the programme you want

to edit, then press OK or

ENTER CHARACTER

Press NUMBER keys to enter characters, then press OK.

For details, refer to "Entering Character" in the left

column.

SELECT CATEGORY

Press %ﬁto move the

highlight bar (pointer) to

select the category you

want, then press OK or

RETURN TO NORMAL

SCREEN

Press MENU.

Perform steps 1to 4of "Edit Tape Title" on page 40 before

continuing.

ENTER CHARACTER

Press NUMBER keys to enter characters, then press OK.

For details, refer to "Entering Character" below.

RETURN TO NORMAL

SCREEN

Press MENU.]0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1

21:00 28.02.99 I-1

*22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD)

TITLE /CATEGORY

[5∞]

= : EDIT

= [CLEAR] : DELETE

[MENU]

EXIT

]0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1

21:00 28.02.99 I-1

*22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD)

WORLD CUP '98 /SPORTS

[5∞]: SELECT

: OK

[MENU]

EXIT

Entering Character

Press NUMBER key, then press

to enter each character.

Refer to the example below.

(Ex.) Enter "NEWS"

1Press 6 (MNO) twice to enter "N", then press

2Press 3 (DEF) twice to enter "E", then press

3Press 9 (WXYZ) once to enter "W", then press

4Press 7 (PQRS) four times to enter "S", then press

NOTES:

●

If you make a mistake, press

@ #

to select the character, then

enter the correct character.

●

If you want to delete a character, press

@ #

to select the

character, then press CLEAR.

Choice Of Category

CATEGORY %

% ﬁ

MOVIE

% ﬁ

SPORTS

% ﬁ

SPECIAL

% ﬁ

SERIES

% ﬁ

SHOW

% ﬁ

MUSIC

% ﬁ

CHILDREN

% ﬁ

NEWS

% ﬁ

OTHERS ﬁ

NUMBER KEY CHARACTER

1. , / – + *( ) 1

2A B C 2 Ä À Á Â Ã Å Æ

3D E F 3 È É Ë Ê

4G H I 4 Î Ï Ì Í

5J K L 5

6M N O 6 Ö Ô Ò Ó Õ Ø Ñ

7P Q R S 7

8T U V 8 Ü Ù Û Ú

9W X Y Z 9

00 _

42 EN

TAPE MANAGER (cont.)

Delete Tape Data

SELECT TAPE TITLE

Press %ﬁto move the

highlight bar (pointer) to

the tape number you want

to delete, then press

CLEAR.

DELETE TAPE DATA

Press %ﬁto move the

highlight bar (pointer) to

"YES", then press OK or

RETURN TO NORMAL

SCREEN

Press MENU.

Perform steps 1to 4of "Edit Tape Title" on page 40 before

continuing.

]0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1

21:00 28.02.99 I-1

*22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

[5∞]

= : EDIT

= [CLEAR] : DELETE ]

[MENU]

EXIT

]0114 18.03.99 -

DELETE

YES

[5∞] =

[MENU]

EXIT

PROG. +

PROG. –

CLEAR

EN 43

Delete Programme Data

SELECT PROGRAMME

Press %ﬁto move the

highlight bar (pointer) to

the programme you want

to delete, then press

CLEAR.

DELETE PROGRAMME

DATA

Press %ﬁto move the

highlight bar (pointer) to

"YES", then press OK or

RETURN TO NORMAL

SCREEN

Press MENU.

Perform steps 1to 4of "Edit Tape Title" on page 40 before

continuing.

NOTES:

●

When you delete data, only the tape and/or programme

information is deleted. The actual recording on the tape is not

erased.

●

If the recorder’s memory becomes full, the recorder registers

the tape in the library under the smallest tape number that is

still available.

]0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1

21:00 28.02.99 I-1

*22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD)

TITLE /CATEGORY

[5∞]

= : EDIT

= [CLEAR] : DELETE

[MENU]

EXIT

20:00 27.02.99 BBC2

DELETE

YES

[5∞] =

[MENU]

EXIT

PROG. +

PROG. –

CLEAR

44 EN

TAPE MANAGER (cont.)

Sorting By Tape Number

If you have recorded a lot of tapes with this recorder, this

function is useful for finding out what is recorded on each tape.

PROG. +

PROG. –

MAIN MENU

MODE SET

AUTO CH SET

MANUAL CH SET

INITIAL SET

TAPE MANAGER

[5∞] =

[MENU] : EXIT

TAPE MANAGER

EDITING

SORTING

CHECKING MEMORY

TAPE MANAGER : ON

[5∞] =

[MENU] : EXIT

SORTING

BY TAPE NO.

BY DATE

BY CATEGORY

[5∞] =

[MENU] : EXIT

]1/100

0999 BBC2 1900 28.12.99

0999 F1 BRAZIL 28.12.99

0999 007 GOLDE 25.12.99

0999 BBC1 2100 30.11.99

0998 ZDF 2100 28.11.99

0998 PR99 1000 01.01.00

0997 ARSENAL V 25.11.99

0996 BBC2 2300 24.11.99

0996 RA11 915 26.12.99

[

]

PAGE [MEMU] : EXIT

[5∞] = : EDIT

ACCESS SORTING SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"SORTING", then press OK

ACCESS TAPE NO. SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"BY TAPE NO.", then press

OK or

SELECT TAPE NO.

Press %ﬁto move the

highlight bar (pointer) to

the tape number you want

to select, then press OK.

●The editing screen will appear. You can edit the tape

title, or the programme title and category (Zpg. 40,

41).

RETURN TO NORMAL

SCREEN

Press MENU.

NOTE:

If you wish to play back the programme on the tape you have

found, insert the cassette and see the "Tape Manager Functions"

(

pg. 38) for the operation.

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS TAPE MANAGER

SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"TAPE MANAGER", then

press OK or

EN 45

ACCESS CATEGORY

SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"BY CATEGORY", then

press OK or

SELECT CATEGORY

Press %ﬁto move the

highlight bar (pointer) to

the category you want to

watch, then press OK or

SELECT TAPE NO.

Press %ﬁto move the

highlight bar (pointer) to

the tape number you want

to select, then press OK.

●The editing screen will appear. You can edit the tape

title, or the programme title and category (Zpg. 40,

41).

RETURN TO NORMAL

SCREEN

Press MENU.

Sorting By Category

If you have recorded a lot of tapes with this recorder, this

function is useful for finding out what category of programme is

recorded on the tape.

Perform steps 1to 3of "Sorting By Tape Number" on page

44 before continuing.

SORTING

BY TAPE NO.

BY DATE

BY CATEGORY

[5∞] =

[MENU] : EXIT

MOVIE

SPORTS

SPECIAL

SERIES

SHOW

MUSIC

CHILDREN

NEWS

OTHERS

– – – – – – – –

[5∞] =

[MENU] : EXIT

]MOVIE 1/ 2

0999 007 GOLDE25.12.99

0980 GUNDAM3 23.12.98

0979 GUNDAM2 21.12.98

0975 GUNDAM1 30.10.99

0960 ZDF 2100 28.11.97

0960 PR99 1000 01.01.00

0951 GODILLA 25.11.97

0926 CNN 115 06.06.98

0910 RA11 930 05.02.99

[

]

PAGE [MEMU] : EXIT

[5∞] = : EDIT

ACCESS DATE SCREEN

Press %ﬁto move the

highlight bar (pointer) to

"BY DATE", then press OK

SELECT TAPE NO.

Press %ﬁto move the

highlight bar (pointer) to

the tape number you want

to select, then press OK.

●The editing screen will appear. You can edit the tape

title, or the programme title and category (Zpg. 40,

41).

RETURN TO NORMAL

SCREEN

Press MENU.

Sorting By Date

If you have recorded a lot of tapes with this recorder, this

function is useful for searching for tape numbers sorted by date.

Perform steps 1to 3of "Sorting By Tape Number" on page

44 before continuing.

SORTING

BY TAPE NO.

BY DATE

BY CATEGORY

[5∞] =

[MENU] : EXIT

]1/100

0997 JAPAN VS 14.02.00

0993 LOST WORL 02.01.00

0998 PR99 1000 01.01.00

0999 FOOTBALL 28.12.99

0999 F1 BRAZIL 28.12.99

0996 RA11 2000 26.12.99

0999 007 GOLDE 25.12.99

0993 CNN 115 25.12.99

0999 BBC1 2000 30.11.99

[

]

PAGE [MEMU] : EXIT

[5∞] = : EDIT

46 EN

EDITING

Edit From

A Camcorder

NOTES:

●

All necessary cables can be obtained from your dealer.

●

You can also use another video recorder as the player instead

of a camcorder.

●

When you are editing through the DV IN connector, the

recorder will stop if the player begins playing a blank portion

of tape or the signal is interrupted.

PROG. +

PROG. –

PROG.+/–

NUMBER "0"

You can use a camcorder as the source player and your video

recorder as the recorder.

You can perform digital editing if the camcorder has a DV

output connector.

MAKE CONNECTIONS

If the camcorder has no S-VIDEO output connector...

... connect the camcorder’s AUDIO/VIDEO OUT

connectors to the recorder’s front panel AUDIO/

VIDEO input connectors.

If the camcorder has an S-VIDEO output connector...

... connect the camcorder’s S-VIDEO OUT and

AUDIO OUT connectors to the recorder’s front

panel S-VIDEO and AUDIO input connectors.

If the camcorder has a DV OUT connector...

... connect the camcorder’s DV OUT connector to

the recorder’s DV IN connector.

See "DV Sound Setting" (Zpg. 47) for the DV

sound selection.

●When using a mono camcorder, connect its AUDIO

OUT connector to the AUDIO L input connector on

your recorder.

●When a certain camcorder with Master Edit Control is

used, the camcorder is capable of controlling the

recorder. Refer to the camcorder’s instruction manual

for operating procedure.

SET RECORDING MODE

Set the appropriate recording mode (D-VHS, S-VHS or

VHS) (Zpg. 22, 23).

SET RECORDER’S INPUT

MODE

Press NUMBER key "0" and/or PROG. +/– to select

"F-1" for the AUDIO/VIDEO input connectors, "S-2" for

the AUDIO/S-VIDEO input connectors, or "I-1" for the

DV input connectors, depending on the connectors

being used.

START CAMCORDER

Engage its Play mode.

START RECORDER

Engage its Record mode.

EN 47

VIDEO OUT

Camcorder

VIDEO

input

Recorder

AUDIO OUT

Video Cable (not provided)

Player

AUDIO input

A If the camcorder has no S-VIDEO output connector...

S-VIDEO OUT

Camcorder

S-VIDEO

input

Recorder

AUDIO OUT

Audio Cable (not provided)

Player

B If the camcorder has an S-VIDEO output connector...

AUDIO input

S-Video Cable (provided)

Audio Cable (not provided)

DV Camcorder

Recorder

DV OUT

DV Cable

(not provided)

Player

C If the camcorder has a DV OUT connector...

DV IN

DV Sound Setting

Up to four audio signal channels can be input from a DV

camcorder through the DV IN connector (i.Link). This

recorder allows you to select and record two of these

channels. This setting is used to specify which two

channels to record.

1Press MENU to access the Main Menu screen.

2Move the highlight bar (pointer) to "MODE SET" by

pressing %ﬁ, then press OK or

3Move the highlight bar (pointer) to "DV SOUND" by

pressing %ﬁ, then press OK or

to select "SOUND1",

"SOUND2" or "FULL".

When there are four DV audio channels (32kHz):

SOUND 1: Records the two channels (L/R) of DV

SOUND 1.

SOUND 2: Records the two channels (L/R) of DV

SOUND 2.

FULL: Mixes and records both DV SOUND 1 and

When there are two DV audio channels (48kHz):

Because there are only two channels, those two

channels are recorded regardless of the DV sound

setting.

4Press MENU to return to the normal screen.

AV1 SELECT VIDEO

AV2 SELECT AV2

DV SOUND SOUND1

AUDIO REC NICAM

[5∞] =

[MENU] : EXIT

MODE SET

DSPC ON

O. S. D. ON

DIRECT RECORD ON

AUTO SP=LP TIMER OFF

DIGITAL 3R ON

POWER SAVE OFF

S-VHS AUTO

[5∞] =

[MENU] : EXIT

Tabla de contenidos

Otros manuales de Sistema de VCR de Philips

Philips

Philips VR175/02 Manual de usuario

Philips

Philips VR157/05 Manual de usuario

Philips

Philips VR303 Manual de usuario

Philips

Philips VR788/50 Instrucciones de montaje

Philips

Philips VR332 Manual de usuario

Philips

Philips VR665/05 Manual de usuario

Philips

Philips VR 260/07 Manual de usuario

Philips

Philips VR557/50 Manual de usuario

Philips

Philips VR556/50 Manual de usuario

Philips

Philips VR702 Manual de usuario

Philips

Philips VR700/58 Manual de usuario

Philips

Philips VR130/02 Manual de usuario

Philips

Philips VR 520 Manual de usuario

Philips

Philips VPA115AT Manual de usuario

Philips

Philips VR421CAT Manual de usuario

Philips

Philips VR6293 Manual de instrucciones

Philips

Philips VR752/39 Manual de usuario

Philips

Philips VP115CAT Manual de usuario

Philips

Philips VR423CAT Instrucciones de uso

Philips

Philips VR674CAT Manual de usuario

Philips

Philips VRX364AT Manual de usuario

Philips

Philips VPB115AT Manual de usuario

Philips

Philips VR6393 Manual de usuario

Philips

Philips vr 685 Manual de usuario

Manuales populares de Sistema de VCR de otras marcas

Toshiba

Toshiba M-662 Manual de usuario

Sony

Sony GV-500 Primary Manual de usuario

JVC

JVC HR-J282EU Manual de usuario

Sony

Sony HDCAM-SR SRW5800 Manual de usuario

Magnavox

Magnavox VRU242AT Manual de usuario

Sony

Sony HVR-M10C Manual de usuario

RCA

RCA VR634HF - Hi-Fi VCR Manual de usuario

JVC

JVC HR-5910U Manual de usuario

Panasonic

Panasonic ProLine AG-1320 Manual de usuario

JVC

JVC HR-S8600EU Manual de usuario

JVC

JVC HR-FS1U Manual de usuario

Sharp

Sharp VC-H9888U Manual de usuario

FUNAI

FUNAI LC-950 Manual de usuario

Sharp

Sharp VC-S2000GM Manual de usuario

Sony

Sony Video8 EV-A60 Manual de usuario

Panasonic

Panasonic Omnivision PV-V4523S Manual de usuario

Aiwa

Aiwa HV-E212 Manual de usuario

JVC

JVC HR-J3006UM Manual de usuario
