Instructions for use

Colour Television

34PT5633

3139 125 26952

Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/Video cabinet)

• Leave at least 5 cm around each side of TV set for

ventilation to avoid over-heating.

• Do not place TV set near a radiator or other sources of

heat.

• Do not place TV set where it can be exposed to rain or

excessive moisture.

Antenna Connection

• Connect the aerial plug to the antenna socket ¬¬

¬¬

¬on the

backcover.

Mains Connection

• For correct mains voltage, refer to type sticker at the rear

of the TV set

• Consult your dealer if mains supply is different.

Note : This diagram is not representative of the actual

plug and socket.

Use of Remote Control

• Insert correct type of batteries into the compartment.

• Replace the battery cover.

Note : Always remove the batteries from the remote

control handset if handset is not used for a long period.

This can help prevent damage to handset from possible

battery leakage.

Switching on the Set

• Press the main power button to switch on/off the TV.

If the set is on standby (indicator is red), press STANDBY

button on the remote control to switch on set.

INSTALLATION

PHILIPS

÷÷

◊

5 cm 5 cm

5 cm

PHILIPS

K

K

FUNCTIONS OF TV CONTROLS/SOCKETS

123

➠

810 11 12

1Mains Power button

Switch mains power on or off.

2Standby light indicator

Indicate red light when standby mode is

activated.

3Remote Sensor

Aim remote control handset at remote

sensor when operating the TV.

4Volume +/ – button

Adjust sound volume louder/softer.

5P (Programme) +/ – button

Select channel in ascending/descending order.

Note

• You can enter the main menu by pressing both

the Volume + / – buttons at the same time.

• Press Programme + / – button to select

sub-menu.

• Press Volume + / – button to activate sub-menu.

6AV3 in sockets

Connect to Output sockets of VCR/laser disc

player to the AV3 in sockets to playback

programmes.

7Headphone socket

Connect headphone jack to socket for

personal listening.

8Antenna socket

Connect the aerial plug to the antenna socket

on the backcover.

9S-Video In socket

Connect the S-VIDEO Output socket (if available)

of the VCR to the S-VIDEO in socket to enhance

picture quality.

10 AV1 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV1 in sockets to playback programmes.

11 AV2 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV2 in sockets to playback programmes.

12 Monitor out sockets

Connect the VIDEO out socket of the TV to the

Input socket of VCR to record programmes.

To enhance sound of your TV, connect the

AUDIO L and Rsockets to an external audio

system.

PHILIPS

S-VIDEO

AV1

VIDEO

AUDIO

AV2

out

Monitor

S-VIDEO

VIDEO

AUDIO

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

ACH

GAME

INCREDIBLEINC. SURR.

FUNCTIONS OF REMOTE CONTROL

1SLEEPTIMER

Allows you to select a time period after which the set

will switch to standby mode automatically. You can

set the timer in steps of 15 minutes from OFF mode

up to a maximum of 120 minutes.

2PIP ON/OFF

Switch on or PIP (Picture in Picture).

3A/CH (ALTERNATE CHANNEL)

Alternate between last viewed channel and present

channel.

4PIP SWAP

Interchange channel on main screen and subscreen.

5PIP SOURCE

Allows you to select various external connection for

PIP.

6SMART SOUND

Allows you to select 4 types of sound settings

7MENU

Allows you to adjust picture and sound settings and

activate the features and install the channels

automatically.

8CURSOR UP

Allows you to select the sub-menus.

9CURSOR LEFT

Allows you to access or adjust the sub-menus.

10 VOLUME +

Increases volume.

11 VOLUME –

Decreases volume.

12 AV

Selects AV1, S-VID1, AV2, AV3, S-VID3 and the last

viewed channel respectively. The correct channel

must be selected when viewing a playback

programme.

13 OSD (On-Screen Display)

Displays :

– channel number.

– remaining time of the sleeptimer.

– programme name.

– information line

– transmission mode.

14 INCREDIBLE SURROUND

Allows you to select incredible surround sound

when transmission is in stereo mode.

151GAME

Allows you to select Video mode as input for video

games.

FUNCTIONS OF REMOTE CONTROL

16 POWER

Switch set off temporarily to standby mode.

(The red light indicator lights up when set is on

standby mode). To switch on set from standby

mode, press and hold button for a few seconds.

17 PIP POSITION

Allows you to move the PIP screen to your

desired position.

18 PIP FREEZE

Allows you to freeze or resume the PIP screen.

19 PIP DOWN

Selects a PIP channel in descending order.

20 PIP UP

Selects a PIP channel in ascending order.

21 DIGIT (0 - 9)

Allows you select a channel. For a 2- digit

channel number, the second digit must be

entered before the “ – “ sign disappears

22 SMART PICTURE

Allows you to select 4 types of picture settings.

23 SURF

Allows you to select up to a maximum of 10

channels and view quickly the selected channels.

24 CURSOR RIGHT

Allows you to access or adjust the sub-menus.

25 CURSOR DOWN

Allows you to select the sub-menus.

26 CHANNEL + / –

Allows you to select channel in ascending or

descending order.

27 MUTE

Mutes sound. To restore sound, press button

again.

28 TIMER

Not applicable.

29 44

Allows you to switch from Stereo to Mono

sound (stereo transmission) or to choose

between language5and language 6.

30 INCREDIBLE PICTURE

Allows you to view a more vivid and realistic

picture with better contrast when the “ON”

function is selected.

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

MENU SURF

MENU SURFMENU SURFMENU SURF

ACCESSING THE MAIN MENU

The main menu allows you access to the PICTURE, SOUND, FEATURES and INSTALL

menus.

How to call up the main menu

1. Press the MENU button. 2. The main menu appears on the screen.

How to access the menus in the main menu

The 4 buttons (CURSOR DOWN, UP, LEFT and RIGHT) allow you to select the desired

menu, make adjustments and access the sub-menus.

How to exit from the menus

Press the (OSD) button to exit menu from screen or press (MENU) button

repeatedly to exit all menus from screen..

➠


SOUND LANGUAGE

FEATURES AUTO PROGRAM

INSTALL TUNER

CHANNEL EDIT

FINE TUNE


SOUND LANGUAGE

FEATURES AUTO PROGRAM

INSTALL TUNER

CHANNEL EDIT

FINE TUNE

AUTOMATIC TUNING OF TV CHANNELS

How to tune in the channels automatically (Auto Store)

Press button Result on TV Screen

Enter main menu .

Press button repeatedly

until INSTALL is selected.

Enter install menu.

Press button the

second time to enter

language mode.

Select desired language

– ENGLISH or

(HANGUL).

Go back to install

menu.

Press button repeatedly

to select TUNER.

Press button to

enter TUNER mode.

Select ANTENNA or

CABLE mode.

Go back install menu.

Select AUTO PROGRAM.

Start automatic tuning.

Note : To interrupt

tuning, press MENU

button.

Exit menu from screen

once automatic tuning

is completed.

INSTALL

LANGUAGE

AUTO PROGRAM

TUNER ANTENNA

CHANNEL EDIT

FINE TUNE

➤

INSTALL

LANGUAGE

AUTO PROGRAM

TUNER CABLE

CHANNEL EDIT

FINE TUNE

➤

INSTALL

LANGUAGE

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

➤

INSTALL

AUTO PROGRAM

TUNER ANTENNA

CHANNEL 2

PLEASE WAIT

INSTALL

LANGUAGE

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

➤

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

INSTALL

LANGUAGE ENGLISH

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

➤

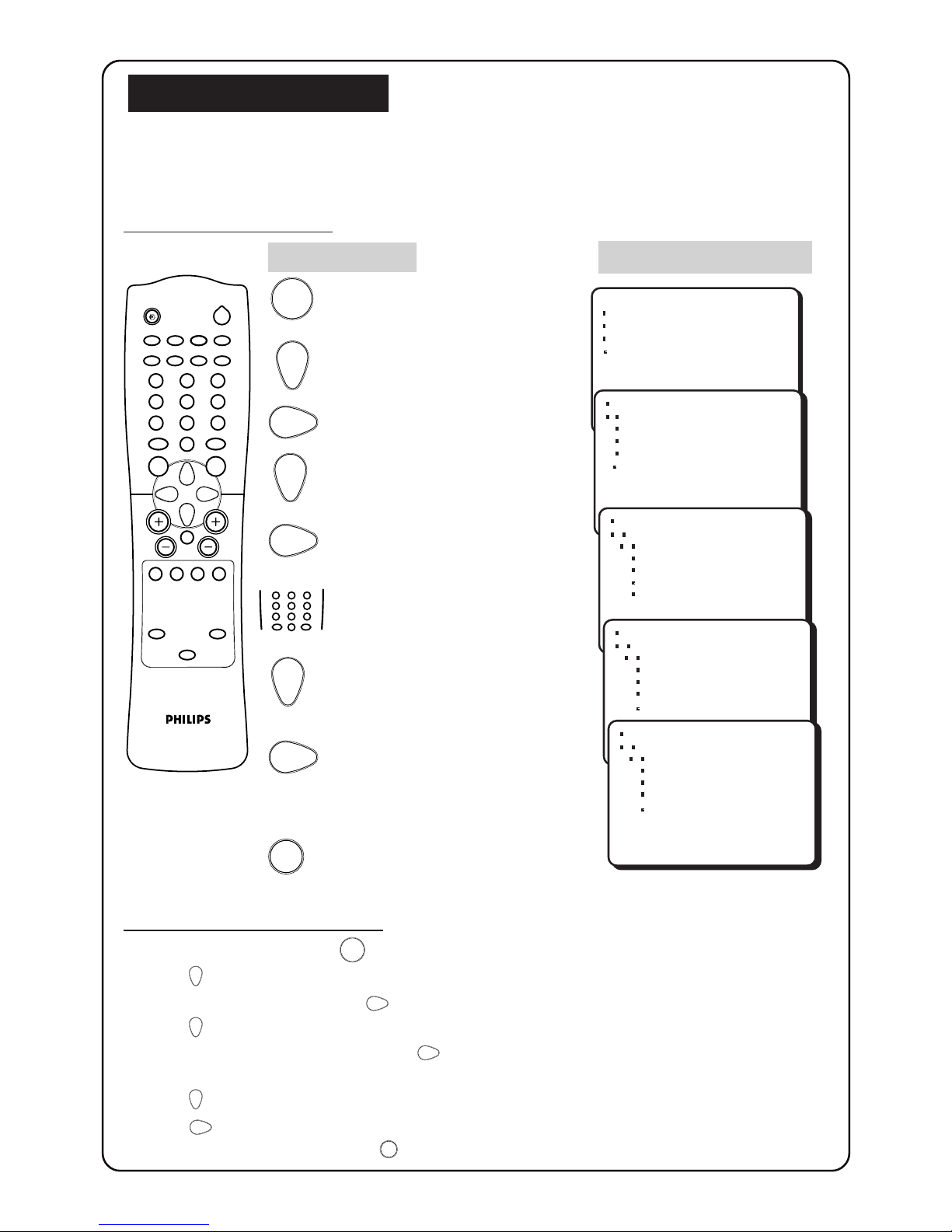

EDITING OF CHANNELS

This feature allows you to skip channels which have bad or weak TV signal or channels that

you do not watch often.

Note : Once a channel is skipped, you cannot have access to it by the CHANNEL + or –

button. You can only call up the channel by the DIGIT (0 -9) button.

How to edit channels

Press button Result on TV Screen

Enter main menu

Press button repeatedly until

INSTALL is selected.

Enter INSTALL menu

Press button repeatedly until

CHANNEL EDIT is selected.

Enter CHANNEL EDIT menu.

Key in desired channel

to be edited.

Select ADDED.

Activate edit mode.

Exit menu from screen.

How to add back channels

• Enter main menu by the (MENU) button.

• Press button repeatedly until INSTALL is selected.

• Enter INSTALL menu by the button.

• Press button repeatedly until CHANNEL EDIT is selected.

• Enter CHANNEL EDIT menu by the button.

• Key in the channel to be added by the DIGIT (0 - 9) button.

• Press button to select DELETED.

• Press button to activate edit mode to add back channel.

• Exit menu from screen by the (OSD) button.


SOUND LANGUAGE

FEATURES AUTO PROGRAM

INSTALL TUNER

CHANNEL EDIT

FINE TUNE

INSTALL

LANGUAGE

AUTO PROGRAM

TUNER

CHANNEL EDIT CHANNEL

FINE TUNE ADDED

➤

INSTALL

CHANNEL EDIT

CHANNEL 8

ADDED

INSTALL

CHANNEL EDIT

CHANNEL 8

ADDED

INSTALL

CHANNEL EDIT

CHANNEL 8

DELETED

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

SMARTSMART

±`

FINE TUNING OF TV CHANNELS

How to do fine tuning

This feature allows you to adjust the picture reception in area of weak reception.

Press Button Result on TV Screen

Select the channel you

want to fine-tune.

Enter main menu.

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu.

Press button repeatedly

until FINE TUNE is selected.

Start fine-tuning until

desired picture and sound

is obtained.

Store last fine-tuned

status and exit menu

from screen.


SOUND LANGUAGE

FEATURES AUTO PROGRAM

INSTALL TUNER

CHANNEL EDIT

FINE TUNE

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

SMARTSMART

±`

INSTALL

AUTO PROGRAM

TUNER

CHANNEL EDIT CHANNEL 8

FINE TUNE

NAME

➤

1010

NAMING OF CHANNELS

This feature allows a selection of 50 preset names for all channels. It also allows

you to enter a new name or modify an existing name of a channel.

How to name channels

Press button Result on TV Screen

Enter main menu.

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu

Press button repeatedly

until NAME is selected.

Enter name mode.

Select preset name.

If you select PERSONAL,

move to first character

slot.

Key in selected character.

Move to next character

slot and key in the next

character by the button.

You can key up to a

maximum of 4 characters.

Store name.

Exit menu from screen.


SOUND LANGUAGE

FEATURES AUTO PROGRAM

INSTALL TUNER

CHANNEL EDIT

FINE TUNE

INSTALL

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

NAME 2

➤

INSTALL

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

NAME PERSONAL

➤

INSTALL

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

NAME 2 LUCK

➤

INSTALL

AUTO PROGRAM

TUNER

CHANNEL EDIT

FINE TUNE

NAME

➤

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Philips

Philips

Philips 25PS50S Manual de usuario

Philips

Philips Matchline 28PW9763 Manual de usuario

Philips

Philips 17PF9946 Manual de usuario

Philips

Philips 42PF1000/62 Manual de usuario

Philips

Philips 55PFL5901 Manual de usuario

Philips

Philips 24PFL3603 Manual de usuario

Philips

Philips 22HFL3331D/10 Manual de usuario

Philips

Philips 29PT8567C Manual de usuario

Philips

Philips 37HFL5880D/10 Manual de usuario

Philips

Philips TP2785CI Manual de usuario

Philips

Philips 25CE6271 Manual de usuario

Philips

Philips 23PT9131 Manual de usuario

Philips

Philips MatchLine 28CL6776 Manual de usuario

Philips

Philips 32PW8406 Manual de usuario

Philips

Philips 25GR9765 Manual de usuario

Philips

Philips 40PFL8606T Manual de usuario

Philips

Philips 6800 series Manual de usuario

Philips

Philips 4000 series Manual de usuario

Philips

Philips 32PHT6918 Manual de usuario

Philips

Philips 32MF231D - Hook Up Guide Manual de usuario

Philips

Philips 20PT4331 Manual de usuario

Philips

Philips Q552.1A Manual de usuario

Philips

Philips 6581 Series Manual de usuario

Philips

Philips 25PT4255 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Toshiba

Toshiba 27A10 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario

Sanyo

Sanyo CE19LD90N-B Manual de usuario

North State

North State TV2GO Manual de usuario

RCA

RCA RTU7877 Manual de usuario

Sharp

Sharp 21K-FG1RU Manual de usuario

Sony

Sony Esprit TAV-L1 Manual de usuario

Grundig

Grundig 43 VLE 4820 Manual de usuario

Samsung

Samsung LN26C350D1D Manual de usuario
