Philips DTR2520 Manual de usuario

DTR 2520

User manual

DCR 2520_indice2 18/11/05 13:42 Page 1

As youunpack your terminal, make sure the following accessories are included:

• 1x remote control unit

• 2 x AA batteries

• 1x mains cord with adapter for power supply

• 1x SCART cable

• 1x user manual

• 1x worldwide warranty booklet

Plastic bags canbe dangerous.To avoid suffocationkeep the bag away from

babies and children.

Refer to the safety sectionbefore connecting your receiver.

1Disconnect your TV set and recorder fromthe mains.

2Integrate your receiver inyour existing installationas shownonthe diagram.

RF coaxial cables are not supplied.

For comprehensive connectiondiagrams, see http://www.p4c.philips.com

Unpacking the receiver

Quick installationguide

PHILIPS

to AC outlet

Terrestrial Receiver

TV set

VCR/DVD

ANT IN

ANT OUT

EXT 1

EXT 2

EXT 1EXT 2

RF Cable

DCR 2520_indice2 18/11/05 13:42 Page 2

3Insert your smart card inyour receiver with the

goldenor silver contacts facing up.

4Insert the two batteries supplied inyour remote

control.

Batteries are removable from the remote using

common household tools (like a screwdriver…)

The batteries supplied do not contain hazardous

substances such as Mercury, Cadmium, or Lead.

However, they must not be disposed of with your

household waste but to a local separate

collection system.

5Reconnect your TV set and recorder to the mains.

Do not connect your receiver yet!

6Switch onyour TV set and select a channel.

7Plug the adapter into the mains.The welcome screen

appears, thenthe First Installationscreen.

8Select the TV Shape corresponding to your TV set.

9Press OK to start scanning for channels.

Whenscanning has beensuccessfully completed, the

receiver tunes to the first channel inthe list.

If youdo not receive channels that should be available,

check the following points:

- Coverage of your area:

see http://www.freeview.co.uk

- Aerial cable conditionand connectionto your digital

receiver

For comprehensive connectiondiagrams:

see http://www.p4c.philips.com

- Aerial positionincase the bar graph revealed a poor

quality signal during the previous scan.

Call a specialist if needed.

Then, performa new scan.

Contact your customer service adviser if the problem

remains.

To add channels newly become available, refer to

Channels installation.

To r e i nstall all channels, refer to Factory Reset.

DCR 2520_indice2 18/11/05 13:42 Page 3

EN Meaning of symbols

Important information:Must be read and understood.

Yo ur product has beendesigned and manufactured with high quality materials and

components, which canbe recycled and reused.

Whenthis crossed-out wheeled binsymbol is attached to a product or his

packaging, it means the product is covered by EuropeanDirective 2002/96/EC.

Please informyourself about the local separate collectionsystemfor electronic

products and act according to your local rules. Do not dispose of your old products

with your normal household waste.The correct disposal of your old product will

help prevent potential negative consequences for the environment and human

health.

The “Material recyclability symbol” affixed onpackage cardboard and user manual

means these parts are recyclable. So do not dispose of themwith your normal

household waste.

The “Material recyclability symbol” affixed onplastic packaging parts means these

parts are recyclable. So do not dispose of themwith your normal household waste.

The “GreenDot” affixed oncardboard means PHILIPS pays a financial duty to the

“Avoidance and Recovery of Packaging Waste” organization.

DCR 2520_indice2 18/11/05 13:42 Page 4

Yo ur receiver is powered using anAC adaptor.This equipment has been

manufactured to meet the appropriate safety standards, but the instructions

below must be followed to operate it safely.These instructions must be kept

for future reference.

- Before connecting the AC adaptor to the mains, check that the mains supply voltage

corresponds to the voltage printed onit. If the mains voltage is different, consult

your dealer.

- The AC adaptor has beendesigned for indoor use only.

- The receiver and AC adaptor do not containany user-serviceable parts.

Do not attempt to openthem.All maintenance work must be carried out by

qualified personnel.

- Periodically inspect the AC adaptor for damage. Do not use if damage is found.

Refer to qualified personnel.

- Unplug the AC adaptor fromthe mains during lightning storms.

- To prevent fire or shock hazard, do not expose this equipment to rainor moisture.

- The receiver should be placed ona firmsurface, and the ventilationopenings must

not be covered with items, such as newspapers, table clothes, curtains, etc.

- Do not install this equipment near any heat sources such as radiators, stoves or

other apparatus that produce heat. Protect it fromdirect sunlight.

- Wheninstalling the receiver, ensure there is a gap of approximately 2 cmaround it

to enable air to circulate freely and prevent overheating.

- Leave access to the AC adaptor incase emergency shutdownis required.

- Do not place any combustible objects onthe receiver (candles, etc.).

- No objects filled with liquids, such as vases, shall be placed onthe receiver.

It shall not be exposed to dripping or splashing. Should this happen, disconnect the

AC adaptor fromthe mains and consult qualified personnel.

- Make sure that childrendo not place any foreignobjects inany of the openings.

- For cleaning, use a soft, damp (not wet) cloth. Never use any abrasive cloth and

aerosol cleaners.

Safety instructions

DCR 2520_indice2 18/11/05 13:42 Page 5

2 Unpacking the receiver

2 Quick installation guide

4 Meaning of symbols

5 Safety instructions

8 Introduction

9 Product description

9Front panel

10 Rear panel

11 Remote control

12 Inserting your Smart Card

13 Connecting your receiver

13 Connecting to TV and VCR/DVD player using

SCART support

14 Connecting to your audio equipment

15 First installation

15 First Installationsettings

15 Channel Search

15 Scanfailure

16 General Functions

16 Receiver wake up

16 Channel selection

17 Channel banner

17 Channel Lists

17 TV or Radio mode selection

17 Volume control and mute

18 Current programme options

18 Electronic Programme Guide (EPG)

18 Recording timers

Contents

DCR 2520_indice2 18/11/05 13:42 Page 6

20 Settings

20 Menu

20 Timers Manager

22 Channels Manager

23 Parental Control

24 Preferences

25 Installation

26 More about recording

(VCR or DVD control)

26 Connectionfor Easy Record

27 VCR or DVD settings

27 Recording with the VCR control feature

28 Troubleshooting

30 Menu Tree

31 Technical specifications

DCR 2520_indice2 18/11/05 13:42 Page 7

Welcome to digital television!

The Philips Digital Terrestrial Receiver DTR 2520 allows youto view a wide variety of

free-to-air and scrambled channels with the best digital picture and sound quality.

With this product you can enjoy advanced functions and features including:

- Digital picture and sound quality

- Wide screenformat

- TV SCART and VCR/DVD SCART connectors

- Up to 500 presets for TV and Radio channels

- Easy installationand use through the well-tested Euphoria user interface

- Personal channel list and favourite lists

- Electronic Programme Guide.

This user manual covers the installationof your receiver and the necessary steps to

use the various functions, so youcanoptimally enjoy every feature.

Lucas Covers, CEO BLC Digital Video STB

Paris, October 2005

Introduction

DCR 2520_indice2 18/11/05 13:42 Page 8

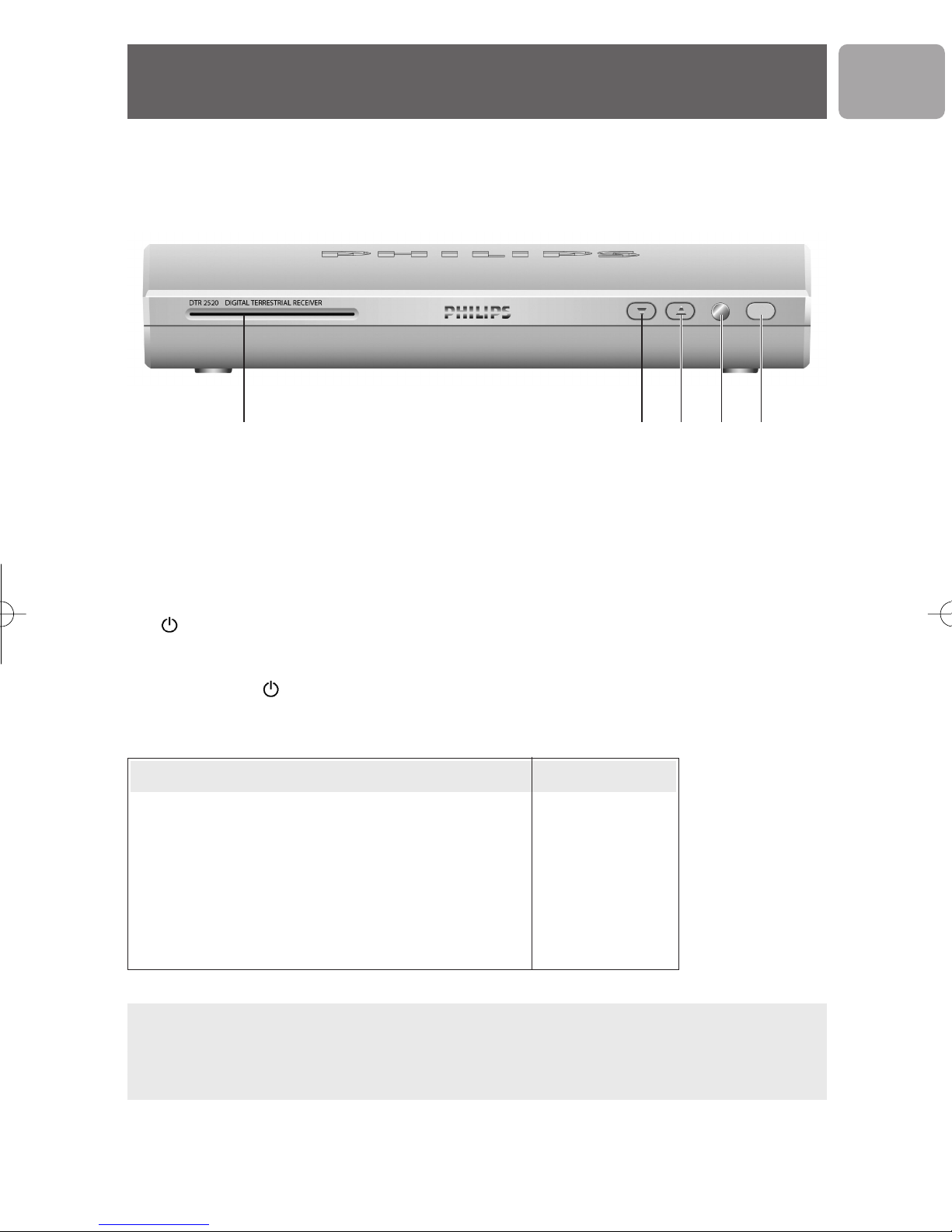

Front panel

1Smart Card slot . . . . . . . . . . . . . . . . . see chapter Inserting your Smart Card

2I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . channel -

3U. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . channel +

4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . remote control receiver window

5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ON/standby (short press)/Low Power

(3-second press)

The front panel buttonincludes a colour LED indicating the receiver status.

The LED blinks at remote control command reception.

If the red LED is blinking continuously, it indicates that anupgrade of your terminal

software is taking place. Do not interrupt this operation.Wait for the LED to

light up for two seconds, either ingreento indicate successful upgrade, or inred to

indicate a failure, and thencontinue as normal.

Receiver operating mode LED

Low Power red

Standby orange

TV/Radio mode green

Recording inprogress dimmed green

Recording inprogress instandby mode dimmed orange

Download inprogress blinking red

Product description

Q W E R T

DCR 2520_indice2 18/11/05 13:42 Page 9

EN Rear panel

15 V (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Socket used to connect the mains adapter

2RF In(*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RF input used to connect the antenna cord from

the wall socket. Refer to chapter Connecting

your receiver.

3RF Out (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . RF output used to connect your receiver to a

VCR/TV set to watch analogue channels only, or

to connect another receiver.

4TV (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket used to connect your TV set.

5VCR (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket used to connect your video

recorder or DVD player/recorder.

6(*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital audio cinch output used to connect your

HiFi/audio receiver system.

7IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Currently inactive. For future use.

8L/R (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . Left/Right analogue audio cinch outputs used to

connect your HiFi/audio receiver system.

The label showing the type and serial number is underneath the receiver.

(1) SCART is also called Euroconnector or Peritel.

* Safety Extra Low Voltage

Q E R U

DCR 2520_indice2 18/11/05 13:42 Page 10
