Philips Streamium WACS4500 Guía de inicio rápido

WACS4500

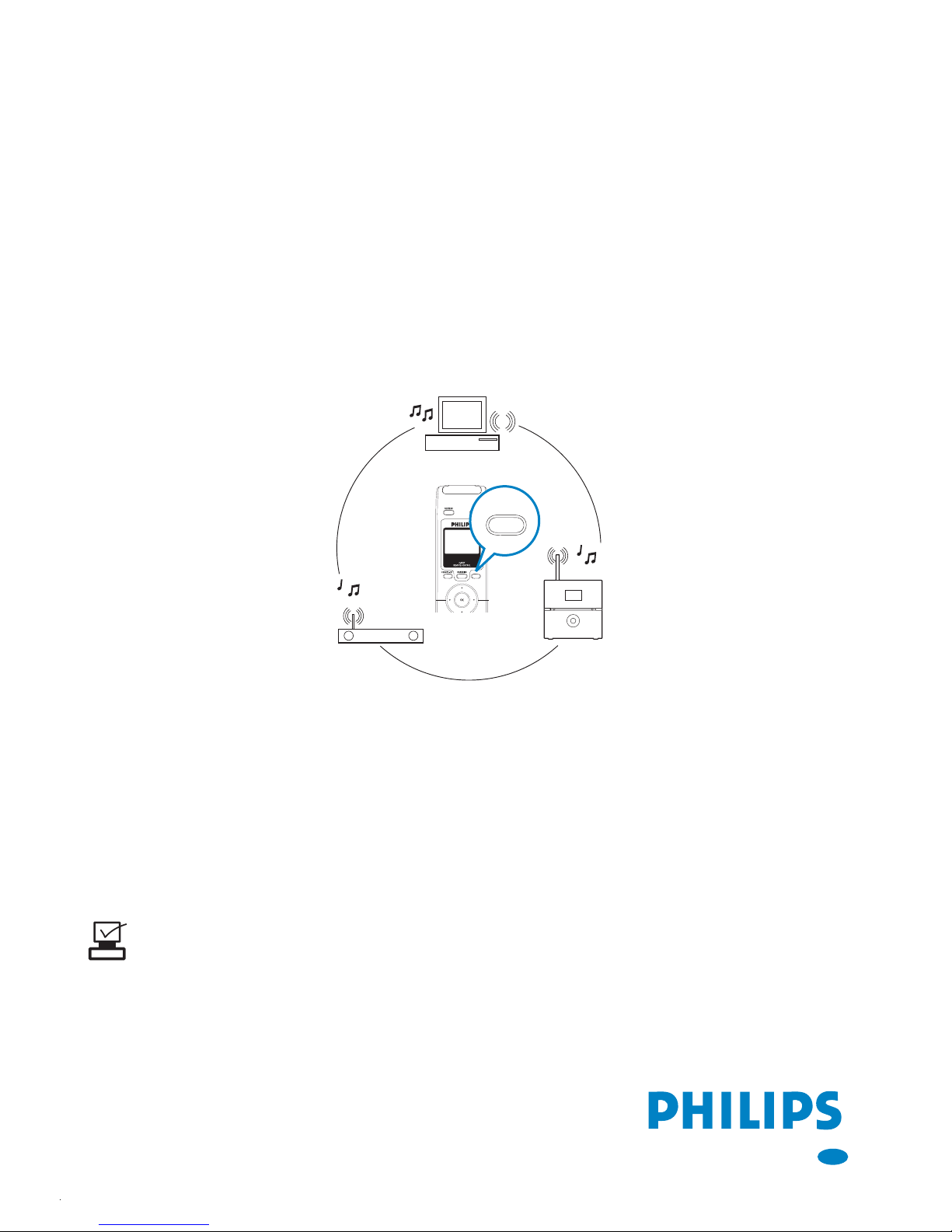

Connect to your PC

Connect Philips Wireless Music Center to your PC if you want to do

the following:

●Access music files stored on your PC from Philips Music Center/

Station’s UPnP source

●Manage the music content stored on Philips Music Center from your

●Update Center’s Gracenote®music recognition service database for

the latest disc information

●Upgrade firmware of Philips Music Center + Station

ENG

SOURCE

To connect to Philips Music Center, your minimum PC requirements must be:

UPnP playback

●Windows 2000/XP (Home or Professional)

●Pentium III 500MHz processor or higher

●256MB RAM

●CD-ROM Drive

●Ethernet Adapter (for wired connection)/ Wireless

Network Adaptor 802.11 b/g (for wireless connection)

●Free hard disk space of 500MB

●Windows Media Player® 9.0 or later installed

Wireless Music

Center + Station

未标题-1 1 2006-11-29 5:20:56 PM

PC StationCenterAccess Point

Set up connection between Center and your PC

WIRED WIRELESS

Connect supplied

(Orange) Ethernet

cable from Center to

your PC

Install Wireless Audio Device Manager (WADM)

and Philips Media Manager (PMM)

Launch WADM. Is your connection established?

YES

Congratulations!

Connection between

Center and your PC

is successful!

Build new connection (only for wired connection)

Check your network

settings

Use WADM Use UPnP

For more information, see

a. Enable your wireless

Access Point/router

b. Configure Network from

Center : Select MENU>Settings

>Network > Wireless > (Select

desired network) > (Input the

encryption key) > Automatic >

Apply Settings > Yes

a. Center: Enter Installation

Mode

b. Station: Enter Installation

Mode

For more information, see

Do you want to connect wired or wirelessly?

未标题-1 2 2006-11-29 5:21:04 PM

Set up a wired connection

Connect Center to PC directly with the supplied (orange) Ethernet

cable

Connect Center directly to Access Point with the supplied (orange)

Ethernet cable

ETHERNET

LAN

Tips:

●Make sure that Ethernet port on your PC is 'Enabled' to make WADM

connection.

●If your PC operation system is Windows Vista, please right click on

WADM, select Properties --> Compatibility, and make sure the

check-box under "Compatibility mode" and "Privilege level" is marked,

then click OK. Otherwise your WADM may not able to be launched.

未标题-1 3 2006-11-29 5:21:05 PM

a. On Center :

●Press the MENU button

●Select Settings>Network >

Wireless > (Select desired net-

work) >

(Input the encryption key by

using the 1way remote con-

trol) > Automatic > Apply

Settings > Yes

b. On Station :

●Repeat the same steps above or

refer to step 2 below to

connect the Station to the

Center

Set up a wireless connection

PC StationCenterAccess Point

PC StationCenter

a. On Center :

●Select HD source, and then

press the MENU button

●Select Station Mgnt > Add

New Station

b. On Station :

●Press the MENU button

●Select Installation Mode

Do you have a wireless Access Point?

YES NO

a. On Center :

●Press the MENU button

●Select Information > WiFi >

WEP Key to retrieve WEP key

b. On PC :

●Select Start > Control Panel >

Network Connections >

Enable Wireless Network

Connections > View Available

Wireless Networks > Select

Center’s network > Input

retrieved Center’s WEP key

a. On Center :

●Select HD source, and then

press the MENU button

●Select Station Mgnt > Add

New Station

b. On Station :

●Press the MENU button

●Select Installation Mode

Tips:

●Check that PC’s wireless network adaptor is enabled.

●Locate Center closer to your wireless Access Point.

●Make sure that DHCP is enabled on your wireless Access Point.

If not available, choose Static and key in IP configuration

未标题-1 4 2006-11-29 5:21:06 PM

Install and launch WADM

Insert PC Suite CD into PC

Select desired language and accept license terms

Select ‘WADM’ and select ‘Next’ to start installation

To launch WADM, double click the desktop icon

A list of found Center/ Station appears

Select desired Center/Station,

and then click Connect now

If desired Center/Station is not found :

●Wired connection: Select Connection

Wizard >Express mode>Next to

build new connection

Note: If you selected Connection Wizard >Custom mode, it

will select Wireless network adaptor automatically by default if the

PC has both wired and wireless adapter. Please select Wired net-

work adaptor manually.

●Wireless connection: Check that wireless Access Point is

broadcasting preferred wireless network SSID AND that PC’s

wireless network adaptor is working

Tips:

●Log onto your PC with administrator's privileges enabled.

●If Center/ Station’s IP configuration is not in the default range (Subnet mask:

255.255.0.0; IP address: 172.31.x.x). Select Connection Wizard >Custom

Mode. Input Center/Station’s current IP configuration as prompted. Press the

MENU button and select Information >Ethernet to check IP configuration.

●For Windows®XP SP2 users, make sure your Windows Firewall has been

turned off by clicking Start >Control Panel >Security Center >

Windows Firewall >Off (Visit www.microsoft.com for more details).

●If some of the WADM functions cannot be used, it might be because

your anti-virus software blocked them. It is recommended to turn off

your anti-virus software temporarily.

●When WADM is running, Internet access may be disabled. Close WADM to

restore access.

未标题-1 5 2006-11-29 5:21:08 PM

To edit track information

On the device window, click to

highlight the desired track

Right click on your mouse.

Click Track info

Click on “Title” or “Artist” to sort the

music files by track name or by Artist

Use WADM

Tips:

●To select more than one file, press and hold <Ctrl> on your PC keyboard,

and click.

●To playback tracks, double click on the track to start playing.

●Always press and hold STANDBY-ON to switch the set to ECO

POWER (power-saving mode) before removing its power plug.

Transfer music files from PC to Center

Click Content management

On My Computer window, click to

highlight a desired file/folder

Drag selection to device

window

While transferring, you can add more

file/folder(s) to the transferred queue

未标题-1 6 2006-11-29 5:21:09 PM

Backup Center’s music library

on PC

Use WADM

Click Backup content

Follow the screen instructions to

back up Center’s music files to

your PC. Backup files are named

with current date

Restore PC’s backup files to

Center

Click Restore content

Click to highlight the file to be

restored, and then click Open

Helpful hint:

●Make sure that you have adequate space to store the backup files.

●Do not delete the backup file by using Windows Explorer. If the

backup file is accidently deleted, please find out the file named

YOURMAC.inx by using your Explorer's search tool and then

delete it. Only after that you can do backup again.

About Device Configuration

In the sub-menu of Device configura-

tion, you can see System informa-

tion, manage the Network settings,

upgrade Firmware, update CD

Database and to view the device's

connection with external network.

未标题-1 7 2006-11-29 5:21:11 PM

Check you have installed Philips

Media Manager (PMM) on PC

To launch PMM, double click the

desktop icon if it is created

The first time you launch PMM,

click Add Music >Add Files or

Folders to specify music folders

on your PC

Center/Station:

Press SOURCE, and then

select preferred music server

W©Royal Philips Electronics N.V. 2006

3141 075 21491

www.philips.com

ENG

PDCC-2006

Use UPnP

Need help?

Online

Go to www.philips.com/support

SOURCE

Gracenote and CDDB are registered trademarks of Gracenote.The Gracenote logo and

logotype, and the “Powered by Gracenote” logo are trademarks of Gracenote.

Tips:

●UPnP device may not necessarily be a PC but any content serving

device.

●If UPnP device is not detected after 5 minutes, powering it off and

on again might re-establish a faster connection.

未标题-1 8 2006-11-29 5:21:13 PM
