MCM128B/all

TABLE OF CONTENTS

Page

Handling chip components..........................................1-1

Technical Speciﬁcations ..............................................2-1

Service Tool.................................................................2-1

Measurement setup.....................................................2-2

Connections and Controls....................................3-1..3-2

Set Block diagram .......................................................4-1

Set Wiring diagram......................................................4-2

Disassembly diagram..................................................5-1

Main board

Circuit diagram ..................................................6-1..6-4

Layout diagram.........................................................6-5

Display & Tuner board - Circuit diagram......................7-1

Display & Tuner board - Layout diagram......................7-2

AC Power board - Circuit diagram...............................8-1

AC Power board - Layout diagram..............................8-2

Set Mechanical Exploded view ...................................9-1

Mechanical Service parts list ......................................9-2

Electrical Service parts list................................10-1..10-3

©Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without

the prior permission of Philips.

Published by YB 0651 Service Audio Printed in The Netherlands Subject to modi ﬁcation

Micro Hi-Fi System

Version 1.0

©3142 785 31481

Revision list............................................................................11-1

1 - 1

2 - 1

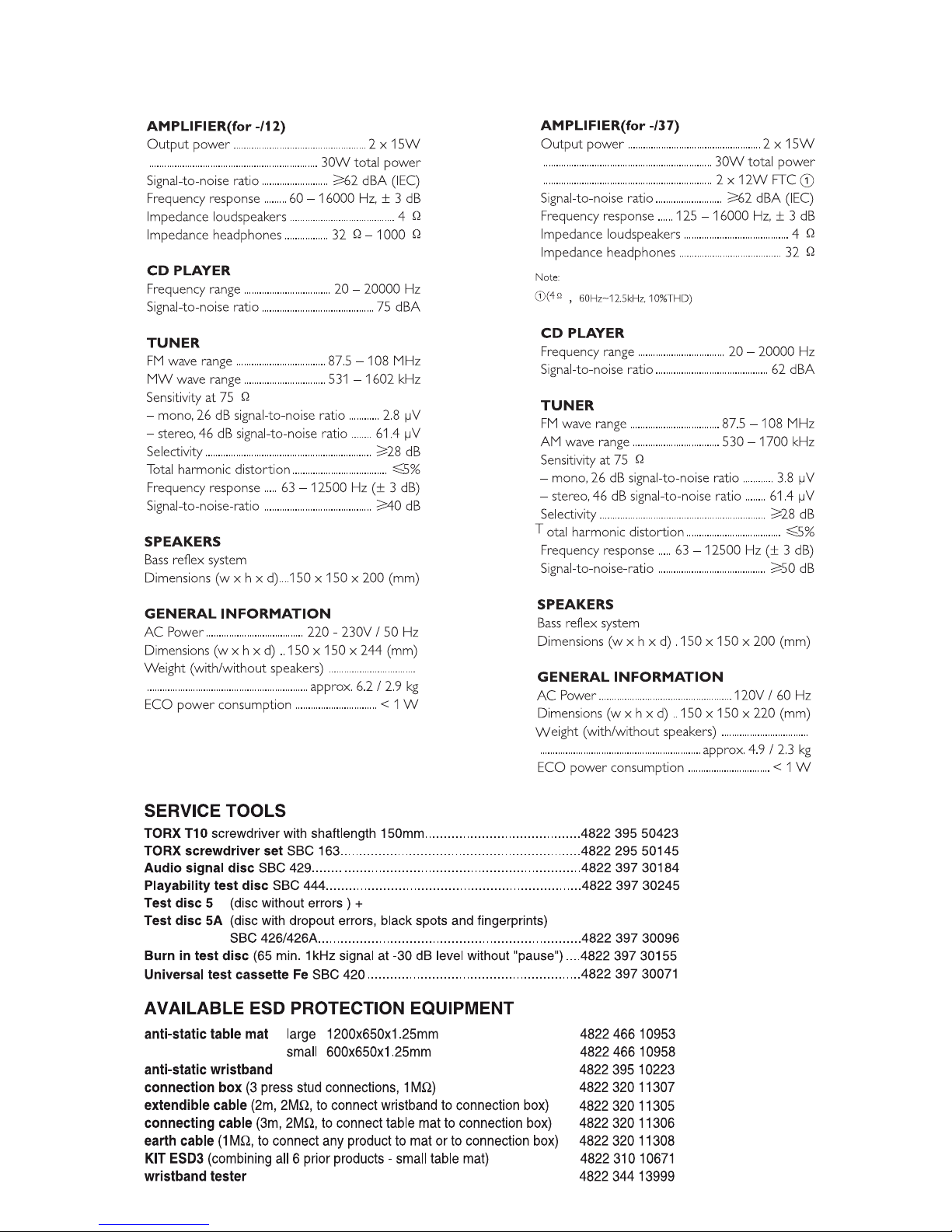

TECHNICAL SPECIFICATIONS

2 - 2

3 - 1

CONNECTION AND CONTROLS

3 - 2

CONNECTION AND CONTROLS

SET BLOCK DIAGRAM

4 - 1 4 - 1

SET WIRING DIAGRAM

4 - 2 4 - 2

DISASSEMBLY DIAGRAM

Dismantling of the Bottom Cabinet

1) Remove 4 screws Aas indicated to loosen the Rear Cabinet.

2) Remove 2 screws B as indicated to loosen the Bottom Cabinet.

Dismantling of the Front Cabinet and Main Board

1) Remove 2 screws C as indicated to loosen the Front Cabinet.

2) Remove 5screws D as indicated to loosen the Main Board.

A

B

BOTTOM CAB.

CE

5 - 1 5 - 1

CIRCUIT DIAGRAM - MAIN BOARD

CD PART

6 - 16 - 1
