Philips SPA9100B Manual de usuario

SPA9100B

Tower Speakers

Source VOL

–VOL+

Content

General Information ................................................3

Safety Instructions

Warnings

Care & Safety Information

Installation

Speaker Placement & Connections ...............................................4

Front Panel Main Unit ................................................5

Back Panel Main Unit ................................................5

Remote Control ...............................................6

Playing TV Audio ................................................7

Play from a USB Storage Device ................................................7

Play From Radio ...............................................8

Cordless MIC ...............................................8

Playing through Bluetooth ...............................................8

Trouble Shooting ...............................................9

Specification ..............................................10

Warranty ...............................................11

Accessories

Qty.

1. 2 RCA to 2 RCA Cable 1

2. Remote Control 1

3. User Manual 1

4. Cordless MIC 1

Safety Instructions

Please read carefully the

Safety Mark on the Back side

This mark is intended to alert

the users from the non isolated

dangerous voltage within the

product that may be of sufficient

magnitude to constitute a risk of

electric shock to persons

This mark is intended to alert

the user for important operating

and servicing instruction

Warnings

* Avoid sustained periods on high-volume

use, and do not turn the volume to

maximum level while using high output

signal, such as Mobile Phone or DVD,

etc., as this will cause distortion and may

damage the loudspeaker cones.

* Please switch off the system from the

wall socket, when not in use.

* Please unplug the system from the AC

outlet when unused for a long time

* Do not open the cover or back panel to

avoid electronic shock or any other

accidents. No user-serviceable parts are

inside.

* Only for indoor use.

* Plug the system to the AC outlet with the

right voltage marked on the back panel

of the Speaker System.

General Information

Care and safety information

Avoid high temperatures, moisture,

water and dust

– Apparatus should not be exposed

to dripping or splashing of liquid.

– Do not place any sources of danger

on the Tower Speaker (e.g. liquid

filled objects, lighted candles).

– Do not install near heat sources.

Do not block any ventilation

openings

– Place the apparatus in a location

with adequate ventilation to

prevent internal heat build up.

Allow at least 100cm (4 inches) of

free space all around the apparatus

for adequate ventilation.

– At high volume the back cover of

Tower Speaker becomes hot. Do

not touch it.

Care of the cabinet

– Use a soft cloth slightly moistened

to clean the cabinet. Do not use a

solution containing alcohol, spirits,

ammonia or abrasives.

Installation

Remote

*(Use AAA X 2 Battery)

*(Use AA X 2 Battery)

*Battery not provided

MIC

* Corded MIC not included in the accessories

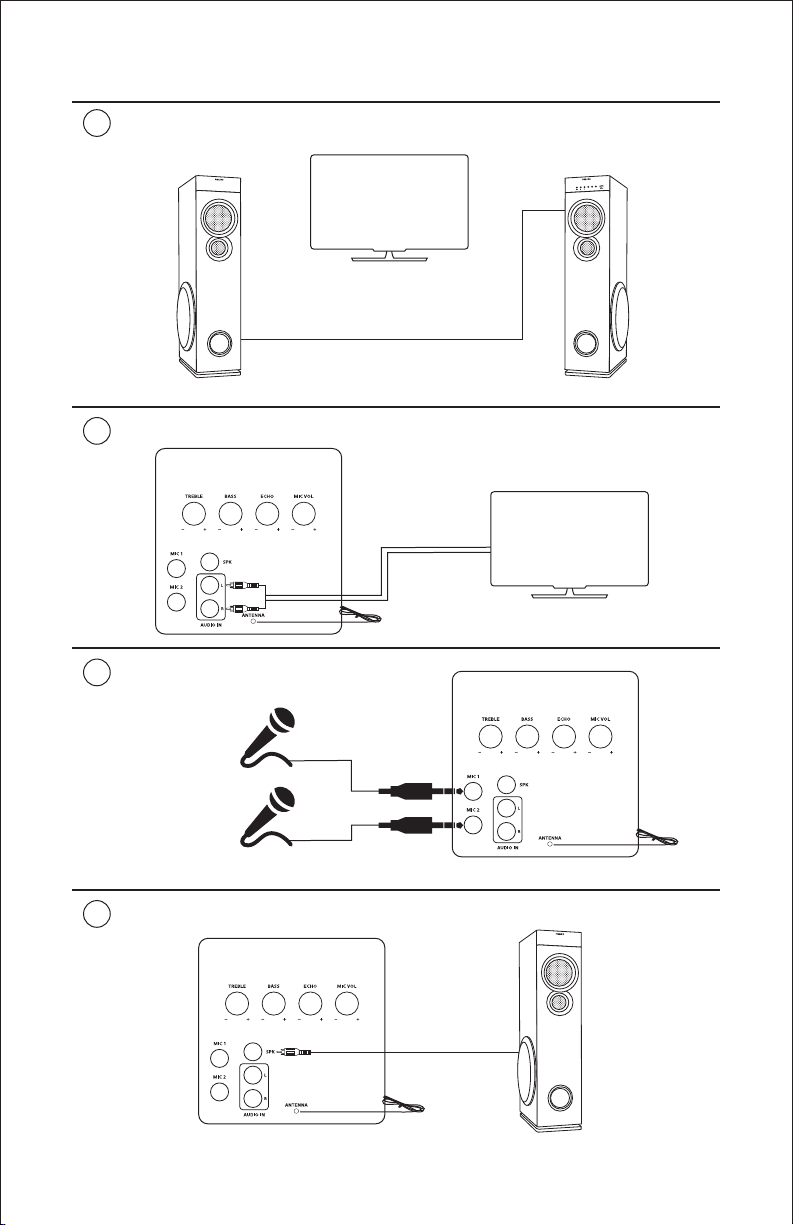

Speaker Placement & Connections

Placement

Connect audio from TV

Connect Corded MIC*

Connect Speakers

Source VOL– VOL+

1. TONE

To adjust bass / Treble level.

2. MIC

Insert MIC into MIC jack.

3. MIC VOLUME

To adjust MIC volume.

4. ECHO

To adjust ECHO according to

your voice.

5. POWER*

To ON/OFF system

AC 230V ~50Hz

MAINS

POWER

OFF

Front Panel Main Unit

Back Panel Main Unit

* The POWER needs to be put in OFF position,

when not in use, to save energy.

Source VOL– VOL+

3 4 5 6 78

DISPLAY PANEL

Display information of your system

SENSOR

Point remote to operate

(a) Play and Pause in USB/BT

(b) Long press to auto scan in radio mode

(a) Play previous file in USB/BT

(b) Long press song will rewind

(a) Play next file in USB/BT

(b) Long press song will fast forward

SOURCE

To select desired input

USB / FM / AUX IN / BLUETOOTH

VOL- VOL+

USB*

Adjusts volume of speakers.

To play through USB drive.

* Available when connected

Switches system ON or to STANDBY

2. MUTE

Mute or restore volume

3. VOL+ VOL-

Increase or decrease volume

(a) Play previous file in USB

(b) Tuning down in radio mode

Play and Pause USB / Bluetooth

6. NUMERIC KEYS

Press number key to play directly MP3 files

(Eg. To play 57th song press 5 then 7)

In radio mode key in station frequency

7. EQ

Select preset sound modes in USB/Bluetooth

To rewind

9. SOURCE

To select desired input USB/FM/AUX IN/BT

10. REPEAT

Repeats a track or the entire USB

11.

(a) Play next file in USB

(b) Tuning up in radio mode

12. SOURCE KEYS

USB* - Switch to USB storage device

AUX - Select an audio input

FM - Switch to FM radio

BT - Play on bluetooth mode

13. SCAN

Auto Scan & store station in memory

14. TUN – /+

Up and Down preset channel on FM mode

15.

To forward

16.

Stop Play in USB mode

Remote Control

Note : Equalizer works in USB & Bluetooth mode only.

Recording not works in SPA 9100B

* Available when connected

411

815

Playing TV Audio

You can enjoy a theatre experience, just attach TV output to your

Tower Speaker Audio IN.

1. Select source from you source key on remote.

2. Display shown AUX.

Button Action

Vol – Volume Decrease

Vol + Volume Increase

Mute To Mute / Unmute Sound

Button Action

Select previous or next track

Start, pause or resume Play

To rewind and fast forward

Numeric Buttons Select and song to play

Repeat Repeat track or the entire USB

EQ Select a predefined sound effect

Play from a USB Storage Device

The Speaker System is fitted with a USB connector that allow you to

listen music.

1. Connect the USB storage device to the Tower Speaker.

2. It auto shifts to USB mode.

3. Display shows USB.

4. Then song number & running time will appear on display.

(eg. if you listening sixteenth song 016 00:01 will appear).

5. Use number key to select song directly or +10 key.

Play from Radio

You can store 40 stations in memory.

1. Select FM mode.

2. Press scan key to auto scan & store station in your area.

3. You can also store manually.

Tune desired station. Press scan key on panel, display starts flickers

and then display stops flickering the station will be stored.

Button Action

Search for a radio station

– TUN + TUN Select a preset radio station

SCAN Press to auto scan the radio station

Numeric Keys Key in station frequency (i.e. for 104.6 press 1046)

Note - While autoscan turn off your TV/DVD or other radiation source.

For best reception, while listening to radio, turn off TV/DVD or other

radiation source.

Cordless MIC

1. Switch MIC to "ON" Position.

2. When switch is turned ON than a blue colour LED

glows for 0.5 seconds only. MIC automatically get

connected with the Tower Speaker System. Now your

MIC is ready for use.

3. You can use MIC in all source (USB / BT / AUX / FM)

selections.

4. Adjust MIC Volume & Echo by rotary control given on

back panel of the Tower Speaker.

5. Turn switch to 'MUTE' to mute MIC during operation.

6. Turn "OFF" MIC switch when not in use.

Playing through Bluetooth

You can enjoy music wireless with Bluetooth

1. Select source.

2. Display shown BLUE (Flashing).

3. Pair "your Bluetooth device" with tower speaker system name Philips

SPA9100B.

4. Display stops flashing, once Bluetooth device is paired.

Now your system is ready to play through Bluetooth. Control all function

from your smart phone eg. , ,

MUTE

OFF

WARNING

Under no circumstances should you try to repair the system yourself, as this will

invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for

repair.

If you are unable to remedy the problem by following these hints, consult your

dealer or PHILIPS for help.

Problem Solution

No power. Check if the AC power cord is properly

inserted into the AC mains socket.

No sound or distorted sound. Adjust the volume.

Check the speaker connection.

Select the correct source

to choose the equipment that you want

to hear through the System.

The remote control does not function Reduce the distance between the remote

Properly. control and the system.

Replace the batteries with new ones.

Point the remote control directly toward the

IR sensor (located on front panel of the

Tower).

Low hum or buzz sound. Place the product as far away as possible

from electrical devices that may be

causing interference.

Speaker connector not fixed properly

The content of the USB flash drive The USB flash drive format is not compatible

cannot be read with the system.

Drive is formatted with a different file system

which is not supported by this unit (e.g. NTFS)

Slow operation of the USB Flash Large file size of high memory USB flash drive

drive takes longer time to read and play.

Cannot detect USB flash drive Take out USB drive insert it again properly.

FM not properly tuned Match with local frequency

FM reception not good While listening radio turn off TV/DVD

or other radiation source.

While listening radio turn off TV/DVD

Antenna wire not attached.

MIC not working MIC volume at zero.

Replace the batteries with new one

Bluetooth Reduce the distance between system

and your device.

Re-Pair the device.

Troubleshooting

Product Specifications*

* Specification subject to change without prior notice.

Measured under specific conditions.

Total System Power 100W RMS

Separation >35db

SNR >60db

Audio Input Socket RCA Type

Audio Output Socket RCA Type

Power Consumption 30W

Frequency Response 40Hz-20Khz

Bluetooth Range Upto 10 mtrs.

MIC Range Upto 35 mtrs.

MIC Frequency 866MHz

Speaker System 2 x 3 Way

Woofer

Size 8" (200mm)

Impedance 4 Ohm

Speaker

Size 4" (100mm)

Impedance 4 Ohm

Tweeter

Size 2¼" (57mm)

Impedance 6 Ohm

Dimension 165 x 815 x 310 (W X H X D)

Net Weight 23 Kg

USB

Class Support UMS (USB Mass Storage Class)

Capacity upto 16 GB

File Format MP3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Oradores de Philips

Philips

Philips HTL2101A/05 Manual de usuario

Philips

Philips SPA8210 Hoja de información del producto

Philips

Philips SPA9300 Manual de usuario

Philips

Philips LX7100SA/22 Manual de usuario

Philips

Philips FM CORDLESS SPEAKER BC8210 Manual de usuario

Philips

Philips TAX3206 Manual de usuario

Philips

Philips HTL1170B Guía

Philips

Philips LSBS900/00S Manual de usuario

Philips

Philips HTL5110 Manual de usuario

Philips

Philips HTL4115B/F7 Manual de usuario

Philips

Philips FWP1000/05 Manual de usuario

Philips

Philips BTS3000 Manual de usuario

Philips

Philips SPA4210/10 Manual de usuario

Philips

Philips HTL2160C/G/M/S/T/W/12/F7/93 Manual de usuario

Philips

Philips MMS 430 Manual de usuario

Philips

Philips EverPlay BT3900 Manual de usuario

Philips

Philips HTL3160B/93 Manual de usuario

Philips

Philips FX20 Manual de usuario

Philips

Philips HTL5140B Manual de usuario

Philips

Philips SBT300/05 Manual de usuario

Philips

Philips SBT75/85 Manual de usuario

Philips

Philips SBCBM140/05 Manual de usuario

Philips

Philips Fidelio BTS7000 Manual de usuario

Philips

Philips HTL1180B Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
