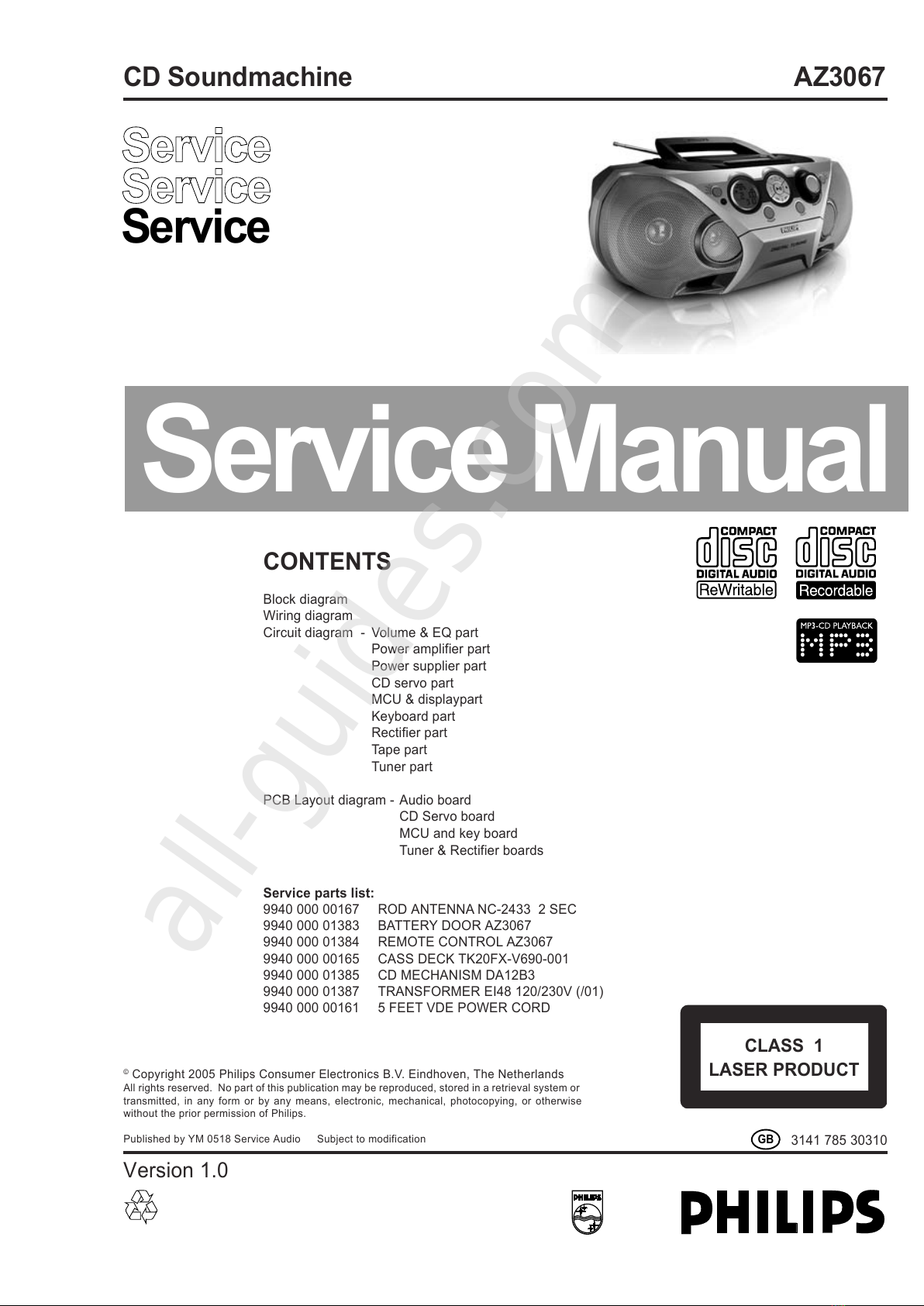

Philips Soundmachine AZ3067 Manual de usuario

GB

CLASS 1

LASER PRODUCT

Service

Service

Service

AZ3067

CONTENTS

Block diagram

Wiring diagram

Circuit diagram - Volume & EQ part

Power amplifier part

Power supplier part

CD servo part

MCU & displaypart

Keyboard part

Rectifier part

Tape part

Tuner part

PCB Layout diagram - Audio board

CD Servo board

MCU and key board

Tuner & Rectifier boards

Service parts list:

9940 000 00167 ROD ANTENNA NC-2433 2 SEC

9940 000 01383 BATTERY DOOR AZ3067

9940 000 01384 REMOTE CONTROL AZ3067

9940 000 00165 CASS DECK TK20FX-V690-001

9940 000 01385 CD MECHANISM DA12B3

9940 000 01387 TRANSFORMER EI48 120/230V (/01)

9940 000 00161 5 FEET VDE POWER CORD

© Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise

without the prior permission of Philips.

Published by YM 0518 Service Audio Subject to modification

CD Soundmachine

3141 785 30310

Version 1.0

Service Manual

All manuals and user guides at all-guides.com

all-guides.com

Block Diagram

All manuals and user guides at all-guides.com

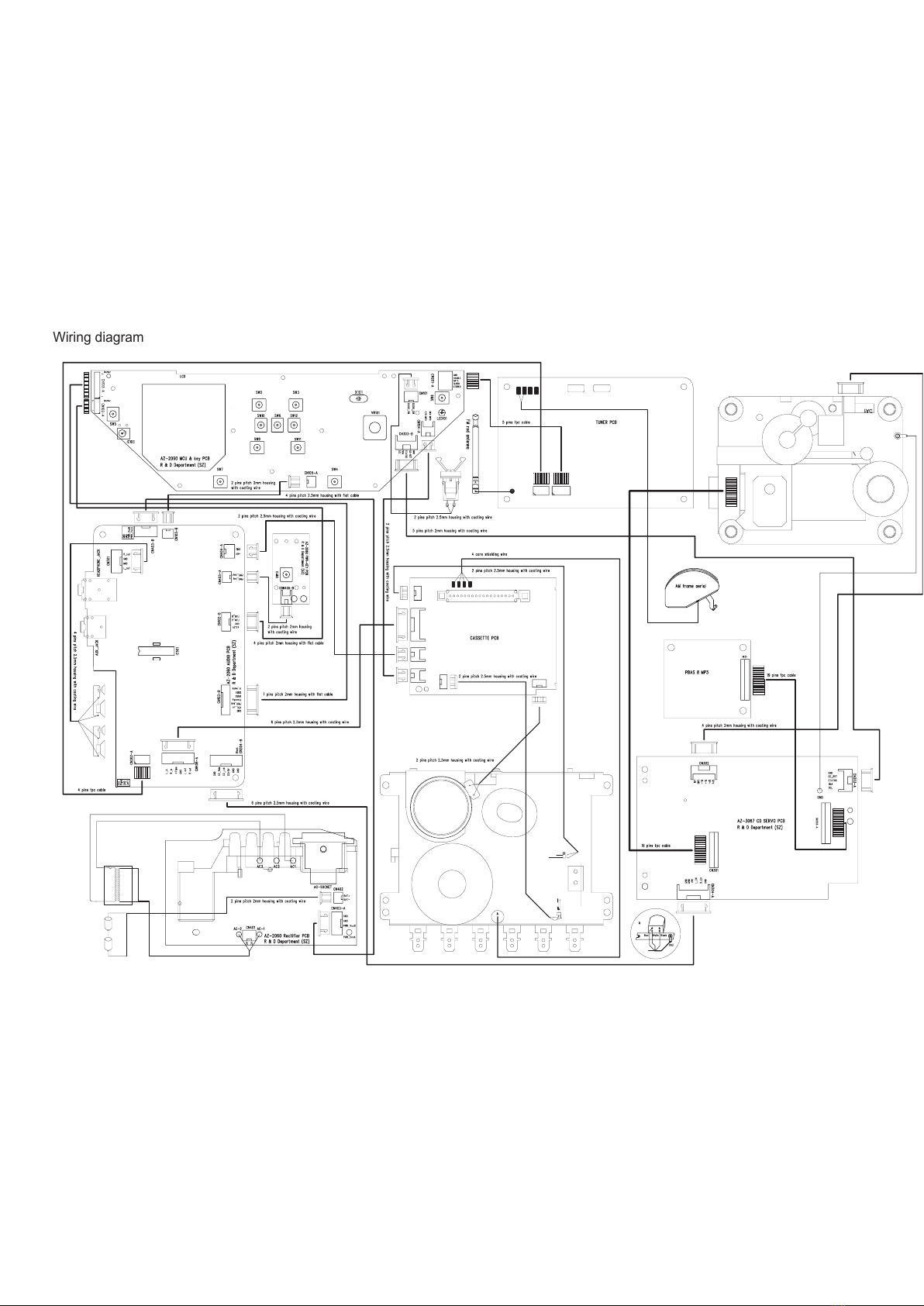

Wiring diagram

All manuals and user guides at all-guides.com

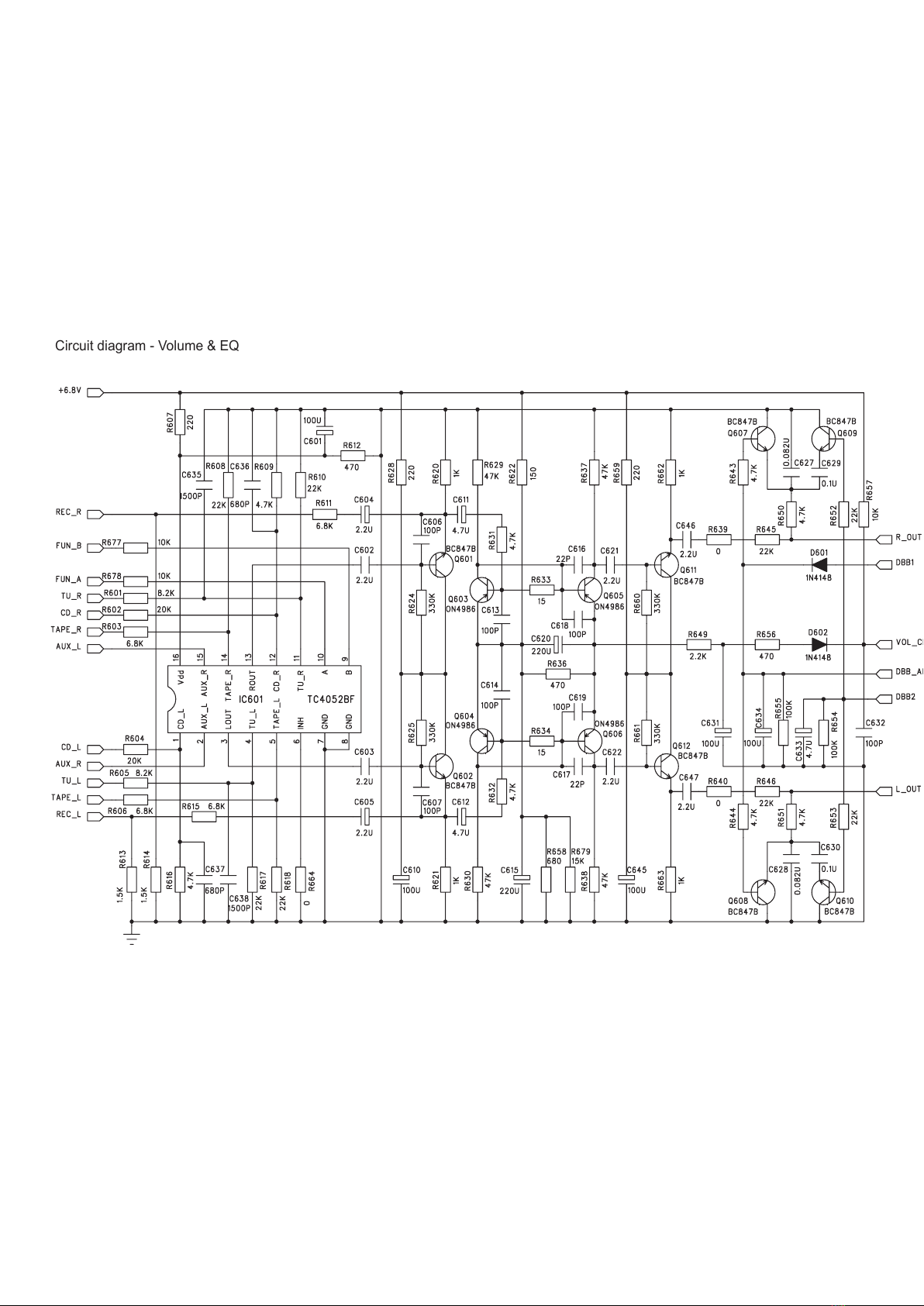

Circuit diagram - Volume & EQ

All manuals and user guides at all-guides.com

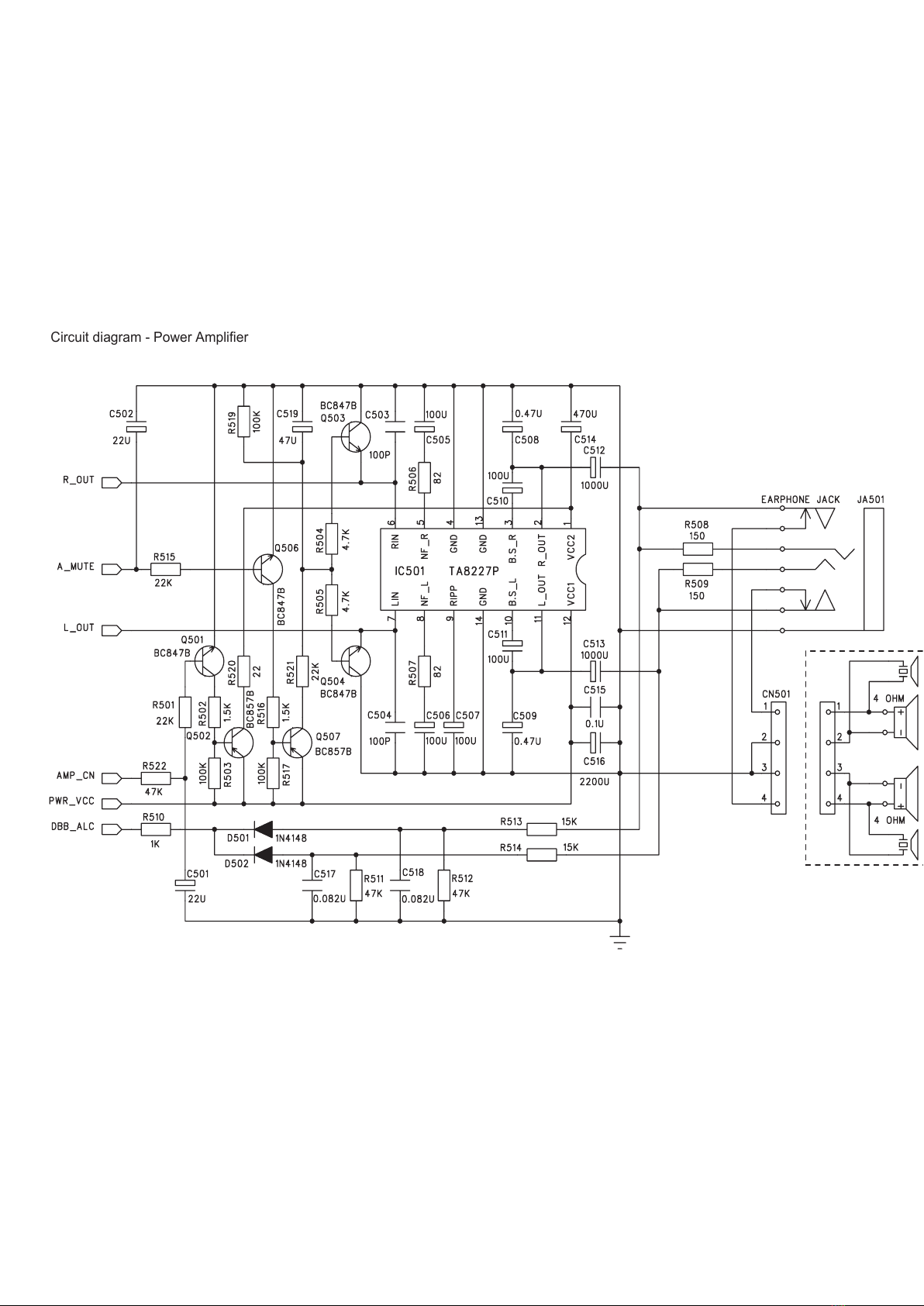

Circuit diagram - Power Amplifier

All manuals and user guides at all-guides.com

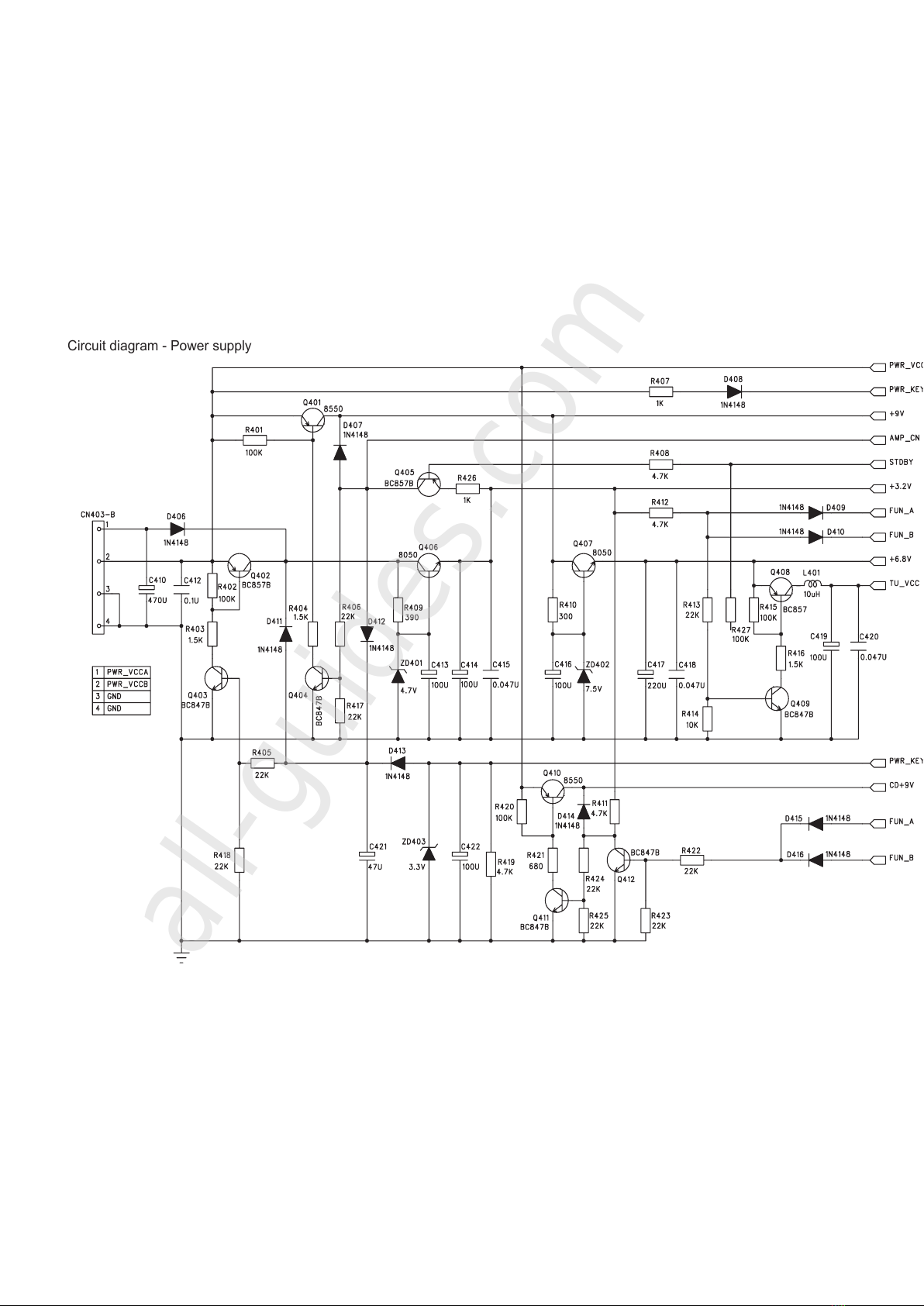

Circuit diagram - Power supply

All manuals and user guides at all-guides.com

all-guides.com

Circuit diagram - Audio interface

All manuals and user guides at all-guides.com

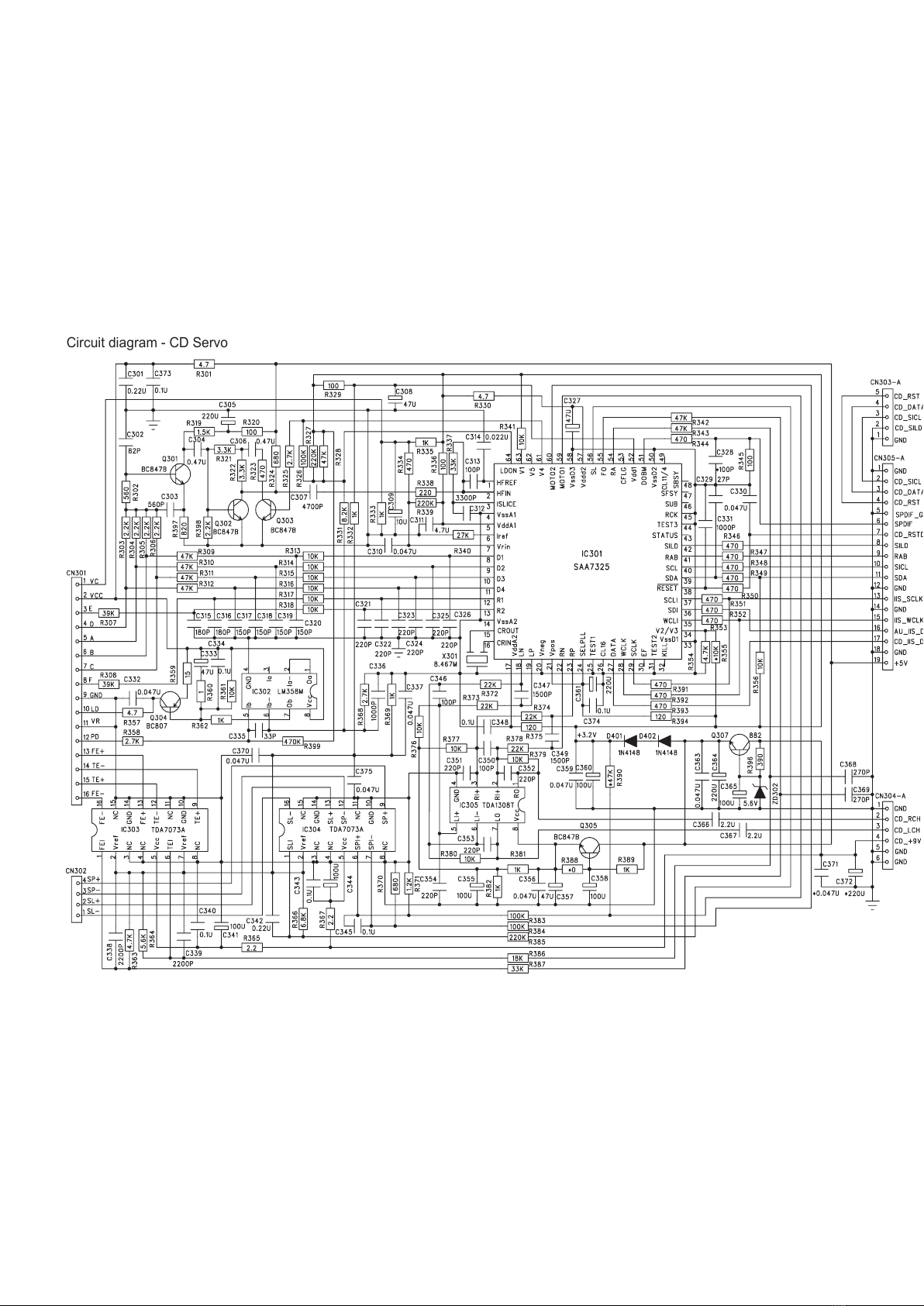

Circuit diagram - CD Servo

All manuals and user guides at all-guides.com

Circuit diagram - MCU board

All manuals and user guides at all-guides.com

Circuit Diagram - Key board

All manuals and user guides at all-guides.com
