Philips CSP610/55 Manual de usuario

www.philips.com/welcome

CSP410 CSP510

CSP6910CSP610

EN User manual

a b

Amplifier

Right White lined White lined

Right

Left

Black

Left

Car speaker

f g

English

1. Important

Safety

Read and understand all instructions before you use the apparatus.•

If damage is caused by failure to follow instructions, the warranty does

not apply.

Use only the supplied mounting hardware for a safe and secure•

installation.

Do not continuously use the speaker system beyond the peak power•

handling capacity.

Keep credit cards, watches, recorded tapes etc. with magnetic coding•

away from the speaker system to prevent damage caused by the

magnets in the speakers.

Clean the apparatus with soft, damp cloth. Never use substances such•

as alcohol, chemicals or household cleaners on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted. We have tried to make

the packaging easy to separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if

disassembled by a specialized company. Please observe the local regulations

regarding the disposal of packaging materials, exhausted batteries and old

equipment.

Anychangesormodicationsmadetothisdevicethatarenotexpressly

approved by Philips Consumer Lifestyle may void the user’s authority to

operate the equipment.

Specicationsaresubjecttochangewithoutnotice.Trademarksaretheproper tyofKoninklijkePhilips

Electronics N.V. or their respective owners. Philips reserves the right to change products at any time

without being obliged to adjust earlier supplies accordingly.

2.Your car stereo speakers

Congratulationsonyourpurchase,andwelcometoPhilips!Tofully

benetfromthesupportthatPhilipsoffers,registeryourproductat

www.philips.com/welcome.

Introduction

With the speakers, you can enjoy high power music with vivid sound.

What’s in the box A

Check and identify the contents of your package:

aSpeakers (x2)

bGrille net + Frame (x2)

cSpeaker wire (x2)

dScrew (x8)

eShrapnel (x8)

3. Installation

A depth of at least 46mm is required to mount the speaker. Measure the

depth of the area where you are to mount the speaker, and ensure that

the speaker does not obstruct any other components of the car.

Option 1: Mount on door (front or rear) B

You can mount the speakers on the front/rear door of your car. a

Note

•Make sure that nothing obstructs around the mounting location of the door.

A hole for mounting may already be cut out of the inner panel of the door

•

(front or rear). In this case, you need to modify the board only.

Ensure that the speaker terminals, frame or magnet do not interfere with any

•

inner parts, such as the window mechanism in the door (when you open or close

the window), etc. Also ensure that the speaker grille does not touch any inner

ttings,suchasthewindowcranks,doorhandles,armrestsetc.

1 Turnoffthecarignitionkey.

If the power is on, the click noise generated by the connection•

may damage the speakers.

2Cut out the mounting template from the packing box.

3Paste the template on the location selected for mounting the

speaker.

4Mark the cut-off hole and the 4 bolt holes. b

5Cut out the marked area and drill the bolt holes. c

6Remove the grille net. d

7 Stripthespeakerwiresandconnectthemtotheamplier. e

Black wire: connect to “-“ (negative) terminal•

Black (white lined): connect to “+“ (positive) terminal•

Note

Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may

•

degrade sound quality.

Two4-ohmspeakers,wiredinstereo,presenta8ohmloadtoeachchannel

•

oftheamplier.Mosttwochannelampliersworkwellinthisconguration.

However, if two 4-ohm speakers, wired in parallel to a bridged two -channel

amplier,presenta2-ohmmonoloadtotheamplier.Most2-channelampliers

donotsupport2-ohmmonooperation!Amplierdamagemayresult!

8Mount on the speaker as shown below. f

9Press and insert the edges of the grille net. g

Tip

Thespeakergrillecanbemountedwithoutthegrillenet,ifyoulike.

•

Option 2: Mount on rear tray C

You can also mount the speakers into the surface of the rear tray.

Follow the steps in section “Option 1: Mount in door” to mount the

speakers into the rear tray:

4. Product information

Note

Product information is subject to change without prior notice.•

Model CSP410 CSP510

Speaker type 10cm 2-way coaxial

speaker

13cm, 2-way coaxial

speaker

RMS power (Watts) 30W 35W

Peak music power (Watts) 150W 180W

Sensitivity (dB/W/m) 88dB 89dB

Frequency response (Hz) 50-30kHz 45-30kHz

Impedance (ohms) 4 ohms 4 ohms

Magnet mass (Oz) 4.4Oz 6.4Oz

Mounting depth (mm) 46mm 47mm

Model CSP610 CSP6910

Speaker type 16.5cm, 2-way coaxial

speaker

16x24cm, 3-way triaxial

speaker

RMS power (Watts) 40W 50W

Peak music power (Watts) 210W 300W

Sensitivity (dB/W/m) 90dB 90dB

Frequency response (Hz) 40-30kHz 28-32kHz

Impedance (ohms) 4 ohms 4 ohms

Magnet mass (Oz) 7.6Oz 12.6Oz

Mounting depth (mm) 58mm 78mm

5.Troubleshooting

Tokeepthewarrantyvalid,nevertrytorepairthesystemyourself.

If you encounter problems when using this apparatus, go to the Philips

web site (www.philips.com/welcome). When you contact Philips, ensure

that the apparatus is nearby and the model number and serial number

are available.

CSP410_55_UM_V2.1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Oradores de Philips

Philips

Philips TAS3505 Manual de usuario

Philips

Philips HTL2193B Manual de usuario

Philips

Philips MMS430W Manual de usuario

Philips

Philips fidelio b8 Manual de usuario

Philips

Philips Fidelio DS3800W Manual de usuario

Philips

Philips CSP6910/00 Manual de usuario

Philips

Philips AD7050W/10 Manual de usuario

Philips

Philips DSS 350 Manual de usuario

Philips

Philips HTL2183B Manual de usuario

Philips

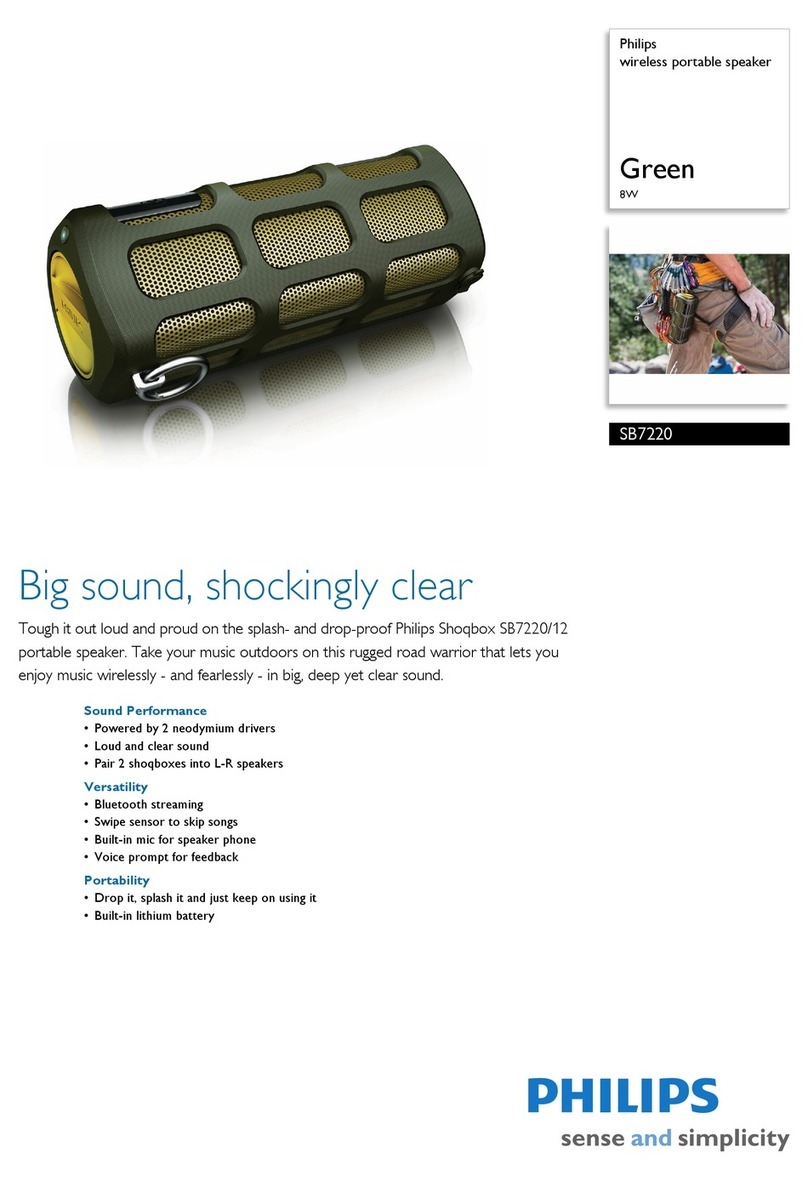

Philips SD7220 Manual de usuario
